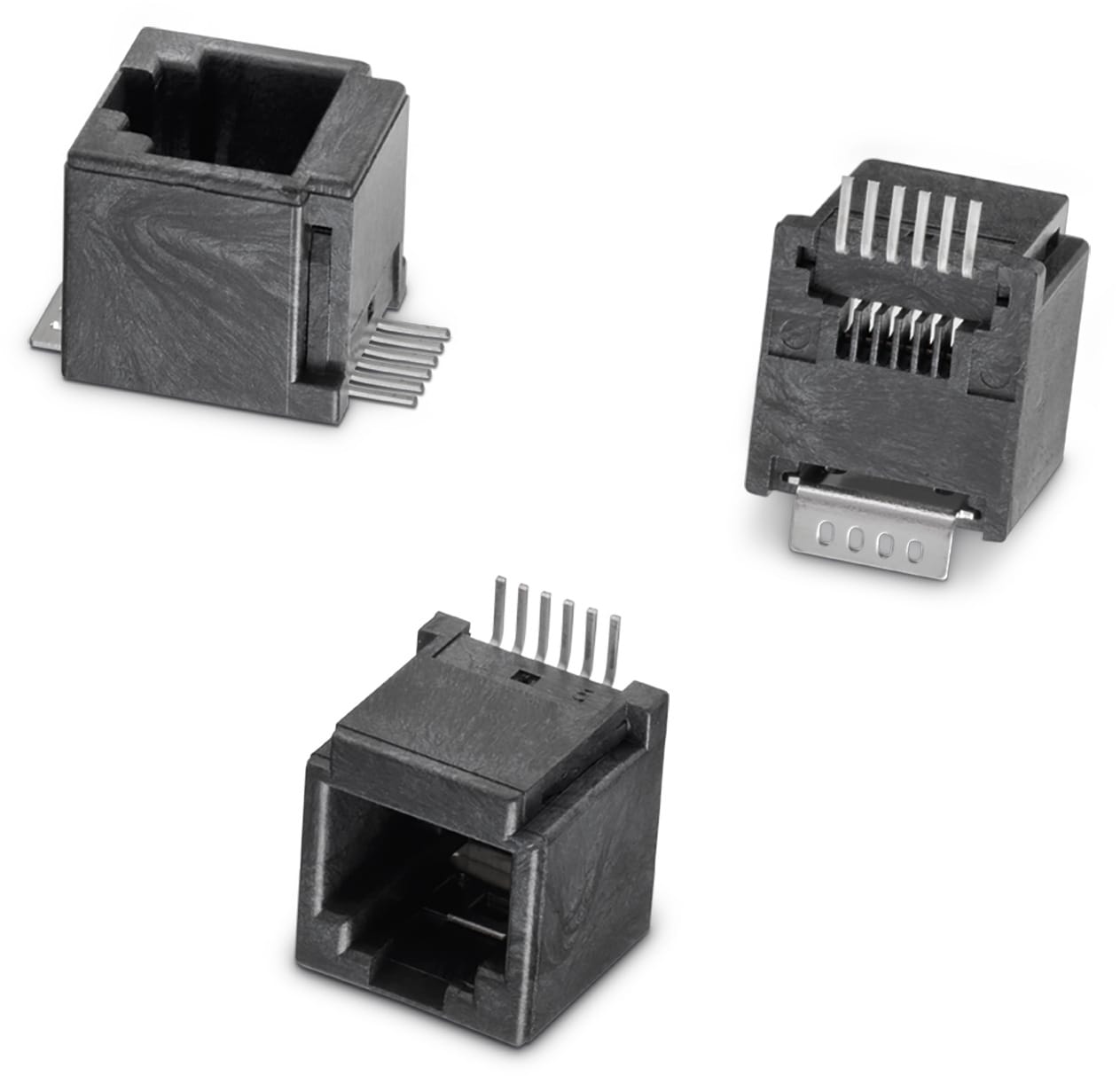

WR-MJ Modular Jack SMT Vertical Plastic 6P6C Top Entry

Material Properties
Insulator Material LCP
Insulator Flammability Rating UL94 V-0
Insulator Color Black
Contact Material Copper Alloy
Contact Plating Selective Gold
Contact Type Stamped
General Information
Operating Temperature -40 up to +85 °C
Electrical Properties
Working Voltage 120 V (AC)
Withstanding Voltage 1000 V (AC)
Contact Resistance 20 mΩ
RISO 500 MΩ
Packaging Properties
Packaging Tape and Reel & Mylar

Products

Order Code Data­sheet Downloads xPxC Type Mount Design Kit Samples
634106149621
IGE STE 3D ALT ALT EAG CAD 6P6C Vertical SMT 615001
Order Code Data­sheet
634106149621
Samples
Order Code Data­sheet Downloads xPxC Type Mount Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
