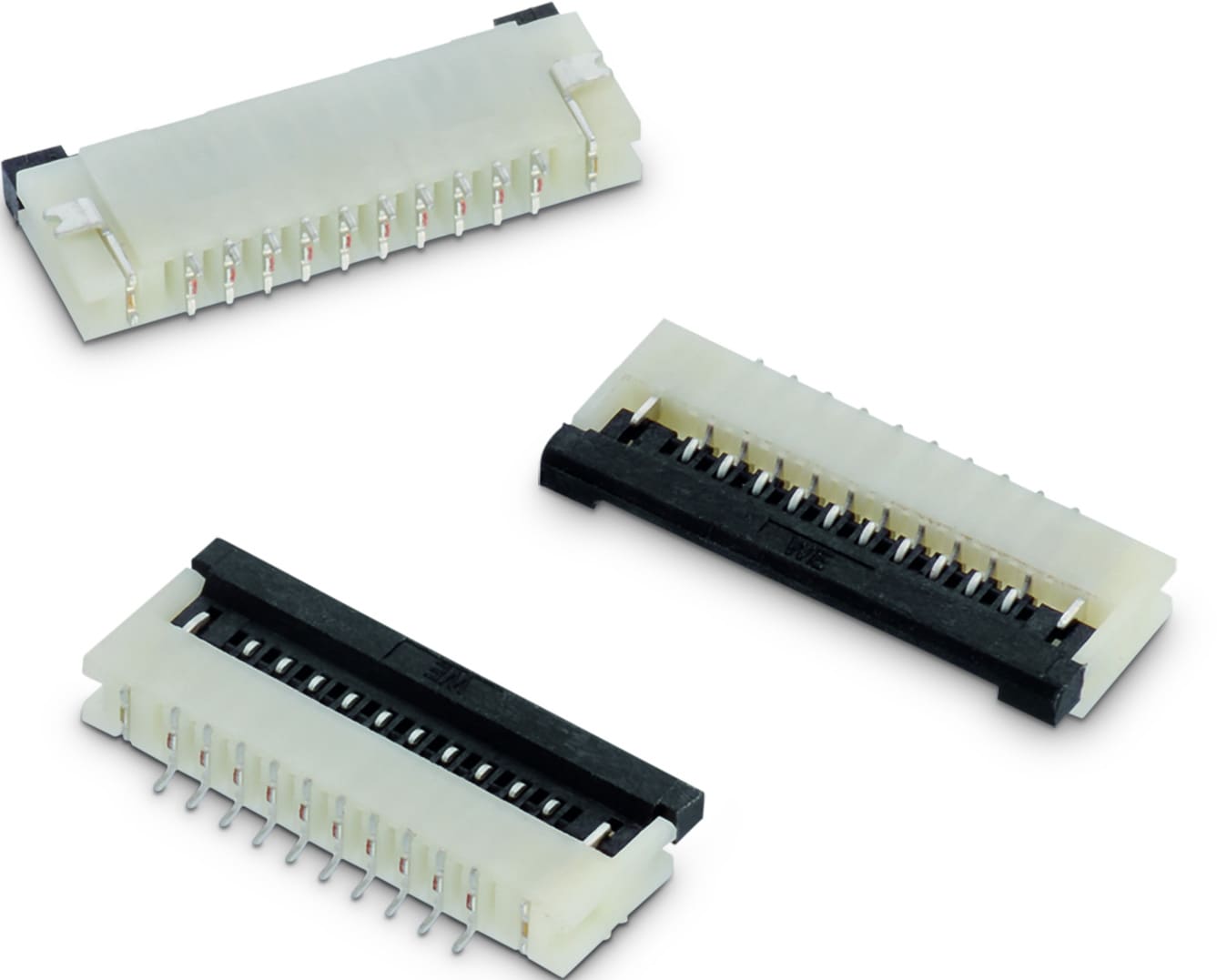

WR-FPC 1.00 mm SMT ZIF Horizontal - Bottom Contact - Hinge Type

General Information
Pitch1 mm
Material Properties
Insulator MaterialPA6T
Contact MaterialPhosphor Bronze
Contact Plating120 (µ") Tin over 50 (µ") Nickel
Contact TypeStamped
Solder TabsBrass

Products

Order Code Data­sheet DownloadsPinsPitch
(mm)
TypeL
(mm)
IR
(A)
Working Voltage
(V (AC))
PackagingContact Resistance
(mΩ)
Tol. RDesign Kit Samples
686104148922SPEC
7 files 4 1 Horizontal 8.6 1 100 Tape and Reel 50 max.687001
686106148922SPEC
7 files 6 1 Horizontal 10.6 1 100 Tape and Reel 50 max.687001
686108148922SPEC
7 files 8 1 Horizontal 12.6 1 100 Tape and Reel 50 max.687001
686110148922SPEC
7 files 10 1 Horizontal 14.6 1 100 Tape and Reel 50 max.612690
687001
686112148922SPEC
7 files 12 1 Horizontal 16.6 1 100 Tape and Reel 50 max.687001
686114148922SPEC
7 files 14 1 Horizontal 18.6 1 100 Tape and Reel 50 max.687001
686115148922SPEC
7 files 15 1 Horizontal 19.6 1 100 Tape and Reel 50 max.687001
686116148922SPEC
7 files 16 1 Horizontal 20.6 1 100 Tape and Reel 50 max.687001
686118148922SPEC
7 files 18 1 Horizontal 22.6 1 100 Tape and Reel 50 max.687001
686120148922SPEC
7 files 20 1 Horizontal 24.6 1 100 Tape and Reel 50 max.687001
686122148922SPEC
7 files 22 1 Horizontal 26.6 1 100 Tape and Reel 50 max.687001
686124148922SPEC
7 files 24 1 Horizontal 28.6 1 100 Tape and Reel 50 max.687001
686126148922SPEC
7 files 26 1 Horizontal 30.6 1 100 Tape and Reel 50 max.687001
686128148922SPEC
7 files 28 1 Horizontal 32.6 1 100 Tape and Reel 50 max.687001
686130148922SPEC
7 files 30 1 Horizontal 34.6 1 100 Tape and Reel 50 max.687001
