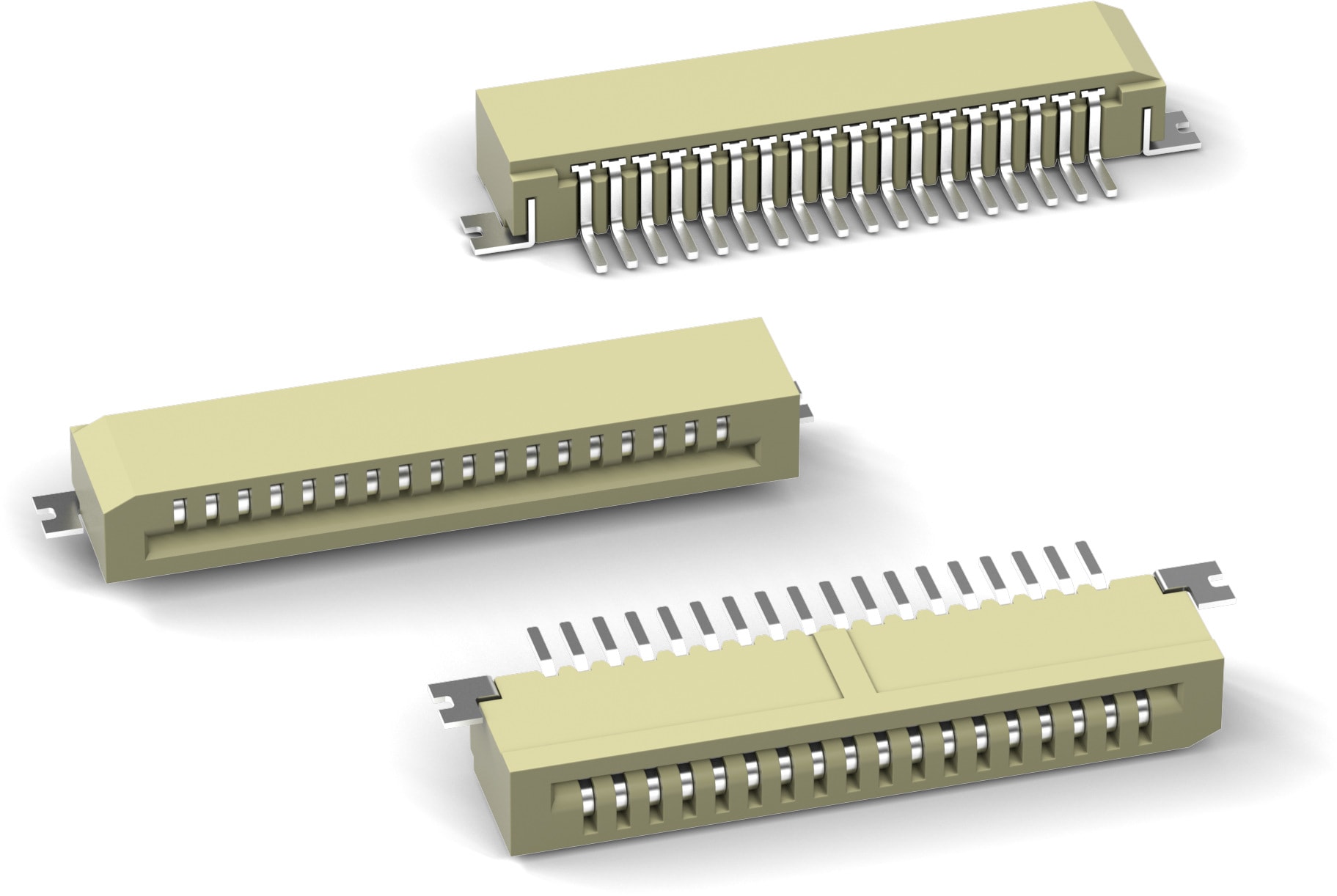

1.00 mm SMT LIF Horizontal Top Contact NEW

Kind Properties
Pitch 1 mm
Material Properties
Insulator Material LCP
Contact Material Phosphor Bronze
Contact Plating 2.032µm Tin over 1.27µm Nickel
Contact Type Stamped
Solder Tabs Brass

Products

Order Code SPEC Downloads Pins Pitch
(mm)
Type L
(mm)
IR
(A)
Working Voltage
(V (AC))
Packaging Contact Resistance
(mΩ)
Tol. R Samples
686110188622
ALT EAG 10 1 Horizontal 13.8 1 125 Tape and Reel 30 max.
686112188622
ALT EAG 12 1 Horizontal 15.8 1 125 Tape and Reel 30 max.
686114188622
ALT EAG 14 1 Horizontal 17.8 1 125 Tape and Reel 30 max.
686116188622
ALT EAG 16 1 Horizontal 19.8 1 125 Tape and Reel 30 max.
686118188622
ALT EAG 18 1 Horizontal 21.8 1 125 Tape and Reel 30 max.
686120188622
ALT EAG 20 1 Horizontal 23.8 1 125 Tape and Reel 30 max.
686122188622
ALT EAG 22 1 Horizontal 25.8 1 125 Tape and Reel 30 max.
686124188622
ALT EAG 24 1 Horizontal 27.8 1 125 Tape and Reel 30 max.
686126188622
ALT EAG 26 1 Horizontal 29.8 1 125 Tape and Reel 30 max.
686128188622
ALT EAG 28 1 Horizontal 31.8 1 125 Tape and Reel 30 max.
686130188622
ALT EAG 30 1 Horizontal 33.8 1 125 Tape and Reel 30 max.
686104188622
ALT EAG 4 1 Horizontal 7.8 1 125 Tape and Reel 30 max.
686106188622
ALT EAG 6 1 Horizontal 9.8 1 125 Tape and Reel 30 max.
686108188622
ALT EAG 8 1 Horizontal 11.8 1 125 Tape and Reel 30 max.
686109188622
ALT EAG 9 1 Horizontal 12.8 1 125 Tape and Reel 30 max.
Order Code SPEC
686110188622
686112188622
686114188622
686116188622
686118188622
686120188622
686122188622
686124188622
686126188622
686128188622
686130188622
686104188622
686106188622
686108188622
686109188622
Samples
Order Code SPEC Downloads Pins Pitch
(mm)
Type L
(mm)
IR
(A)
Working Voltage
(V (AC))
Packaging Contact Resistance
(mΩ)
Tol. R Samples
