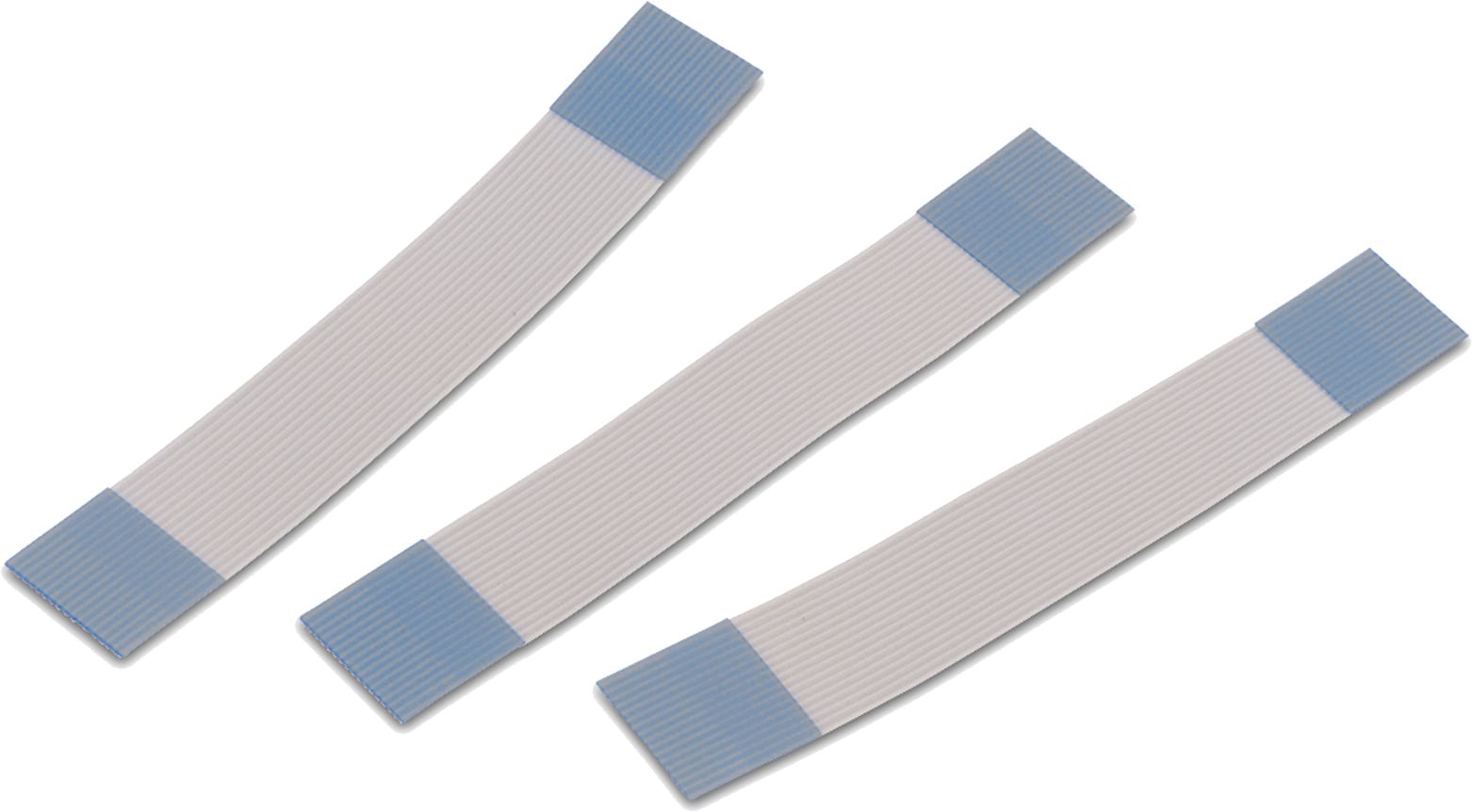

WR-FFC 0.50 mm Flat Flexible Cable Type 1 (Contacts on same side)

Kind Properties
Pitch0.5 mm
Material Properties
Insulator MaterialPET (White)
Contact MaterialCopper
Contact PlatingTin

Products

Order Code Data­sheet DownloadsPinsPitch
(mm)
TypeL
(mm)
IR
(A)
Working Voltage
(V)
Contact Resistance
(mΩ)
Tol. RDesign Kit Samples
687606050002SPEC
1 files 6 0.5 Type 1 50 0.5 60 20 max.
687606100002SPEC
1 files 6 0.5 Type 1 100 0.5 60 20 max.
687606200002SPEC
1 files 6 0.5 Type 1 200 0.5 60 20 max.
687606152002SPEC
1 files 6 0.5 Type 1 152 0.5 60 20 max.
687608050002SPEC
1 files 8 0.5 Type 1 50 0.5 60 20 max.
687608100002SPEC
1 files 8 0.5 Type 1 100 0.5 60 20 max.
687608200002SPEC
1 files 8 0.5 Type 1 200 0.5 60 20 max.
687608152002SPEC
1 files 8 0.5 Type 1 152 0.5 60 20 max.
687610050002SPEC
1 files 10 0.5 Type 1 50 0.5 60 20 max.687001
687610100002SPEC
1 files 10 0.5 Type 1 100 0.5 60 20 max.
687610200002SPEC
1 files 10 0.5 Type 1 200 0.5 60 20 max.
687610152002SPEC
1 files 10 0.5 Type 1 152 0.5 60 20 max.
687612050002SPEC
1 files 12 0.5 Type 1 50 0.5 60 20 max.
687612100002SPEC
1 files 12 0.5 Type 1 100 0.5 60 20 max.
687612200002SPEC
1 files 12 0.5 Type 1 200 0.5 60 20 max.
687612152002SPEC
1 files 12 0.5 Type 1 152 0.5 60 20 max.
687614050002SPEC
1 files 14 0.5 Type 1 50 0.5 60 20 max.
687614100002SPEC
1 files 14 0.5 Type 1 100 0.5 60 20 max.
687614200002SPEC
1 files 14 0.5 Type 1 200 0.5 60 20 max.
687614152002SPEC
1 files 14 0.5 Type 1 152 0.5 60 20 max.
687616050002SPEC
1 files 16 0.5 Type 1 50 0.5 60 20 max.
687616100002SPEC
1 files 16 0.5 Type 1 100 0.5 60 20 max.
687616200002SPEC
1 files 16 0.5 Type 1 200 0.5 60 20 max.
687616152002SPEC
1 files 16 0.5 Type 1 152 0.5 60 20 max.
687617050002SPEC
1 files 17 0.5 Type 1 50 0.5 60 20 max.
687617200002SPEC
1 files 17 0.5 Type 1 200 0.5 60 20 max.
687617100002SPEC
1 files 17 0.5 Type 1 100 0.5 60 20 max.
687617152002SPEC
1 files 17 0.5 Type 1 152 0.5 60 20 max.
687618050002SPEC
1 files 18 0.5 Type 1 50 0.5 60 20 max.
687618100002SPEC
1 files 18 0.5 Type 1 100 0.5 60 20 max.
687618200002SPEC
1 files 18 0.5 Type 1 200 0.5 60 20 max.
687618152002SPEC
1 files 18 0.5 Type 1 152 0.5 60 20 max.
687620050002SPEC
1 files 20 0.5 Type 1 50 0.5 60 20 max.687001
687620100002SPEC
1 files 20 0.5 Type 1 100 0.5 60 20 max.
687620200002SPEC
1 files 20 0.5 Type 1 200 0.5 60 20 max.
687620152002SPEC
1 files 20 0.5 Type 1 152 0.5 60 20 max.
687622050002SPEC
1 files 22 0.5 Type 1 50 0.5 60 20 max.
687622100002SPEC
1 files 22 0.5 Type 1 100 0.5 60 20 max.
687622200002SPEC
1 files 22 0.5 Type 1 200 0.5 60 20 max.
687622152002SPEC
1 files 22 0.5 Type 1 152 0.5 60 20 max.
687624050002SPEC
1 files 24 0.5 Type 1 50 0.5 60 20 max.
687624100002SPEC
1 files 24 0.5 Type 1 100 0.5 60 20 max.
687624200002SPEC
1 files 24 0.5 Type 1 200 0.5 60 20 max.
687624152002SPEC
1 files 24 0.5 Type 1 152 0.5 60 20 max.
687626050002SPEC
1 files 26 0.5 Type 1 50 0.5 60 20 max.
687626100002SPEC
1 files 26 0.5 Type 1 100 0.5 60 20 max.
687626200002SPEC
1 files 26 0.5 Type 1 200 0.5 60 20 max.
687626152002SPEC
1 files 26 0.5 Type 1 152 0.5 60 20 max.
687628050002SPEC
1 files 28 0.5 Type 1 50 0.5 60 20 max.
687628100002SPEC
1 files 28 0.5 Type 1 100 0.5 60 20 max.
687628200002SPEC
1 files 28 0.5 Type 1 200 0.5 60 20 max.
687628152002SPEC
1 files 28 0.5 Type 1 152 0.5 60 20 max.
687630050002SPEC
1 files 30 0.5 Type 1 50 0.5 60 20 max.
687630100002SPEC
1 files 30 0.5 Type 1 100 0.5 60 20 max.
687630200002SPEC
1 files 30 0.5 Type 1 200 0.5 60 20 max.
687630152002SPEC
1 files 30 0.5 Type 1 152 0.5 60 20 max.
687632050002SPEC
1 files 32 0.5 Type 1 50 0.5 60 20 max.
687632100002SPEC
1 files 32 0.5 Type 1 100 0.5 60 20 max.
687632200002SPEC
1 files 32 0.5 Type 1 200 0.5 60 20 max.
687632152002SPEC
1 files 32 0.5 Type 1 152 0.5 60 20 max.
687633050002SPEC
1 files 33 0.5 Type 1 50 0.5 60 20 max.
687633100002SPEC
1 files 33 0.5 Type 1 100 0.5 60 20 max.
687633200002SPEC
1 files 33 0.5 Type 1 200 0.5 60 20 max.
687633152002SPEC
1 files 33 0.5 Type 1 152 0.5 60 20 max.
687634050002SPEC
1 files 34 0.5 Type 1 50 0.5 60 20 max.
687634100002SPEC
1 files 34 0.5 Type 1 100 0.5 60 20 max.
687634200002SPEC
1 files 34 0.5 Type 1 200 0.5 60 20 max.
687634152002SPEC
1 files 34 0.5 Type 1 152 0.5 60 20 max.
687635050002SPEC
1 files 35 0.5 Type 1 50 0.5 60 20 max.
687635100002SPEC
1 files 35 0.5 Type 1 100 0.5 60 20 max.
687635200002SPEC
1 files 35 0.5 Type 1 200 0.5 60 20 max.
687635152002SPEC
1 files 35 0.5 Type 1 152 0.5 60 20 max.
687640050002SPEC
1 files 40 0.5 Type 1 50 0.5 60 20 max.687001
687640100002SPEC
1 files 40 0.5 Type 1 100 0.5 60 20 max.
687640200002SPEC
1 files 40 0.5 Type 1 200 0.5 60 20 max.
687640152002SPEC
1 files 40 0.5 Type 1 152 0.5 60 20 max.
687644050002SPEC
1 files 44 0.5 Type 1 50 0.5 60 20 max.
687644100002SPEC
1 files 44 0.5 Type 1 100 0.5 60 20 max.
687644200002SPEC
1 files 44 0.5 Type 1 200 0.5 60 20 max.
687644152002SPEC
1 files 44 0.5 Type 1 152 0.5 60 20 max.
687645050002SPEC
1 files 45 0.5 Type 1 50 0.5 60 20 max.
687645100002SPEC
1 files 45 0.5 Type 1 100 0.5 60 20 max.
687645200002SPEC
1 files 45 0.5 Type 1 200 0.5 60 20 max.
687645152002SPEC
1 files 45 0.5 Type 1 152 0.5 60 20 max.
687650050002SPEC
1 files 50 0.5 Type 1 50 0.5 60 20 max.
687650100002SPEC
1 files 50 0.5 Type 1 100 0.5 60 20 max.
687650200002SPEC
1 files 50 0.5 Type 1 200 0.5 60 20 max.
687650152002SPEC
1 files 50 0.5 Type 1 152 0.5 60 20 max.
