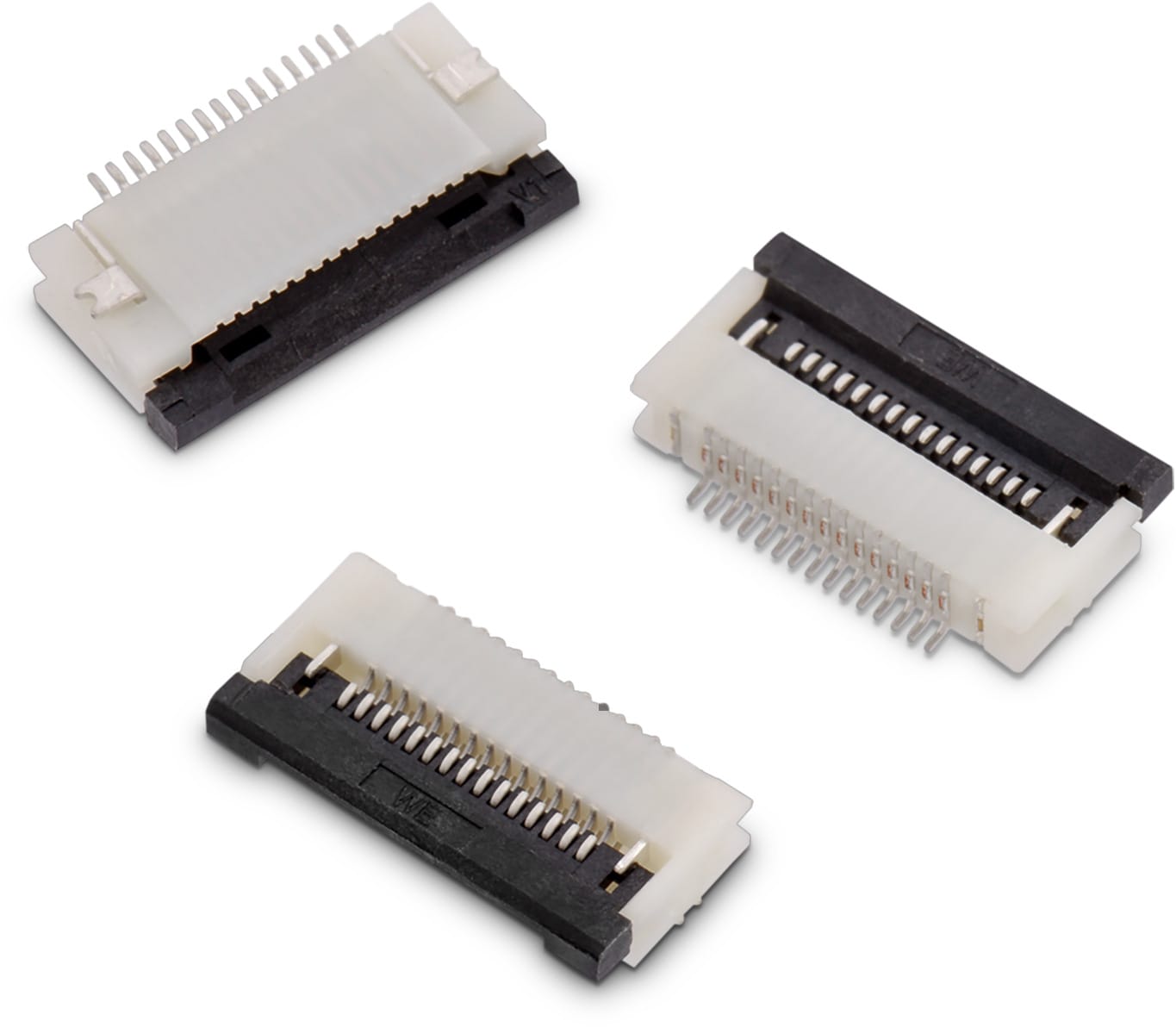

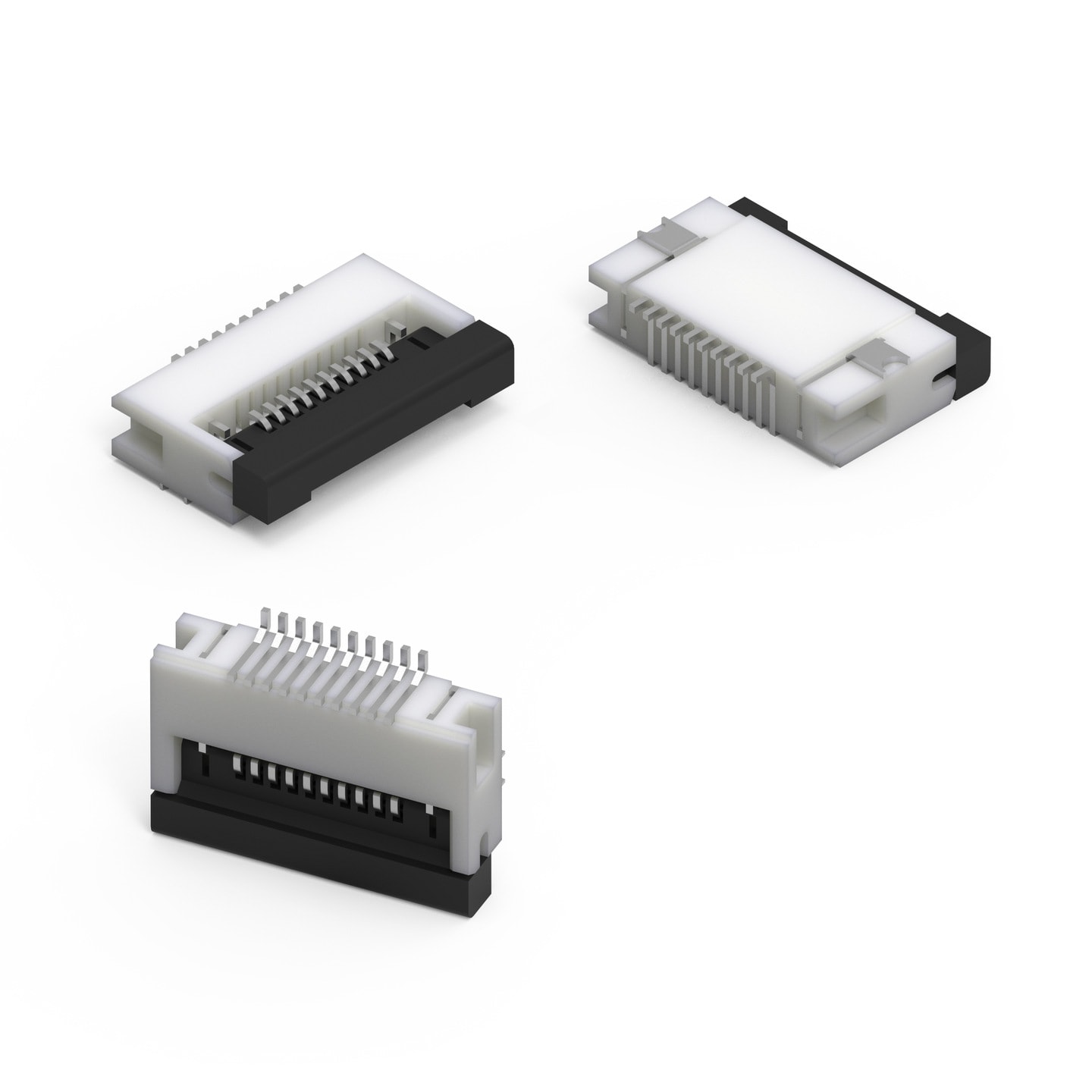

WR-FPC 0.50 mm SMT ZIF Horizontal - Hinge Type | Electromechanical Components

General Information
Pitch	0.5 mm

Material Properties
Insulator Material	PA6T
Contact Material	Phosphor Bronze
Contact Plating	120 (µ") Tin over 50 (µ") Nickel
Contact Type	Stamped
Solder Tabs	Brass

Application Notes

ANE018 Plastic Material Properties
PDF

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Type	L (mm)	I_R (A)	Working Voltage (V (AC))	Packaging	Contact Resistance (mΩ)	Tol. R	Design Kit
687106149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687106149022 (rev1).pdf \| 99.7 KB IGS 687106149022 (rev1).igs \| 1.6 MB STP 687106149022 (rev1).stp \| 618.1 KB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	0.5	Horizontal	7.1	0.5	50	Tape and Reel	50	max.	687001
687108149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687108149022 (rev1).pdf \| 107.7 KB IGS 687108149022 (rev1).igs \| 1.7 MB STP 687108149022 (rev1).stp \| 679.9 KB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	0.5	Horizontal	8.1	0.5	50	Tape and Reel	50	max.	687001
687110149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687110149022 (rev1).pdf \| 115.7 KB IGS 687110149022 (rev1).igs \| 1.9 MB STP 687110149022 (rev1).stp \| 741.7 KB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	0.5	Horizontal	9.1	0.5	50	Tape and Reel	50	max.	687001
687112149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687112149022 (rev1).pdf \| 123.8 KB IGS 687112149022 (rev1).igs \| 2 MB STP 687112149022 (rev1).stp \| 803.5 KB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	0.5	Horizontal	10.1	0.5	50	Tape and Reel	50	max.	687001
687114149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687114149022 (rev1).pdf \| 131.9 KB IGS 687114149022 (rev1).igs \| 2.2 MB STP 687114149022 (rev1).stp \| 865.5 KB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	0.5	Horizontal	11.1	0.5	50	Tape and Reel	50	max.	687001
687116149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687116149022 (rev1).pdf \| 140 KB IGS 687116149022 (rev1).igs \| 2.3 MB STP 687116149022 (rev1).stp \| 927.7 KB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	0.5	Horizontal	12.1	0.5	50	Tape and Reel	50	max.	687001
687118149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687118149022 (rev1).pdf \| 148.1 KB IGS 687118149022 (rev1).igs \| 2.5 MB STP 687118149022 (rev1).stp \| 990.1 KB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	0.5	Horizontal	13.1	0.5	50	Tape and Reel	50	max.	687001
687120149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687120149022 (rev1).pdf \| 156.3 KB IGS 687120149022 (rev1).igs \| 2.6 MB STP 687120149022 (rev1).stp \| 1 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	0.5	Horizontal	14.1	0.5	50	Tape and Reel	50	max.	612690 687001
687122149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687122149022 (rev1).pdf \| 164.4 KB IGS 687122149022 (rev1).igs \| 2.8 MB STP 687122149022 (rev1).stp \| 1.1 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	0.5	Horizontal	15.1	0.5	50	Tape and Reel	50	max.	687001
687124149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687124149022 (rev1).pdf \| 172.6 KB IGS 687124149022 (rev1).igs \| 3 MB STP 687124149022 (rev1).stp \| 1.1 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	0.5	Horizontal	16.1	0.5	50	Tape and Reel	50	max.	687001
687126149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687126149022 (rev1).pdf \| 180.8 KB IGS 687126149022 (rev1).igs \| 3.1 MB STP 687126149022 (rev1).stp \| 1.2 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	0.5	Horizontal	17.1	0.5	50	Tape and Reel	50	max.	687001
687128149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687128149022 (rev1).pdf \| 189 KB IGS 687128149022 (rev1).igs \| 3.3 MB STP 687128149022 (rev1).stp \| 1.3 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	28	0.5	Horizontal	18.1	0.5	50	Tape and Reel	50	max.	687001
687130149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687130149022 (rev1).pdf \| 197.2 KB IGS 687130149022 (rev1).igs \| 3.4 MB STP 687130149022 (rev1).stp \| 1.3 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	0.5	Horizontal	19.1	0.5	50	Tape and Reel	50	max.	687001
687132149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687132149022 (rev1).pdf \| 205.4 KB IGS 687132149022 (rev1).igs \| 3.6 MB STP 687132149022 (rev1).stp \| 1.4 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	32	0.5	Horizontal	20.1	0.5	50	Tape and Reel	50	max.	687001
687133149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687133149022 (rev1).pdf \| 209.5 KB IGS 687133149022 (rev1).igs \| 3.7 MB STP 687133149022 (rev1).stp \| 1.4 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33	0.5	Horizontal	20.6	0.5	50	Tape and Reel	50	max.	687001
687134149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687134149022 (rev1).pdf \| 213.6 KB IGS 687134149022 (rev1).igs \| 3.7 MB STP 687134149022 (rev1).stp \| 1.5 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	34	0.5	Horizontal	21.1	0.5	50	Tape and Reel	50	max.	687001
687135149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687135149022 (rev1).pdf \| 217.8 KB IGS 687135149022 (rev1).igs \| 3.8 MB STP 687135149022 (rev1).stp \| 1.5 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	35	0.5	Horizontal	21.6	0.5	50	Tape and Reel	50	max.	687001
687140149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687140149022 (rev1).pdf \| 238.3 KB IGS 687140149022 (rev1).igs \| 4.2 MB STP 687140149022 (rev1).stp \| 1.6 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	0.5	Horizontal	24.1	0.5	50	Tape and Reel	50	max.	687001
687145149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687145149022 (rev1).pdf \| 259.1 KB IGS 687145149022 (rev1).igs \| 4.6 MB STP 687145149022 (rev1).stp \| 1.8 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	45	0.5	Horizontal	26.6	0.5	50	Tape and Reel	50	max.	687001
687150149022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 687150149022 (rev1).pdf \| 279.8 KB IGS 687150149022 (rev1).igs \| 5 MB STP 687150149022 (rev1).stp \| 1.9 MB Others ZIP PCG Precaution_WE-FPC_6871xx149022_6861xx148922 (rev1).pdf \| 659.6 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	50	0.5	Horizontal	29.1	0.5	50	Tape and Reel	50	max.	687001
