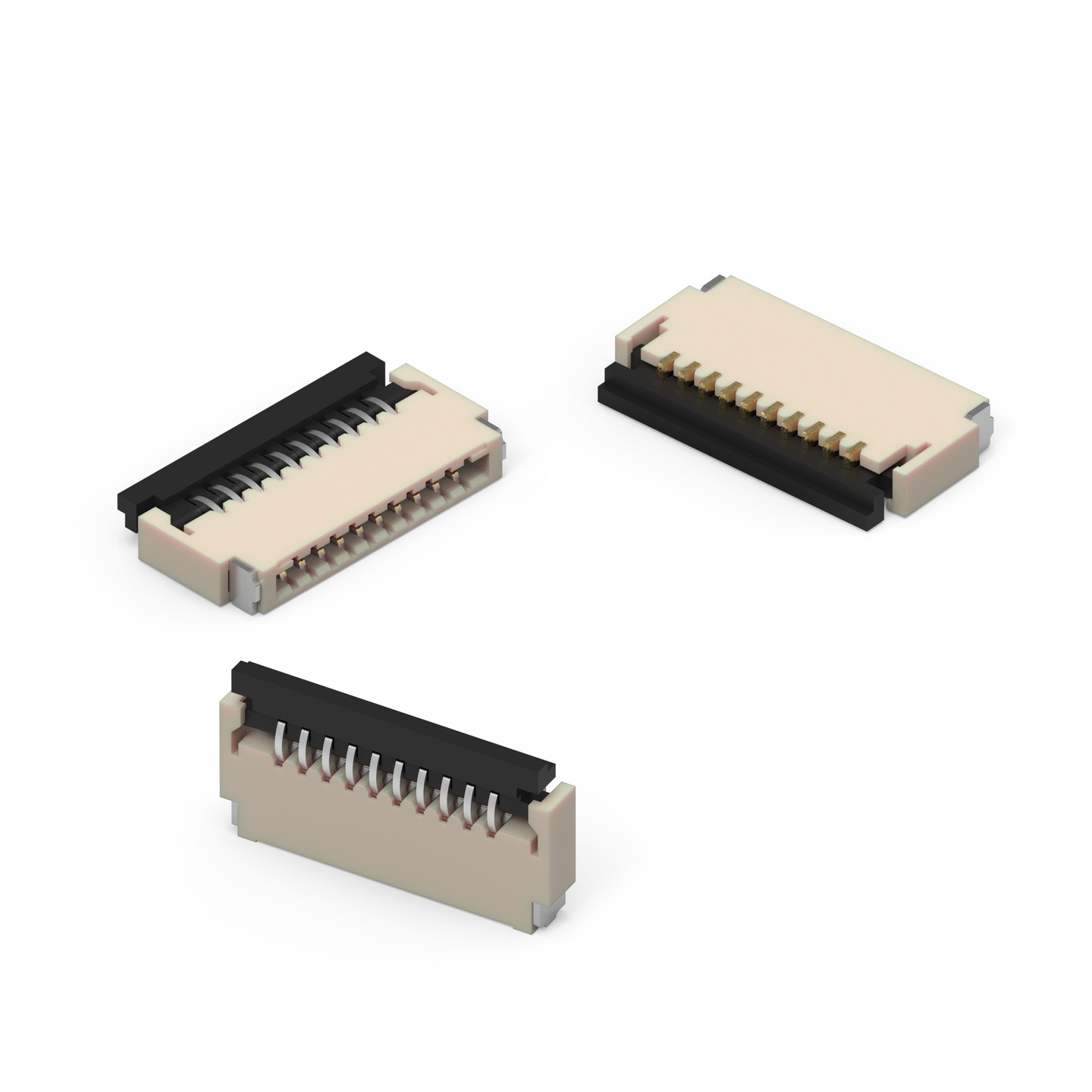

WR-FPC 0.50 mm SMT ZIF Horizontal Dual Contact

General Information
Pitch	0.5 mm

Material Properties
Insulator Material	LCP
Contact Material	Phosphor Bronze
Contact Plating	80 (µ") Tin over 50 (µ") Nickel
Contact Type	Stamped
Solder Tabs	Brass

Application Notes

ANE018 Plastic Material Properties
PDF

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Type	L (mm)	I_R (A)	Working Voltage (V (AC))	Packaging	Contact Resistance (mΩ)	Tol. R	Design Kit	Samples
687106182122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687106182122 (rev1).pdf \| 93.3 KB IGS 687106182122 (rev1).iges \| 1.5 MB STP 687106182122 (rev1).stp \| 613.9 KB Others ZIP PCG Precaution_WE-FPC_6871xx182122 (rev1).pdf \| 657 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	0.5	Horizontal	5	0.5	50	Tape and Reel	30	max.	687001
687108182122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687108182122 (rev1).pdf \| 107.8 KB IGS 687108182122 (rev1).iges \| 1.8 MB STP 687108182122 (rev1).stp \| 729.3 KB Others ZIP PCG Precaution_WE-FPC_6871xx182122 (rev1).pdf \| 657 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	0.5	Horizontal	6	0.5	50	Tape and Reel	30	max.	687001
687110182122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687110182122 (rev1).pdf \| 122.3 KB IGS 687110182122 (rev1).iges \| 2.1 MB STP 687110182122 (rev1).stp \| 844.9 KB Others ZIP PCG Precaution_WE-FPC_6871xx182122 (rev1).pdf \| 657 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	0.5	Horizontal	7	0.5	50	Tape and Reel	30	max.	687001
687112182122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687112182122 (rev1).pdf \| 137.3 KB IGS 687112182122 (rev1).iges \| 2.3 MB STP 687112182122 (rev1).stp \| 961 KB Others ZIP PCG Precaution_WE-FPC_6871xx182122 (rev1).pdf \| 657 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	0.5	Horizontal	8	0.5	50	Tape and Reel	30	max.	687001
687114182122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687114182122 (rev1).pdf \| 152.2 KB IGS 687114182122 (rev1).iges \| 2.6 MB STP 687114182122 (rev1).stp \| 1.1 MB Others ZIP PCG Precaution_WE-FPC_6871xx182122 (rev1).pdf \| 657 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	0.5	Horizontal	9	0.5	50	Tape and Reel	30	max.	687001
687116182122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687116182122 (rev1).pdf \| 167 KB IGS 687116182122 (rev1).iges \| 2.9 MB STP 687116182122 (rev1).stp \| 1.2 MB Others ZIP PCG Precaution_WE-FPC_6871xx182122 (rev1).pdf \| 657 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	0.5	Horizontal	10	0.5	50	Tape and Reel	30	max.	687001
687118182122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687118182122 (rev1).pdf \| 181.7 KB IGS 687118182122 (rev1).iges \| 3.1 MB STP 687118182122 (rev1).stp \| 1.3 MB Others ZIP PCG Precaution_WE-FPC_6871xx182122 (rev1).pdf \| 657 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	0.5	Horizontal	11	0.5	50	Tape and Reel	30	max.	687001
687120182122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687120182122 (rev1).pdf \| 196.1 KB IGS 687120182122 (rev1).iges \| 3.4 MB STP 687120182122 (rev1).stp \| 1.4 MB Others ZIP PCG Precaution_WE-FPC_6871xx182122 (rev1).pdf \| 657 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	0.5	Horizontal	12	0.5	50	Tape and Reel	30	max.	612690
687122182122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687122182122 (rev1).pdf \| 211.2 KB IGS 687122182122 (rev1).iges \| 3.7 MB STP 687122182122 (rev1).stp \| 1.5 MB Others ZIP PCG Precaution_WE-FPC_6871xx182122 (rev1).pdf \| 657 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	0.5	Horizontal	13	0.5	50	Tape and Reel	30	max.	–
687124182122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687124182122 (rev1).pdf \| 226.2 KB IGS 687124182122 (rev1).iges \| 4 MB STP 687124182122 (rev1).stp \| 1.6 MB Others ZIP PCG Precaution_WE-FPC_6871xx182122 (rev1).pdf \| 657 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	0.5	Horizontal	14	0.5	50	Tape and Reel	30	max.	–
687126182122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687126182122 (rev1).pdf \| 241.3 KB IGS 687126182122 (rev1).iges \| 4.2 MB STP 687126182122 (rev1).stp \| 1.7 MB Others ZIP PCG Precaution_WE-FPC_6871xx182122 (rev1).pdf \| 657 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	0.5	Horizontal	15	0.5	50	Tape and Reel	30	max.	–
687128182122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687128182122 (rev1).pdf \| 256.4 KB IGS 687128182122 (rev1).iges \| 4.5 MB STP 687128182122 (rev1).stp \| 1.8 MB Others ZIP PCG Precaution_WE-FPC_6871xx182122 (rev1).pdf \| 657 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	28	0.5	Horizontal	16	0.5	50	Tape and Reel	30	max.	687001
687130182122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687130182122 (rev1).pdf \| 271.6 KB IGS Download_IGES_687130182122 (rev1).iges \| 4.8 MB STP Download_STP_687130182122 (rev1).stp \| 1.2 MB Others ZIP PCG Precaution_WE-FPC_6871xx182122 (rev1).pdf \| 657 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	0.5	Horizontal	17	0.5	50	Tape and Reel	30	max.	687001
687134182122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687134182122 (rev1).pdf \| 301.8 KB IGS Download_IGES_687134182122 (rev1).iges \| 5.3 MB STP Download_STP_687134182122 (rev1).stp \| 1.4 MB Others ZIP PCG Precaution_WE-FPC_6871xx182122 (rev1).pdf \| 657 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	34	0.5	Horizontal	19	0.5	50	Tape and Reel	30	max.	687001
687136182122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687136182122 (rev1).pdf \| 317 KB IGS Download_IGES_687136182122 (rev1).iges \| 5.6 MB STP Download_STP_687136182122 (rev1).stp \| 1.4 MB Others ZIP PCG Precaution_WE-FPC_6871xx182122 (rev1).pdf \| 657 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	36	0.5	Horizontal	20	0.5	50	Tape and Reel	30	max.	687001
687140182122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687140182122 (rev1).pdf \| 345.6 KB IGS Download_IGES_687140182122 (rev1).iges \| 6.2 MB STP Download_STP_687140182122 (rev1).stp \| 1.6 MB Others ZIP PCG Precaution_WE-FPC_6871xx182122 (rev1).pdf \| 657 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	0.5	Horizontal	22	0.5	50	Tape and Reel	30	max.	687001
687145182122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687145182122 (rev1).pdf \| 383.5 KB IGS Download_IGES_687145182122 (rev1).iges \| 6.8 MB STP Download_STP_687145182122 (rev1).stp \| 1.7 MB Others ZIP PCG Precaution_WE-FPC_6871xx182122 (rev1).pdf \| 657 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	45	0.5	Horizontal	24.5	0.5	50	Tape and Reel	30	max.	687001
687150182122	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687150182122 (rev1).pdf \| 421.7 KB IGS Download_IGES_687150182122 (rev1).iges \| 7.5 MB STP Download_STP_687150182122 (rev1).stp \| 1.9 MB Others ZIP PCG Precaution_WE-FPC_6871xx182122 (rev1).pdf \| 657 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	50	0.5	Horizontal	27	0.5	50	Tape and Reel	30	max.	687001

Order Code	Datasheet
687106182122	SPEC
687108182122	SPEC
687110182122	SPEC
687112182122	SPEC
687114182122	SPEC
687116182122	SPEC
687118182122	SPEC
687120182122	SPEC
687122182122	SPEC
687124182122	SPEC
687126182122	SPEC
687128182122	SPEC
687130182122	SPEC
687134182122	SPEC
687136182122	SPEC
687140182122	SPEC
687145182122	SPEC
687150182122	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Type	L (mm)	I_R (A)	Working Voltage (V (AC))	Packaging	Contact Resistance (mΩ)	Tol. R	Design Kit	Samples

Use with

WR-FFC 0.50 mm Flat Flexible Cable Type 1 (Contacts on same side)

WR-FFC 0.50 mm Flat Flexible Cable Type 2 (Contacts opposite)

Suitable for

WR-FFC 0.50 mm Folding Flat Flexible Cable

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-FPC ZIF Connectors & Flat Flexible Cables
