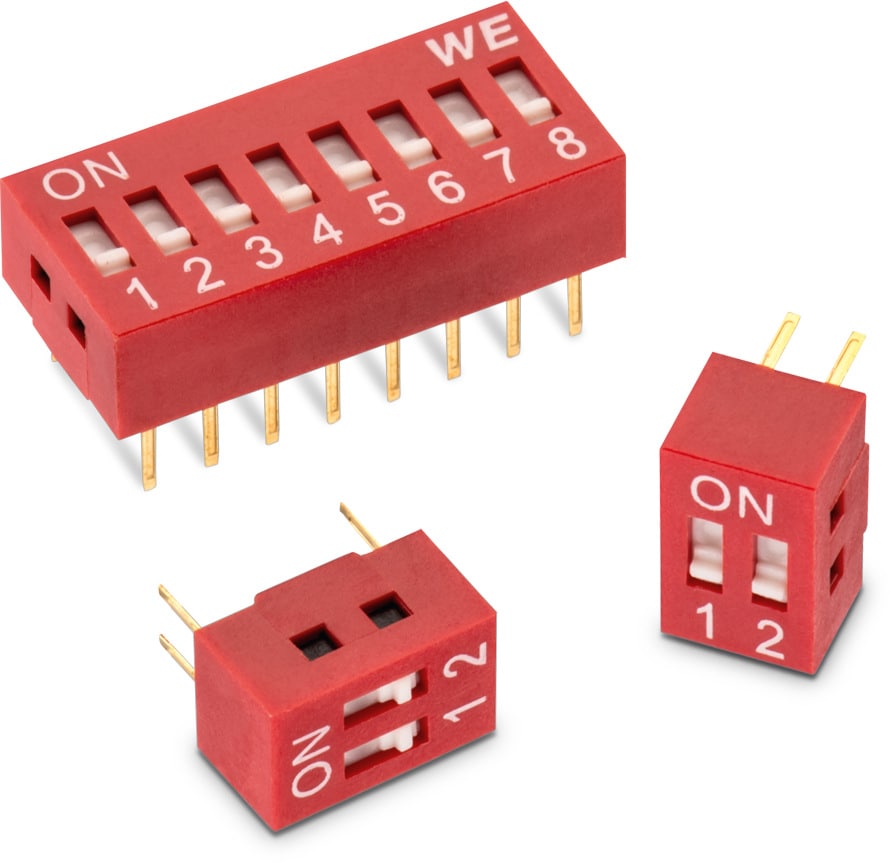

WS-DITV Compact THT with Flat Actuator 2.54 mm

Material Properties
Cover Material	PBT
Cover Flammability Rating	UL94 V-0
Base Material	PBT
Base Flammability Rating	UL94 V-0
Actuator Material	PBT
Actuator Flammability Rating	UL94 V-0
Contact Plating	Gold
Terminal Plating	Gold

Electrical Properties
I_R	100 mA
V_R	50 V (DC)
Contact Resistance Initial	50 mΩ
R_ISO	100 MΩ
Withstanding Voltage	500 V (AC)

Mechanical Properties
Operation Force	800 g
Electrical Life	2000 Cycles
Actuator Type	Flat Type
Switch Position	Off

General Information
Operating Temperature	-40 °C up to +85 °C

Packaging Properties
Packaging	Tube

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	Poles	L(mm)	Vaporphase process	Samples
	418117170901	1, 3.84 mm, not specified	Downloads5 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB CAD files ZIP IGS 418117170901 (rev1).igs \| 629.3 KB STP 418117170901 (rev1).stp \| 264.9 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles1	Length3.84 mm	Vaporphase processnot specified
	418117170902	2, 6.08 mm, not specified	Downloads5 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB CAD files ZIP IGS 418117170902 (rev1).igs \| 811.5 KB STP 418117170902 (rev1).stp \| 337.9 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles2	Length6.08 mm	Vaporphase processnot specified
	418117170903	3, 8.92 mm, not specified	Downloads6 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB CAD files ZIP 3D 3D_WS-DITV_418117170903 (rev1).pdf \| 83.8 KB IGS 418117170903 (rev1).igs \| 1000.8 KB STP 418117170903 (rev1).stp \| 295.6 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles3	Length8.92 mm	Vaporphase processnot specified
	418117170904	4, 11.16 mm, not specified	Downloads5 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB CAD files ZIP IGS 418117170904 (rev1).igs \| 1.3 MB STP 418117170904 (rev1).stp \| 561.1 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles4	Length11.16 mm	Vaporphase processnot specified
	418117170905	5, 13.7 mm, not specified	Downloads5 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB CAD files ZIP IGS 418117170905 (rev1).igs \| 1.4 MB STP 418117170905 (rev1).stp \| 618 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles5	Length13.7 mm	Vaporphase processnot specified
	418117170906	6, 16.24 mm, not specified	Downloads5 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB CAD files ZIP IGS 418117170906 (rev1).igs \| 1.7 MB STP 418117170906 (rev1).stp \| 717.1 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles6	Length16.24 mm	Vaporphase processnot specified
	418117170907	7, 19.08 mm, not specified	Downloads5 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB CAD files ZIP IGS 418117170907 (rev1).igs \| 1.8 MB STP 418117170907 (rev1).stp \| 784.3 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles7	Length19.08 mm	Vaporphase processnot specified
	418117170908	8, 21.32 mm, not specified	Downloads5 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB CAD files ZIP IGS 418117170908 (rev1).igs \| 2 MB STP 418117170908 (rev1).stp \| 866 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles8	Length21.32 mm	Vaporphase processnot specified
	418117170910	10, 26.4 mm, not specified	Downloads5 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB CAD files ZIP IGS 418117170910 (rev1).igs \| 2.4 MB STP 418117170910 (rev1).stp \| 1023.5 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles10	Length26.4 mm	Vaporphase processnot specified
	418117170912	12, 31.48 mm, not specified	Downloads5 files EDA models: Components ZIP ALT Altium_WS-DITV (rev22a).IntLib \| 5.2 MB CDS Cadence_WS-DITV (rev18a).zip \| 18.8 MB EAG Eagle_WS-DITV (rev22a).lbr \| 296.5 KB CAD files ZIP IGS 418117170912 (rev1).igs \| 2.8 MB STP 418117170912 (rev1).stp \| 1.2 MB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles12	Length31.48 mm	Vaporphase processnot specified
