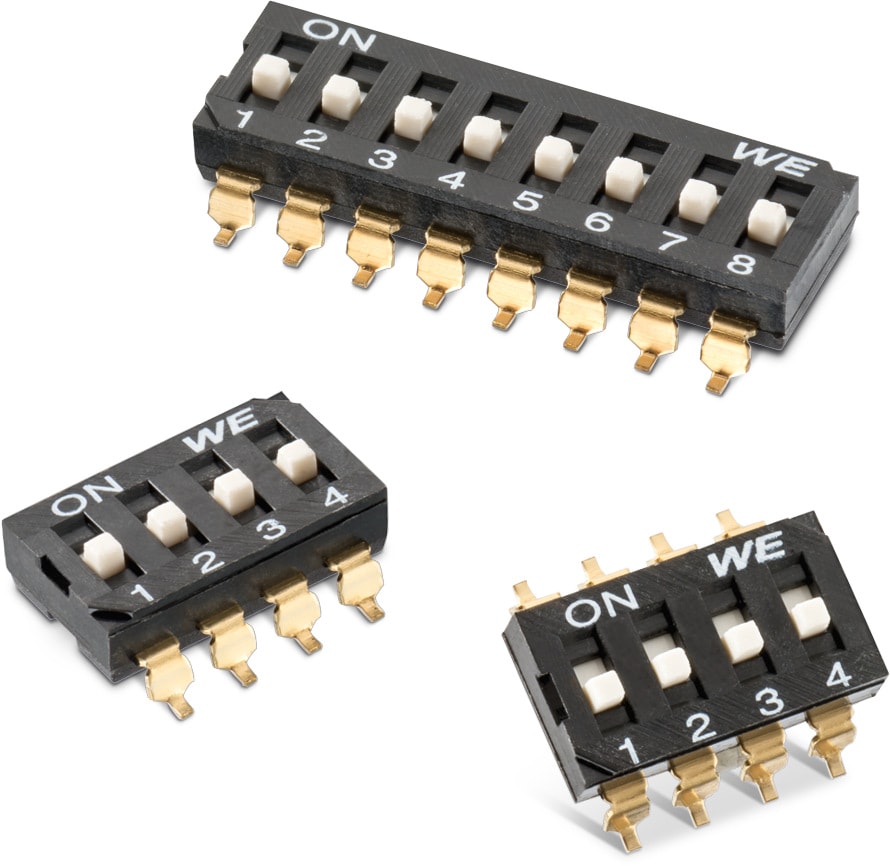

WS-DISV Small Compact SMT with Raised Actuator 2.54 mm

Material Properties
Cover Material	PA9T
Cover Flammability Rating	UL94 V-0
Base Material	PA9T
Base Flammability Rating	UL94 V-0
Actuator Material	co
Actuator Flammability Rating	UL94 V-0
Contact Plating	Gold
Terminal Plating	Gold

Electrical Properties
I_R	100 mA
V_R	50 V (DC)
Contact Resistance Initial	50 mΩ
R_ISO	100 MΩ
Withstanding Voltage	500 V (AC)

Mechanical Properties
Operation Force (Value)	600 g
Electrical Life	2000 Times
Actuator Type	Raise Type
Switch Position	Off

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	No

Packaging Properties
Packaging	Tape and Reel

Products

Order Code	Datasheet	Downloads	Poles	L (mm)	Vaporphase process	Design Kit	Samples
418121270801	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev22a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev18a).zip \| 18.1 MB EAG Eagle_WS-DISV (rev20a).lbr \| 242.3 KB CAD files ZIP 3D 3D_418121270801 (rev1).pdf \| 105.6 KB IGS 418121270801 (rev1).igs \| 1.3 MB STP 418121270801 (rev1).stp \| 505.9 KB Download all 6 files as zip archive ZIP	1	3.48	not specified	–
418121270802	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev22a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev18a).zip \| 18.1 MB EAG Eagle_WS-DISV (rev20a).lbr \| 242.3 KB CAD files ZIP 3D 3D_418121270802 (rev1).pdf \| 146.2 KB IGS Download_IGES_418121270802 (rev1).iges \| 738 KB STP 418121270802 (rev1).stp \| 683.7 KB Download all 6 files as zip archive ZIP	2	6.02	not specified	499001
418121270803	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev22a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev18a).zip \| 18.1 MB EAG Eagle_WS-DISV (rev20a).lbr \| 242.3 KB CAD files ZIP 3D 3D_418121270803 (rev1).pdf \| 171.2 KB IGS IGS_SwDISV_418121270803 (rev1).igs \| 2 MB STP 418121270803 (rev1).stp \| 518.9 KB Download all 6 files as zip archive ZIP	3	8.56	not specified	–
418121270804	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev22a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev18a).zip \| 18.1 MB EAG Eagle_WS-DISV (rev20a).lbr \| 242.3 KB CAD files ZIP 3D 3D_418121270804 (rev1).pdf \| 192.1 KB IGS Download_IGES_418121270804 (rev1).iges \| 1 MB STP 418121270804 (rev1).stp \| 1010.5 KB Download all 6 files as zip archive ZIP	4	11.1	not specified	499001
418121270805	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev22a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev18a).zip \| 18.1 MB EAG Eagle_WS-DISV (rev20a).lbr \| 242.3 KB CAD files ZIP 3D 3D_418121270805 (rev1).pdf \| 208.8 KB IGS Download_IGES_418121270805 (rev1).iges \| 1.1 MB STP 418121270805 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	5	13.64	not specified	–
418121270806	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev22a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev18a).zip \| 18.1 MB EAG Eagle_WS-DISV (rev20a).lbr \| 242.3 KB CAD files ZIP 3D 3D_418121270806 (rev1).pdf \| 231.9 KB IGS Download_IGES_418121270806 (rev1).iges \| 1.3 MB STP 418121270806 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	6	16.18	not specified	499001
418121270807	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev22a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev18a).zip \| 18.1 MB EAG Eagle_WS-DISV (rev20a).lbr \| 242.3 KB CAD files ZIP 3D 3D_418121270807 (rev1).pdf \| 247 KB IGS Download_IGES_418121270807 (rev1).iges \| 1.4 MB STP 418121270807 (rev1).stp \| 1.3 MB Download all 6 files as zip archive ZIP	7	18.72	not specified	–
418121270808	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev22a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev18a).zip \| 18.1 MB EAG Eagle_WS-DISV (rev20a).lbr \| 242.3 KB CAD files ZIP 3D 3D_418121270808 (rev1).pdf \| 271 KB IGS Download_IGES_418121270808 (rev1).iges \| 1.5 MB STP 418121270808 (rev1).stp \| 1.5 MB Download all 6 files as zip archive ZIP	8	21.26	not specified	499001
418121270809	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev22a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev18a).zip \| 18.1 MB EAG Eagle_WS-DISV (rev20a).lbr \| 242.3 KB CAD files ZIP 3D 3D_418121270809 (rev1).pdf \| 292.7 KB IGS Download_IGES_418121270809 (rev1).iges \| 1.6 MB STP 418121270809 (rev1).stp \| 1.6 MB Download all 6 files as zip archive ZIP	9	23.8	not specified	–
418121270810	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev22a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev18a).zip \| 18.1 MB EAG Eagle_WS-DISV (rev20a).lbr \| 242.3 KB CAD files ZIP 3D 3D_418121270810 (rev1).pdf \| 312.6 KB IGS Download_IGES_418121270810 (rev1).iges \| 1.7 MB STP 418121270810 (rev1).stp \| 1.7 MB Download all 6 files as zip archive ZIP	10	26.34	not specified	499001
418121270812	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev22a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev18a).zip \| 18.1 MB EAG Eagle_WS-DISV (rev20a).lbr \| 242.3 KB CAD files ZIP 3D 3D_418121270812 (rev1).pdf \| 353.5 KB IGS Download_IGES_418121270812 (rev1).iges \| 2 MB STP 418121270812 (rev1).stp \| 2 MB Download all 6 files as zip archive ZIP	12	31.42	not specified	–

Order Code	Datasheet
418121270801	SPEC
418121270802	SPEC
418121270803	SPEC
418121270804	SPEC
418121270805	SPEC
418121270806	SPEC
418121270807	SPEC
418121270808	SPEC
418121270809	SPEC
418121270810	SPEC
418121270812	SPEC

Samples

Order Code	Datasheet	Downloads	Poles	L (mm)	Vaporphase process	Design Kit	Samples
