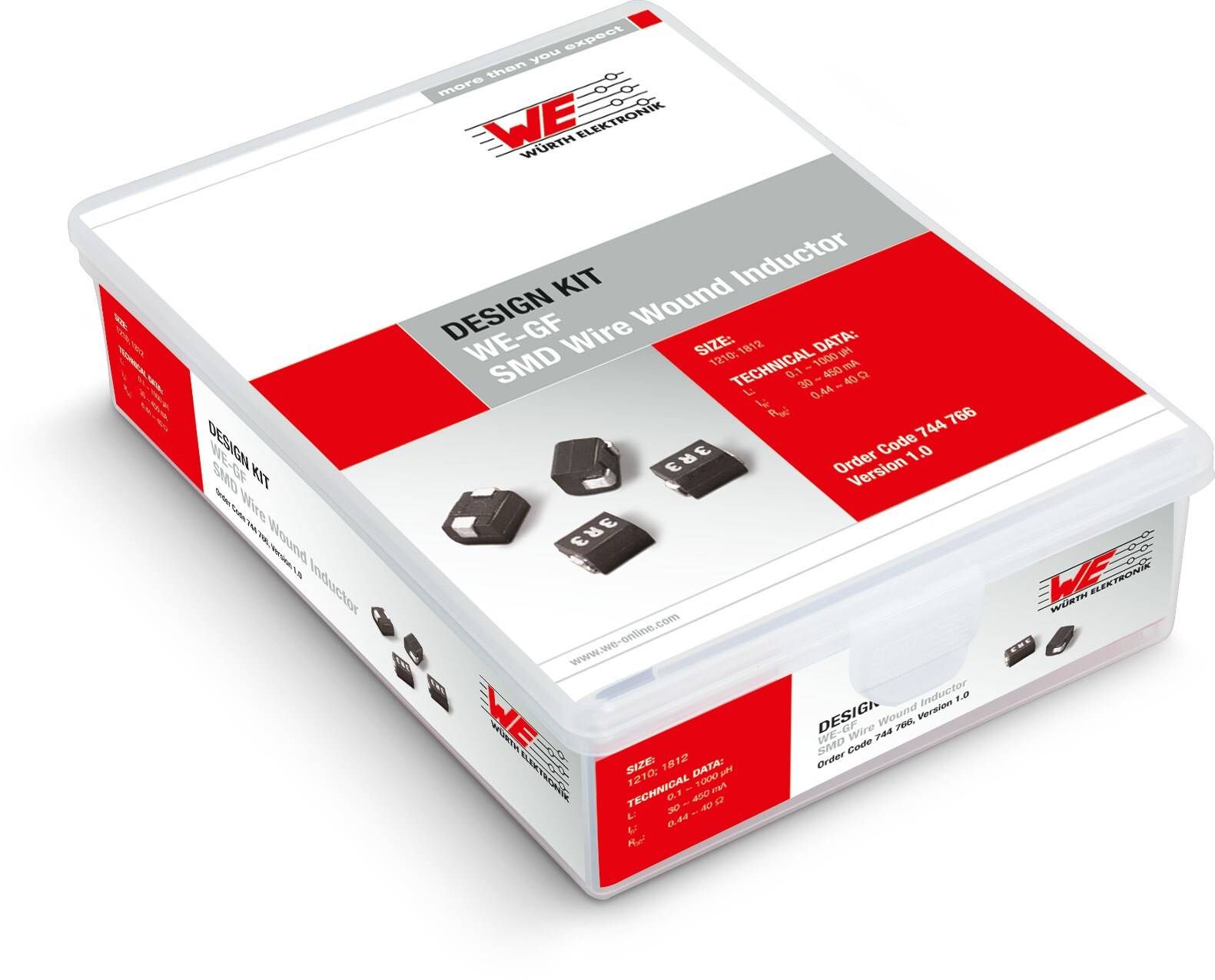

Design Kit WE-GF SMT Wire Wound Inductors

Order Code 744766

Design Kit WE-GF SMT Wire Wound Inductors
Design Kit WE-GF SMT Wire Wound Inductors
Download inlay

Applications

  • RF circuits like tuner, transponder etc.
  • RF amplifier circuits like antennas amplifier
  • Oscillators
  • Filter circuits
  • Amplification circuits

Products

Filter article data
Filter by
Delete all
 show  articles in 0 product lines
 articles in 0 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Downloads
Status
Product series
L(µH)
RDC max.(mΩ)
IR(mA)
fres(MHz)
Size
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
744766001
SPECWE-GF SMT Wire Wound Inductor, 0.1 µH, 440 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance0.1 µH
DC Resistance440 mΩ
Rated Current450 mA
Self Resonant Frequency780 MHz
Size4532
–Check availability
744764002
SPECWE-GF SMT Wire Wound Inductor, 0.22 µH, 320 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance0.22 µH
DC Resistance320 mΩ
Rated Current450 mA
Self Resonant Frequency660 MHz
Size3225
–Check availability
7447640033
SPECWE-GF SMT Wire Wound Inductor, 0.33 µH, 400 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance0.33 µH
DC Resistance400 mΩ
Rated Current450 mA
Self Resonant Frequency580 MHz
Size3225
–Check availability
7447660033
SPECWE-GF SMT Wire Wound Inductor, 0.33 µH, 400 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance0.33 µH
DC Resistance400 mΩ
Rated Current450 mA
Self Resonant Frequency440 MHz
Size4532
–Check availability
744764004
SPECWE-GF SMT Wire Wound Inductor, 0.47 µH, 500 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance0.47 µH
DC Resistance500 mΩ
Rated Current450 mA
Self Resonant Frequency480 MHz
Size3225
–Check availability
744764006
SPECWE-GF SMT Wire Wound Inductor, 0.68 µH, 600 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance0.68 µH
DC Resistance600 mΩ
Rated Current450 mA
Self Resonant Frequency400 MHz
Size3225
–Check availability
7447660068
SPECWE-GF SMT Wire Wound Inductor, 0.68 µH, 600 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance0.68 µH
DC Resistance600 mΩ
Rated Current450 mA
Self Resonant Frequency310 MHz
Size4532
–Check availability
74476401
SPECWE-GF SMT Wire Wound Inductor, 1 µH, 700 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance1 µH
DC Resistance700 mΩ
Rated Current400 mA
Self Resonant Frequency340 MHz
Size3225
–Check availability
74476601
SPECWE-GF SMT Wire Wound Inductor, 1 µH, 500 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance1 µH
DC Resistance500 mΩ
Rated Current450 mA
Self Resonant Frequency275 MHz
Size4532
–Check availability
74476402
SPECWE-GF SMT Wire Wound Inductor, 2.2 µH, 1000 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance2.2 µH
DC Resistance1000 mΩ
Rated Current320 mA
Self Resonant Frequency100 MHz
Size3225
–Check availability
74476602
SPECWE-GF SMT Wire Wound Inductor, 2.2 µH, 700 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance2.2 µH
DC Resistance700 mΩ
Rated Current380 mA
Self Resonant Frequency185 MHz
Size4532
–Check availability
74476403
SPECWE-GF SMT Wire Wound Inductor, 3.3 µH, 1200 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance3.3 µH
DC Resistance1200 mΩ
Rated Current260 mA
Self Resonant Frequency60 MHz
Size3225
–Check availability
74476603
SPECWE-GF SMT Wire Wound Inductor, 3.3 µH, 800 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance3.3 µH
DC Resistance800 mΩ
Rated Current355 mA
Self Resonant Frequency155 MHz
Size4532
–Check availability
74476404
SPECWE-GF SMT Wire Wound Inductor, 4.7 µH, 1500 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance4.7 µH
DC Resistance1500 mΩ
Rated Current220 mA
Self Resonant Frequency45 MHz
Size3225
–Check availability
74476604
SPECWE-GF SMT Wire Wound Inductor, 4.7 µH, 1000 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance4.7 µH
DC Resistance1000 mΩ
Rated Current315 mA
Self Resonant Frequency95 MHz
Size4532
–Check availability
74476406
SPECWE-GF SMT Wire Wound Inductor, 6.8 µH, 1800 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance6.8 µH
DC Resistance1800 mΩ
Rated Current180 mA
Self Resonant Frequency38 MHz
Size3225
–Check availability
74476606
SPECWE-GF SMT Wire Wound Inductor, 6.8 µH, 1200 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance6.8 µH
DC Resistance1200 mΩ
Rated Current285 mA
Self Resonant Frequency35 MHz
Size4532
–Check availability
74476410
SPECWE-GF SMT Wire Wound Inductor, 10 µH, 2100 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance10 µH
DC Resistance2100 mΩ
Rated Current150 mA
Self Resonant Frequency32 MHz
Size3225
–Check availability
74476610
SPECWE-GF SMT Wire Wound Inductor, 10 µH, 1600 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance10 µH
DC Resistance1600 mΩ
Rated Current250 mA
Self Resonant Frequency25 MHz
Size4532
–Check availability
744766115
SPECWE-GF SMT Wire Wound Inductor, 15 µH, 2500 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance15 µH
DC Resistance2500 mΩ
Rated Current200 mA
Self Resonant Frequency20 MHz
Size4532
–Check availability
744764122
SPECWE-GF SMT Wire Wound Inductor, 22 µH, 3700 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance22 µH
DC Resistance3700 mΩ
Rated Current110 mA
Self Resonant Frequency20 MHz
Size3225
–Check availability
744766122
SPECWE-GF SMT Wire Wound Inductor, 22 µH, 3200 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance22 µH
DC Resistance3200 mΩ
Rated Current180 mA
Self Resonant Frequency18 MHz
Size4532
–Check availability
744764133
SPECWE-GF SMT Wire Wound Inductor, 33 µH, 5600 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance33 µH
DC Resistance5600 mΩ
Rated Current70 mA
Self Resonant Frequency17 MHz
Size3225
–Check availability
744766133
SPECWE-GF SMT Wire Wound Inductor, 33 µH, 4000 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance33 µH
DC Resistance4000 mΩ
Rated Current160 mA
Self Resonant Frequency14 MHz
Size4532
–Check availability
744764147
SPECWE-GF SMT Wire Wound Inductor, 47 µH, 7000 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance47 µH
DC Resistance7000 mΩ
Rated Current60 mA
Self Resonant Frequency15 MHz
Size3225
–Check availability
744766147
SPECWE-GF SMT Wire Wound Inductor, 47 µH, 5000 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance47 µH
DC Resistance5000 mΩ
Rated Current140 mA
Self Resonant Frequency12 MHz
Size4532
–Check availability
744764168
SPECWE-GF SMT Wire Wound Inductor, 68 µH, 9000 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance68 µH
DC Resistance9000 mΩ
Rated Current50 mA
Self Resonant Frequency12.5 MHz
Size3225
–Check availability
744766168
SPECWE-GF SMT Wire Wound Inductor, 68 µH, 6000 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance68 µH
DC Resistance6000 mΩ
Rated Current130 mA
Self Resonant Frequency10 MHz
Size4532
–Check availability
74476420
SPECWE-GF SMT Wire Wound Inductor, 100 µH, 11000 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance100 µH
DC Resistance11000 mΩ
Rated Current40 mA
Self Resonant Frequency11 MHz
Size3225
–Check availability
74476620
SPECWE-GF SMT Wire Wound Inductor, 100 µH, 8000 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance100 µH
DC Resistance8000 mΩ
Rated Current110 mA
Self Resonant Frequency8.5 MHz
Size4532
–Check availability
744766215
SPECWE-GF SMT Wire Wound Inductor, 150 µH, 9000 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance150 µH
DC Resistance9000 mΩ
Rated Current105 mA
Self Resonant Frequency6 MHz
Size4532
–Check availability
744766220
SPECWE-GF SMT Wire Wound Inductor, 220 µH, 10000 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance220 µH
DC Resistance10000 mΩ
Rated Current100 mA
Self Resonant Frequency5 MHz
Size4532
–Check availability
744766233
SPECWE-GF SMT Wire Wound Inductor, 330 µH, 14000 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance330 µH
DC Resistance14000 mΩ
Rated Current85 mA
Self Resonant Frequency4.5 MHz
Size4532
–Check availability
74476624
SPECWE-GF SMT Wire Wound Inductor, 470 µH, 26000 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance470 µH
DC Resistance26000 mΩ
Rated Current62 mA
Self Resonant Frequency3.4 MHz
Size4532
–Check availability
74476626
SPECWE-GF SMT Wire Wound Inductor, 680 µH, 30000 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance680 µH
DC Resistance30000 mΩ
Rated Current50 mA
Self Resonant Frequency3 MHz
Size4532
–Check availability
74476630
SPECWE-GF SMT Wire Wound Inductor, 1000 µH, 50000 mΩ

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-GF SMT Wire Wound Inductor
Inductance1000 µH
DC Resistance50000 mΩ
Rated Current30 mA
Self Resonant Frequency2.5 MHz
Size4532
–Check availability
