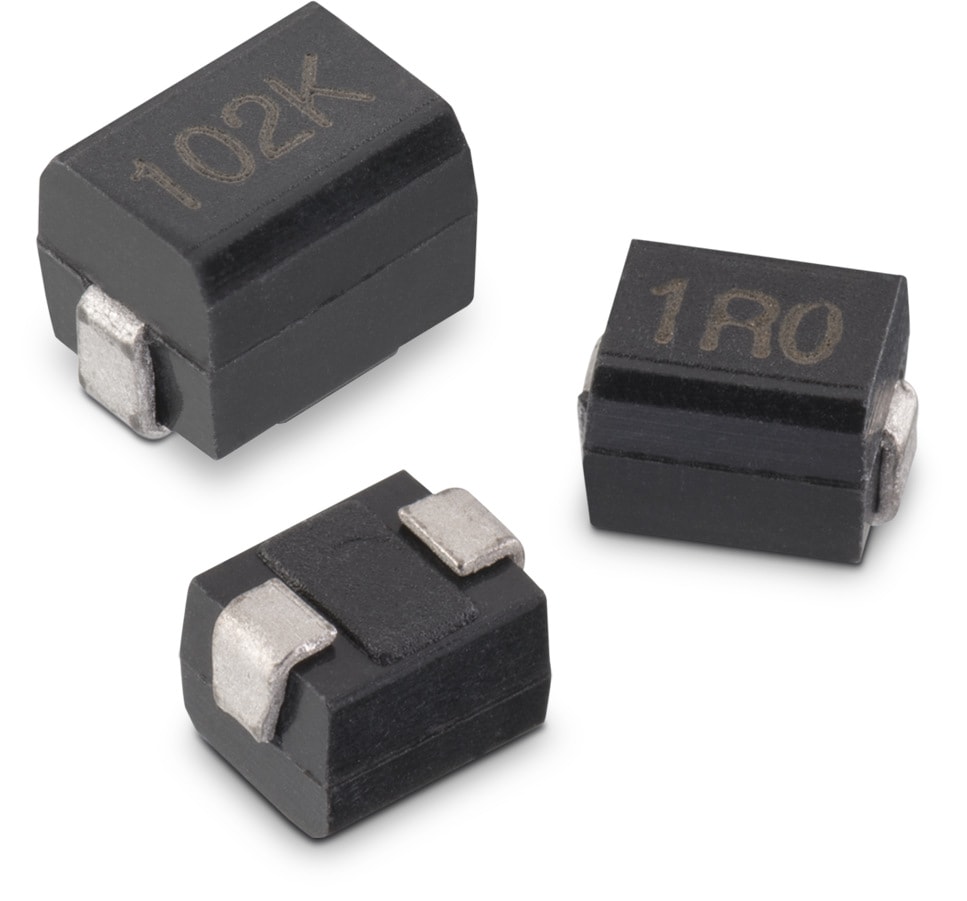

WE-GF SMT Wire Wound Inductor

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
3225		3.2	2.5	2.2	SMT
4532		4.5	3.2	3.2	SMT

LTSpice files

LT

LTSpice_WE-GF (rev22a).zip

|

3 KB

Characteristics

Wire wound on ferrite
Operating temperature: –40°C to +105°C
Recommended soldering profile: Reflow
5% tolerance is available on request

Applications

RF circuits like tuner, transponder etc.
RF amplifier circuits like antennas amplifier
Oscillators
Filter circuits
Amplification circuits

Application Notes

Products

All

3225

4532

Reset all

Filter article data

show article in 2 product lines

article in 2 product lines

Reset all

Order Code	Datasheet	Downloads	Status	L (µH)	I_RP,40K (A)	R_{DC max.} (mΩ)	Q (%)	f_res (MHz)	Mount	Design Kit
744766001	0.1 µH, 2.55 A, 440 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 0.1 µH	Performance Rated Current 2.55 A	DC Resistance 440 mΩ	Q-Factor 28 %	Self Resonant Frequency 780 MHz	Mount SMT	Design Kit 744766
744764002	0.22 µH, 1.25 A, 320 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 0.22 µH	Performance Rated Current 1.25 A	DC Resistance 320 mΩ	Q-Factor 30 %	Self Resonant Frequency 660 MHz	Mount SMT	Design Kit 744766
7447640027	0.27 µH, 1.2 A, 360 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 0.27 µH	Performance Rated Current 1.2 A	DC Resistance 360 mΩ	Q-Factor 30 %	Self Resonant Frequency 630 MHz	Mount SMT	Design Kit –
7447640033	0.33 µH, 1.15 A, 400 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 0.33 µH	Performance Rated Current 1.15 A	DC Resistance 400 mΩ	Q-Factor 30 %	Self Resonant Frequency 580 MHz	Mount SMT	Design Kit 744766
7447660033	0.33 µH, 1.85 A, 400 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 0.33 µH	Performance Rated Current 1.85 A	DC Resistance 400 mΩ	Q-Factor 30 %	Self Resonant Frequency 440 MHz	Mount SMT	Design Kit 744766
744764003	0.39 µH, 1.15 A, 450 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 0.39 µH	Performance Rated Current 1.15 A	DC Resistance 450 mΩ	Q-Factor 30 %	Self Resonant Frequency 520 MHz	Mount SMT	Design Kit –
7447660039	0.39 µH, 1.8 A, 450 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 0.39 µH	Performance Rated Current 1.8 A	DC Resistance 450 mΩ	Q-Factor 30 %	Self Resonant Frequency 390 MHz	Mount SMT	Design Kit –
744764004	0.47 µH, 1 A, 500 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 0.47 µH	Performance Rated Current 1 A	DC Resistance 500 mΩ	Q-Factor 30 %	Self Resonant Frequency 480 MHz	Mount SMT	Design Kit 744766
744764005	0.56 µH, 1 A, 550 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 0.56 µH	Performance Rated Current 1 A	DC Resistance 550 mΩ	Q-Factor 30 %	Self Resonant Frequency 420 MHz	Mount SMT	Design Kit –
744764006	0.68 µH, 0.95 A, 600 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 0.68 µH	Performance Rated Current 0.95 A	DC Resistance 600 mΩ	Q-Factor 30 %	Self Resonant Frequency 400 MHz	Mount SMT	Design Kit 744766
7447660068	0.68 µH, 1.65 A, 600 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 0.68 µH	Performance Rated Current 1.65 A	DC Resistance 600 mΩ	Q-Factor 30 %	Self Resonant Frequency 310 MHz	Mount SMT	Design Kit 744766
7447640082	0.82 µH, 0.95 A, 650 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 0.82 µH	Performance Rated Current 0.95 A	DC Resistance 650 mΩ	Q-Factor 30 %	Self Resonant Frequency 370 MHz	Mount SMT	Design Kit –
7447660082	0.82 µH, 1.6 A, 670 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 0.82 µH	Performance Rated Current 1.6 A	DC Resistance 670 mΩ	Q-Factor 30 %	Self Resonant Frequency 300 MHz	Mount SMT	Design Kit –
74476401	1 µH, 0.9 A, 700 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 µH	Performance Rated Current 0.9 A	DC Resistance 700 mΩ	Q-Factor 30 %	Self Resonant Frequency 340 MHz	Mount SMT	Design Kit 744766
74476601	1 µH, 1.5 A, 500 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 µH	Performance Rated Current 1.5 A	DC Resistance 500 mΩ	Q-Factor 50 %	Self Resonant Frequency 275 MHz	Mount SMT	Design Kit 744766
744764012	1.2 µH, 0.9 A, 750 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1.2 µH	Performance Rated Current 0.9 A	DC Resistance 750 mΩ	Q-Factor 30 %	Self Resonant Frequency 320 MHz	Mount SMT	Design Kit –
744766012	1.2 µH, 1.3 A, 550 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1.2 µH	Performance Rated Current 1.3 A	DC Resistance 550 mΩ	Q-Factor 50 %	Self Resonant Frequency 250 MHz	Mount SMT	Design Kit –
744764015	1.5 µH, 0.85 A, 850 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1.5 µH	Performance Rated Current 0.85 A	DC Resistance 850 mΩ	Q-Factor 30 %	Self Resonant Frequency 250 MHz	Mount SMT	Design Kit –
744766015	1.5 µH, 1.3 A, 600 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1.5 µH	Performance Rated Current 1.3 A	DC Resistance 600 mΩ	Q-Factor 50 %	Self Resonant Frequency 230 MHz	Mount SMT	Design Kit –
744764018	1.8 µH, 0.8 A, 900 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1.8 µH	Performance Rated Current 0.8 A	DC Resistance 900 mΩ	Q-Factor 30 %	Self Resonant Frequency 170 MHz	Mount SMT	Design Kit –
744766018	1.8 µH, 1.2 A, 650 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1.8 µH	Performance Rated Current 1.2 A	DC Resistance 650 mΩ	Q-Factor 50 %	Self Resonant Frequency 210 MHz	Mount SMT	Design Kit –
74476402	2.2 µH, 0.75 A, 1000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 2.2 µH	Performance Rated Current 0.75 A	DC Resistance 1000 mΩ	Q-Factor 30 %	Self Resonant Frequency 100 MHz	Mount SMT	Design Kit 744766
74476602	2.2 µH, 0.95 A, 700 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 2.2 µH	Performance Rated Current 0.95 A	DC Resistance 700 mΩ	Q-Factor 50 %	Self Resonant Frequency 185 MHz	Mount SMT	Design Kit 744766
744764027	2.7 µH, 0.75 A, 1100 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 2.7 µH	Performance Rated Current 0.75 A	DC Resistance 1100 mΩ	Q-Factor 30 %	Self Resonant Frequency 80 MHz	Mount SMT	Design Kit –
74476403	3.3 µH, 0.7 A, 1200 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 3.3 µH	Performance Rated Current 0.7 A	DC Resistance 1200 mΩ	Q-Factor 30 %	Self Resonant Frequency 60 MHz	Mount SMT	Design Kit 744766
74476603	3.3 µH, 0.95 A, 800 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 3.3 µH	Performance Rated Current 0.95 A	DC Resistance 800 mΩ	Q-Factor 50 %	Self Resonant Frequency 155 MHz	Mount SMT	Design Kit 744766
744764039	3.9 µH, 0.65 A, 1300 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 3.9 µH	Performance Rated Current 0.65 A	DC Resistance 1300 mΩ	Q-Factor 30 %	Self Resonant Frequency 50 MHz	Mount SMT	Design Kit –
744766039	3.9 µH, 0.9 A, 900 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 3.9 µH	Performance Rated Current 0.9 A	DC Resistance 900 mΩ	Q-Factor 50 %	Self Resonant Frequency 120 MHz	Mount SMT	Design Kit –
74476404	4.7 µH, 0.6 A, 1500 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 4.7 µH	Performance Rated Current 0.6 A	DC Resistance 1500 mΩ	Q-Factor 30 %	Self Resonant Frequency 45 MHz	Mount SMT	Design Kit 744766
74476604	4.7 µH, 0.8 A, 1000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 4.7 µH	Performance Rated Current 0.8 A	DC Resistance 1000 mΩ	Q-Factor 50 %	Self Resonant Frequency 95 MHz	Mount SMT	Design Kit 744766
744766056	5.6 µH, 0.75 A, 1100 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 5.6 µH	Performance Rated Current 0.75 A	DC Resistance 1100 mΩ	Q-Factor 50 %	Self Resonant Frequency 60 MHz	Mount SMT	Design Kit –
74476406	6.8 µH, 0.55 A, 1800 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 6.8 µH	Performance Rated Current 0.55 A	DC Resistance 1800 mΩ	Q-Factor 30 %	Self Resonant Frequency 38 MHz	Mount SMT	Design Kit 744766
74476606	6.8 µH, 0.75 A, 1200 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 6.8 µH	Performance Rated Current 0.75 A	DC Resistance 1200 mΩ	Q-Factor 50 %	Self Resonant Frequency 35 MHz	Mount SMT	Design Kit 744766
744766082	8.2 µH, 0.7 A, 1400 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 8.2 µH	Performance Rated Current 0.7 A	DC Resistance 1400 mΩ	Q-Factor 50 %	Self Resonant Frequency 30 MHz	Mount SMT	Design Kit –
74476410	10 µH, 0.5 A, 2100 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 10 µH	Performance Rated Current 0.5 A	DC Resistance 2100 mΩ	Q-Factor 30 %	Self Resonant Frequency 32 MHz	Mount SMT	Design Kit 744766
74476610	10 µH, 0.7 A, 1600 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 10 µH	Performance Rated Current 0.7 A	DC Resistance 1600 mΩ	Q-Factor 50 %	Self Resonant Frequency 25 MHz	Mount SMT	Design Kit 744766
744764112	12 µH, 0.45 A, 2500 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 12 µH	Performance Rated Current 0.45 A	DC Resistance 2500 mΩ	Q-Factor 30 %	Self Resonant Frequency 28 MHz	Mount SMT	Design Kit –
744764115	15 µH, 0.4 A, 2800 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 15 µH	Performance Rated Current 0.4 A	DC Resistance 2800 mΩ	Q-Factor 30 %	Self Resonant Frequency 26 MHz	Mount SMT	Design Kit –
744766115	15 µH, 0.6 A, 2500 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 15 µH	Performance Rated Current 0.6 A	DC Resistance 2500 mΩ	Q-Factor 50 %	Self Resonant Frequency 20 MHz	Mount SMT	Design Kit 744766
744764118	18 µH, 0.4 A, 3300 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 18 µH	Performance Rated Current 0.4 A	DC Resistance 3300 mΩ	Q-Factor 30 %	Self Resonant Frequency 23 MHz	Mount SMT	Design Kit –
744766118	18 µH, 0.6 A, 2800 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 18 µH	Performance Rated Current 0.6 A	DC Resistance 2800 mΩ	Q-Factor 50 %	Self Resonant Frequency 19 MHz	Mount SMT	Design Kit –
744764122	22 µH, 0.35 A, 3700 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 22 µH	Performance Rated Current 0.35 A	DC Resistance 3700 mΩ	Q-Factor 30 %	Self Resonant Frequency 20 MHz	Mount SMT	Design Kit 744766
744766122	22 µH, 0.55 A, 3200 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 22 µH	Performance Rated Current 0.55 A	DC Resistance 3200 mΩ	Q-Factor 50 %	Self Resonant Frequency 18 MHz	Mount SMT	Design Kit 744766
744764133	33 µH, 0.3 A, 5600 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 33 µH	Performance Rated Current 0.3 A	DC Resistance 5600 mΩ	Q-Factor 30 %	Self Resonant Frequency 17 MHz	Mount SMT	Design Kit 744766
744766133	33 µH, 0.55 A, 4000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 33 µH	Performance Rated Current 0.55 A	DC Resistance 4000 mΩ	Q-Factor 50 %	Self Resonant Frequency 14 MHz	Mount SMT	Design Kit 744766
744764139	39 µH, 0.3 A, 6400 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 39 µH	Performance Rated Current 0.3 A	DC Resistance 6400 mΩ	Q-Factor 30 %	Self Resonant Frequency 16 MHz	Mount SMT	Design Kit –
744764147	47 µH, 0.25 A, 7000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 47 µH	Performance Rated Current 0.25 A	DC Resistance 7000 mΩ	Q-Factor 30 %	Self Resonant Frequency 15 MHz	Mount SMT	Design Kit 744766
744766147	47 µH, 0.45 A, 5000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 47 µH	Performance Rated Current 0.45 A	DC Resistance 5000 mΩ	Q-Factor 50 %	Self Resonant Frequency 12 MHz	Mount SMT	Design Kit 744766
744764156	56 µH, 0.25 A, 8000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 56 µH	Performance Rated Current 0.25 A	DC Resistance 8000 mΩ	Q-Factor 30 %	Self Resonant Frequency 14 MHz	Mount SMT	Design Kit –
744766156	56 µH, 0.45 A, 5500 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 56 µH	Performance Rated Current 0.45 A	DC Resistance 5500 mΩ	Q-Factor 50 %	Self Resonant Frequency 11 MHz	Mount SMT	Design Kit –
744764168	68 µH, 0.2 A, 9000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 68 µH	Performance Rated Current 0.2 A	DC Resistance 9000 mΩ	Q-Factor 30 %	Self Resonant Frequency 12.5 MHz	Mount SMT	Design Kit 744766
744766168	68 µH, 0.4 A, 6000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 68 µH	Performance Rated Current 0.4 A	DC Resistance 6000 mΩ	Q-Factor 50 %	Self Resonant Frequency 10 MHz	Mount SMT	Design Kit 744766
74476420	100 µH, 0.2 A, 11000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1210_2 (rev1).igs \| 1.2 MB STP WE-GF_1210_2 (rev1).stp \| 655 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 100 µH	Performance Rated Current 0.2 A	DC Resistance 11000 mΩ	Q-Factor 20 %	Self Resonant Frequency 11 MHz	Mount SMT	Design Kit 744766
74476620	100 µH, 0.35 A, 8000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 100 µH	Performance Rated Current 0.35 A	DC Resistance 8000 mΩ	Q-Factor 40 %	Self Resonant Frequency 8.5 MHz	Mount SMT	Design Kit 744766
744766215	150 µH, 0.3 A, 9000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 150 µH	Performance Rated Current 0.3 A	DC Resistance 9000 mΩ	Q-Factor 40 %	Self Resonant Frequency 6 MHz	Mount SMT	Design Kit 744766
744766218	180 µH, 0.25 A, 9500 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 180 µH	Performance Rated Current 0.25 A	DC Resistance 9500 mΩ	Q-Factor 40 %	Self Resonant Frequency 5.5 MHz	Mount SMT	Design Kit –
744766220	220 µH, 0.25 A, 10000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 220 µH	Performance Rated Current 0.25 A	DC Resistance 10000 mΩ	Q-Factor 40 %	Self Resonant Frequency 5 MHz	Mount SMT	Design Kit 744766
744766233	330 µH, 0.2 A, 14000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 330 µH	Performance Rated Current 0.2 A	DC Resistance 14000 mΩ	Q-Factor 40 %	Self Resonant Frequency 4.5 MHz	Mount SMT	Design Kit 744766
744766239	390 µH, 0.2 A, 18000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 390 µH	Performance Rated Current 0.2 A	DC Resistance 18000 mΩ	Q-Factor 40 %	Self Resonant Frequency 3.5 MHz	Mount SMT	Design Kit –
74476624	470 µH, 0.2 A, 26000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 470 µH	Performance Rated Current 0.2 A	DC Resistance 26000 mΩ	Q-Factor 40 %	Self Resonant Frequency 3.4 MHz	Mount SMT	Design Kit 744766
74476625	560 µH, 0.15 A, 30000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 560 µH	Performance Rated Current 0.15 A	DC Resistance 30000 mΩ	Q-Factor 40 %	Self Resonant Frequency 3 MHz	Mount SMT	Design Kit –
74476626	680 µH, 0.15 A, 30000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 680 µH	Performance Rated Current 0.15 A	DC Resistance 30000 mΩ	Q-Factor 30 %	Self Resonant Frequency 3 MHz	Mount SMT	Design Kit 744766
74476628	820 µH, 0.15 A, 45000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 820 µH	Performance Rated Current 0.15 A	DC Resistance 45000 mΩ	Q-Factor 25 %	Self Resonant Frequency 2.5 MHz	Mount SMT	Design Kit –
74476630	1000 µH, 0.1 A, 50000 mΩ	Downloads 9 files EDA models: Components ZIP ALT WE-GF (rev26a).IntLib \| 181 KB CDS Cadence_WE-GF (rev26a).zip \| 2.1 MB EAG Eagle_WE-GF (rev26a).lbr \| 56.1 KB KIC KiCad_WE-GF (rev26a).zip \| 969.3 KB ZUK Cadstar_WE-GF (rev21a).zip \| 15.5 KB CAD files ZIP IGS WE-GF_1812_2 (rev1).igs \| 1.3 MB STP WE-GF_1812_2 (rev1).stp \| 753.9 KB Electric models ZIP PSP PSpice_WE-GF (rev22a).zip \| 12 KB SCS Spectre_WE-GF (rev24a).mod \| 14.1 KB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1000 µH	Performance Rated Current 0.1 A	DC Resistance 50000 mΩ	Q-Factor 20 %	Self Resonant Frequency 2.5 MHz	Mount SMT	Design Kit 744766
