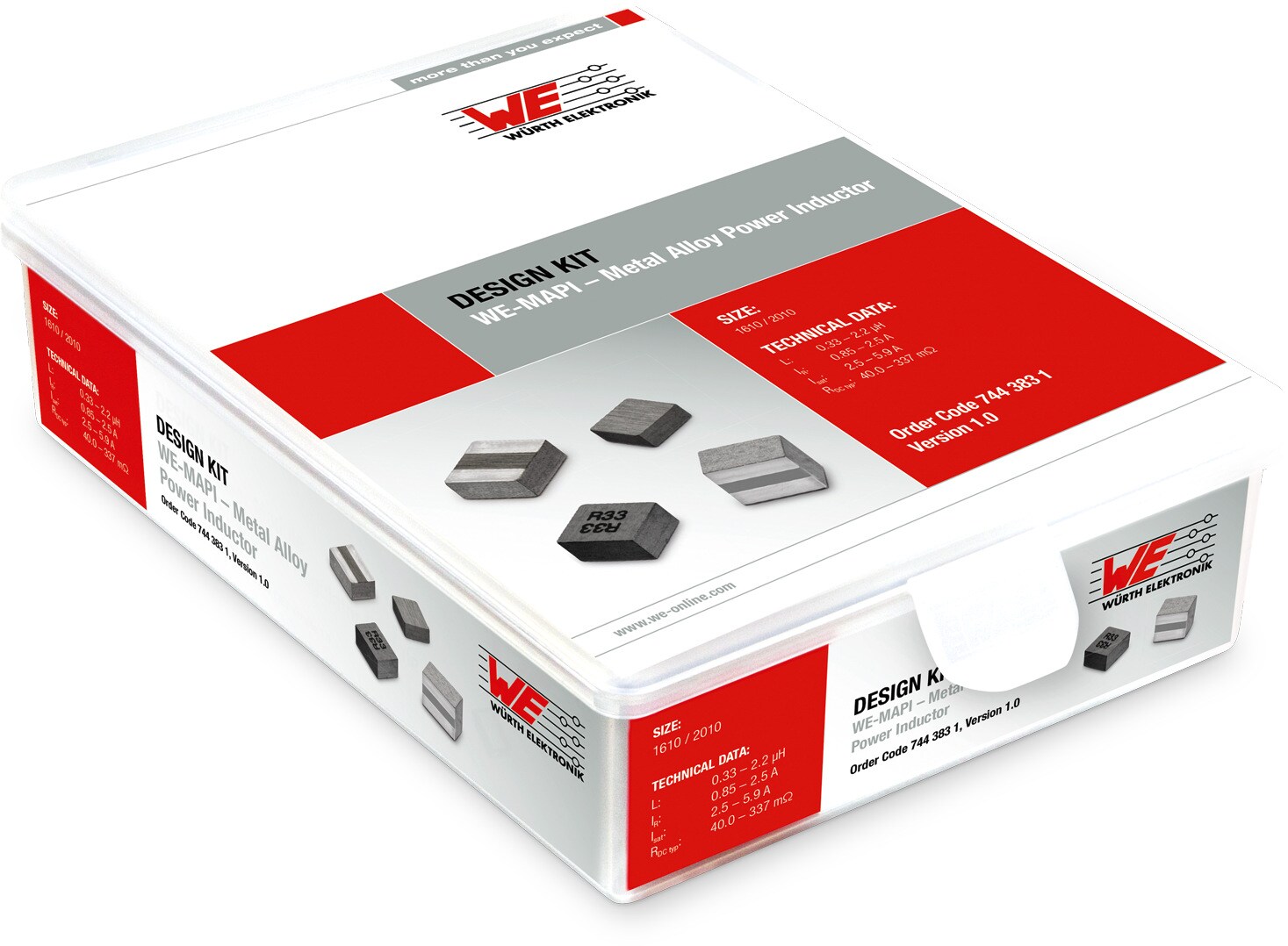

Design Kit WE-MAPI Metal Alloy Power Inductor 1610/2010

Applications

DC/DC-converter for high current power supplies
DC/DC-converter for Field Programmable Gate Array (FPGA)
POL-converters
Portable power like PDA, digital camera
Mainboards/graphic cards
Battery powered devices
Wireless communication devices
Power supplies for smartphones, tablet PCs and other mobile devices

Products

Order Code	Datasheet	Simulation	Downloads	Product series	L (µH)	I_R (A)	I_SAT (A)	Samples
744383130033	SPEC		9 files EDA models: Components ZIP ALT WE-MAPI (rev24a).IntLib \| 588 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev24a).zip \| 2.4 MB EAG Eagle_WE-MAPI (rev24a).lbr \| 170.6 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-16xx_3D (rev1).pdf \| 13.1 KB IGS WE-MAPI_1610 (rev1).igs \| 49.5 KB STP WE-MAPI_1610 (rev1).stp \| 36.1 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev23a).mod \| 31.1 KB Download all 9 files as zip archive ZIP	WE-MAPI SMT Power Inductor	0.33	0	4.9
744383430033	SPEC		9 files EDA models: Components ZIP ALT WE-MAPI (rev24a).IntLib \| 588 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev24a).zip \| 2.4 MB EAG Eagle_WE-MAPI (rev24a).lbr \| 170.6 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-30xx_3D (rev1).pdf \| 62.3 KB IGS WE-MAPI_2010 (rev1).igs \| 49 KB STP WE-MAPI_2010 (rev1).stp \| 36.1 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev23a).mod \| 31.1 KB Download all 9 files as zip archive ZIP	WE-MAPI SMT Power Inductor	0.33	2.5	5.9
744383130047	SPEC		9 files EDA models: Components ZIP ALT WE-MAPI (rev24a).IntLib \| 588 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev24a).zip \| 2.4 MB EAG Eagle_WE-MAPI (rev24a).lbr \| 170.6 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-16xx_3D (rev1).pdf \| 13.1 KB IGS WE-MAPI_1610 (rev1).igs \| 49.5 KB STP WE-MAPI_1610 (rev1).stp \| 36.1 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev23a).mod \| 31.1 KB Download all 9 files as zip archive ZIP	WE-MAPI SMT Power Inductor	0.47	1.7	4.5
744383430047	SPEC		9 files EDA models: Components ZIP ALT WE-MAPI (rev24a).IntLib \| 588 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev24a).zip \| 2.4 MB EAG Eagle_WE-MAPI (rev24a).lbr \| 170.6 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-30xx_3D (rev1).pdf \| 62.3 KB IGS WE-MAPI_2010 (rev1).igs \| 49 KB STP WE-MAPI_2010 (rev1).stp \| 36.1 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev23a).mod \| 31.1 KB Download all 9 files as zip archive ZIP	WE-MAPI SMT Power Inductor	0.47	2.3	5.25
744383130056	SPEC		9 files EDA models: Components ZIP ALT WE-MAPI (rev24a).IntLib \| 588 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev24a).zip \| 2.4 MB EAG Eagle_WE-MAPI (rev24a).lbr \| 170.6 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-16xx_3D (rev1).pdf \| 13.1 KB IGS WE-MAPI_1610 (rev1).igs \| 49.5 KB STP WE-MAPI_1610 (rev1).stp \| 36.1 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev23a).mod \| 31.1 KB Download all 9 files as zip archive ZIP	WE-MAPI SMT Power Inductor	0.56	0	4
744383430056	SPEC		9 files EDA models: Components ZIP ALT WE-MAPI (rev24a).IntLib \| 588 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev24a).zip \| 2.4 MB EAG Eagle_WE-MAPI (rev24a).lbr \| 170.6 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-30xx_3D (rev1).pdf \| 62.3 KB IGS WE-MAPI_2010 (rev1).igs \| 49 KB STP WE-MAPI_2010 (rev1).stp \| 36.1 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev23a).mod \| 31.1 KB Download all 9 files as zip archive ZIP	WE-MAPI SMT Power Inductor	0.56	2.1	5
744383130068	SPEC		9 files EDA models: Components ZIP ALT WE-MAPI (rev24a).IntLib \| 588 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev24a).zip \| 2.4 MB EAG Eagle_WE-MAPI (rev24a).lbr \| 170.6 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-16xx_3D (rev1).pdf \| 13.1 KB IGS WE-MAPI_1610 (rev1).igs \| 49.5 KB STP WE-MAPI_1610 (rev1).stp \| 36.1 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev23a).mod \| 31.1 KB Download all 9 files as zip archive ZIP	WE-MAPI SMT Power Inductor	0.68	0	3.8
744383430068	SPEC		9 files EDA models: Components ZIP ALT WE-MAPI (rev24a).IntLib \| 588 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev24a).zip \| 2.4 MB EAG Eagle_WE-MAPI (rev24a).lbr \| 170.6 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-30xx_3D (rev1).pdf \| 62.3 KB IGS WE-MAPI_2010 (rev1).igs \| 49 KB STP WE-MAPI_2010 (rev1).stp \| 36.1 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev23a).mod \| 31.1 KB Download all 9 files as zip archive ZIP	WE-MAPI SMT Power Inductor	0.68	2	4.7
744383130082	SPEC		9 files EDA models: Components ZIP ALT WE-MAPI (rev24a).IntLib \| 588 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev24a).zip \| 2.4 MB EAG Eagle_WE-MAPI (rev24a).lbr \| 170.6 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-16xx_3D (rev1).pdf \| 13.1 KB IGS WE-MAPI_1610 (rev1).igs \| 49.5 KB STP WE-MAPI_1610 (rev1).stp \| 36.1 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev23a).mod \| 31.1 KB Download all 9 files as zip archive ZIP	WE-MAPI SMT Power Inductor	0.82	0	3.6
744383430082	SPEC		9 files EDA models: Components ZIP ALT WE-MAPI (rev24a).IntLib \| 588 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev24a).zip \| 2.4 MB EAG Eagle_WE-MAPI (rev24a).lbr \| 170.6 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-30xx_3D (rev1).pdf \| 62.3 KB IGS WE-MAPI_2010 (rev1).igs \| 49 KB STP WE-MAPI_2010 (rev1).stp \| 36.1 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev23a).mod \| 31.1 KB Download all 9 files as zip archive ZIP	WE-MAPI SMT Power Inductor	0.82	1.9	4.2
74438313010	SPEC		9 files EDA models: Components ZIP ALT WE-MAPI (rev24a).IntLib \| 588 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev24a).zip \| 2.4 MB EAG Eagle_WE-MAPI (rev24a).lbr \| 170.6 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-16xx_3D (rev1).pdf \| 13.1 KB IGS WE-MAPI_1610 (rev1).igs \| 49.5 KB STP WE-MAPI_1610 (rev1).stp \| 36.1 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev23a).mod \| 31.1 KB Download all 9 files as zip archive ZIP	WE-MAPI SMT Power Inductor	1	0	3.4
74438343010	SPEC		9 files EDA models: Components ZIP ALT WE-MAPI (rev24a).IntLib \| 588 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev24a).zip \| 2.4 MB EAG Eagle_WE-MAPI (rev24a).lbr \| 170.6 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-30xx_3D (rev1).pdf \| 62.3 KB IGS WE-MAPI_2010 (rev1).igs \| 49 KB STP WE-MAPI_2010 (rev1).stp \| 36.1 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev23a).mod \| 31.1 KB Download all 9 files as zip archive ZIP	WE-MAPI SMT Power Inductor	1	1.8	3.9
74438313012	SPEC		9 files EDA models: Components ZIP ALT WE-MAPI (rev24a).IntLib \| 588 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev24a).zip \| 2.4 MB EAG Eagle_WE-MAPI (rev24a).lbr \| 170.6 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-16xx_3D (rev1).pdf \| 13.1 KB IGS WE-MAPI_1610 (rev1).igs \| 49.5 KB STP WE-MAPI_1610 (rev1).stp \| 36.1 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev23a).mod \| 31.1 KB Download all 9 files as zip archive ZIP	WE-MAPI SMT Power Inductor	1.2	0	3.2
74438343012	SPEC		9 files EDA models: Components ZIP ALT WE-MAPI (rev24a).IntLib \| 588 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev24a).zip \| 2.4 MB EAG Eagle_WE-MAPI (rev24a).lbr \| 170.6 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-30xx_3D (rev1).pdf \| 62.3 KB IGS WE-MAPI_2010 (rev1).igs \| 49 KB STP WE-MAPI_2010 (rev1).stp \| 36.1 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev23a).mod \| 31.1 KB Download all 9 files as zip archive ZIP	WE-MAPI SMT Power Inductor	1.2	1.5	3.8
74438313015	SPEC		9 files EDA models: Components ZIP ALT WE-MAPI (rev24a).IntLib \| 588 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev24a).zip \| 2.4 MB EAG Eagle_WE-MAPI (rev24a).lbr \| 170.6 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-16xx_3D (rev1).pdf \| 13.1 KB IGS WE-MAPI_1610 (rev1).igs \| 49.5 KB STP WE-MAPI_1610 (rev1).stp \| 36.1 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev23a).mod \| 31.1 KB Download all 9 files as zip archive ZIP	WE-MAPI SMT Power Inductor	1.5	0	2.7
74438343015	SPEC		9 files EDA models: Components ZIP ALT WE-MAPI (rev24a).IntLib \| 588 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev24a).zip \| 2.4 MB EAG Eagle_WE-MAPI (rev24a).lbr \| 170.6 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-30xx_3D (rev1).pdf \| 62.3 KB IGS WE-MAPI_2010 (rev1).igs \| 49 KB STP WE-MAPI_2010 (rev1).stp \| 36.1 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev23a).mod \| 31.1 KB Download all 9 files as zip archive ZIP	WE-MAPI SMT Power Inductor	1.5	1.3	3
74438313022	SPEC		9 files EDA models: Components ZIP ALT WE-MAPI (rev24a).IntLib \| 588 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev24a).zip \| 2.4 MB EAG Eagle_WE-MAPI (rev24a).lbr \| 170.6 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-16xx_3D (rev1).pdf \| 13.1 KB IGS WE-MAPI_1610 (rev1).igs \| 49.5 KB STP WE-MAPI_1610 (rev1).stp \| 36.1 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev23a).mod \| 31.1 KB Download all 9 files as zip archive ZIP	WE-MAPI SMT Power Inductor	2.2	0	2.5
74438343022	SPEC		9 files EDA models: Components ZIP ALT WE-MAPI (rev24a).IntLib \| 588 KB ZUK Cadstar_WE-MAPI (rev20a).zip \| 15.9 KB CDS Cadence_WE-MAPI (rev24a).zip \| 2.4 MB EAG Eagle_WE-MAPI (rev24a).lbr \| 170.6 KB CAD files ZIP 3D 3D_WE-IndMAPI_SSMC-30xx_3D (rev1).pdf \| 62.3 KB IGS WE-MAPI_2010 (rev1).igs \| 49 KB STP WE-MAPI_2010 (rev1).stp \| 36.1 KB Electric models ZIP PSP PSpice_WE-MAPI (rev24a).zip \| 31.1 KB SCS Spectre_WE-MAPI (rev23a).mod \| 31.1 KB Download all 9 files as zip archive ZIP	WE-MAPI SMT Power Inductor	2.2	1.1	2.5

Order Code	Datasheet	Simulation
744383130033	SPEC
744383430033	SPEC
744383130047	SPEC
744383430047	SPEC
744383130056	SPEC
744383430056	SPEC
744383130068	SPEC
744383430068	SPEC
744383130082	SPEC
744383430082	SPEC
74438313010	SPEC
74438343010	SPEC
74438313012	SPEC
74438343012	SPEC
74438313015	SPEC
74438343015	SPEC
74438313022	SPEC
74438343022	SPEC
