OverviewAll product units Product unitPassive Components Product groupSignal & Communications Product familyFiltered Connectors Product seriesWE-D-SUB Filter Connector Product seriesWE-D-SUB Filter Bent 90° THT

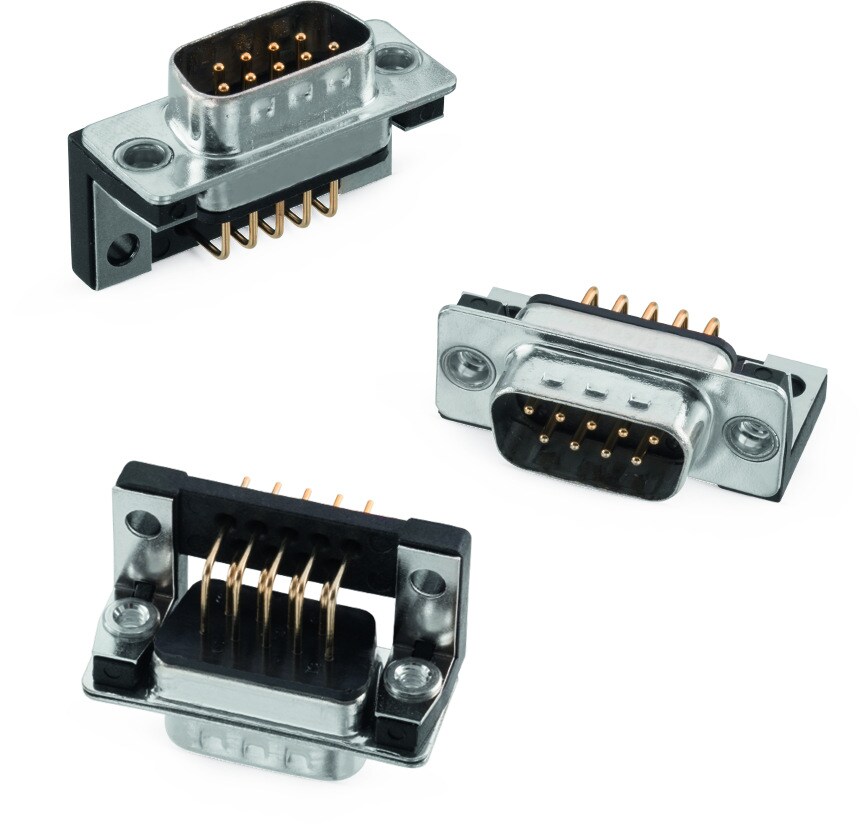

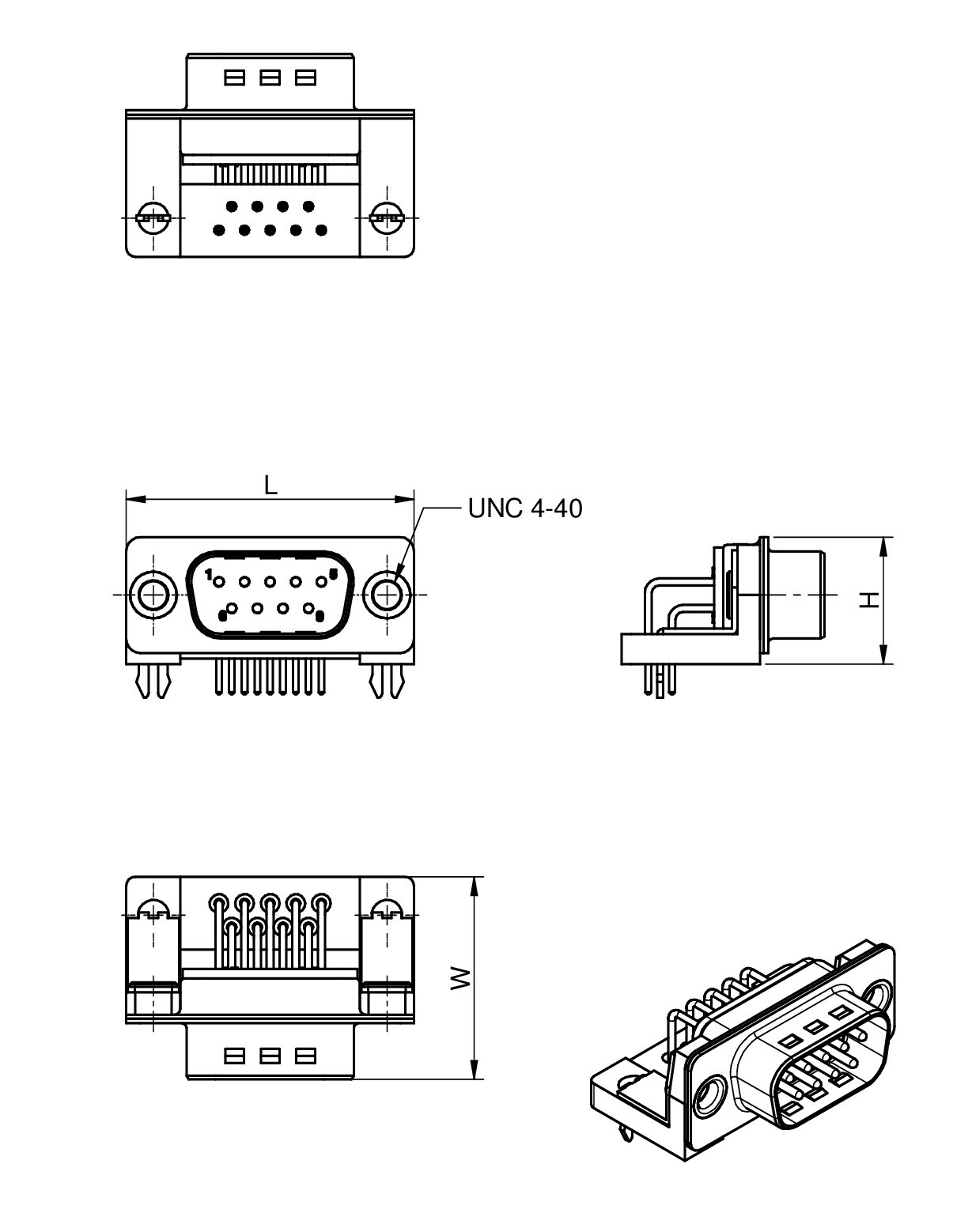

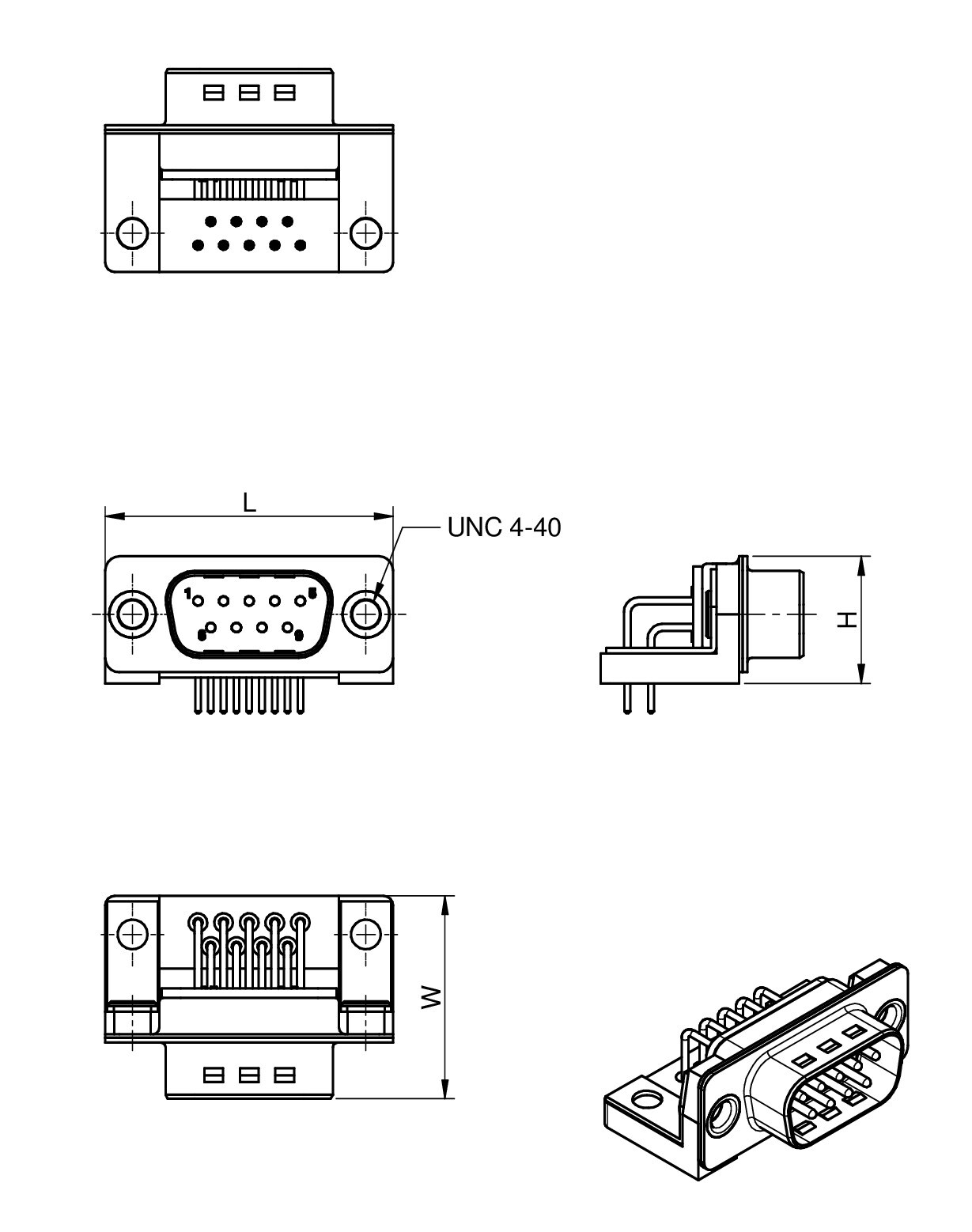

Size	Dimensions	W (mm)	H (mm)	Material
Metal Sheet		21.7	12.4	Steel with Tin
Earthing Clip		21.7	12.4	Steel with Tin

Characteristics

Standardized filter with 1000 pF (other values possible on request)
High attenuation of more than 40 dB @ 180 MHz
Rated current @ 20 ºC: 7.5 A
Insulation resistance: min. 1 GΩ
Operating temperature: –55 ºC to +125 ºC
Choice of metal sheet or earthing clip
Working voltage: 100 VDC
Testing voltage: 250 VRMS

Applications

Filtering of interfaces
External connection to
– printer
– sensor
– display

Products

All

Metal Sheet

Earthing Clip

	Order Code	Datasheet	Downloads	Number of Poles	Gender	L (mm)	W (mm)	H (mm)	Samples
	210112043	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 210112043 (rev1).igs \| 13.8 MB STP 210112043 (rev1).stp \| 1.6 MB	9	Male	30.8	21.7	12.4
	210612043	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 210612043 (rev1).igs \| 16.9 MB STP 210612043 (rev1).stp \| 1.8 MB	9	Female	30.8	21.7	12.4
	210112013	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 210112013 (rev1).igs \| 14.1 MB STP 210112013 (rev1).stp \| 1.7 MB	9	Male	30.8	21.7	12.4
	210612013	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 210612013 (rev1).igs \| 17.1 MB STP 210612013 (rev1).stp \| 1.8 MB	9	Female	30.8	21.7	12.4
	212112043	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 212112043 (rev1).igs \| 21.4 MB STP 212112043 (rev1).stp \| 1.9 MB	15	Male	39.2	21.7	12.4
	212612043	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 212612043 (rev1).igs \| 26.3 MB STP 212612043 (rev1).stp \| 2 MB	15	Female	39.2	21.7	12.4
	212112013	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 212112013 (rev1).igs \| 21.6 MB STP 212112013 (rev1).stp \| 2 MB	15	Male	39.2	21.7	12.4
	212612013	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 212612013 (rev1).igs \| 26.5 MB STP 212612013 (rev1).stp \| 2 MB	15	Female	39.2	21.7	12.4
	214112043	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 214112043 (rev1).igs \| 34.9 MB STP 214112043 (rev1).stp \| 2.8 MB	25	Male	53.1	21.7	12.4
	214612043	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS Downloads_IGS_214612043 (rev1).igs \| 9.8 MB STP Download_STP_214612043 (rev1).stp \| 2 MB	25	Female	53.1	21.7	12.4
	214112013	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS 214112013 (rev1).igs \| 35.1 MB STP 214112013 (rev1).stp \| 2.9 MB	25	Male	53.1	21.7	12.4
	214612013	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS Download_IGS_214612013 (rev1).igs \| 9.9 MB STP Download_STP_214612013 (rev1).stp \| 2.1 MB	25	Female	53.1	21.7	12.4
	216112043	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS Download_IGS_216112043 (rev1).igs \| 10.8 MB STP Download_STP_216112043 (rev1).stp \| 2.3 MB	37	Male	69.5	21.7	12.4
	216612043	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS Download_IGS_216612043 (rev1).igs \| 11.3 MB STP Download_STP_216612043 (rev1).stp \| 2.3 MB	37	Female	69.5	21.7	12.4
	216112013	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS Download_IGS_216112013 (rev1).igs \| 10.9 MB STP Download_STP_216112013 (rev1).stp \| 2.4 MB	37	Male	69.5	21.7	12.4
	216612013	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB CDS Cadence_WE-D-SUB (rev19a).zip \| 180.7 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB CAD files ZIP IGS Download_IGS_216612013 (rev1).igs \| 11.4 MB STP Download_STP_216612013 (rev1).stp \| 2.3 MB	37	Female	69.5	21.7	12.4

	Order Code	Datasheet
	210112043	SPEC
	210612043	SPEC
	210112013	SPEC
	210612013	SPEC
	212112043	SPEC
	212612043	SPEC
	212112013	SPEC
	212612013	SPEC
	214112043	SPEC
	214612043	SPEC
	214112013	SPEC
	214612013	SPEC
	216112043	SPEC
	216612043	SPEC
	216112013	SPEC
	216612013	SPEC

Samples

	Order Code	Datasheet	Downloads	Number of Poles	Gender	L (mm)	W (mm)	H (mm)	Samples

Use with

WA-PCCA Plastic Caps for D-SUB
