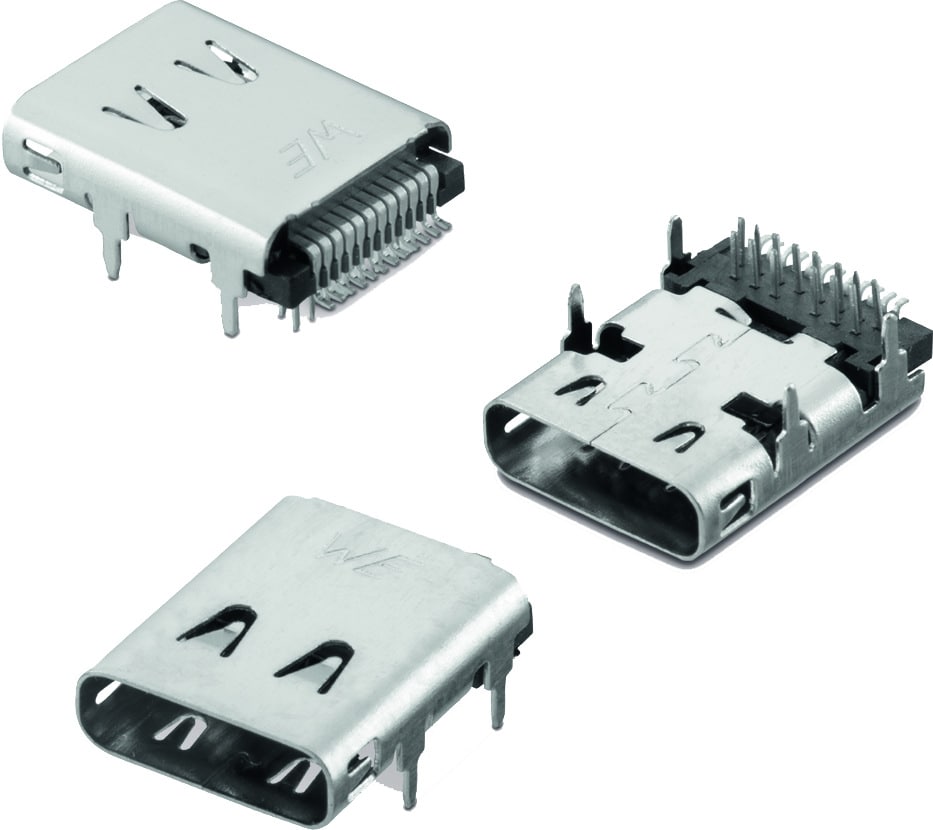

WR-COM USB 3.1 Type C Receptacle Horizontal THR / SMT

Kind Properties
Durability10 000 Mating cycles
Connector TypeUSB 3.1 Type C
GenderReceptacle
TypeHorizontal
Material Properties
Insulator MaterialLCP
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack
Contact MaterialBrass
Contact Plating2µ” Gold over 30µ” Pd-Ni
Contact TypeStamped
Shielding MaterialSteel
Shielding PlatingMatte Tin
General Information
Operating Temperature-40 up to +105 °C
Electrical Properties
Working Voltage20 V (DC)
Withstanding Voltage100 V (AC)
Contact Resistance30 mΩ

Application Notes

Products

24 reasons to connect with us

USB Type-C™

Würth Elektronik offers the complete product range from connectors, components for filtering of EMI noise, ESD surge protection as well as AC/DC to DC/DC power conversion for USB 3.1. The specially designed products are featured in the Würth Elektronik USB Type-C™ EMC Dongle to easily and quickly validate the EMC and Surge compliance of your application. Our products are referenced in the USB Type-C™ reference designs of leading IC manufacturers.

  • USB licensed and TID listed Type-C™ Connectors WE-COM
  • 60 W and 100 W Vbus filter
  • Pulse stable chip bead ferrites WE-MPSB for hot-pluggin
  • High efficiency molded power inductors WE-MAPIfor Vbus filter
  • High speed, low noise data transmission filter with WE-CNSW HF
  • Low parasitic capacitance WE-TVS
