OverviewAll product unitsProduct unitElectromechanical ComponentsProduct groupConnectorsProduct familyWire-to-Board ConnectorsProduct sub-familyWR-BHD Box HeaderPitch2.54 mmGenderMale Wire to WireProduct seriesWR-BHD 2.54 mm Male IDC Connector

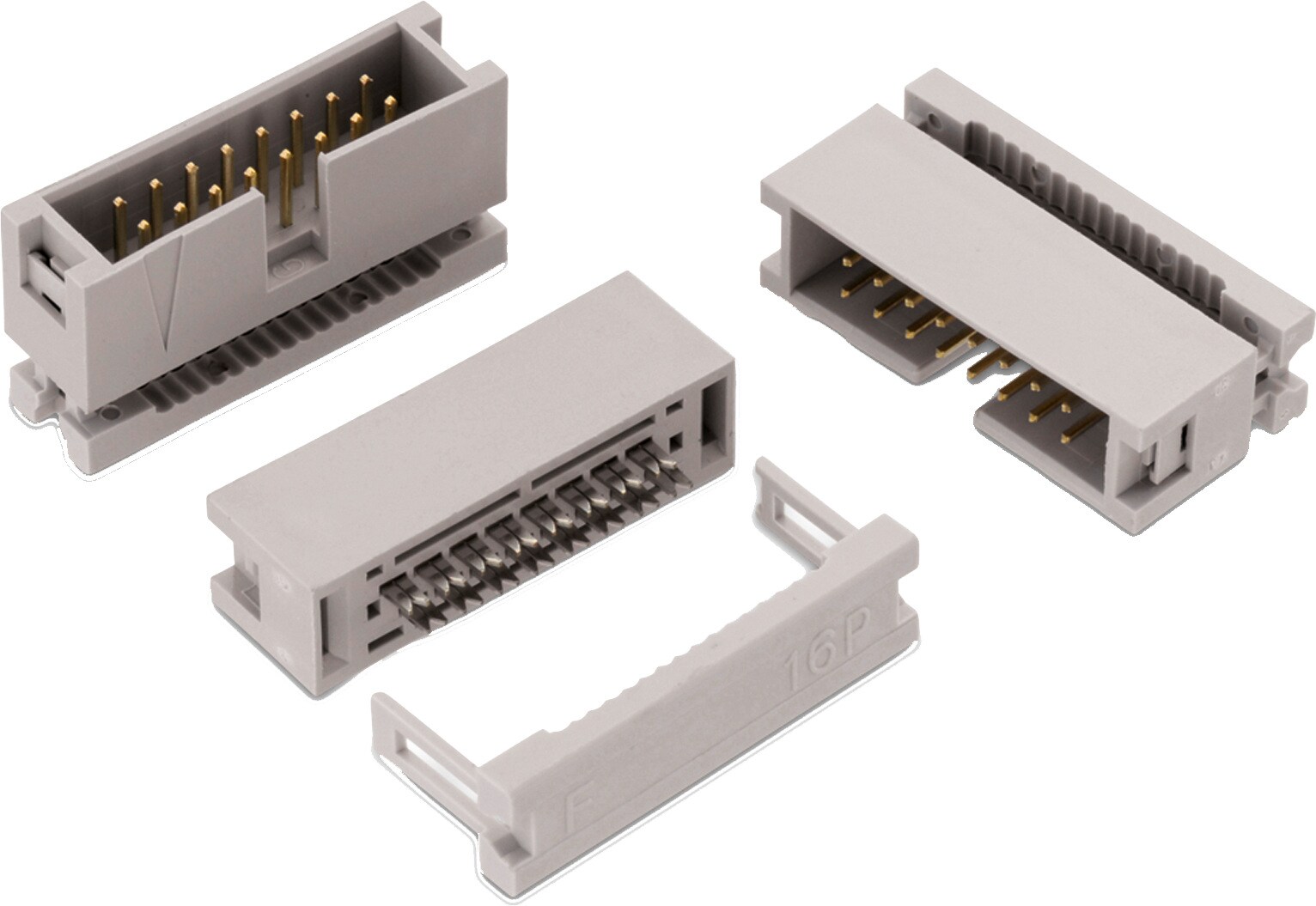

WR-BHD 2.54 mm Male IDC Connector

Material Properties
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
Insulator ColorGrey
Contact MaterialCopper Alloy
Contact PlatingSelective Gold
Contact TypeStamped
General Information
Operating Temperature-40 °C up to +105 °C
Working Voltage250 V (AC)
Withstanding Voltage500 V (AC)
Contact Resistance20 mΩ
RISO1000 MΩ
Pitch2.54 mm
GenderMale
Certification
UL ApprovalE323964
Packaging Properties
PackagingTray

Products

Order Code Data­sheet DownloadsPinsPitch
(mm)
GenderL
(mm)
IR
(A)
Working Voltage
(V (AC))
Contact Resistance
(mΩ)
Tol. RPackagingDesign Kit Samples
61201025821SPEC
3 files 10 2.54 Male 23 1 250 20 max. Tray612001
61201425821SPEC
3 files 14 2.54 Male 28.08 1 250 20 max. Tray612001
61201625821SPEC
3 files 16 2.54 Male 30.62 1 250 20 max. Tray612001
61202025821SPEC
3 files 20 2.54 Male 35.7 1 250 20 max. Tray612001
61202625821SPEC
3 files 26 2.54 Male 43.42 1 250 20 max. Tray
61203425821SPEC
3 files 34 2.54 Male 53.48 1 250 20 max. Tray
61204025821SPEC
3 files 40 2.54 Male 61.1 1 250 20 max. Tray
61205025821SPEC
3 files 50 2.54 Male 73.8 1 250 20 max. Tray
Order Code Data­sheet
61201025821SPEC
61201425821SPEC
61201625821SPEC
61202025821SPEC
61202625821SPEC
61203425821SPEC
61204025821SPEC
61205025821SPEC
