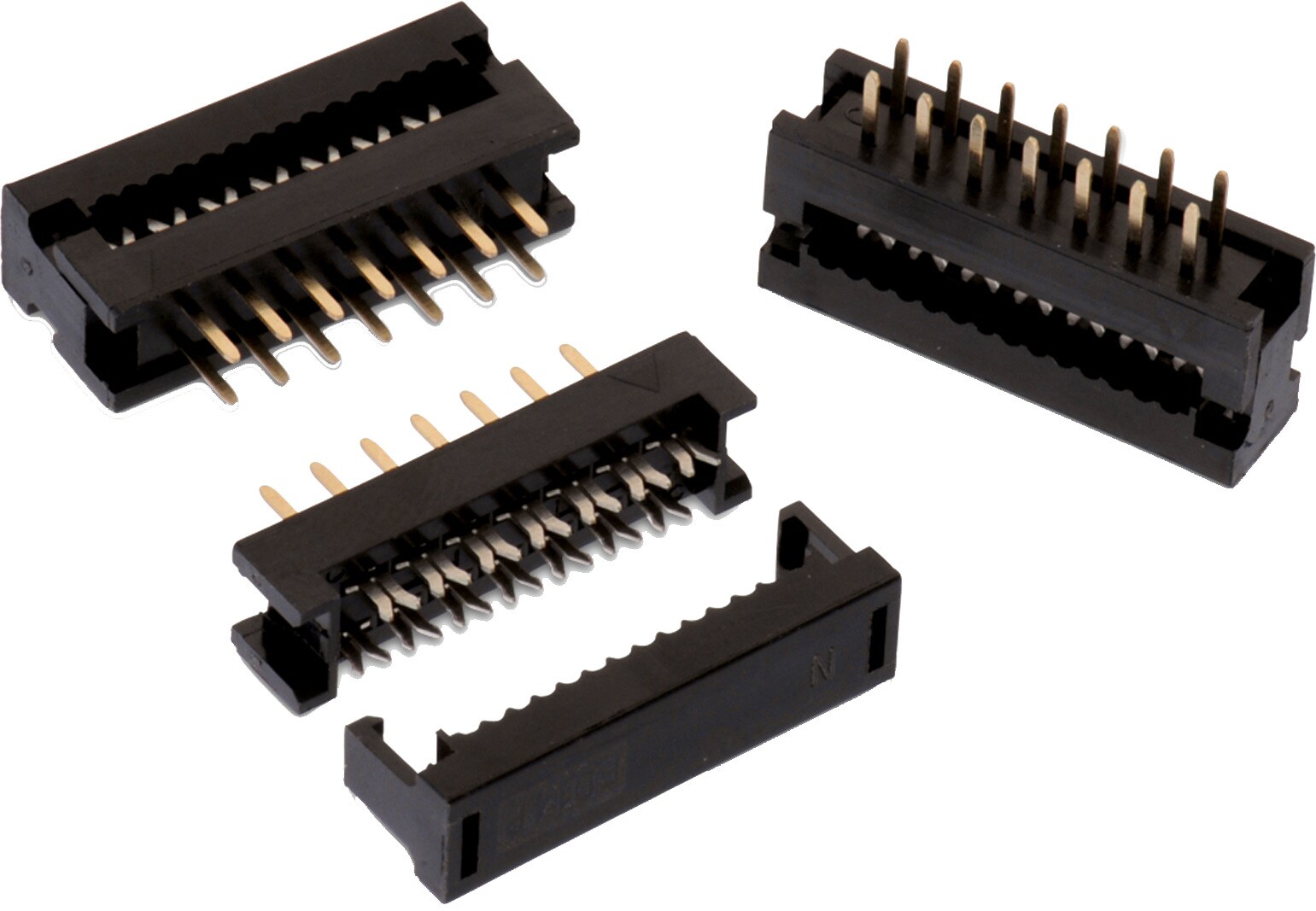

WR-BHD 2.54 mm Board to Cable Transition Connector

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ
Pitch	2.54 mm
Gender	Transition

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tray

Products

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples
61200622323	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61200622323_1 (rev1).pdf \| 82.2 KB IGS Download_IGES_61200622323 (rev1).iges \| 1.2 MB STP 61200622323 (rev1).stp \| 290.4 KB Download all 6 files as zip archive ZIP	6	2.54	Transition	13.07	1	250	20	max.	Tray	612001
61200822323	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61200822323_1 (rev1).pdf \| 92.5 KB IGS Download_IGES_61200822323 (rev1).iges \| 1.4 MB STP 61200822323 (rev1).stp \| 331.9 KB Download all 6 files as zip archive ZIP	8	2.54	Transition	15.61	1	250	20	max.	Tray	–
61201022323	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61201022323_1 (rev1).pdf \| 104.2 KB IGS Download_IGES_61201022323 (rev1).iges \| 1.5 MB STP 61201022323 (rev1).stp \| 363.1 KB Download all 6 files as zip archive ZIP	10	2.54	Transition	18.15	1	250	20	max.	Tray	612001 612690
61201422323	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61201422323_1 (rev1).pdf \| 128.3 KB IGS Download_IGES_61201422323 (rev1).iges \| 1.9 MB STP 61201422323 (rev1).stp \| 451.3 KB Download all 6 files as zip archive ZIP	14	2.54	Transition	23.23	1	250	20	max.	Tray	612001
61201622323	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61201622323_1 (rev1).pdf \| 134.7 KB IGS Download_IGES_61201622323 (rev1).iges \| 2.1 MB STP 61201622323 (rev1).stp \| 488 KB Download all 6 files as zip archive ZIP	16	2.54	Transition	25.77	1	250	20	max.	Tray	612001
61202022323	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61202022323_1 (rev1).pdf \| 155.9 KB IGS Download_IGES_61202022323 (rev1).iges \| 2.4 MB STP 61202022323 (rev1).stp \| 566.5 KB Download all 6 files as zip archive ZIP	20	2.54	Transition	30.85	1	250	20	max.	Tray	612001
61202622323	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61202622323_1 (rev1).pdf \| 201.7 KB IGS Download_IGES_61202622323 (rev1).iges \| 2.9 MB STP 61202622323 (rev1).stp \| 692 KB Download all 6 files as zip archive ZIP	26	2.54	Transition	38.47	1	250	20	max.	Tray	612001
61203422323	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61203422323_1 (rev1).pdf \| 235.7 KB IGS Download_IGES_61203422323 (rev1).iges \| 3.6 MB STP 61203422323 (rev1).stp \| 863.2 KB Download all 6 files as zip archive ZIP	34	2.54	Transition	48.63	1	250	20	max.	Tray	612001
61204022323	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61204022323_1 (rev1).pdf \| 269.2 KB IGS Download_IGES_61204022323 (rev1).iges \| 4.2 MB STP 61204022323 (rev1).stp \| 986.4 KB Download all 6 files as zip archive ZIP	40	2.54	Transition	56.25	1	250	20	max.	Tray	612001
61205022323	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61205022323_1 (rev1).pdf \| 328.3 KB IGS Download_IGES_61205022323 (rev1).iges \| 5.1 MB STP 61205022323 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	50	2.54	Transition	68.95	1	250	20	max.	Tray	612001

Order Code	Datasheet
61200622323	SPEC
61200822323	SPEC
61201022323	SPEC
61201422323	SPEC
61201622323	SPEC
61202022323	SPEC
61202622323	SPEC
61203422323	SPEC
61204022323	SPEC
61205022323	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples

Use with

WR-CAB 1.27 mm Ribbon Flat Cable

WR-CAB 1.27 mm Ribbon Flat Cable 1 m pieces

Tools

WR-BHD IDC Press & Tools

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Box Headers and Flat Cable

Design Kit Connector Solutions
