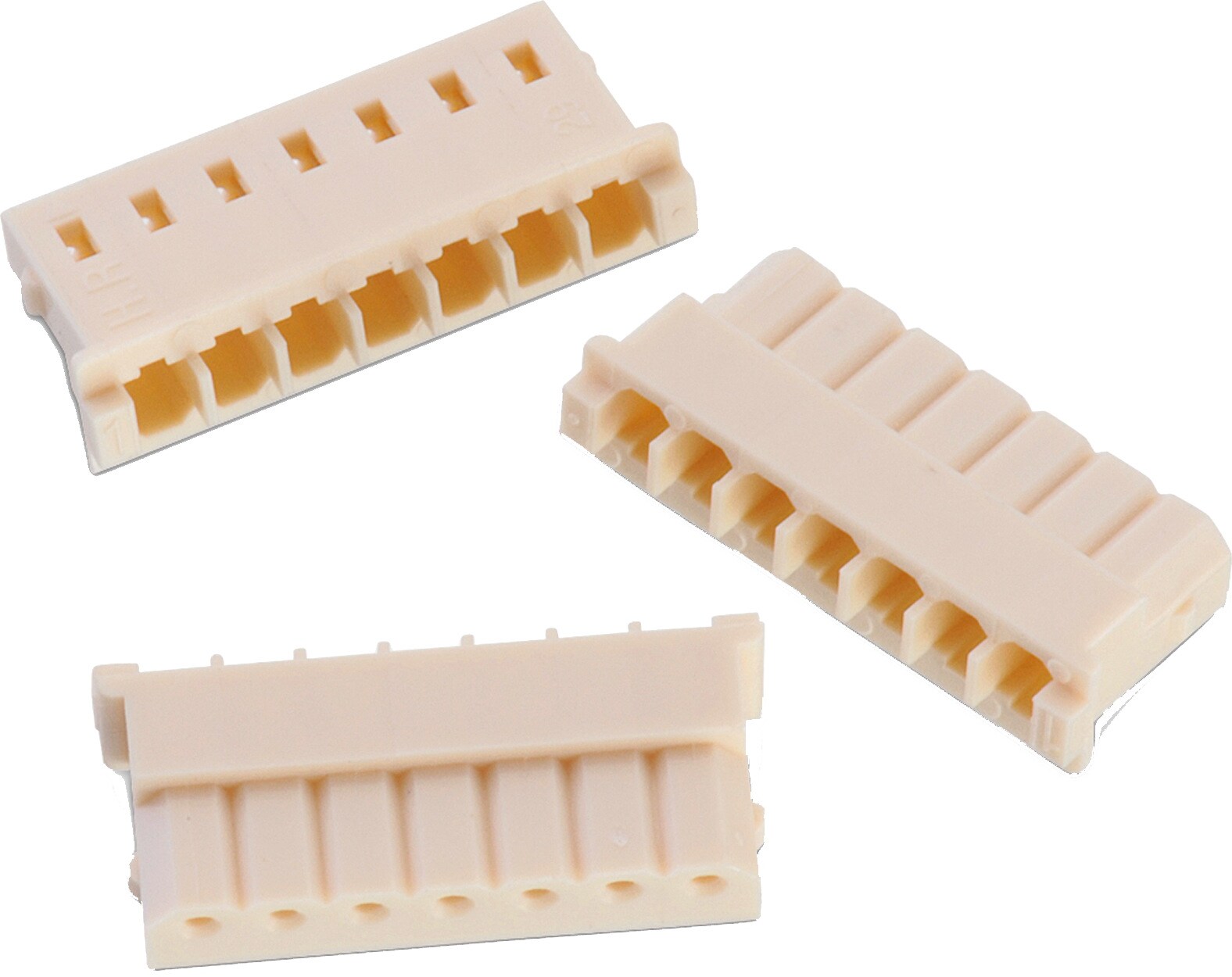

WR-WTB 2.50 mm Female Terminal Housing

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Color	Ivory

General Information
Compliance	RoHS
Withstanding Voltage	1000 V (AC)
R_ISO	1000 MΩ
Pitch	2.5 mm
Gender	Female
Type	Terminal Housing
Operating Temperature	-40 °C up to +105 °C

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

Filter article data

show articles in 0 product lines

articles in 0 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	Gender	Pins	Type	Packaging	Mates with	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	646002113322	SPECFemale, 2, Terminal Housing	Availability –	Downloads3 files 3D 646002113322_1 (rev1).pdf \| 58.2 KB IGS 646002113322 (rev1).igs \| 474.7 KB STP 646002113322 (rev1).stp \| 185.9 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	GenderFemale	Pins2	TypeTerminal Housing	PackagingBag	Mates with 64600211622	Design Kit 645001	–Check availability
	646003113322	SPECFemale, 3, Terminal Housing	Availability –	Downloads3 files 3D 646003113322_1 (rev1).pdf \| 77.4 KB IGS 646003113322 (rev1).igs \| 639.1 KB STP 646003113322 (rev1).stp \| 248.7 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	GenderFemale	Pins3	TypeTerminal Housing	PackagingBag	Mates with 64600311622	Design Kit 645001	–Check availability
	646004113322	SPECFemale, 4, Terminal Housing	Availability –	Downloads3 files 3D 646004113322_1 (rev1).pdf \| 96.7 KB IGS 646004113322 (rev1).igs \| 804.4 KB STP 646004113322 (rev1).stp \| 311.3 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	GenderFemale	Pins4	TypeTerminal Housing	PackagingBag	Mates with 64600411622	Design Kit 645001	–Check availability
	646005113322	SPECFemale, 5, Terminal Housing	Availability –	Downloads3 files 3D 646005113322_1 (rev1).pdf \| 117.6 KB IGS 646005113322 (rev1).igs \| 969.7 KB STP 646005113322 (rev1).stp \| 373.9 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	GenderFemale	Pins5	TypeTerminal Housing	PackagingBag	Mates with 64600511622	Design Kit 645001	–Check availability
	646007113322	SPECFemale, 7, Terminal Housing	Availability –	Downloads3 files 3D 646007113322_1 (rev1).pdf \| 161.2 KB IGS 646007113322 (rev1).igs \| 1.3 MB STP 646007113322 (rev1).stp \| 499.3 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	GenderFemale	Pins7	TypeTerminal Housing	PackagingBag	Mates with 64600711622	Design Kit 645001	–Check availability
	646010113322	SPECFemale, 10, Terminal Housing	Availability –	Downloads3 files 3D 646010113322_1 (rev1).pdf \| 222 KB IGS 646010113322 (rev1).igs \| 1.8 MB STP 646010113322 (rev1).stp \| 690.8 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	GenderFemale	Pins10	TypeTerminal Housing	PackagingBag	Mates with 64601011622	Design Kit 612690 645001	–Check availability

Use with

WR-WTB 2.50 mm Female Crimp Contact

WR-WTB 2.50 mm Pre-crimped wire

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
