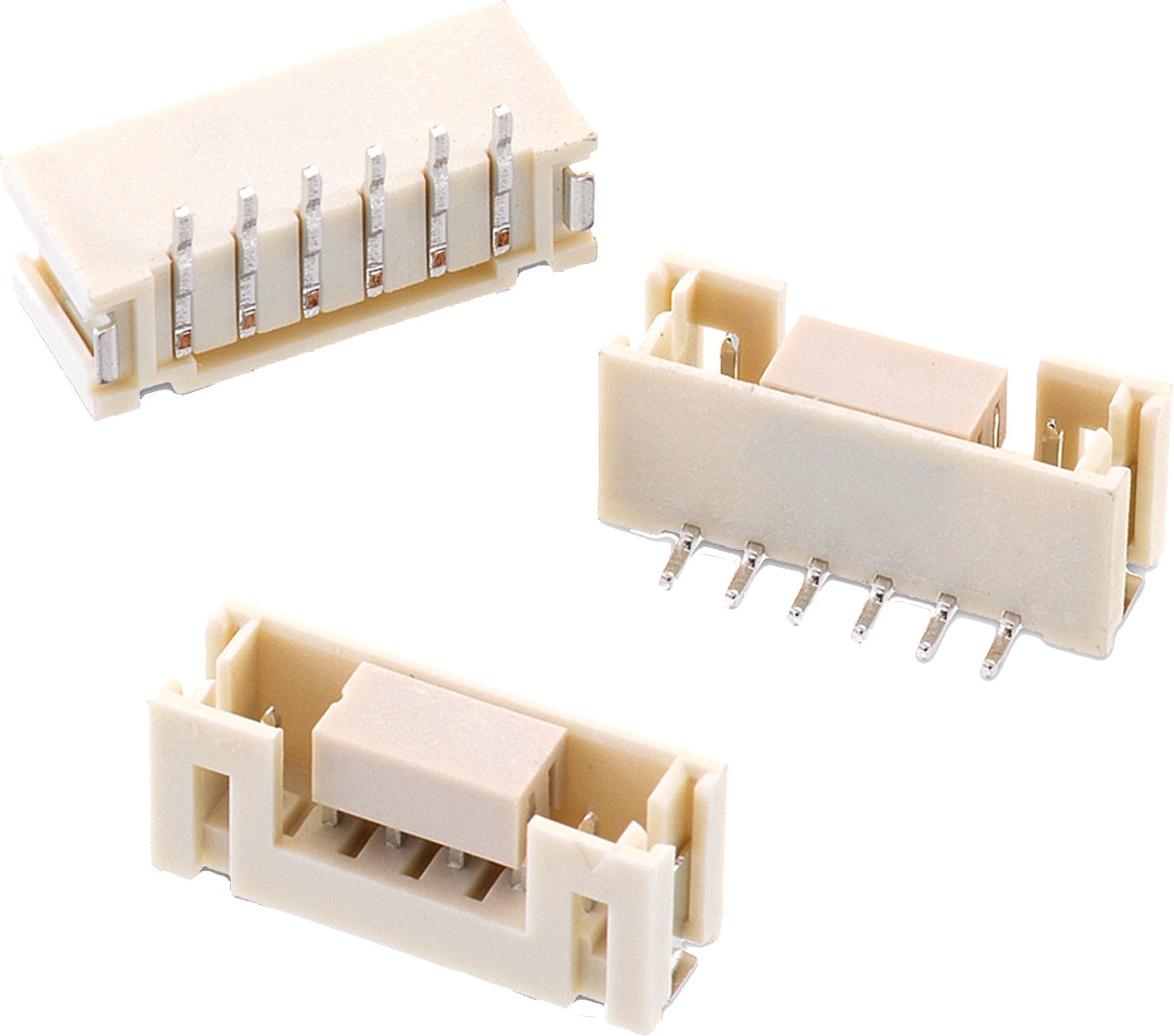

WR-WTB 2.00 mm SMT Male Vertical Shrouded Header

Kind Properties
Pitch2 mm
GenderMale
Material Properties
Insulator MaterialPA9T
Insulator Flammability RatingUL94 V-0
ColorBeige
Contact MaterialCopper Alloy
Contact PlatingTin
Contact TypeStamped
General Information
Operating Temperature-25 up to +85 °C
ComplianceRoHS
Working Voltage100 V (AC)
Withstanding Voltage800 V (AC)
Contact Resistance20 mΩ
RISO1000 MΩ
Certification
cULus ApprovalE323964
Packaging Properties
PackagingTape and Reel with Cap

Products

Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypeMountIR
(A)
Working Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
PackagingDesign Kit Samples
620302124022SPEC
6 files 2 2 Male Vertical SMT 2 100 PCB 20 max. 8 Tape and Reel with Cap645001
620303124022SPEC
6 files 3 2 Male Vertical SMT 2 100 PCB 20 max. 10 Tape and Reel with Cap645001
620304124022SPEC
6 files 4 2 Male Vertical SMT 2 100 PCB 20 max. 12 Tape and Reel with Cap645001
620305124022SPEC
6 files 5 2 Male Vertical SMT 2 100 PCB 20 max. 14 Tape and Reel with Cap645001
620306124022SPEC
6 files 6 2 Male Vertical SMT 2 100 PCB 20 max. 16 Tape and Reel with Cap645001
620307124022SPEC
6 files 7 2 Male Vertical SMT 2 100 PCB 20 max. 18 Tape and Reel with Cap645001
620308124022SPEC
6 files 8 2 Male Vertical SMT 2 100 PCB 20 max. 20 Tape and Reel with Cap645001
620309124022SPEC
6 files 9 2 Male Vertical SMT 2 100 PCB 20 max. 22 Tape and Reel with Cap645001
620310124022SPEC
6 files 10 2 Male Vertical SMT 2 100 PCB 20 max. 24 Tape and Reel with Cap612690
645001
Order Code Data­sheet
620302124022SPEC
620303124022SPEC
620304124022SPEC
620305124022SPEC
620306124022SPEC
620307124022SPEC
620308124022SPEC
620309124022SPEC
620310124022SPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypeMountIR
(A)
Working Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
PackagingDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
