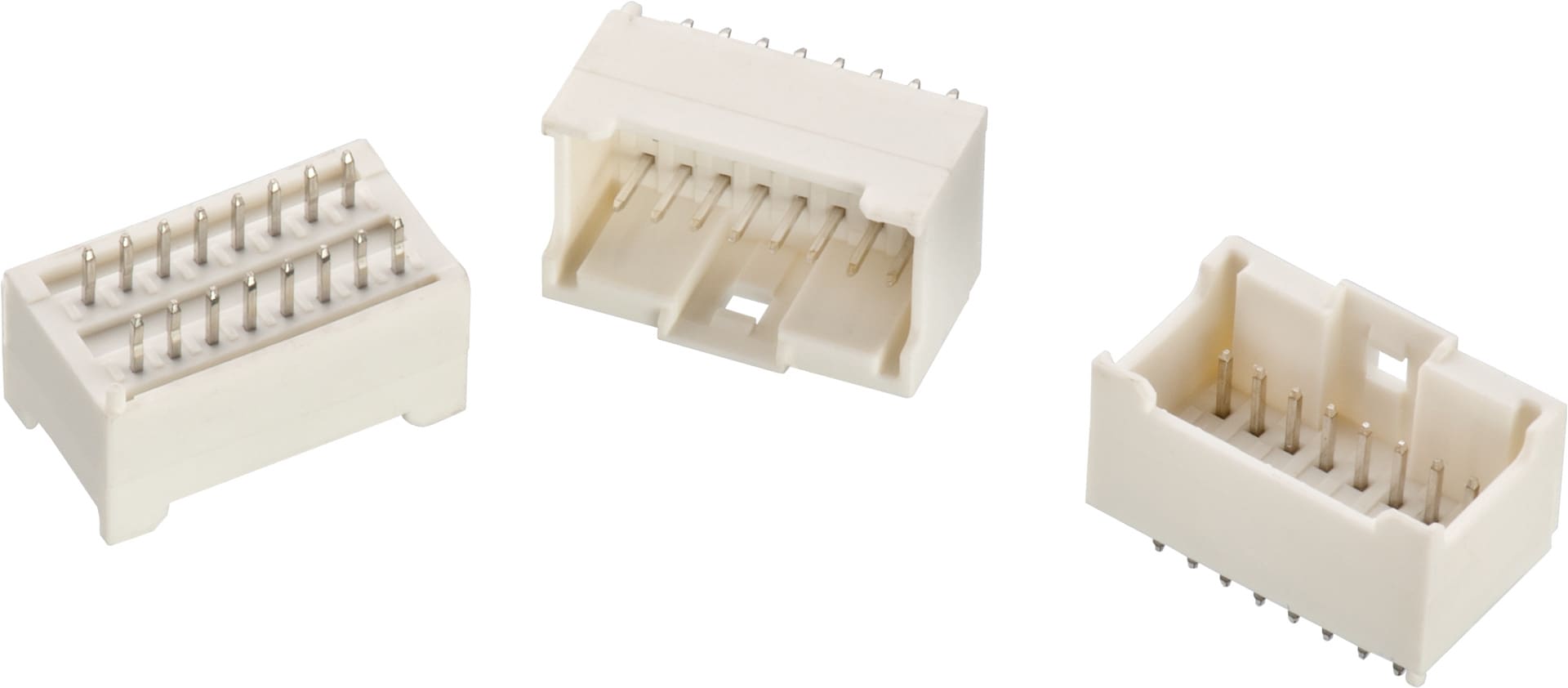

WR-WTB 2.00 mm Male Dual Row Vertical Shrouded Header w. positive locking | Electromechanical Components | Würth Elektronik Product Catalog

Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-WTB Pitch2.00 mm Dual Row Product seriesWR-WTB 2.00 mm Male Dual Row Vertical Shrouded Header w. positive locking

Kind Properties
Pitch	2 mm
Gender	Male

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Color	White
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Operating Temperature	-25 up to +85 °C
Compliance	RoHS
Working Voltage	250 V (AC)
Withstanding Voltage	1000 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
cULus Approval	E323964

Packaging Properties
Packaging	Tube

Products

Order Code	Datasheet	Downloads	Pins (mm)	Pitch (mm)	Gender	Type	Mount	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples
62400821622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev20a).IntLib \| 11 MB CDS Cadence_WR-WTB (rev19a).zip \| 12.4 MB EAG Eagle_WR-WTB (rev20a).lbr \| 2.2 MB CAD files ZIP 3D 3D_62400821622 (rev1).pdf \| 94.9 KB IGS 62400821622 (rev1).iges \| 1 MB STP 62400821622 (rev1).stp \| 423.9 KB Download all 6 files as zip archive ZIP	8	2	Male	Vertical	THT	3	250	PCB	20	max.	11.4	Tube	645001
62401021622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev20a).IntLib \| 11 MB CDS Cadence_WR-WTB (rev19a).zip \| 12.4 MB EAG Eagle_WR-WTB (rev20a).lbr \| 2.2 MB CAD files ZIP 3D 3D_62401021622 (rev1).pdf \| 107.5 KB IGS 62401021622 (rev1).iges \| 1.2 MB STP 62401021622 (rev1).stp \| 485 KB Download all 6 files as zip archive ZIP	10	2	Male	Vertical	THT	3	250	PCB	20	max.	13.4	Tube	612690 645001
62401221622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev20a).IntLib \| 11 MB CDS Cadence_WR-WTB (rev19a).zip \| 12.4 MB EAG Eagle_WR-WTB (rev20a).lbr \| 2.2 MB CAD files ZIP 3D 3D_62401221622 (rev1).pdf \| 110.7 KB IGS 62401221622 (rev1).iges \| 1.3 MB STP 62401221622 (rev1).stp \| 526.7 KB Download all 6 files as zip archive ZIP	12	2	Male	Vertical	THT	3	250	PCB	20	max.	15.4	Tube	645001
62401421622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev20a).IntLib \| 11 MB CDS Cadence_WR-WTB (rev19a).zip \| 12.4 MB EAG Eagle_WR-WTB (rev20a).lbr \| 2.2 MB CAD files ZIP 3D 3D_62401421622 (rev1).pdf \| 119 KB IGS 62401421622 (rev1).iges \| 1.4 MB STP 62401421622 (rev1).stp \| 568.5 KB Download all 6 files as zip archive ZIP	14	2	Male	Vertical	THT	3	250	PCB	20	max.	17.4	Tube	645001
62401621622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev20a).IntLib \| 11 MB CDS Cadence_WR-WTB (rev19a).zip \| 12.4 MB EAG Eagle_WR-WTB (rev20a).lbr \| 2.2 MB CAD files ZIP 3D 3D_62401621622 (rev1).pdf \| 122.8 KB IGS 62401621622 (rev1).iges \| 1.5 MB STP 62401621622 (rev1).stp \| 611.8 KB Download all 6 files as zip archive ZIP	16	2	Male	Vertical	THT	3	250	PCB	20	max.	19.4	Tube	645001
62401821622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev20a).IntLib \| 11 MB CDS Cadence_WR-WTB (rev19a).zip \| 12.4 MB EAG Eagle_WR-WTB (rev20a).lbr \| 2.2 MB CAD files ZIP 3D 3D_62401821622 (rev1).pdf \| 128.6 KB IGS 62401821622 (rev1).iges \| 1.6 MB STP 62401821622 (rev1).stp \| 654.8 KB Download all 6 files as zip archive ZIP	18	2	Male	Vertical	THT	3	250	PCB	20	max.	21.4	Tube	645001
62402021622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev20a).IntLib \| 11 MB CDS Cadence_WR-WTB (rev19a).zip \| 12.4 MB EAG Eagle_WR-WTB (rev20a).lbr \| 2.2 MB CAD files ZIP 3D 3D_62402021622 (rev1).pdf \| 135.6 KB IGS 62402021622 (rev1).iges \| 1.7 MB STP 62402021622 (rev1).stp \| 698.2 KB Download all 6 files as zip archive ZIP	20	2	Male	Vertical	THT	3	250	PCB	20	max.	23.4	Tube	645001
62402221622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev20a).IntLib \| 11 MB CDS Cadence_WR-WTB (rev19a).zip \| 12.4 MB EAG Eagle_WR-WTB (rev20a).lbr \| 2.2 MB CAD files ZIP 3D 3D_62402221622 (rev1).pdf \| 143 KB IGS 62402221622 (rev1).iges \| 1.8 MB STP 62402221622 (rev1).stp \| 741.7 KB Download all 6 files as zip archive ZIP	22	2	Male	Vertical	THT	3	250	PCB	20	max.	25.4	Tube	–
62402421622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev20a).IntLib \| 11 MB CDS Cadence_WR-WTB (rev19a).zip \| 12.4 MB EAG Eagle_WR-WTB (rev20a).lbr \| 2.2 MB CAD files ZIP 3D 3D_62402421622 (rev1).pdf \| 150.4 KB IGS 62402421622 (rev1).iges \| 1.9 MB STP 62402421622 (rev1).stp \| 785.8 KB Download all 6 files as zip archive ZIP	24	2	Male	Vertical	THT	3	250	PCB	20	max.	27.4	Tube	–
62402621622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev20a).IntLib \| 11 MB CDS Cadence_WR-WTB (rev19a).zip \| 12.4 MB EAG Eagle_WR-WTB (rev20a).lbr \| 2.2 MB CAD files ZIP 3D 3D_62402621622 (rev1).pdf \| 157.8 KB IGS 62402621622 (rev1).iges \| 2 MB STP 62402621622 (rev1).stp \| 829.1 KB Download all 6 files as zip archive ZIP	26	2	Male	Vertical	THT	3	250	PCB	20	max.	29.4	Tube	–
62402821622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev20a).IntLib \| 11 MB CDS Cadence_WR-WTB (rev19a).zip \| 12.4 MB EAG Eagle_WR-WTB (rev20a).lbr \| 2.2 MB CAD files ZIP 3D 3D_62402821622 (rev1).pdf \| 166.8 KB IGS 62402821622 (rev1).iges \| 2.1 MB STP 62402821622 (rev1).stp \| 872.2 KB Download all 6 files as zip archive ZIP	28	2	Male	Vertical	THT	3	250	PCB	20	max.	31.4	Tube	–
62403021622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev20a).IntLib \| 11 MB CDS Cadence_WR-WTB (rev19a).zip \| 12.4 MB EAG Eagle_WR-WTB (rev20a).lbr \| 2.2 MB CAD files ZIP 3D 3D_62403021622 (rev1).pdf \| 174.2 KB IGS 62403021622 (rev1).iges \| 2.2 MB STP 62403021622 (rev1).stp \| 916.9 KB Download all 6 files as zip archive ZIP	30	2	Male	Vertical	THT	3	250	PCB	20	max.	33.4	Tube	–
62403221622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev20a).IntLib \| 11 MB CDS Cadence_WR-WTB (rev19a).zip \| 12.4 MB EAG Eagle_WR-WTB (rev20a).lbr \| 2.2 MB CAD files ZIP 3D 3D_62403221622 (rev1).pdf \| 203.2 KB IGS 62403221622 (rev1).iges \| 2.3 MB STP 62403221622 (rev1).stp \| 959.7 KB Download all 6 files as zip archive ZIP	32	2	Male	Vertical	THT	3	250	PCB	20	max.	35.4	Tube	–
62403421622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev20a).IntLib \| 11 MB CDS Cadence_WR-WTB (rev19a).zip \| 12.4 MB EAG Eagle_WR-WTB (rev20a).lbr \| 2.2 MB CAD files ZIP 3D 3D_62403421622 (rev1).pdf \| 203.2 KB IGS 62403421622 (rev1).iges \| 2.4 MB STP 62403421622 (rev1).stp \| 1003.4 KB Download all 6 files as zip archive ZIP	34	2	Male	Vertical	THT	3	250	PCB	20	max.	37.4	Tube	–
62403621622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev20a).IntLib \| 11 MB CDS Cadence_WR-WTB (rev19a).zip \| 12.4 MB EAG Eagle_WR-WTB (rev20a).lbr \| 2.2 MB CAD files ZIP 3D 3D_62403621622 (rev1).pdf \| 203.2 KB IGS 62403621622 (rev1).iges \| 2.5 MB STP 62403621622 (rev1).stp \| 1 MB Download all 6 files as zip archive ZIP	36	2	Male	Vertical	THT	3	250	PCB	20	max.	39.4	Tube	–
62403821622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev20a).IntLib \| 11 MB CDS Cadence_WR-WTB (rev19a).zip \| 12.4 MB EAG Eagle_WR-WTB (rev20a).lbr \| 2.2 MB CAD files ZIP 3D 3D_62403821622 (rev1).pdf \| 203.2 KB IGS 62403821622 (rev1).iges \| 2.6 MB STP 62403821622 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	38	2	Male	Vertical	THT	3	250	PCB	20	max.	41.4	Tube	–
62404021622	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev20a).IntLib \| 11 MB CDS Cadence_WR-WTB (rev19a).zip \| 12.4 MB EAG Eagle_WR-WTB (rev20a).lbr \| 2.2 MB CAD files ZIP 3D 3D_62404021622 (rev1).pdf \| 203.2 KB IGS 62404021622 (rev1).iges \| 2.7 MB STP 62404021622 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	40	2	Male	Vertical	THT	3	250	PCB	20	max.	43.4	Tube	–

Order Code	Datasheet
62400821622	SPEC
62401021622	SPEC
62401221622	SPEC
62401421622	SPEC
62401621622	SPEC
62401821622	SPEC
62402021622	SPEC
62402221622	SPEC
62402421622	SPEC
62402621622	SPEC
62402821622	SPEC
62403021622	SPEC
62403221622	SPEC
62403421622	SPEC
62403621622	SPEC
62403821622	SPEC
62404021622	SPEC

Samples

Order Code	Datasheet	Downloads	Pins (mm)	Pitch (mm)	Gender	Type	Mount	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples

Mates with

WR-WTB 2.00 mm Female Dual Row Terminal Housing w. positive locking

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
