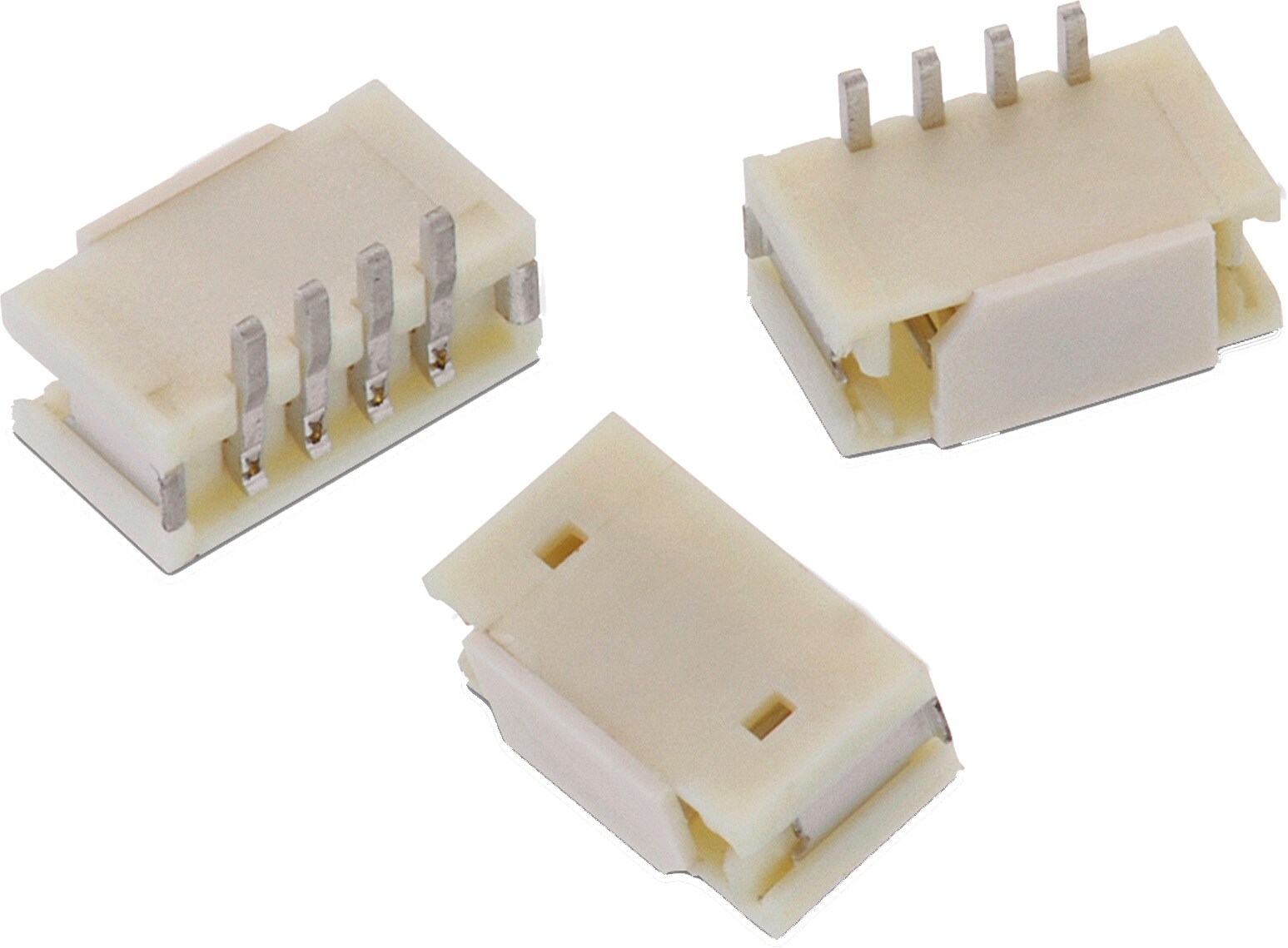

WR-WTB 1.50 mm SMT Male Vertical Shrouded Header | Electromechanical Components | Würth Elektronik Product Catalog

: Products Reference Designs Applications & Industries

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-WTB Pitch1.50 mm Product seriesWR-WTB 1.50 mm SMT Male Vertical Shrouded Header

Material Properties
Insulator Material	PA6T
Insulator Flammability Rating	UL94 V-0
Color	Ivory
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Operating Temperature	-25 °C up to +85 °C
Compliance	RoHS
I_R	1 A
Working Voltage	50 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	100 MΩ
Pitch	1.5 mm
Gender	Male
Type	Vertical

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel with Cap

Products

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Mount	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples
679302124022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 679302124022_1 (rev1).pdf \| 95.5 KB IGS 679302124022 (rev1).iges \| 897 KB STP 679302124022 (rev1).stp \| 207 KB Download all 6 files as zip archive ZIP	2	1.5	Male	Vertical	SMT	1	50	PCB	20	max.	6	Tape and Reel with Cap	645001
679303124022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 679303124022_1 (rev1).pdf \| 100.2 KB IGS 679303124022 (rev1).iges \| 950.6 KB STP 679303124022 (rev1).stp \| 217.7 KB Download all 6 files as zip archive ZIP	3	1.5	Male	Vertical	SMT	1	50	PCB	20	max.	7.5	Tape and Reel with Cap	645001
679304124022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 679304124022_1 (rev1).pdf \| 105.7 KB IGS 679304124022 (rev1).iges \| 1005 KB STP 679304124022 (rev1).stp \| 228.4 KB Download all 6 files as zip archive ZIP	4	1.5	Male	Vertical	SMT	1	50	PCB	20	max.	9	Tape and Reel with Cap	645001
679305124022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 679305124022_1 (rev1).pdf \| 112.1 KB IGS 679305124022 (rev1).iges \| 1 MB STP 679305124022 (rev1).stp \| 236.9 KB Download all 6 files as zip archive ZIP	5	1.5	Male	Vertical	SMT	1	50	PCB	20	max.	10.5	Tape and Reel with Cap	645001
679306124022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 679306124022_1 (rev1).pdf \| 120.3 KB IGS 679306124022 (rev1).iges \| 1.1 MB STP 679306124022 (rev1).stp \| 246.8 KB Download all 6 files as zip archive ZIP	6	1.5	Male	Vertical	SMT	1	50	PCB	20	max.	12	Tape and Reel with Cap	645001
679307124022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 679307124022_1 (rev1).pdf \| 126.2 KB IGS 679307124022 (rev1).iges \| 1.1 MB STP 679307124022 (rev1).stp \| 256.8 KB Download all 6 files as zip archive ZIP	7	1.5	Male	Vertical	SMT	1	50	PCB	20	max.	13.5	Tape and Reel with Cap	645001
679308124022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 679308124022_1 (rev1).pdf \| 132.5 KB IGS 679308124022 (rev1).iges \| 1.2 MB STP 679308124022 (rev1).stp \| 267.1 KB Download all 6 files as zip archive ZIP	8	1.5	Male	Vertical	SMT	1	50	PCB	20	max.	15	Tape and Reel with Cap	645001
679309124022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 679309124022_1 (rev1).pdf \| 138.4 KB IGS 679309124022 (rev1).iges \| 1.2 MB STP 679309124022 (rev1).stp \| 277.1 KB Download all 6 files as zip archive ZIP	9	1.5	Male	Vertical	SMT	1	50	PCB	20	max.	16.5	Tape and Reel with Cap	645001
679310124022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 679310124022_1 (rev1).pdf \| 146.1 KB IGS 679310124022 (rev1).iges \| 1.3 MB STP 679310124022 (rev1).stp \| 288.1 KB Download all 6 files as zip archive ZIP	10	1.5	Male	Vertical	SMT	1	50	PCB	20	max.	18	Tape and Reel with Cap	612690 645001

Order Code	Datasheet
679302124022	SPEC
679303124022	SPEC
679304124022	SPEC
679305124022	SPEC
679306124022	SPEC
679307124022	SPEC
679308124022	SPEC
679309124022	SPEC
679310124022	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Mount	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples

Mates with

WR-WTB 1.50 mm Female Terminal Housing

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
