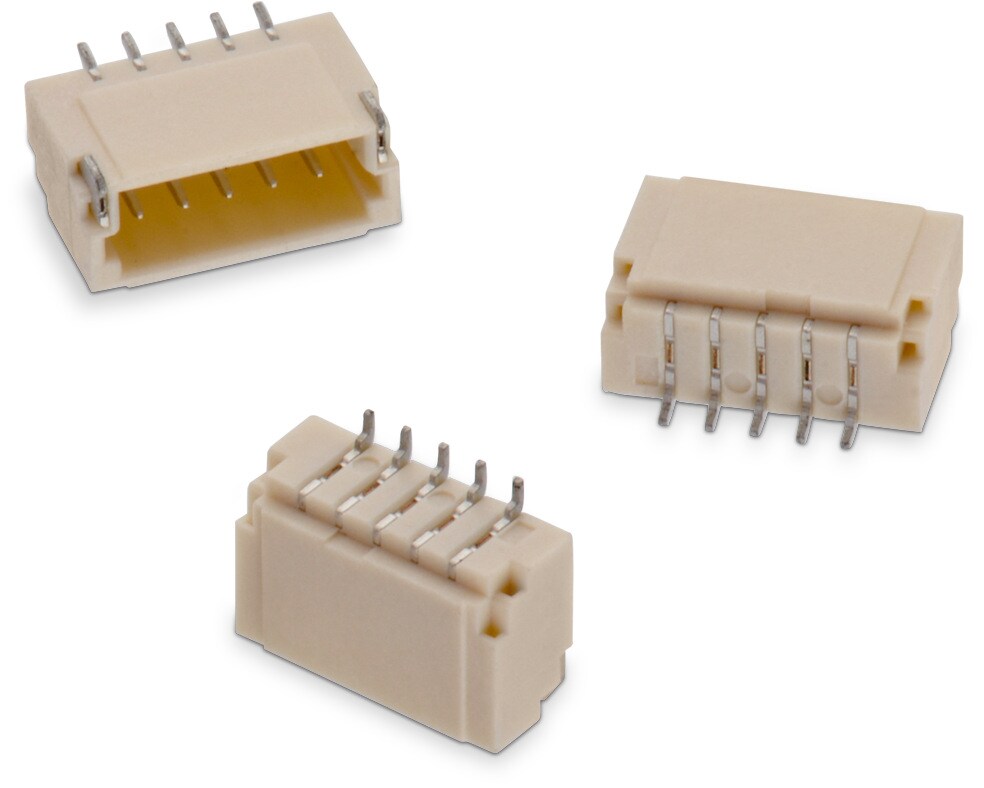

WR-WTB 1.00 mm SMT Male Horizontal Shrouded

Kind Properties
Pitch1 mm
GenderMale
Material Properties
Insulator MaterialPA46
Insulator Flammability RatingUL94 V-0
ColorBeige
Contact MaterialPhosphor Bronze
Contact PlatingTin
Contact TypeStamped
General Information
Operating Temperature-25 up to +85 °C
ComplianceRoHS
Working Voltage50 V (AC)
Withstanding Voltage [UL]500 V (AC)
Contact Resistance20 mΩ
RISO100 MΩ
Certification
UL ApprovalE323964
Packaging Properties
PackagingTape and Reel

Products

Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypeMountIR
(A)
Working Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
PackagingDesign Kit Samples
665102131822SPEC
6 files 2 1 Male Horizontal SMT 1 50 PCB 20 max. 4 Tape and Reel645001
665103131822SPEC
6 files 3 1 Male Horizontal SMT 1 50 PCB 20 max. 5 Tape and Reel645001
665104131822SPEC
6 files 4 1 Male Horizontal SMT 1 50 PCB 20 max. 6 Tape and Reel645001
665105131822SPEC
6 files 5 1 Male Horizontal SMT 1 50 PCB 20 max. 7 Tape and Reel645001
665106131822SPEC
6 files 6 1 Male Horizontal SMT 1 50 PCB 20 max. 8 Tape and Reel645001
665108131822SPEC
6 files 8 1 Male Horizontal SMT 1 50 PCB 20 max. 10 Tape and Reel645001
665110131822SPEC
6 files 10 1 Male Horizontal SMT 1 50 PCB 20 max. 12 Tape and Reel612690
645001
Order Code Data­sheet
665102131822SPEC
665103131822SPEC
665104131822SPEC
665105131822SPEC
665106131822SPEC
665108131822SPEC
665110131822SPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypeMountIR
(A)
Working Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
PackagingDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
