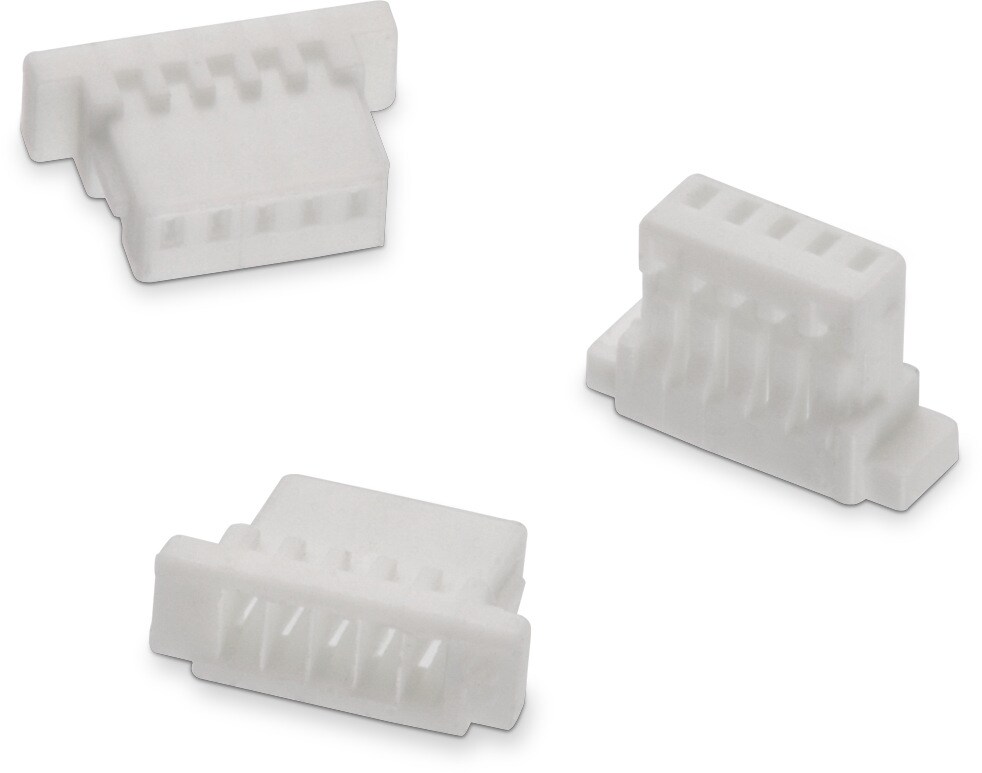

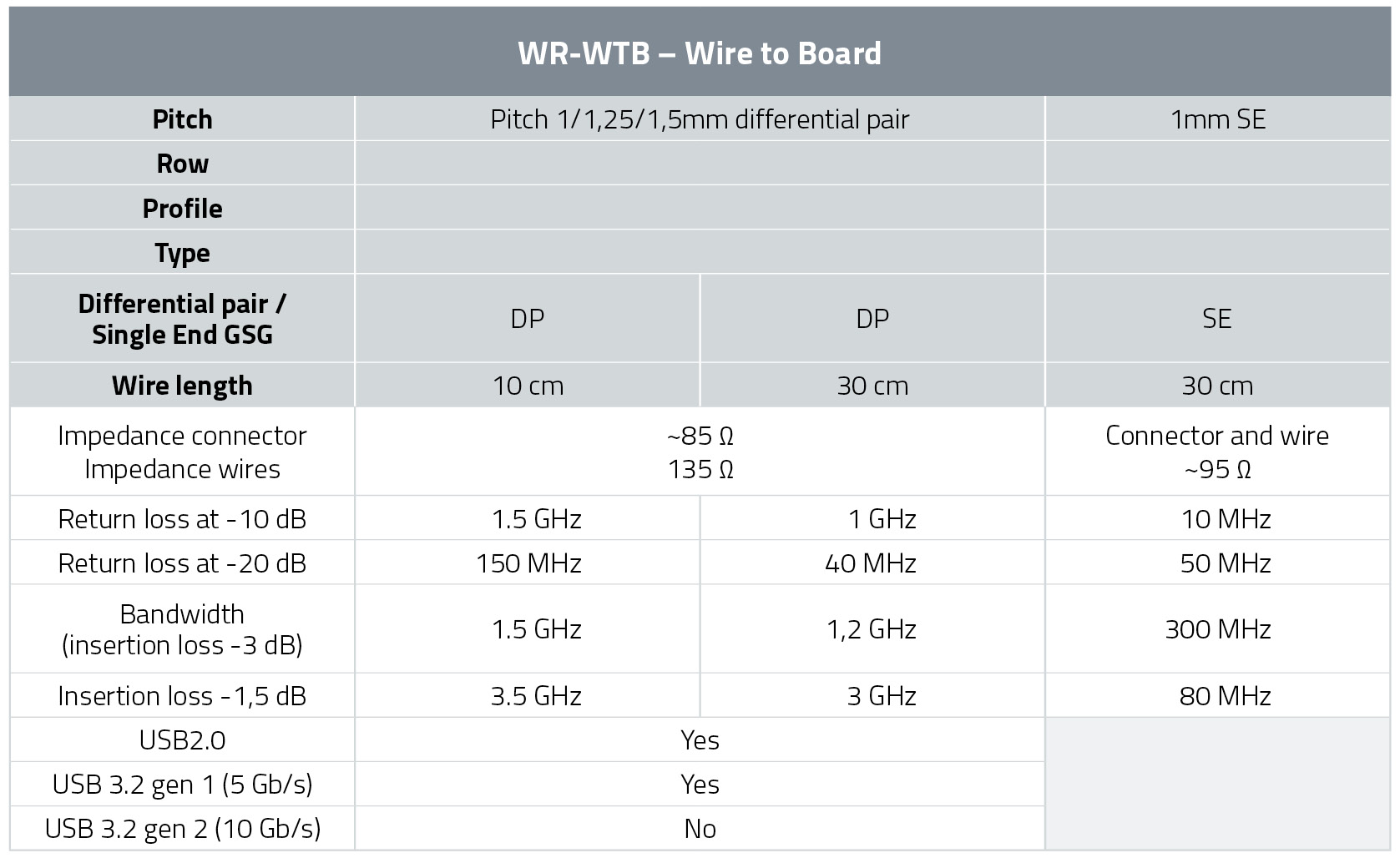

WR-WTB 1.00 mm Female Terminal Housing

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Color	White

General Information
Compliance	RoHS
Withstanding Voltage	500 V (AC)
R_ISO	100 MΩ
Pitch	1 mm
Gender	Female
Type	Terminal Housing
Operating Temperature	-25 °C up to +85 °C

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	Gender	Pins	Type	Packaging	Mates with	Design Kit	Samples
	665002113322	Female, 2, Terminal Housing	Downloads3 files CAD files ZIP 3D 665002113322_1 (rev1).pdf \| 56.9 KB IGS Download_IGES_665002113322 (rev1).iges \| 792 KB STP 665002113322 (rev1).stp \| 185.1 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins2	TypeTerminal Housing	PackagingBag	Mates with 665102131822 665302124022	Design Kit 645001
	665003113322	Female, 3, Terminal Housing	Downloads3 files CAD files ZIP 3D 665003113322_1 (rev1).pdf \| 67.2 KB IGS Download_IGES_665003113322 (rev1).iges \| 999.1 KB STP 665003113322 (rev1).stp \| 233.3 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins3	TypeTerminal Housing	PackagingBag	Mates with 665103131822 665303124022	Design Kit 645001
	665004113322	Female, 4, Terminal Housing	Downloads3 files CAD files ZIP 3D 665004113322_1 (rev1).pdf \| 77.5 KB IGS Download_IGES_665004113322 (rev1).iges \| 1.2 MB STP 665004113322 (rev1).stp \| 283.9 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins4	TypeTerminal Housing	PackagingBag	Mates with 665104131822 665304124022	Design Kit 645001
	665005113322	Female, 5, Terminal Housing	Downloads3 files CAD files ZIP 3D 665005113322_1 (rev1).pdf \| 89.1 KB IGS Download_IGES_665005113322 (rev1).iges \| 1.4 MB STP 665005113322 (rev1).stp \| 337.2 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins5	TypeTerminal Housing	PackagingBag	Mates with 665105131822 665305124022	Design Kit 645001
	665006113322	Female, 6, Terminal Housing	Downloads3 files CAD files ZIP 3D 665006113322_1 (rev1).pdf \| 97.2 KB IGS Download_IGES_665006113322 (rev1).iges \| 1.6 MB STP 665006113322 (rev1).stp \| 383.4 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins6	TypeTerminal Housing	PackagingBag	Mates with 665106131822 665306124022	Design Kit 645001
	665008113322	Female, 8, Terminal Housing	Downloads3 files CAD files ZIP 3D 665008113322_1 (rev1).pdf \| 119 KB IGS Download_IGES_665008113322 (rev1).iges \| 2 MB STP 665008113322 (rev1).stp \| 488.5 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins8	TypeTerminal Housing	PackagingBag	Mates with 665108131822 665308124022	Design Kit 645001
	665010113322	Female, 10, Terminal Housing	Downloads3 files CAD files ZIP 3D 665010113322_1 (rev1).pdf \| 140.8 KB IGS Download_IGES_665010113322 (rev1).iges \| 2.4 MB STP 665010113322 (rev1).stp \| 592.6 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Pins10	TypeTerminal Housing	PackagingBag	Mates with 665110131822 665310124022	Design Kit 612690 645001
