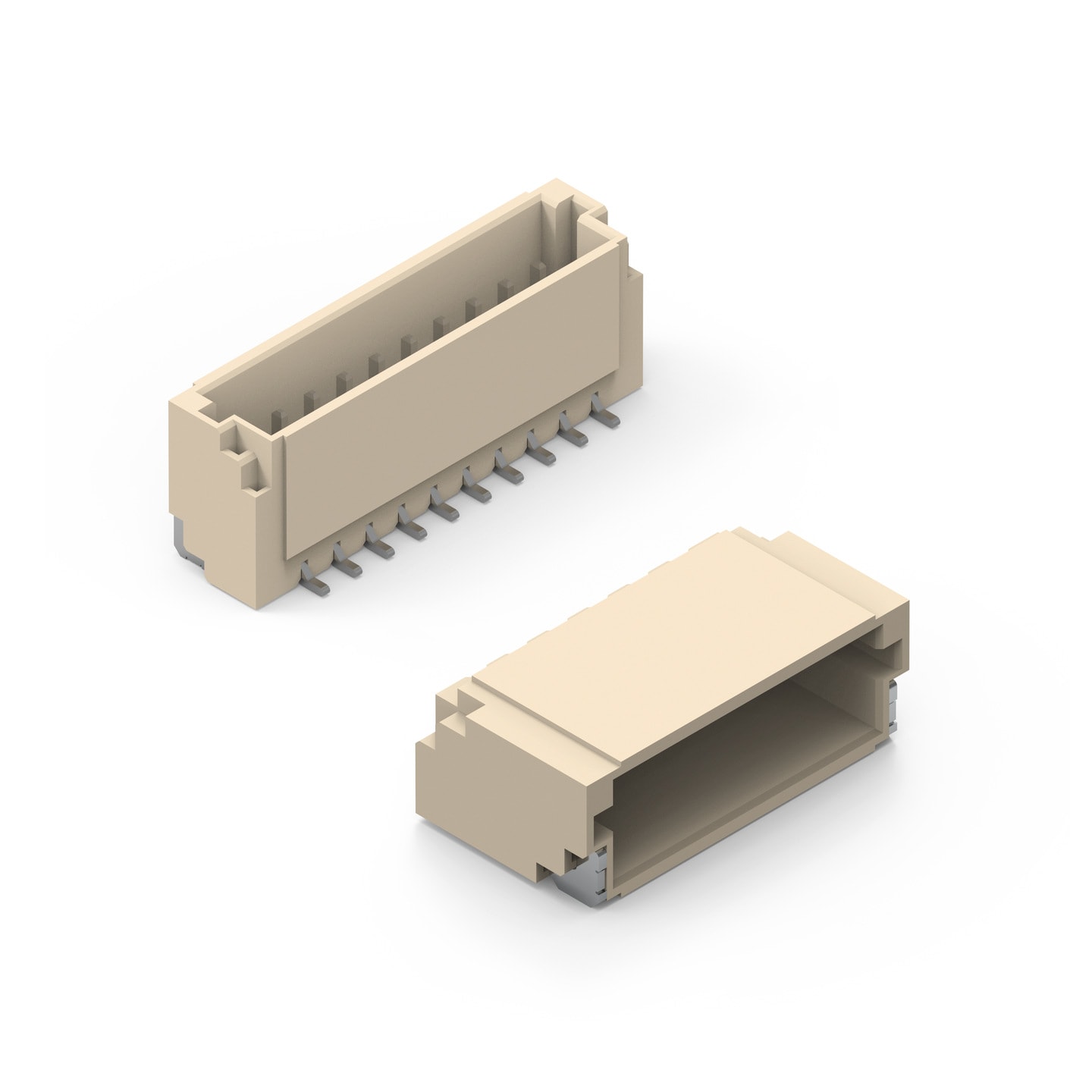

WR-WTB 1.00 mm Male Header

Size	Dimensions	Mount
Horizontal		SMT
Vertical		SMT

Characteristics

Rated Current: 1 A
Working Voltage: 50 V
Operating temperature: -25 °C to +85 °C
UL 94-V0
Pitch: 1.00 mm

Features:

Fine pitch
SMT soldering

Applications

Microelectronic
Portable devices
Industry 4.0

Products

All

Horizontal

Vertical

Filter article data

show articles in 2 product lines

articles in 2 product lines

Log in now to view availability and request availability forecasts. LOGIN

Order Code	Datasheet	Downloads	Status	Pins	Type	Mount	I_R(A)	PCB/Cable/Panel	L(mm)	Packaging	Mates with	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
665102131822	SPEC2, Horizontal, SMT PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 05/08/2026 SPEC Datasheet valid from 06/08/2026 PCN PCN document	Availability –	Downloads7 files ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev26a).lbr \| 2.1 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB 3D 3D_665102131822 (rev1).pdf \| 67.3 KB IGS Download_IGES_665102131822 (rev1).iges \| 955.9 KB STP 665102131822 (rev1).stp \| 218.1 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	TypeHorizontal	MountSMT	Rated Current1 A	PCB/Cable/PanelPCB	Length4 mm	PackagingTape and Reel	Mates with 665002113322	Design Kit 645001	–Check availability
665302124022	SPEC2, Vertical, SMT	Availability –	Downloads7 files ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev26a).lbr \| 2.1 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB 3D 3D_665302124022 (rev1).pdf \| 51.5 KB IGS Download_IGES_665302124022 (rev1).iges \| 768.4 KB STP 665302124022 (rev1).stp \| 178 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	TypeVertical	MountSMT	Rated Current1 A	PCB/Cable/PanelPCB	Length4 mm	PackagingTape and Reel with Cap	Mates with 665002113322	Design Kit 645001	–Check availability
665103131822	SPEC3, Horizontal, SMT PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 05/08/2026 SPEC Datasheet valid from 06/08/2026 PCN PCN document	Availability –	Downloads7 files ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev26a).lbr \| 2.1 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB 3D 3D_665103131822 (rev1).pdf \| 74 KB IGS Download_IGES_665103131822 (rev1).iges \| 1 MB STP 665103131822 (rev1).stp \| 238.4 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	TypeHorizontal	MountSMT	Rated Current1 A	PCB/Cable/PanelPCB	Length5 mm	PackagingTape and Reel	Mates with 665003113322	Design Kit 645001	–Check availability
665303124022	SPEC3, Vertical, SMT	Availability –	Downloads7 files ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev26a).lbr \| 2.1 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB 3D 3D_665303124022 (rev1).pdf \| 78.2 KB IGS Download_IGES_665303124022 (rev1).iges \| 1.1 MB STP 665303124022 (rev1).stp \| 263.1 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	TypeVertical	MountSMT	Rated Current1 A	PCB/Cable/PanelPCB	Length5 mm	PackagingTape and Reel with Cap	Mates with 665003113322	Design Kit 645001	–Check availability
665104131822	SPEC4, Horizontal, SMT PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 05/08/2026 SPEC Datasheet valid from 06/08/2026 PCN PCN document	Availability –	Downloads7 files ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev26a).lbr \| 2.1 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB 3D 3D_665104131822 (rev1).pdf \| 77.6 KB IGS Download_IGES_665104131822 (rev1).iges \| 1.1 MB STP 665104131822 (rev1).stp \| 257 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	TypeHorizontal	MountSMT	Rated Current1 A	PCB/Cable/PanelPCB	Length6 mm	PackagingTape and Reel	Mates with 665004113322	Design Kit 645001	–Check availability
665304124022	SPEC4, Vertical, SMT	Availability –	Downloads7 files ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev26a).lbr \| 2.1 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB 3D 3D_665304124022 (rev1).pdf \| 81.8 KB IGS Download_IGES_665304124022 (rev1).iges \| 1.2 MB STP 665304124022 (rev1).stp \| 281.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	TypeVertical	MountSMT	Rated Current1 A	PCB/Cable/PanelPCB	Length6 mm	PackagingTape and Reel with Cap	Mates with 665004113322	Design Kit 645001	–Check availability
665105131822	SPEC5, Horizontal, SMT PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 05/08/2026 SPEC Datasheet valid from 06/08/2026 PCN PCN document	Availability –	Downloads7 files ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev26a).lbr \| 2.1 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB 3D 3D_665105131822 (rev1).pdf \| 82.2 KB IGS Download_IGES_665105131822 (rev1).iges \| 1.2 MB STP 665105131822 (rev1).stp \| 277.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	TypeHorizontal	MountSMT	Rated Current1 A	PCB/Cable/PanelPCB	Length7 mm	PackagingTape and Reel	Mates with 665005113322	Design Kit 645001	–Check availability
665305124022	SPEC5, Vertical, SMT	Availability –	Downloads7 files ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev26a).lbr \| 2.1 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB 3D 3D_665305124022 (rev1).pdf \| 86.4 KB IGS Download_IGES_665305124022 (rev1).iges \| 1.3 MB STP 665305124022 (rev1).stp \| 300.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	TypeVertical	MountSMT	Rated Current1 A	PCB/Cable/PanelPCB	Length7 mm	PackagingTape and Reel with Cap	Mates with 665005113322	Design Kit 645001	–Check availability
665106131822	SPEC6, Horizontal, SMT PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 05/08/2026 SPEC Datasheet valid from 06/08/2026 PCN PCN document	Availability –	Downloads7 files ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev26a).lbr \| 2.1 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB 3D 3D_665106131822 (rev1).pdf \| 86.8 KB IGS Download_IGES_665106131822 (rev1).iges \| 1.3 MB STP 665106131822 (rev1).stp \| 296 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	TypeHorizontal	MountSMT	Rated Current1 A	PCB/Cable/PanelPCB	Length8 mm	PackagingTape and Reel	Mates with 665006113322	Design Kit 645001	–Check availability
665306124022	SPEC6, Vertical, SMT	Availability –	Downloads7 files ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev26a).lbr \| 2.1 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB 3D 3D_665306124022 (rev1).pdf \| 91 KB IGS Download_IGES_665306124022 (rev1).iges \| 1.4 MB STP 665306124022 (rev1).stp \| 319.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	TypeVertical	MountSMT	Rated Current1 A	PCB/Cable/PanelPCB	Length8 mm	PackagingTape and Reel with Cap	Mates with 665006113322	Design Kit 645001	–Check availability
665108131822	SPEC8, Horizontal, SMT PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 05/08/2026 SPEC Datasheet valid from 06/08/2026 PCN PCN document	Availability –	Downloads7 files ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev26a).lbr \| 2.1 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB 3D 3D_665108131822 (rev1).pdf \| 96 KB IGS Download_IGES_665108131822 (rev1).iges \| 1.4 MB STP 665108131822 (rev1).stp \| 334.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	TypeHorizontal	MountSMT	Rated Current1 A	PCB/Cable/PanelPCB	Length10 mm	PackagingTape and Reel	Mates with 665008113322	Design Kit 645001	–Check availability
665308124022	SPEC8, Vertical, SMT	Availability –	Downloads7 files ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev26a).lbr \| 2.1 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB 3D 3D_665308124022 (rev1).pdf \| 100.2 KB IGS Download_IGES_665308124022 (rev1).iges \| 1.5 MB STP 665308124022 (rev1).stp \| 358.1 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	TypeVertical	MountSMT	Rated Current1 A	PCB/Cable/PanelPCB	Length10 mm	PackagingTape and Reel with Cap	Mates with 665008113322	Design Kit 645001	–Check availability
665110131822	SPEC10, Horizontal, SMT PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 05/08/2026 SPEC Datasheet valid from 06/08/2026 PCN PCN document	Availability –	Downloads7 files ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev26a).lbr \| 2.1 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB 3D 3D_665110131822 (rev1).pdf \| 105 KB IGS Download_IGES_665110131822 (rev1).iges \| 1.6 MB STP 665110131822 (rev1).stp \| 373.1 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	TypeHorizontal	MountSMT	Rated Current1 A	PCB/Cable/PanelPCB	Length12 mm	PackagingTape and Reel	Mates with 665010113322	Design Kit 612690 645001	–Check availability
665310124022	SPEC10, Vertical, SMT	Availability –	Downloads7 files ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev26a).zip \| 55.1 MB EAG Eagle_WR-WTB (rev26a).lbr \| 2.1 MB KIC KiCad_WR-WTB (rev26b).zip \| 23.1 MB 3D 3D_665310124022 (rev1).pdf \| 109.2 KB IGS Download_IGES_665310124022 (rev1).iges \| 1.7 MB STP 665310124022 (rev1).stp \| 396.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	TypeVertical	MountSMT	Rated Current1 A	PCB/Cable/PanelPCB	Length12 mm	PackagingTape and Reel with Cap	Mates with 665010113322	Design Kit 612690 645001	–Check availability
