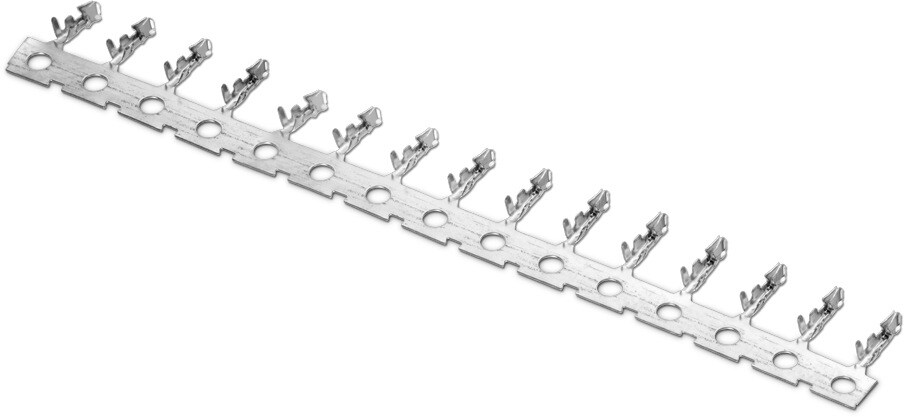

WR-WTB 1.00 mm Female Crimp Terminal

Material Properties
Contact Material	Phosphor Bronze
Contact Plating	Tin
Contact Type	Stamped

General Information
Compliance	RoHS
I_R	1 A
Working Voltage	50 V (AC)
Contact Resistance	20 mΩ
Pitch	1 mm
Gender	Female
Type	Crimp Terminal
Operating Temperature	-25 °C up to +85 °C

Wire Properties
Stranded Wire Section (AWG)	28 to 32 (AWG)
Stranded Wire Section (Metric)	0.081 to 0.032 (mm²)

Packaging Properties
Packaging	Bag; Big Reel; Small Reel

Products

Filter article data

show articles in 0 product lines

articles in 0 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	Gender	Wire Section	Packaging	Qty.(pcs)	Manual Crimping Tool	Automatic Crimping Tool	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	66500113722	SPECFemale, 28 to 32 (AWG) 0.081 to 0.032 (mm²), Big Reel	Availability –	Downloads3 files 3D 66500113722_1 (rev1).pdf \| 145.3 KB IGS 66500113722 (rev1).igs \| 1.7 MB STP 66500113722 (rev1).stp \| 641.1 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	GenderFemale	Wire Section 28 to 32 (AWG) 0.081 to 0.032 (mm²)	PackagingBig Reel	Packaging Unit15000 pcs	Manual Crimping Tool 600665232280	Automatic Crimping Tool 600665401	Design Kit –	–Check availability
	66500113722DEC	SPECFemale, 28 to 32 (AWG) 0.081 to 0.032 (mm²), Bag	Availability –	Downloads3 files 3D 66500113722DEC_1 (rev1).pdf \| 69.5 KB IGS 66500113722DEC (rev1).igs \| 818 KB STP 66500113722DEC (rev1).stp \| 298.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	GenderFemale	Wire Section 28 to 32 (AWG) 0.081 to 0.032 (mm²)	PackagingBag	Packaging Unit100 pcs	Manual Crimping Tool 600665232280	Automatic Crimping Tool –	Design Kit 612690 645001	–Check availability
	66510113722	SPECFemale, 28 to 32 (AWG) 0.081 to 0.032 (mm²), Small Reel	Availability –	Downloads3 files 3D 66510113722_1 (rev1).pdf \| 145.3 KB IGS 66510113722 (rev1).igs \| 1.7 MB STP 66510113722 (rev1).stp \| 641.1 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	GenderFemale	Wire Section 28 to 32 (AWG) 0.081 to 0.032 (mm²)	PackagingSmall Reel	Packaging Unit1000 pcs	Manual Crimping Tool 600665401	Automatic Crimping Tool 600665232280	Design Kit –	–Check availability

Mates with

WR-WTB 1.00 mm Female Terminal Housing

Use with

WR-WTB 1.00 mm Female Terminal Housing

Tools

WR-WTB Automatic Crimping Tool: 600665401

WR-WTB Manual Crimping Tool: 600665232280

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
