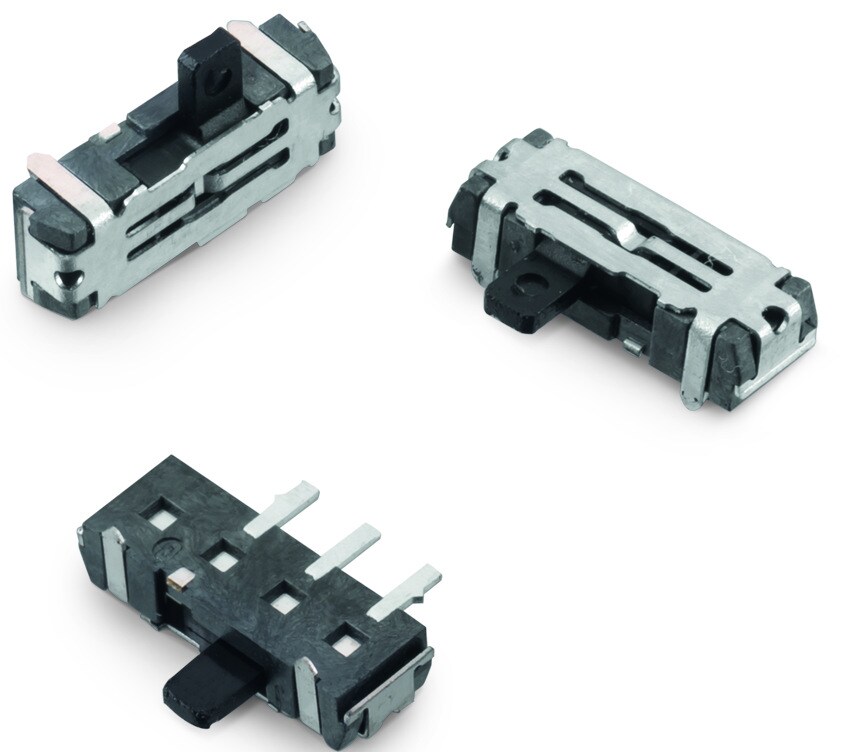

WS-SLSU SMT Mini Slide Switch Same Side Connection 8.7x3.0 mm

WS-SLSU SMT Mini Slide Switch Same Side Connection 8.7x3.0 mm. Electrical Life 10000 steps. Withstanding Voltage 250 V (AC).
General Information
Operating Temperature-40 °C up to +85 °C
Material Properties
Frame MaterialLCP
Frame Flammability RatingUL94 V-0
Frame ColorBlack
Actuator MaterialPA46
Actuator Flammability RatingUL94 HB
Actuator ColorBlack
Contact MaterialCopper Alloy
Contact PlatingSilver
Terminal MaterialCopper Alloy
Terminal PlatingSilver
Electrical Properties
IR300 mA
VR5 V (DC)
Contact Resistance Initial100 mΩ
RISO100 MΩ
Withstanding Voltage250 V (AC)
Mechanical Properties
Electrical Life10000 Steps
Connection TypeSame Side Connection

Products

Filter article data
Filter by
Delete all
 show  articles in 0 product lines
 articles in 0 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Downloads
Status
Operation Force(g)
Schematic
Packaging
Design Kit
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
WS-SLSU SMT Mini Slide Switch Same Side Connection 8.7x3.0 mm
450405020524
SPEC225 g, SPDT, Tape and Reel
Availability
–
Downloads6 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Operation Force225 g
SchematicSPDT
PackagingTape and Reel
Design Kit
499001
–Check availability

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Switches
