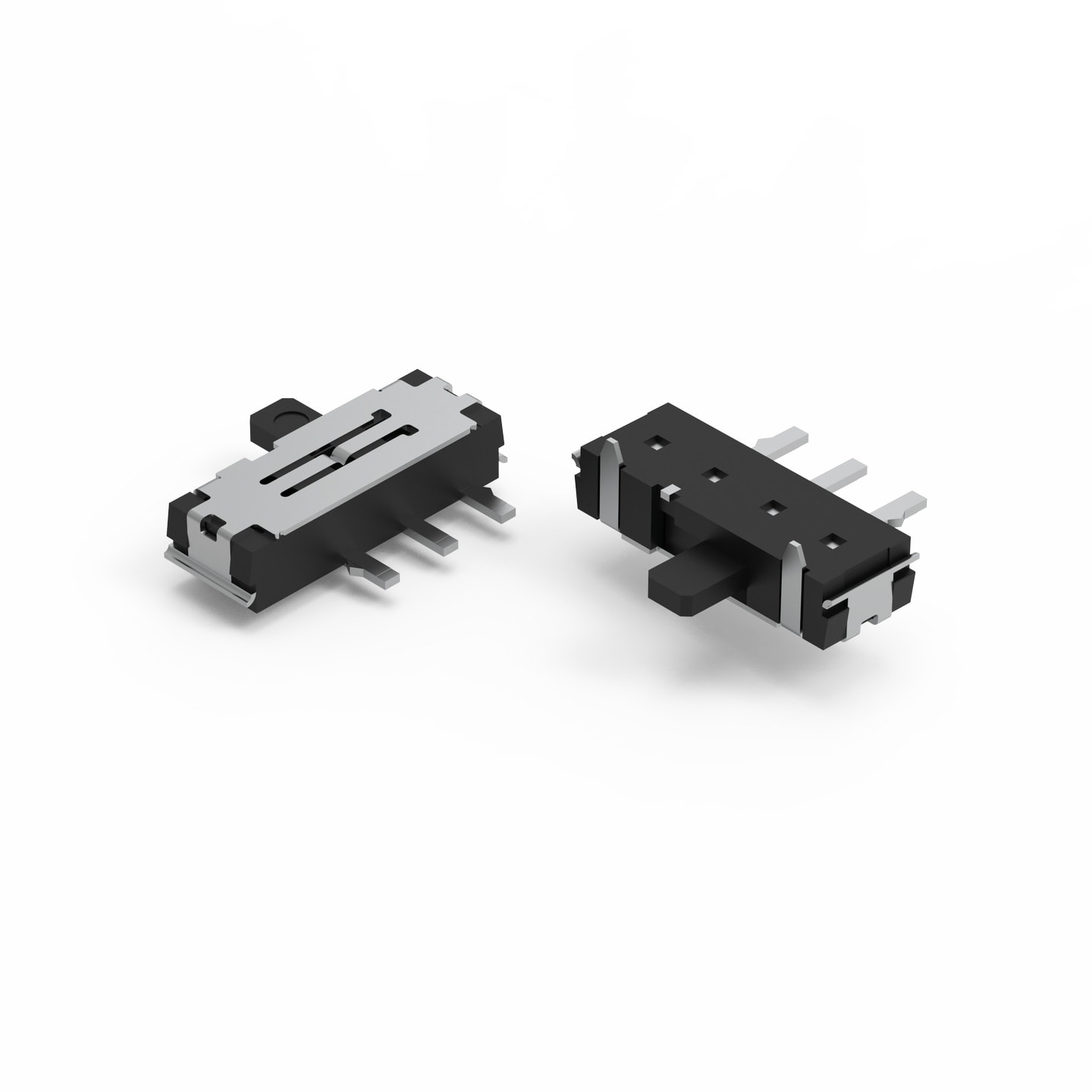

WS-SLSU SMT Mini Slide Switch Same Side Connection 8.7x3.0 mm

WS-SLSU SMT Mini Slide Switch Same Side Connection 8.7x3.0 mm. Electrical Life 10000 steps. Withstanding Voltage 250 V (AC).
General Information
Operating Temperature-40 °C up to +85 °C
Material Properties
Frame MaterialLCP
Frame Flammability RatingUL94 V-0
Frame ColorBlack
Actuator Materialco
Actuator Flammability RatingUL94 HB
Actuator ColorBlack
Contact MaterialCopper Alloy
Contact PlatingSilver
Terminal MaterialCopper Alloy
Terminal PlatingSilver
Electrical Properties
IR300 mA
VR5 V (DC)
Contact Resistance Initial100 mΩ
RISO100 MΩ
Withstanding Voltage250 V (AC)
Mechanical Properties
Electrical Life10000 Steps
Connection TypeSame Side Connection

Products

Order Code Data­sheet Downloads StatusOperation Force (Value)
(g)
SchematicPackagingDesign Kit Samples
450405020524SPEC
5 files Active i| Production is active. Expected lifetime: >10 years. 225 SPDT Tape and Reel499001
Order Code Data­sheet
450405020524SPEC
Samples
Order Code Data­sheet Downloads StatusOperation Force (Value)
(g)
SchematicPackagingDesign Kit Samples
