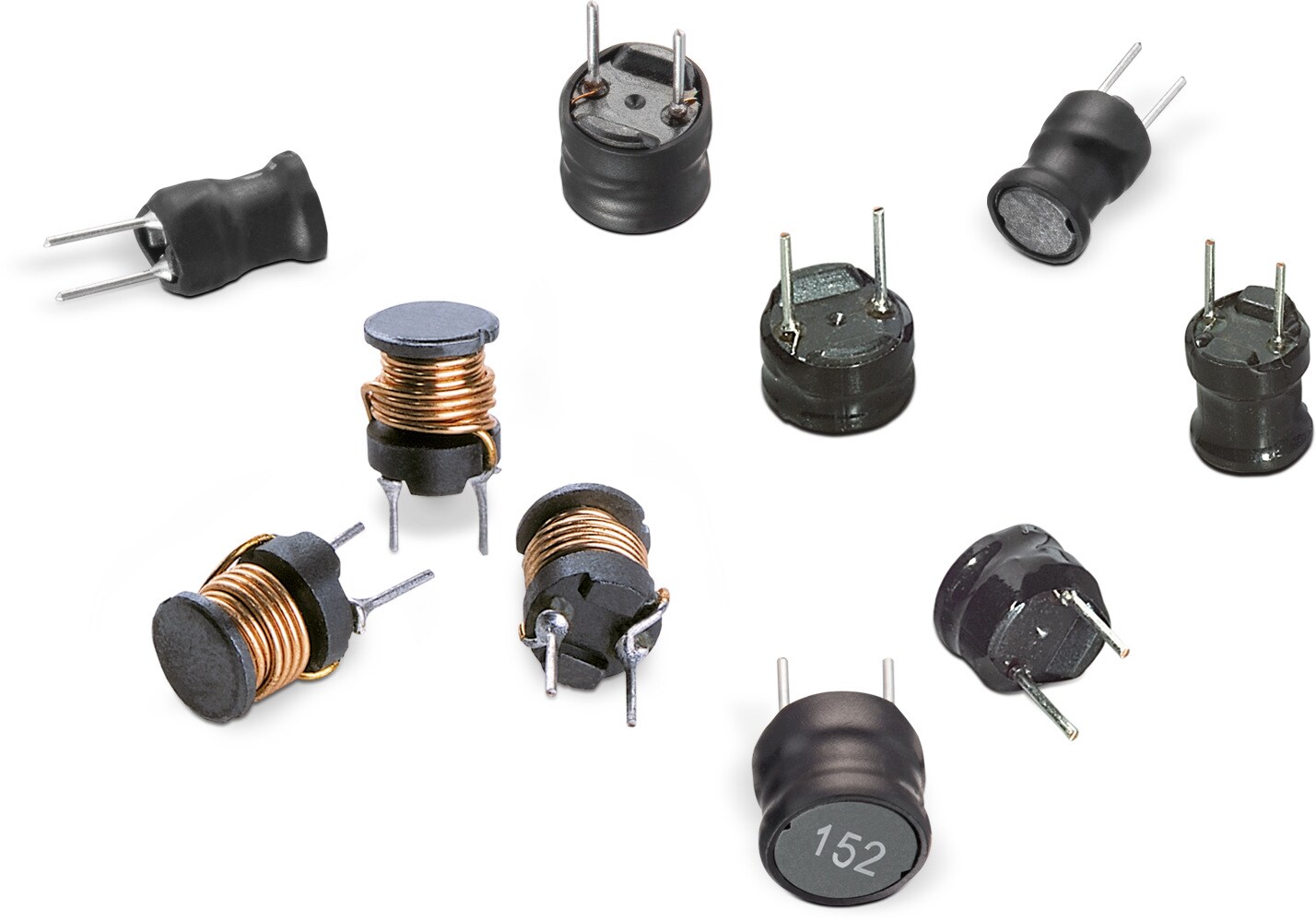

WE-TI Radial Leaded Wire Wound Inductor

Unshielded

SizeL
(mm)
W
(mm)
H
(mm)
Mount

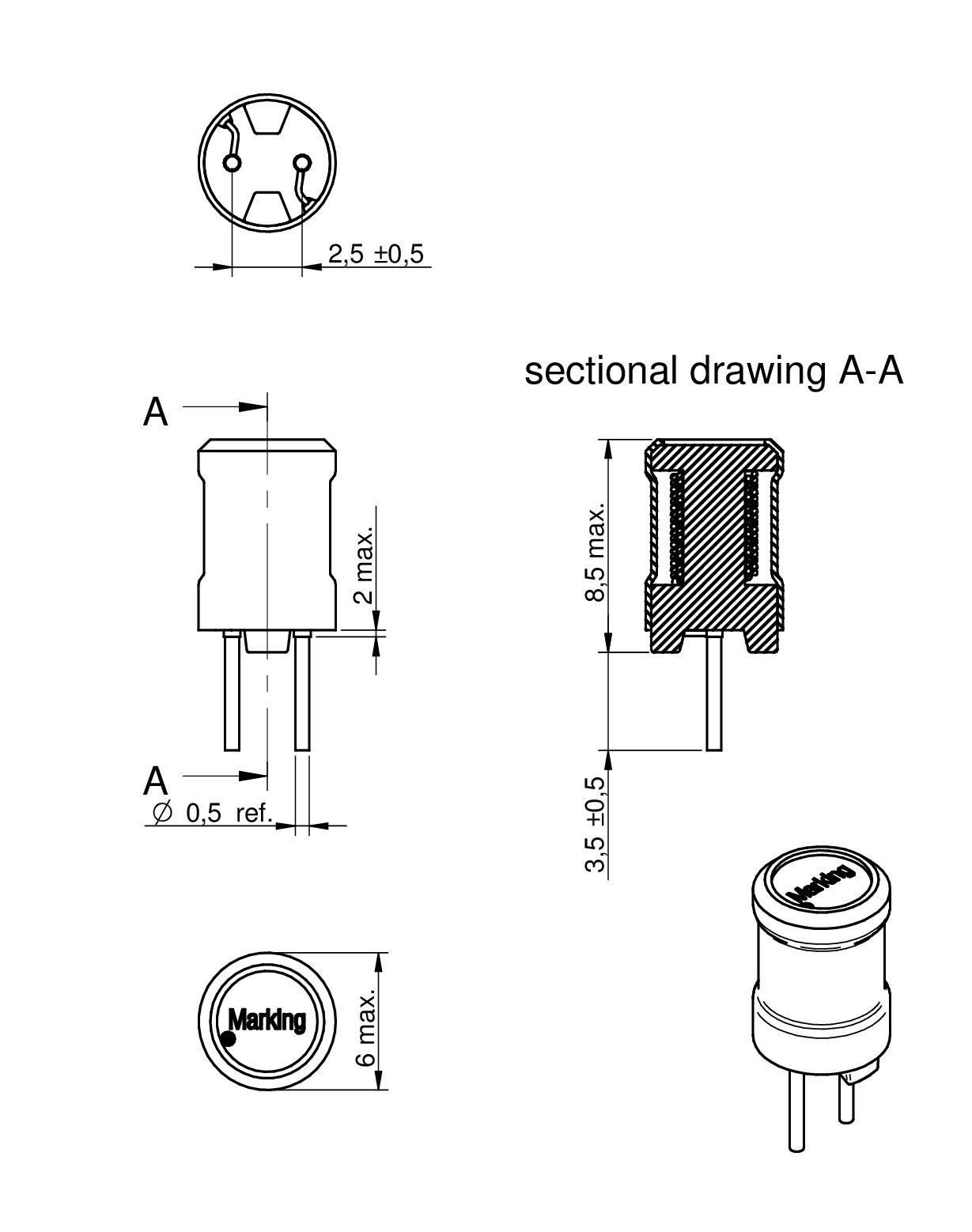

5075 6 6 8.5 THT

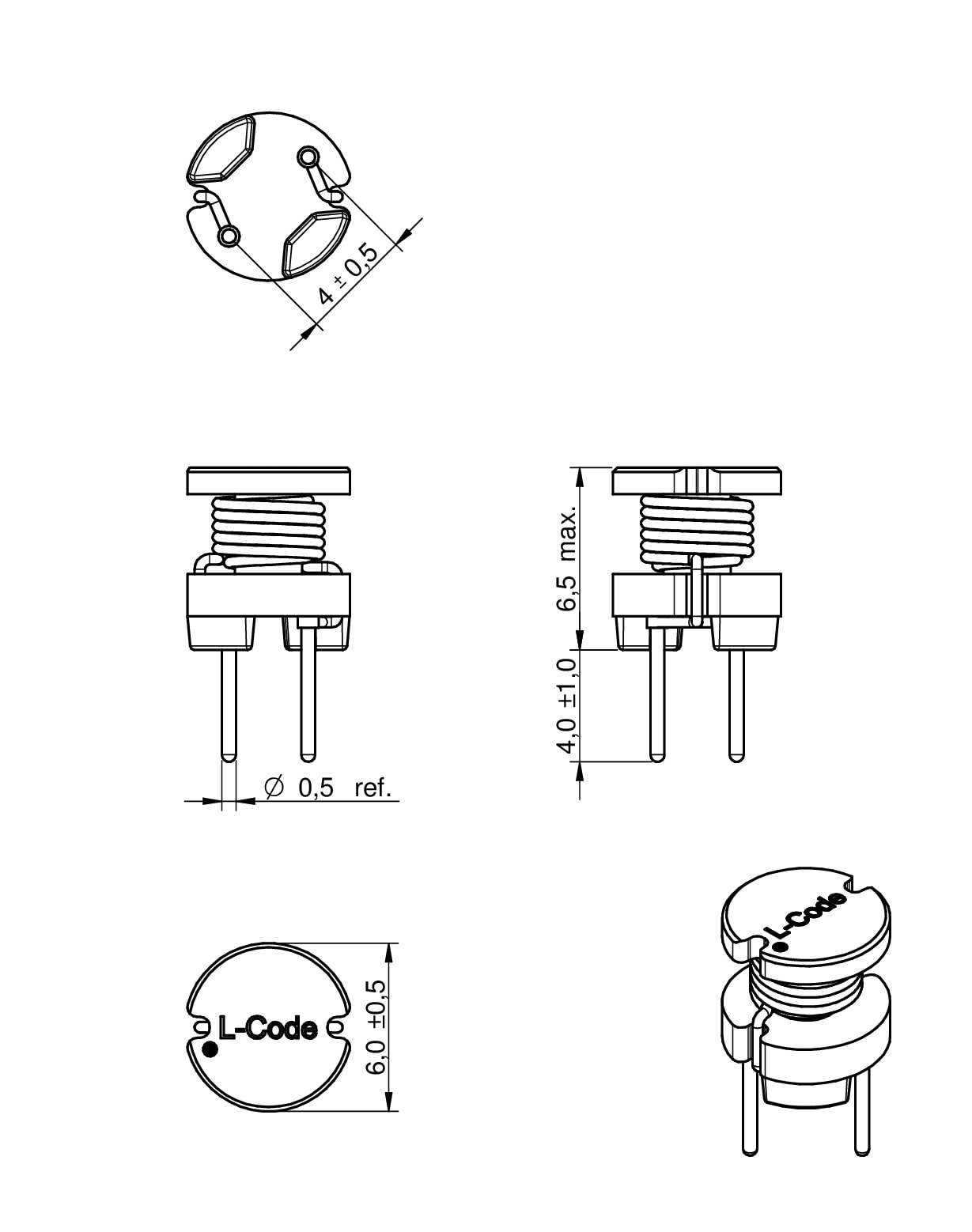

6065 6 6 6.5 THT
8055 8.5 8.5 5.5 THT

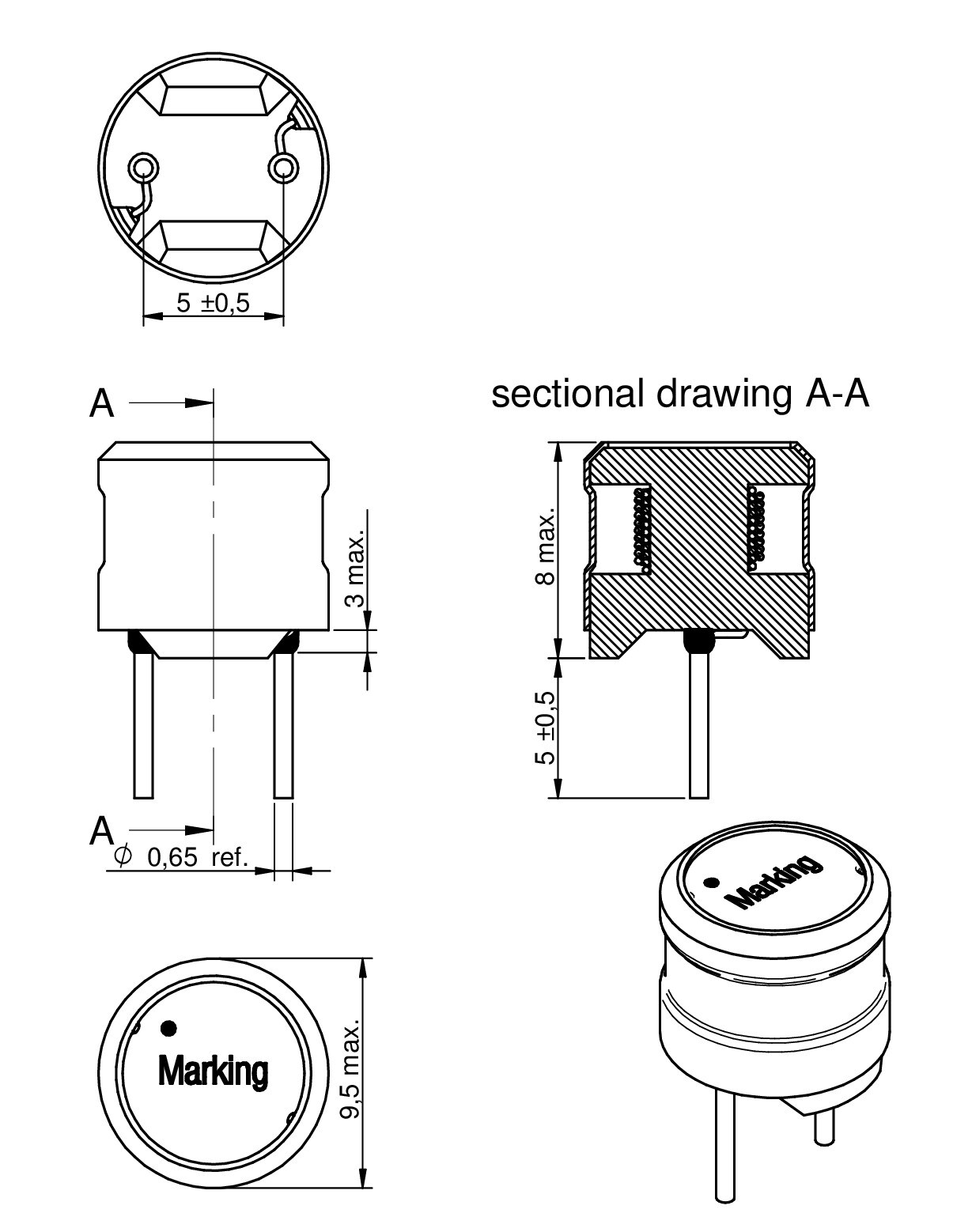

8075 9.5 9.5 8 THT

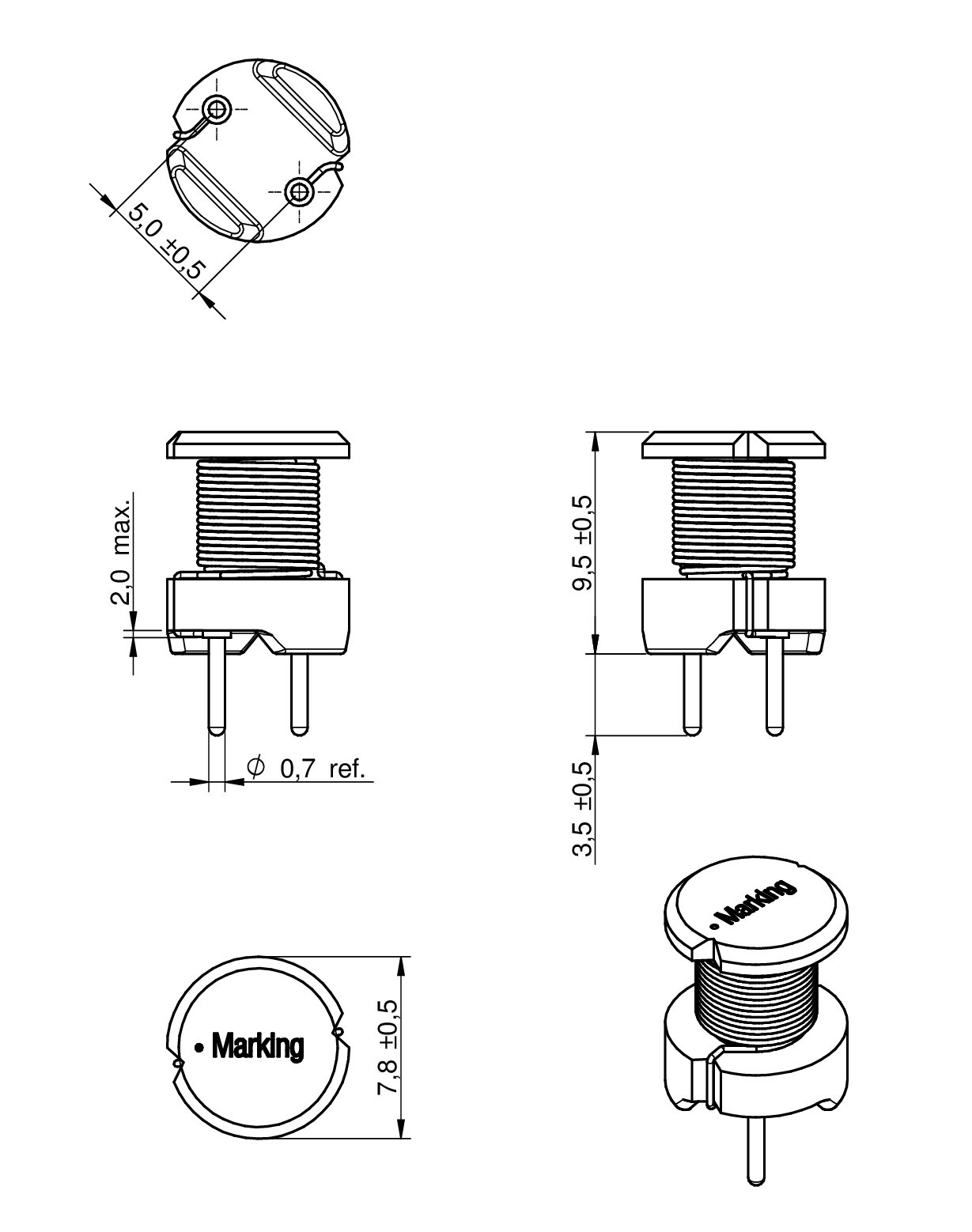

8095 - - 9.5 THT
8012 9.5 9.5 13.5 THT

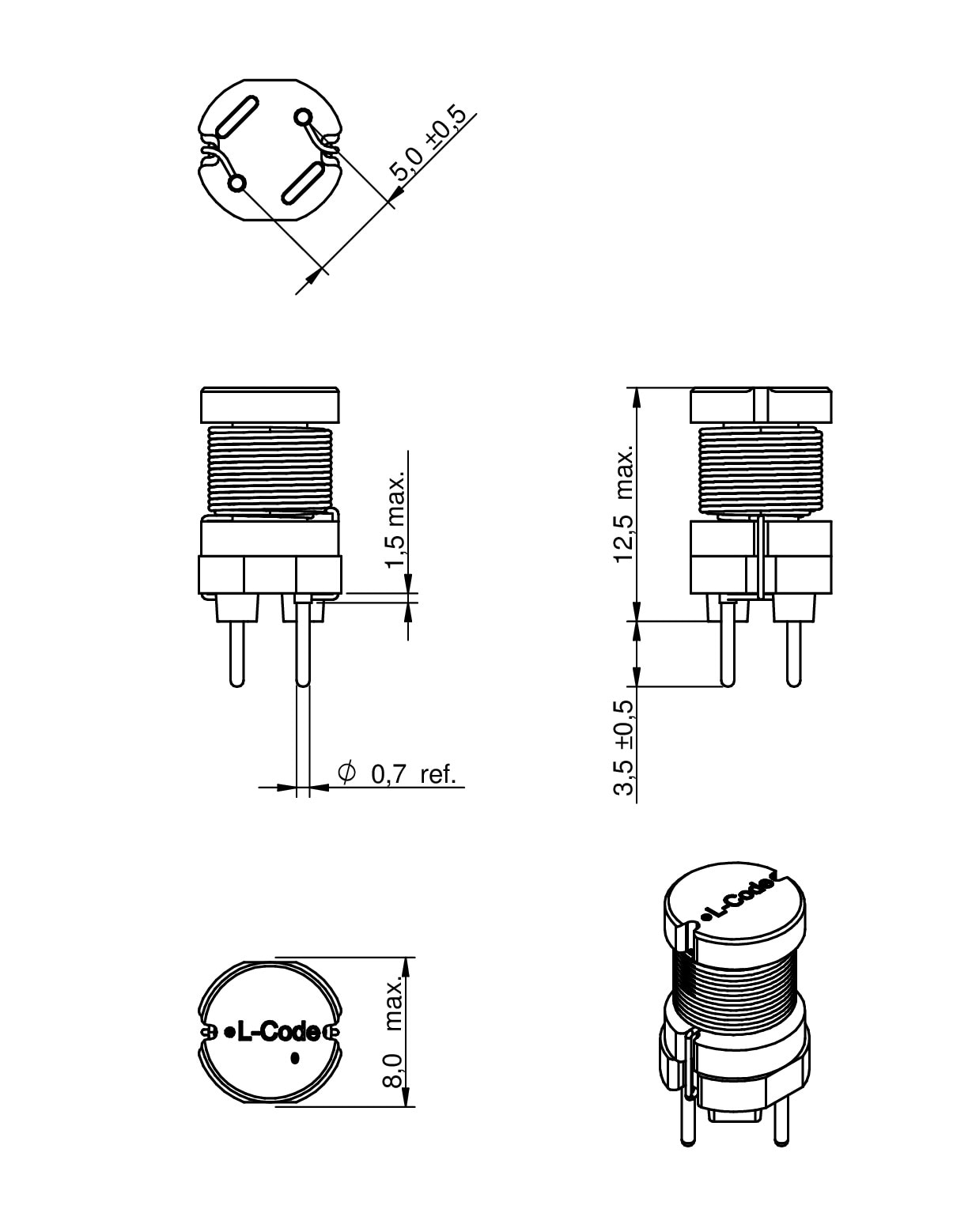

8012B 8 8 12.5 THT

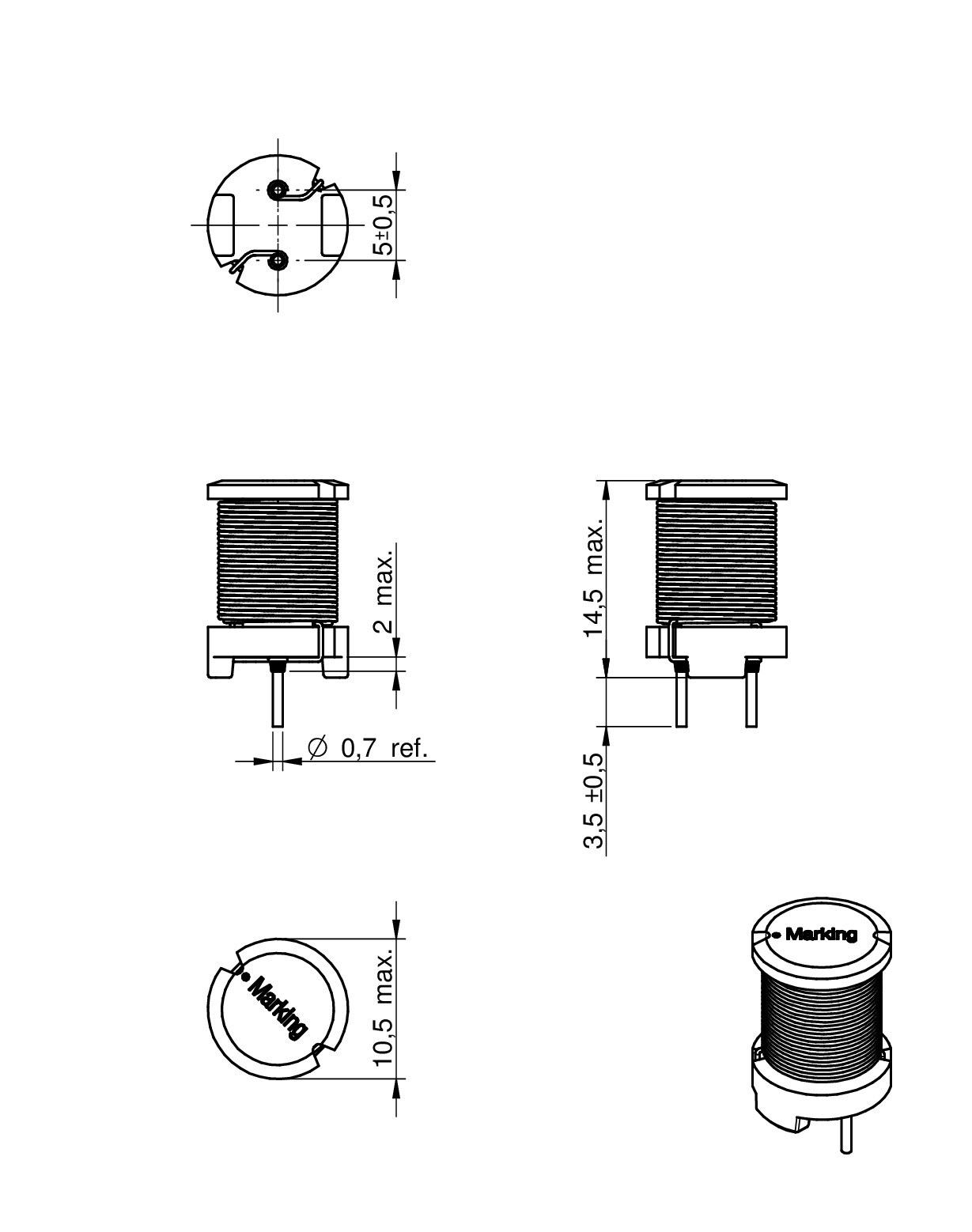

1014 10.5 10.5 14.5 THT

Characteristics

  • Radial through-hole inductor
  • High saturation core material
  • Small size
  • Maximum current up to 8.5 A
  • Custom design on request

Applications

  • Signal filtering
  • Switches, switching power supply for small and medium voltage
  • Power supply filter
  • EMI filter

Products

All
5075
6065
8055
8075
8095
8012
8012B
1014
Order Code Data­sheet Simu­lation DownloadsL
(µH)
IR
(A)
RDC max.
(Ω)
RDC typ.
(Ω)
fres
(MHz)
Design Kit Samples
7447462010SPEC
9 files 1 8.5 0.015 0.006 140744741
7447720010SPEC
9 files 1 6.9 0.0135 0.009 195
744732015SPEC
9 files 1.5 7 0.01 0.007 122
7447462022SPEC
9 files 2.2 6.3 0.02 0.01 65744741
7447720022SPEC
9 files 2.2 5.3 0.018 0.013 120
7447462033SPEC
9 files 3.3 4.7 0.025 0.016 48
7447720033SPEC
9 files 3.3 5 0.024 0.016 95
7447462047SPEC
9 files 4.7 4.2 0.03 0.019 40744741
7447720047SPEC
9 files 4.7 4.5 0.03 0.019 70
7447462068SPEC
9 files 6.8 3.3 0.034 0.027 32
744779068SPEC
9 files 6.8 2.2 0.035 0.027 39.7
7447720068SPEC
9 files 6.8 3.9 0.032 0.024 36
7447462100SPEC
9 files 10 2.5 0.08 0.055 28744741
744779100SPEC
9 files 10 1.85 0.05 0.035 27.7744741
744732100SPEC
9 files 10 4 0.033 0.027 27744741
7447452100SPEC
9 files 10 4.7 0.02 0.015 18.6744743
7447720100SPEC
9 files 10 3.5 0.043 0.03 18
7447720150SPEC
9 files 15 3.2 0.048 0.038 16
7447720180SPEC
9 files 18 3.1 0.053 0.042 15
7447720200SPEC
9 files 20 3.1 0.054 0.044 15
7447462220SPEC
9 files 22 1.8 0.13 0.102 15744741
7447720220SPEC
9 files 22 3 0.055 0.046 13
7447462330SPEC
9 files 33 1.4 0.22 0.153 14
7447720330SPEC
9 files 33 2.5 0.066 0.059 11
7447720390SPEC
9 files 39 2.2 0.1 0.07 10
7447462470SPEC
9 files 47 1.18 0.34 0.221 10.6744741
7447790470SPEC
9 files 47 1.45 0.16 0.135 10.2744741
744732470SPEC
9 files 47 1.8 0.14 0.114 9.6
7447720470SPEC
9 files 47 2 0.12 0.089 9.1
7447720560SPEC
9 files 56 1.9 0.13 0.1 8.2
7447462680SPEC
9 files 68 0.8 0.4 0.338 7.5
744779168SPEC
9 files 68 1.4 0.28 0.225 9.4744741
7447480680SPEC
9 files 68 2.9 0.08 0.063 6
7447720680SPEC
9 files 68 1.8 0.16 0.124 6.7
7447462820SPEC
9 files 82 0.8 0.47 0.39 7.2
7447720820SPEC
9 files 82 1.6 0.19 0.154 6.2
7447462101SPEC
9 files 100 0.8 0.65 0.457 7.1744741
744741101SPEC
9 files 100 1.1 1 0.39 9.4744741
7447452101SPEC
9 files 100 1.8 0.16 0.13 4.8744743
744743101SPEC
9 files 100 1.5 0.3 0.25 5.1
7447480101SPEC
9 files 100 2.4 0.125 0.1 4.1744743
7447720101SPEC
9 files 100 1.3 0.22 0.198 6.1
744732121SPEC
9 files 120 1 0.38 0.34 6.1744741
7447720121SPEC
9 files 120 1.3 0.28 0.223 5.4
7447720151SPEC
9 files 150 1.1 0.35 0.283 4.5
7447480151SPEC
9 files 150 2 0.18 0.16 3.1
7447720181SPEC
9 files 180 1 0.43 0.35 3.8
7447462221SPEC
9 files 220 0.5 1.2 0.96 4.2744741
7447790221SPEC
9 files 220 0.6 0.8 0.64 4.6
744741221SPEC
9 files 220 0.66 1.5 0.97 5744741
744732221SPEC
9 files 220 0.75 0.7 0.59 4.8
7447452221SPEC
9 files 220 1.2 0.29 0.27 3.1
744743221SPEC
9 files 220 0.96 0.55 0.47 3.9
7447480221SPEC
9 files 220 1.6 0.26 0.23 2.3744743
7447720221SPEC
9 files 220 1 0.45 0.389 3.8
7447412331SPEC
9 files 330 0.5 2 1.25 4.4
744732331SPEC
9 files 330 0.6 1.2 0.94 3.9744741
7447452331SPEC
9 files 330 1.1 0.47 0.42 2.4744743
744743331SPEC
9 files 330 0.74 1.2 0.76 2.8
7447480331SPEC
9 files 330 1.4 0.33 0.3 2.2
7447720331SPEC
9 files 330 0.82 0.7 0.587 3.1
7447452391SPEC
9 files 390 1 0.52 0.47 2.2
7447462471SPEC
9 files 470 0.35 2.4 1.58 2.9744741
744741471SPEC
9 files 470 0.44 3 2.12 3.4744741
744732471SPEC
9 files 470 0.45 1.7 1.44 2.8
744743471SPEC
9 files 470 0.58 1.5 1.1 2.1
7447480471SPEC
9 files 470 1.15 0.52 0.47 1.8744743
7447720471SPEC
9 files 470 0.66 0.97 0.883 2.4
7447452561SPEC
9 files 560 0.81 0.85 0.69 1.9
7447720561SPEC
9 files 560 0.61 1.22 1.02 2.3
7447480561SPEC
9 files 560 1 0.65 0.55 1.6
7447462681SPEC
9 files 680 0.25 3.7 3.094 2.4
7447412681SPEC
9 files 680 0.33 4 2.62 2.9
744732681SPEC
9 files 680 0.42 2.2 1.8 2.3
7447480681SPEC
9 files 680 0.9 0.79 0.71 1.5
7447720681SPEC
9 files 680 0.52 1.37 1.29 2.1
7447452821SPEC
9 files 820 0.7 1.2 1 1.5
7447720821SPEC
9 files 820 0.51 1.7 1.41 2
7447720901SPEC
9 files 900 0.5 2.02 1.68 1.8
7447462102SPEC
9 files 1000 0.25 6 4.38 1.8744741
744741102SPEC
9 files 1000 0.29 6 4.49 2.3744741
744732102SPEC
9 files 1000 0.33 3.4 2.8 1.8744741
7447452102SPEC
9 files 1000 0.6 1.55 1.27 1.4744743
744743102SPEC
9 files 1000 0.42 2.5 2.2 1.6
7447480102SPEC
9 files 1000 0.8 1.15 1 1.1744743
7447720102SPEC
9 files 1000 0.44 2.15 1.89 1.6
7447720122SPEC
9 files 1200 0.42 2.39 2.14 1.5
7447480122SPEC
9 files 1200 0.7 1.4 1.1 1
7447462152SPEC
9 files 1500 0.19 8 6.54 1.4
744732152SPEC
9 files 1500 0.29 4.7 4.25 1.75
7447452152SPEC
9 files 1500 0.5 2.1 1.75 1.37
7447480152SPEC
9 files 1500 0.68 1.8 1.5 0.95
7447720152SPEC
9 files 1500 0.37 3 2.67 1.3
7447720182SPEC
9 files 1800 0.32 4.51 3.68 1.3
7447462222SPEC
9 files 2200 0.16 15 12.42 1.2
744741222SPEC
9 files 2200 0.21 11 9.13 1.6744741
7447720222SPEC
9 files 2200 0.29 4.73 4.16 1.1
7447452222SPEC
9 files 2200 0.4 2.9 2.4 0.95
7447480222SPEC
9 files 2200 0.48 2.5 2.1 0.83
7447480332SPEC
9 files 3300 0.36 4 3.2 0.65744743
7447720332SPEC
9 files 3300 0.24 6.7 6.53 0.98
744730392SPEC
9 files 3900 0.18 12 9.5 1.04
7447720392SPEC
9 files 3900 0.22 8.05 7.34 0.88
7447452392SPEC
9 files 3900 0.28 4.8 4.55 0.85
744741472SPEC
9 files 4700 0.15 25 21.18 1.3744741
7447721047SPEC
9 files 4700 0.2 15 10.98 0.95
7447452472SPEC
9 files 4700 0.23 7 6.1 0.55744743
7447720472SPEC
9 files 4700 0.21 9.5 8.33 0.83
7447480562SPEC
9 files 5600 0.32 5.8 4.9 0.5
7447720702SPEC
9 files 7000 0.17 16 13.3 0.71
7447480822SPEC
9 files 8200 0.3 9 7.5 0.44744743
7447452103SPEC
9 files 10000 0.18 16.6 13 0.45
7447720103SPEC
9 files 10000 0.13 24 19.52 0.52
744732153SPEC
9 files 15000 0.1 60 48 0.45744741
7447720223SPEC
9 files 22000 0.09 55 43.23 0.38
7447722363SPEC
9 files 36000 0.07 94 69.7 0.25
7447722473SPEC
9 files 47000 0.06 112 90.8 0.22
7447452683SPEC
9 files 68000 0.05 106 90 0.16
