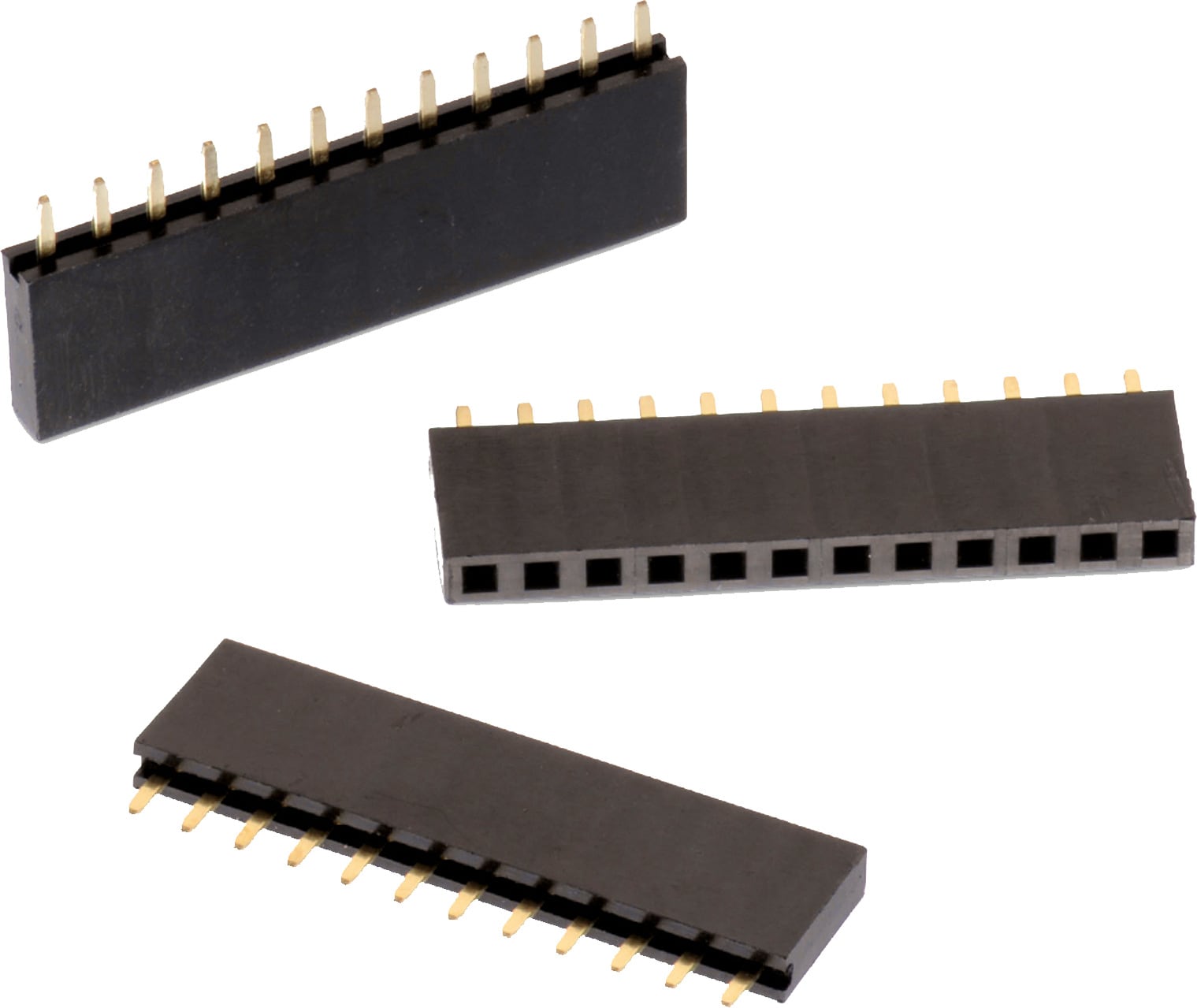

WR-PHD 2.54 mm Socket Header

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins	2 pcs; 3 pcs; 4 pcs; 5 pcs; 6 pcs; 7 pcs; 8 pcs; 9 pcs; 10 pcs; 12 pcs; 13 pcs; 14 pcs; 15 pcs; 16 pcs; 18 pcs; 20 pcs; 22 pcs; 24 pcs; 32 pcs; 36 pcs; 40 pcs

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Durability	30 Mating cycles; 500 Mating cycles
Rows	Single
Gender	Socket Header
Type	Straight

Electrical Properties
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tray

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit
61300211821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61300211821_1 (rev1).pdf \| 40.6 KB IGS 61300211821 (rev1).iges \| 337.6 KB STP 61300211821 (rev1).stp \| 139.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Single	Socket Header	Straight	3	Tray	–
61300311821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61300311821_1 (rev1).pdf \| 43.7 KB IGS 61300311821 (rev1).igs \| 403 KB STP 61300311821 (rev1).stp \| 164 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Single	Socket Header	Straight	3	Tray	–
61300411821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61300411821_1 (rev1).pdf \| 46.9 KB IGS 61300411821 (rev1).iges \| 471.3 KB STP 61300411821 (rev1).stp \| 194.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Single	Socket Header	Straight	3	Tray	–
61300511821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61300511821_1 (rev1).pdf \| 51 KB IGS 61300511821 (rev1).igs \| 536.7 KB STP 61300511821 (rev1).stp \| 217.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Single	Socket Header	Straight	3	Tray	–
61300611821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61300611821_1 (rev1).pdf \| 56.7 KB IGS 61300611821 (rev1).igs \| 603.4 KB STP 61300611821 (rev1).stp \| 244.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Single	Socket Header	Straight	3	Tray	–
61300711821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61300711821_1 (rev1).pdf \| 60.5 KB IGS 61300711821 (rev1).igs \| 670.4 KB STP 61300711821 (rev1).stp \| 271.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Single	Socket Header	Straight	3	Tray	–
61300811821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61300811821_1 (rev1).pdf \| 64.2 KB IGS 61300811821 (rev1).iges \| 738.5 KB STP 61300811821 (rev1).stp \| 303.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Single	Socket Header	Straight	3	Tray	613001
61300911821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61300911821_1 (rev1).pdf \| 68 KB IGS 61300911821 (rev1).igs \| 804.5 KB STP 61300911821 (rev1).stp \| 325.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	Single	Socket Header	Straight	3	Tray	–
61301011821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61301011821_1 (rev1).pdf \| 71.2 KB IGS 61301011821 (rev1).igs \| 871.5 KB STP 61301011821 (rev1).stp \| 352.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Single	Socket Header	Straight	3	Tray	612690 613001
61301211821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61301211821_1 (rev1).pdf \| 78.7 KB IGS 61301211821 (rev1).igs \| 1005.6 KB STP 61301211821 (rev1).stp \| 406.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	Single	Socket Header	Straight	3	Tray	–
61301311821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61301311821_1 (rev1).pdf \| 82.5 KB IGS 61301311821 (rev1).igs \| 1 MB STP 61301311821 (rev1).stp \| 439.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	13	Single	Socket Header	Straight	3	Tray	–
61301411821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61301411821_1 (rev1).pdf \| 86.3 KB IGS 61301411821 (rev1).igs \| 1.1 MB STP 61301411821 (rev1).stp \| 460 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	Single	Socket Header	Straight	3	Tray	–
61301511821	SPEC	4 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	15	–	–	–	3	–	–
61301611821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61301611821_1 (rev1).pdf \| 93.9 KB IGS 61301611821 (rev1).igs \| 1.2 MB STP 61301611821 (rev1).stp \| 513.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Single	Socket Header	Straight	3	Tray	–
61301811821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61301811821_1 (rev1).pdf \| 101 KB IGS 61301811821 (rev1).igs \| 1.4 MB STP 61301811821 (rev1).stp \| 567.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	18	Single	Socket Header	Straight	3	Tray	–
61302011821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61302011821_1 (rev1).pdf \| 107.5 KB IGS 61302011821 (rev1).iges \| 1.5 MB STP 61302011821 (rev1).stp \| 632.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Single	Socket Header	Straight	3	Tray	613001
61302211821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61302211821_1 (rev1).pdf \| 115.2 KB IGS 61302211821 (rev1).igs \| 1.6 MB STP 61302211821 (rev1).stp \| 678.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	22	Single	Socket Header	Straight	3	Tray	–
61302411821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61302411821_1 (rev1).pdf \| 122.8 KB IGS 61302411821 (rev1).igs \| 1.8 MB STP 61302411821 (rev1).stp \| 734.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	24	Single	Socket Header	Straight	3	Tray	–
61303211821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61303211821_1 (rev1).pdf \| 153.6 KB IGS 61303211821 (rev1).igs \| 2.3 MB STP 61303211821 (rev1).stp \| 957.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	32	Single	Socket Header	Straight	3	Tray	–
61303611821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61303611821_1 (rev1).pdf \| 169.1 KB IGS 61303611821 (rev1).igs \| 2.6 MB STP 61303611821 (rev1).stp \| 1 MB	Active i\| Production is active. Expected lifetime: >10 years.	36	Single	Socket Header	Straight	3	Tray	–
61304011821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61304011821_1 (rev1).pdf \| 182.3 KB IGS 61304011821 (rev1).igs \| 2.9 MB STP 61304011821 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	40	Single	Socket Header	Straight	3	Tray	–
