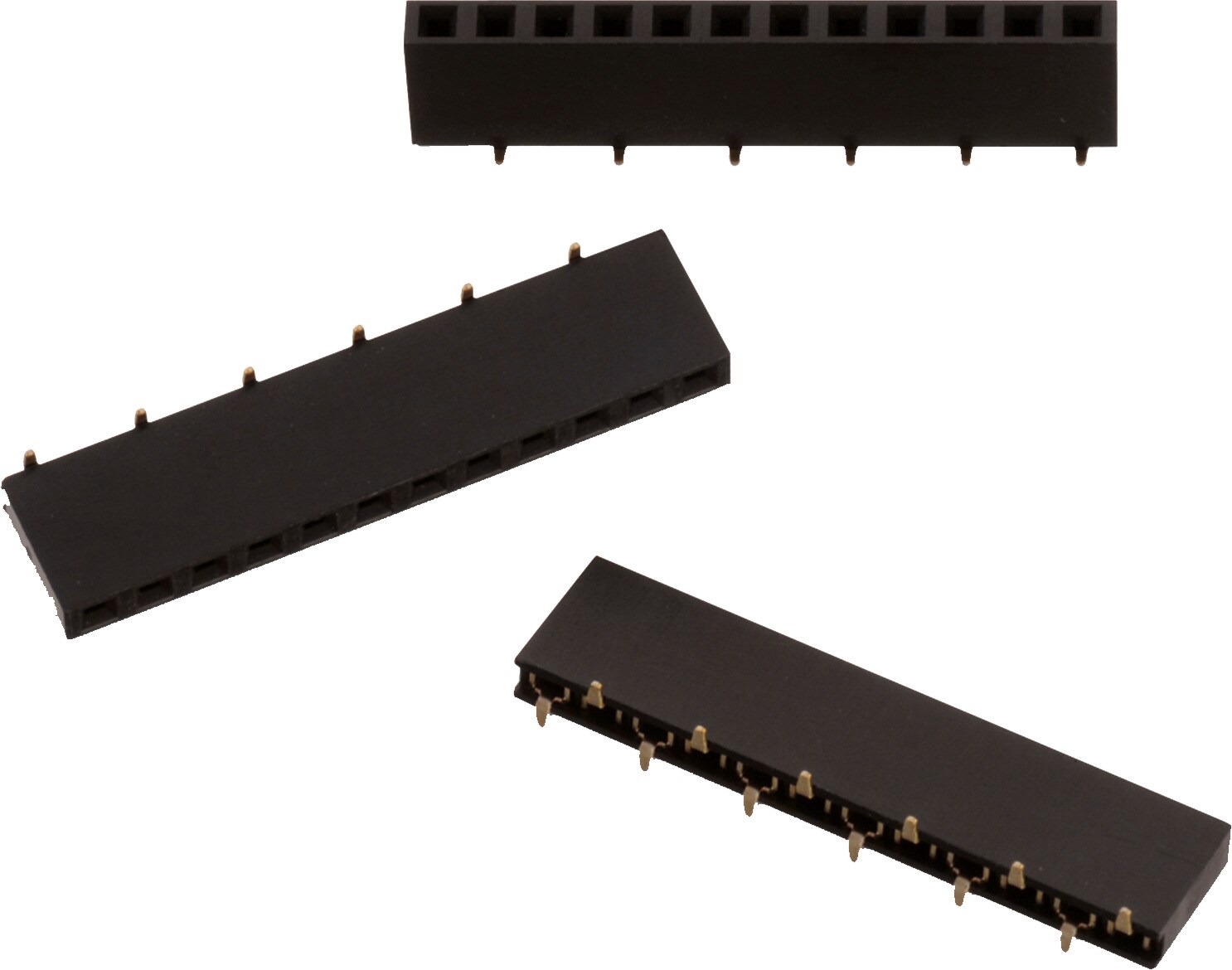

WR-PHD 2.54 mm SMT Socket Header | Electromechanical Components

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins	4; 5; 6; 8; 10; 12; 14; 15; 16; 20; 24

Material Properties
Insulator Material	Nylon 46; PA 9T; PA9T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C; -40 °C up to +125 °C
Compliance	Lead free / RoHS
Pitch	2.54 mm
Durability	25 Mating cycles
Rows	Single
Gender	Socket Header
Type	Straight Type 1; Straight Type 2

Electrical Properties
I_R	3 A
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tube

Products

	Order Code	Datasheet	Downloads	Pins	Rows	Gender	Type	I_R (A)	Packaging	Design Kit
	61000411921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61000411921 (rev1).pdf \| 55.3 KB IGS Download_IGES_61000411921 (rev1).iges \| 758.8 KB STP 61000411921 (rev1).stp \| 172.3 KB	4	Single	Socket Header	Straight Type 1	3	Tube	–
	61000413321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61000413321 (rev1).pdf \| 55.3 KB IGS Download_IGES_61000413321 (rev1).iges \| 758.7 KB STP 61000413321 (rev1).stp \| 172.3 KB	4	Single	Socket Header	Straight Type 2	3	Tube	–
	61000511921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61000511921 (rev1).pdf \| 59 KB IGS Download_IGES_61000511921 (rev1).iges \| 825.9 KB STP 61000511921 (rev1).stp \| 187.3 KB	5	Single	Socket Header	Straight Type 1	3	Tube	–
	61000513321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61000513321 (rev1).pdf \| 59 KB IGS Download_IGES_61000513321 (rev1).iges \| 826.3 KB STP 61000513321 (rev1).stp \| 187.4 KB	5	Single	Socket Header	Straight Type 2	3	Tube	–
	61000611921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61000611921 (rev1).pdf \| 63.4 KB IGS Download_IGES_61000611921 (rev1).iges \| 893.9 KB STP 61000611921 (rev1).stp \| 202.7 KB	6	Single	Socket Header	Straight Type 1	3	Tube	–
	61000613321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61000613321 (rev1).pdf \| 63.4 KB IGS Download_IGES_61000613321 (rev1).iges \| 894.2 KB STP 61000613321 (rev1).stp \| 202.8 KB	6	Single	Socket Header	Straight Type 2	3	Tube	–
	61000811921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61000811921 (rev1).pdf \| 70.3 KB IGS Download_IGES_61000811921 (rev1).iges \| 1 MB STP 61000811921 (rev1).stp \| 232.5 KB	8	Single	Socket Header	Straight Type 1	3	Tube	613001
	61000813321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61000813321 (rev1).pdf \| 70.3 KB IGS Download_IGES_61000813321 (rev1).iges \| 1 MB STP 61000813321 (rev1).stp \| 232.6 KB	8	Single	Socket Header	Straight Type 2	3	Tube	613001
	61001011921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61001011921 (rev1).pdf \| 77 KB IGS Download_IGES_61001011921 (rev1).iges \| 1.1 MB STP 61001011921 (rev1).stp \| 264.2 KB	10	Single	Socket Header	Straight Type 1	3	Tube	613001
	61001013321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61001013321 (rev1).pdf \| 77 KB IGS Download_IGES_61001013321 (rev1).iges \| 1.1 MB STP 61001013321 (rev1).stp \| 264.2 KB	10	Single	Socket Header	Straight Type 2	3	Tube	613001
	61001211921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61001211921 (rev1).pdf \| 84 KB IGS Download_IGES_61001211921 (rev1).iges \| 1.3 MB STP 61001211921 (rev1).stp \| 291.9 KB	12	Single	Socket Header	Straight Type 1	3	Tube	–
	61001213321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61001213321 (rev1).pdf \| 84 KB IGS Download_IGES_61001213321 (rev1).iges \| 1.3 MB STP 61001213321 (rev1).stp \| 292 KB	12	Single	Socket Header	Straight Type 2	3	Tube	–
	61001413321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61001413321 (rev1).pdf \| 91.1 KB IGS Download_IGES_61001413321 (rev1).iges \| 1.4 MB STP 61001413321 (rev1).stp \| 323.2 KB	14	Single	Socket Header	Straight Type 2	3	Tube	–
NEW	61001511921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61001511921 (rev1).pdf \| 97.5 KB IGS IGS_61001511921 (rev1).iges \| 1.5 MB STP STP_61001511921 (rev1).stp \| 339.2 KB	15	–	–	–	3	–	–
NEW	61001513321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61001513321 (rev1).pdf \| 97.5 KB IGS IGS_61001513321 (rev1).iges \| 1.5 MB STP STP_61001513321 (rev1).stp \| 339.2 KB	15	–	–	–	3	–	–
	61001611921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61001611921 (rev1).pdf \| 98.1 KB IGS Download_IGES_61001611921 (rev1).iges \| 1.5 MB STP 61001611921 (rev1).stp \| 354.3 KB	16	Single	Socket Header	Straight Type 1	3	Tube	–
	61001613321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61001613321 (rev1).pdf \| 98.1 KB IGS Download_IGES_61001613321 (rev1).iges \| 1.5 MB STP 61001613321 (rev1).stp \| 354.5 KB	16	Single	Socket Header	Straight Type 2	3	Tube	–
	61002011921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61002011921 (rev1).pdf \| 111.4 KB IGS Download_IGES_61002011921 (rev1).iges \| 1.8 MB STP 61002011921 (rev1).stp \| 416.6 KB	20	Single	Socket Header	Straight Type 1	3	Tube	613001
	61002013321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 6100xx13321_1 (rev1).pdf \| 111.4 KB IGS Download_IGES_61002013321 (rev1).iges \| 1.8 MB STP 61002013321 (rev1).stp \| 416.7 KB	20	Single	Socket Header	Straight Type 2	3	Tube	613001
	61002411921	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP IGS Download_IGES_61002411921 (rev1).iges \| 2.1 MB STP 61002411921 (rev1).stp \| 479.6 KB	24	Single	Socket Header	Straight Type 1	3	Tube	–
	61002413321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_61002413321 (rev1).pdf \| 125.6 KB IGS Download_IGES_61002413321 (rev1).iges \| 2.1 MB STP 61002413321 (rev1).stp \| 479.7 KB	24	Single	Socket Header	Straight Type 2	3	Tube	–

	Order Code	Datasheet
	61000411921	SPEC
	61000413321	SPEC
	61000511921	SPEC
	61000513321	SPEC
	61000611921	SPEC
	61000613321	SPEC
	61000811921	SPEC
	61000813321	SPEC
	61001011921	SPEC
	61001013321	SPEC
	61001211921	SPEC
	61001213321	SPEC
	61001413321	SPEC
NEW	61001511921	SPEC
NEW	61001513321	SPEC
	61001611921	SPEC
	61001613321	SPEC
	61002011921	SPEC
	61002013321	SPEC
	61002411921	SPEC
	61002413321	SPEC
