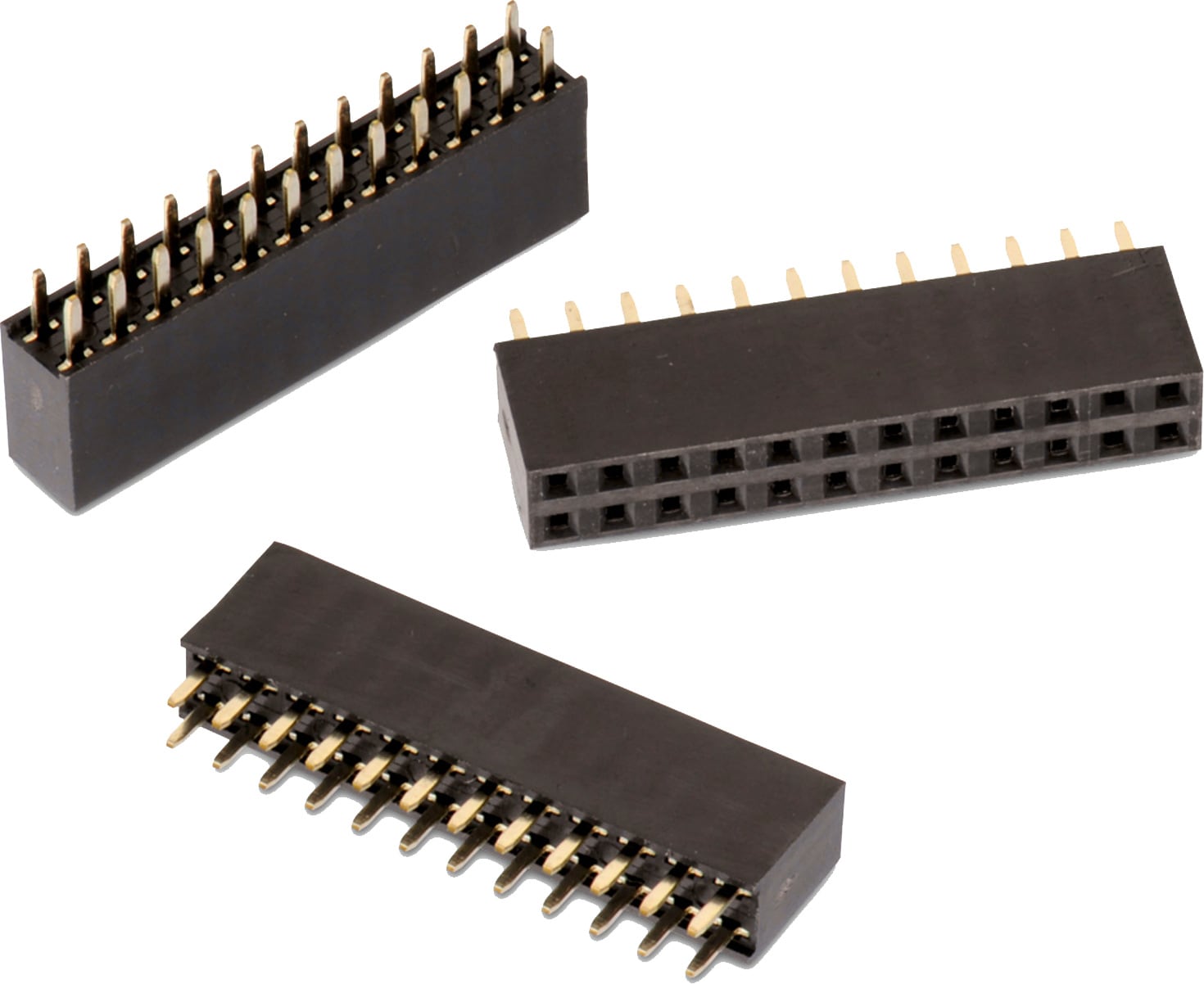

WR-PHD 2.54 mm Dual Socket Header

Characteristics

Reference Designs

Article Properties
Pins4; 6; 8; 10; 12; 14; 16; 18; 20; 22; 24; 26; 28; 30; 32; 34; 36; 40; 44; 64; 72
Material Properties
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
Contact MaterialCopper Alloy
Contact PlatingGold
Contact TypeStamped
General Information
Operating Temperature-40 °C up to +105 °C
ComplianceLead free / RoHS
Pitch2.54 mm
Durability25 Mating cycles
RowsDual
GenderSocket Header
TypeStraight
Electrical Properties
IR3 A
Withstanding Voltage500 V (AC)
Contact Resistance20 mΩ
RISO1000 MΩ
Certification
UL ApprovalE323964
Packaging Properties
PackagingTray

Products

Order Code Data­sheet DownloadsPinsRowsGenderTypeIR
(A)
PackagingDesign Kit Samples
61300421821SPEC
6 files 4 Dual Socket Header Straight 3 Tray
61300621821SPEC
6 files 6 Dual Socket Header Straight 3 Tray
61300821821SPEC
6 files 8 Dual Socket Header Straight 3 Tray613001
61301021821SPEC
6 files 10 Dual Socket Header Straight 3 Tray613001
61301221821SPEC
6 files 12 Dual Socket Header Straight 3 Tray
61301421821SPEC
6 files 14 Dual Socket Header Straight 3 Tray
61301621821SPEC
6 files 16 Dual Socket Header Straight 3 Tray
61301821821SPEC
6 files 18 Dual Socket Header Straight 3 Tray
61302021821SPEC
6 files 20 Dual Socket Header Straight 3 Tray613001
61302221821SPEC
6 files 22 Dual Socket Header Straight 3 Tray
61302421821SPEC
6 files 24 Dual Socket Header Straight 3 Tray
61302621821SPEC
6 files 26 Dual Socket Header Straight 3 Tray
61302821821SPEC
6 files 28 Dual Socket Header Straight 3 Tray
61303021821SPEC
6 files 30 Dual Socket Header Straight 3 Tray
61303221821SPEC
6 files 32 Dual Socket Header Straight 3 Tray
61303421821SPEC
6 files 34 Dual Socket Header Straight 3 Tray
61303621821SPEC
6 files 36 Dual Socket Header Straight 3 Tray
61304021821SPEC
6 files 40 Dual Socket Header Straight 3 Tray
61304421821SPEC
6 files 44 Dual Socket Header Straight 3 Tray
61306421821SPEC
6 files 64 Dual Socket Header Straight 3 Tray
61307221821SPEC
6 files 72 Dual Socket Header Straight 3 Tray
Order Code Data­sheet
61300421821SPEC
61300621821SPEC
61300821821SPEC
61301021821SPEC
61301221821SPEC
61301421821SPEC
61301621821SPEC
61301821821SPEC
61302021821SPEC
61302221821SPEC
61302421821SPEC
61302621821SPEC
61302821821SPEC
61303021821SPEC
61303221821SPEC
61303421821SPEC
61303621821SPEC
61304021821SPEC
61304421821SPEC
61306421821SPEC
61307221821SPEC
