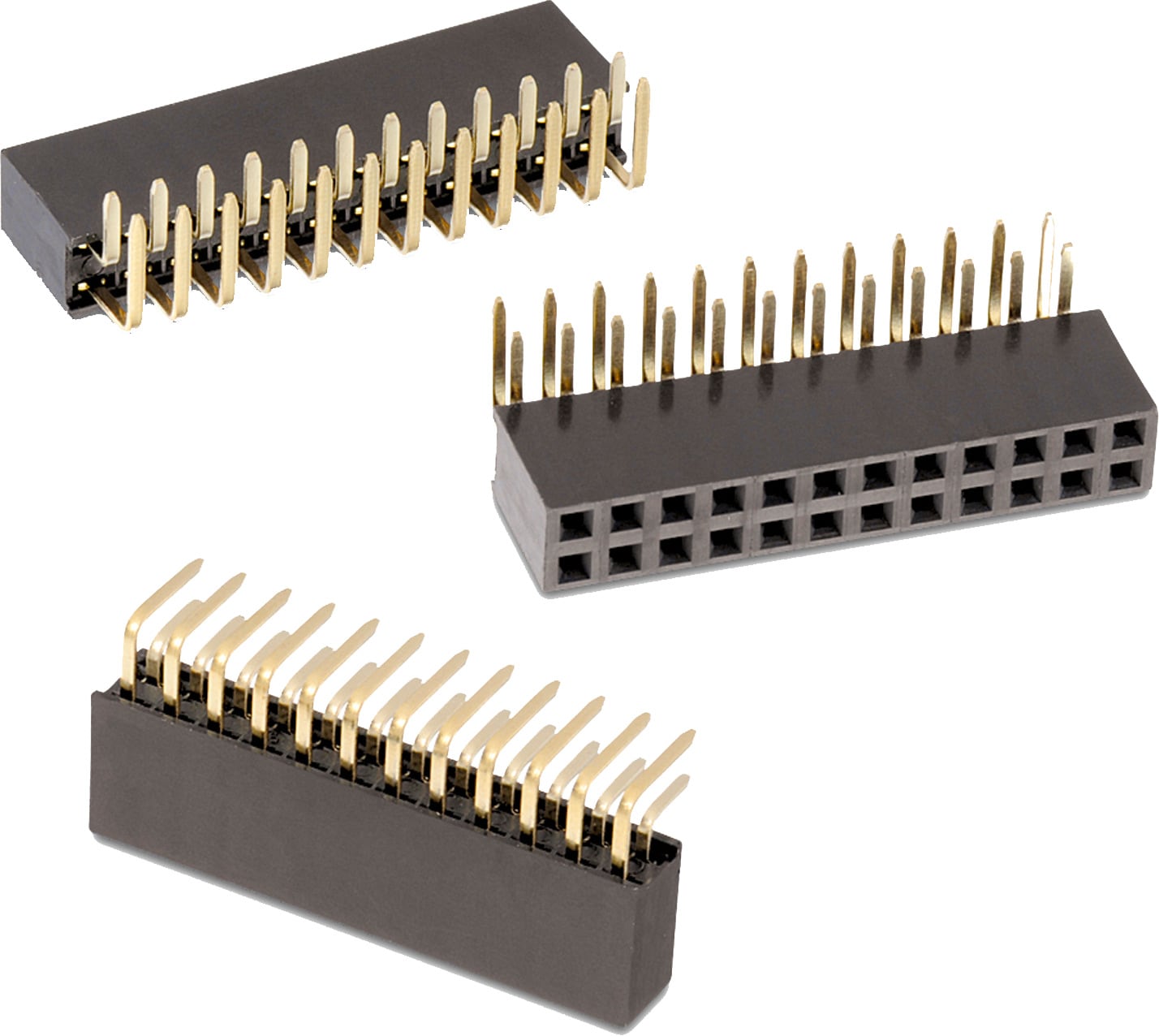

WR-PHD 2.54 mm Angled Dual Socket Header

Article Properties
Pins4; 6; 8; 10; 12; 14; 16; 20; 22; 24; 26; 32; 34; 40; 64; 72
Kind Properties
Pitch2.54 mm
RowsDual
GenderSocket Header
TypeAngled
Material Properties
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
Contact MaterialCopper Alloy
Contact PlatingGold
Contact TypeStamped
General Information
Operating Temperature-40 up to +105 °C
ComplianceLead free / RoHS
Electrical Properties
Withstanding Voltage500 V (AC)
Contact Resistance20 mΩ
RISO1000 MΩ
Certification
UL ApprovalE323964
Packaging Properties
PackagingTray

Products

Order Code Data­sheet DownloadsPinsRowsGenderTypeIR
(A)
Packaging Samples
613004243121SPEC
6 files 4 Dual Socket Header Angled 3 Tray
613006243121SPEC
6 files 6 Dual Socket Header Angled 3 Tray
613008243121SPEC
6 files 8 Dual Socket Header Angled 3 Tray
613010243121SPEC
6 files 10 Dual Socket Header Angled 3 Tray
613012243121SPEC
6 files 12 Dual Socket Header Angled 3 Tray
613014243121SPEC
6 files 14 Dual Socket Header Angled 3 Tray
613016243121SPEC
6 files 16 Dual Socket Header Angled 3 Tray
613020243121SPEC
6 files 20 Dual Socket Header Angled 3 Tray
613022243121SPEC
6 files 22 Dual Socket Header Angled 3 Tray
613024243121SPEC
6 files 24 Dual Socket Header Angled 3 Tray
613026243121SPEC
6 files 26 Dual Socket Header Angled 3 Tray
613032243121SPEC
6 files 32 Dual Socket Header Angled 3 Tray
613034243121SPEC
6 files 34 Dual Socket Header Angled 3 Tray
613040243121SPEC
6 files 40 Dual Socket Header Angled 3 Tray
613064243121SPEC
6 files 64 Dual Socket Header Angled 3 Tray
613072243121SPEC
6 files 72 Dual Socket Header Angled 3 Tray
Order Code Data­sheet
613004243121SPEC
613006243121SPEC
613008243121SPEC
613010243121SPEC
613012243121SPEC
613014243121SPEC
613016243121SPEC
613020243121SPEC
613022243121SPEC
613024243121SPEC
613026243121SPEC
613032243121SPEC
613034243121SPEC
613040243121SPEC
613064243121SPEC
613072243121SPEC
