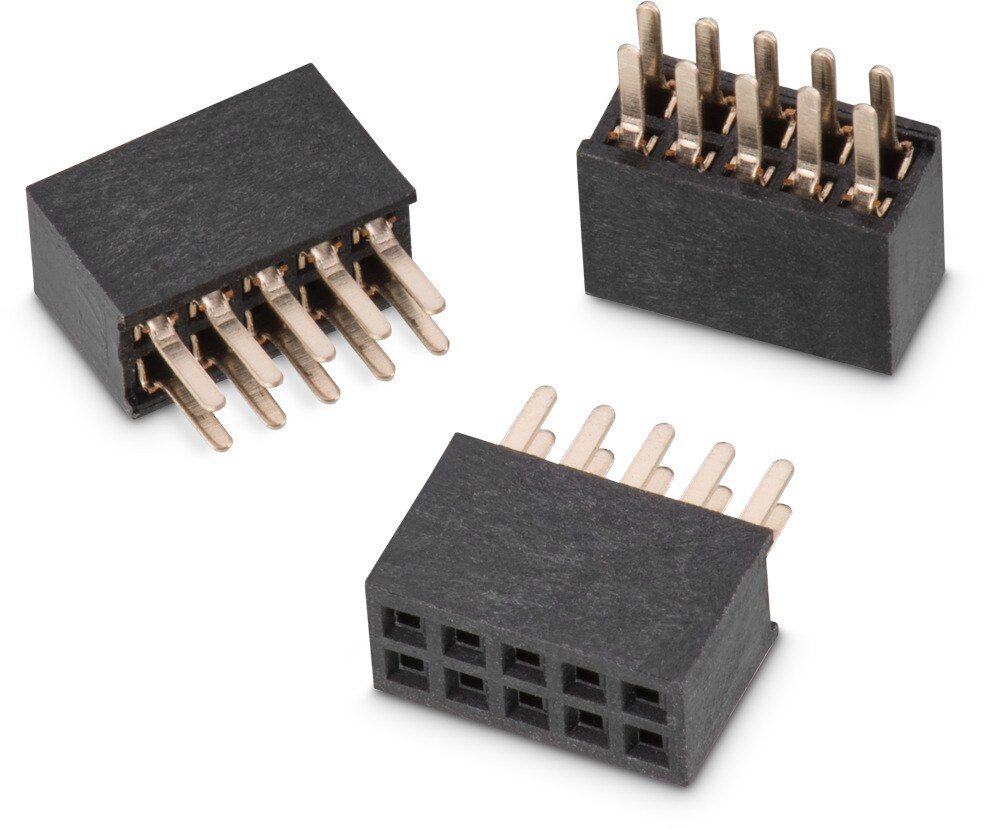

WR-PHD 1.27 mm Dual Socket Header

Article Properties
Pins4 mm; 8 mm; 10 mm; 14 mm; 16 mm; 20 mm; 28 mm
Kind Properties
Pitch1.27 mm
RowsDual
GenderSocket Header
TypeStraight
Material Properties
Insulator MaterialPA9T
Insulator Flammability RatingUL94 V-0
Contact MaterialCopper Alloy
Contact PlatingGold
Contact TypeStamped
General Information
Operating Temperature-40 up to +105 °C
Electrical Properties
Withstanding Voltage500 V (AC)
Contact Resistance20 mΩ
RISO1000 MΩ
Certification
UL ApprovalE323964
Packaging Properties
PackagingTube

Products

Order Code Data­sheet DownloadsPins
(mm)
RowsGenderTypeIR
(A)
PackagingDesign Kit Samples
62200421821SPEC
6 files 4 Dual Socket Header Straight 1 Tube613001
62200821821SPEC
6 files 8 Dual Socket Header Straight 1 Tube613001
62201021821SPEC
6 files 10 Dual Socket Header Straight 1 Tube613001
62201421821SPEC
6 files 14 Dual Socket Header Straight 1 Tube613001
62201621821SPEC
6 files 16 Dual Socket Header Straight 1 Tube612690
613001
62202021821SPEC
6 files 20 Dual Socket Header Straight 1 Tube613001
62202821821SPEC
6 files 28 Dual Socket Header Straight 1 Tube613001
Order Code Data­sheet
62200421821SPEC
62200821821SPEC
62201021821SPEC
62201421821SPEC
62201621821SPEC
62202021821SPEC
62202821821SPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
RowsGenderTypeIR
(A)
PackagingDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
