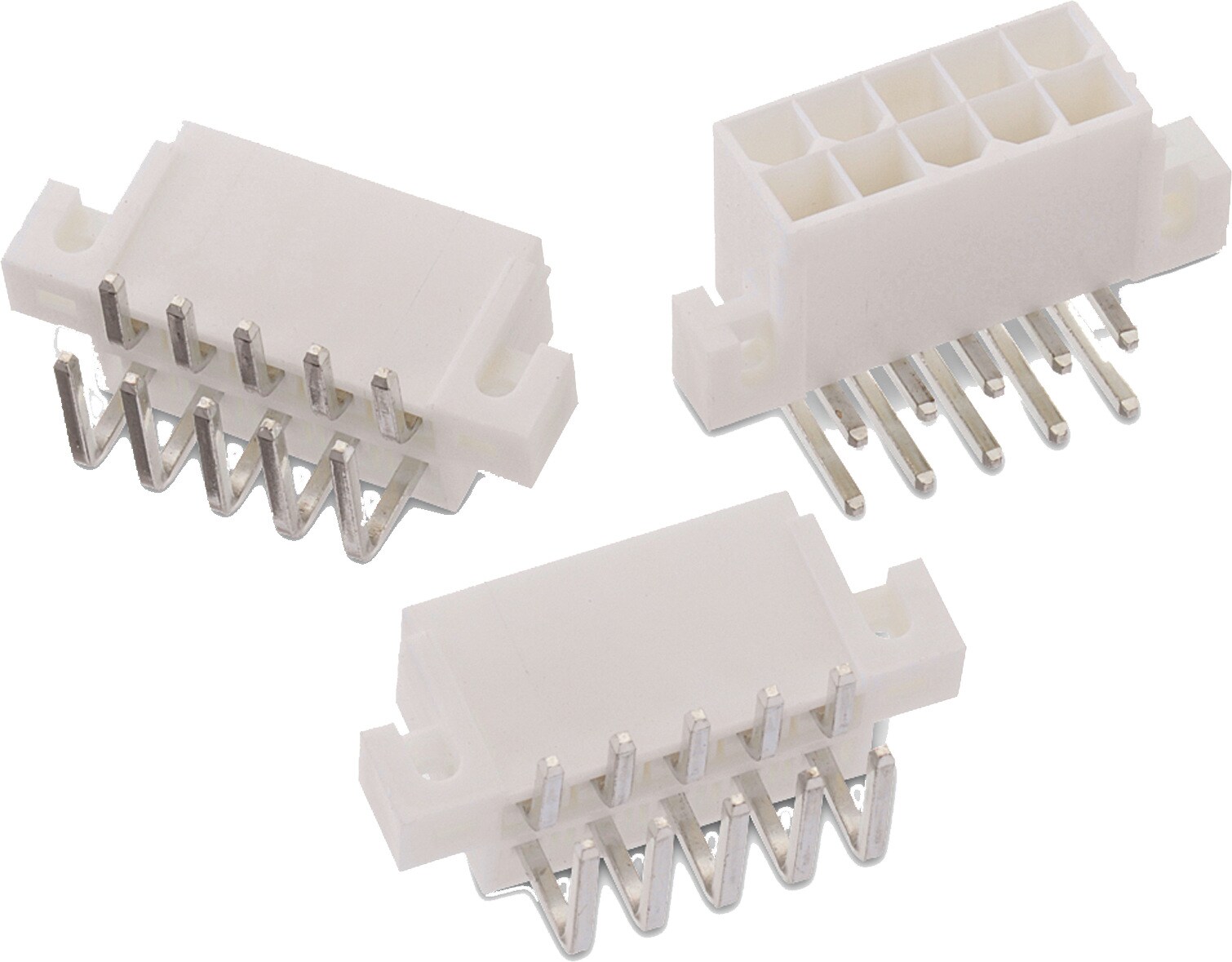

WR-MPC4 4.20 mm Male Dual Row Angled Header w. Mounting Flanges for Screw-in Retention

Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Insulator ColorWhite
Contact MaterialCopper Alloy
Contact PlatingTin
Contact TypeStamped
General Information
Operating Temperature-40 °C up to +105 °C
IR6 A; 7 A; 8 A; 9 A
Working Voltage600 V (AC)
Withstanding Voltage1500 V (AC)
Contact Resistance10 mΩ
RISO1000 MΩ
Pitch4.2 mm
GenderMale
Certification
UL ApprovalE323964
Wire Properties
PackagingTray

Products

Order Code Data­sheet DownloadsPinsPitch
(mm)
IR
(A)
GenderTypeRowsMountWorking Voltage
(V (AC))
PCB/Cable/PanelL
(mm)
PackagingDesign Kit Samples
64900221022SPEC
6 files 2 4.2 9 Male Right Angled Dual THT 600 PCB 15.4 Tray649001
64900421022SPEC
6 files 4 4.2 8 Male Right Angled Dual THT 600 PCB 19.6 Tray612690
649001
64900621022SPEC
6 files 6 4.2 8 Male Right Angled Dual THT 600 PCB 23.8 Tray649001
64900821022SPEC
6 files 8 4.2 7 Male Right Angled Dual THT 600 PCB 28 Tray649001
64901021022SPEC
6 files 10 4.2 7 Male Right Angled Dual THT 600 PCB 32.2 Tray649001
64901221022SPEC
6 files 12 4.2 6 Male Right Angled Dual THT 600 PCB 36.4 Tray649001
64901421022SPEC
6 files 14 4.2 6 Male Right Angled Dual THT 600 PCB 40.6 Tray649001
64901621022SPEC
6 files 16 4.2 6 Male Right Angled Dual THT 600 PCB 44.8 Tray649001
64901821022SPEC
6 files 18 4.2 6 Male Right Angled Dual THT 600 PCB 49 Tray649001
64902021022SPEC
6 files 20 4.2 6 Male Right Angled Dual THT 600 PCB 53.2 Tray649001
64902221022SPEC
6 files 22 4.2 6 Male Right Angled Dual THT 600 PCB 57.4 Tray649001
64902421022SPEC
6 files 24 4.2 6 Male Right Angled Dual THT 600 PCB 61.6 Tray649001
Order Code Data­sheet
64900221022SPEC
64900421022SPEC
64900621022SPEC
64900821022SPEC
64901021022SPEC
64901221022SPEC
64901421022SPEC
64901621022SPEC
64901821022SPEC
64902021022SPEC
64902221022SPEC
64902421022SPEC
Samples
Order Code Data­sheet DownloadsPinsPitch
(mm)
IR
(A)
GenderTypeRowsMountWorking Voltage
(V (AC))
PCB/Cable/PanelL
(mm)
PackagingDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
