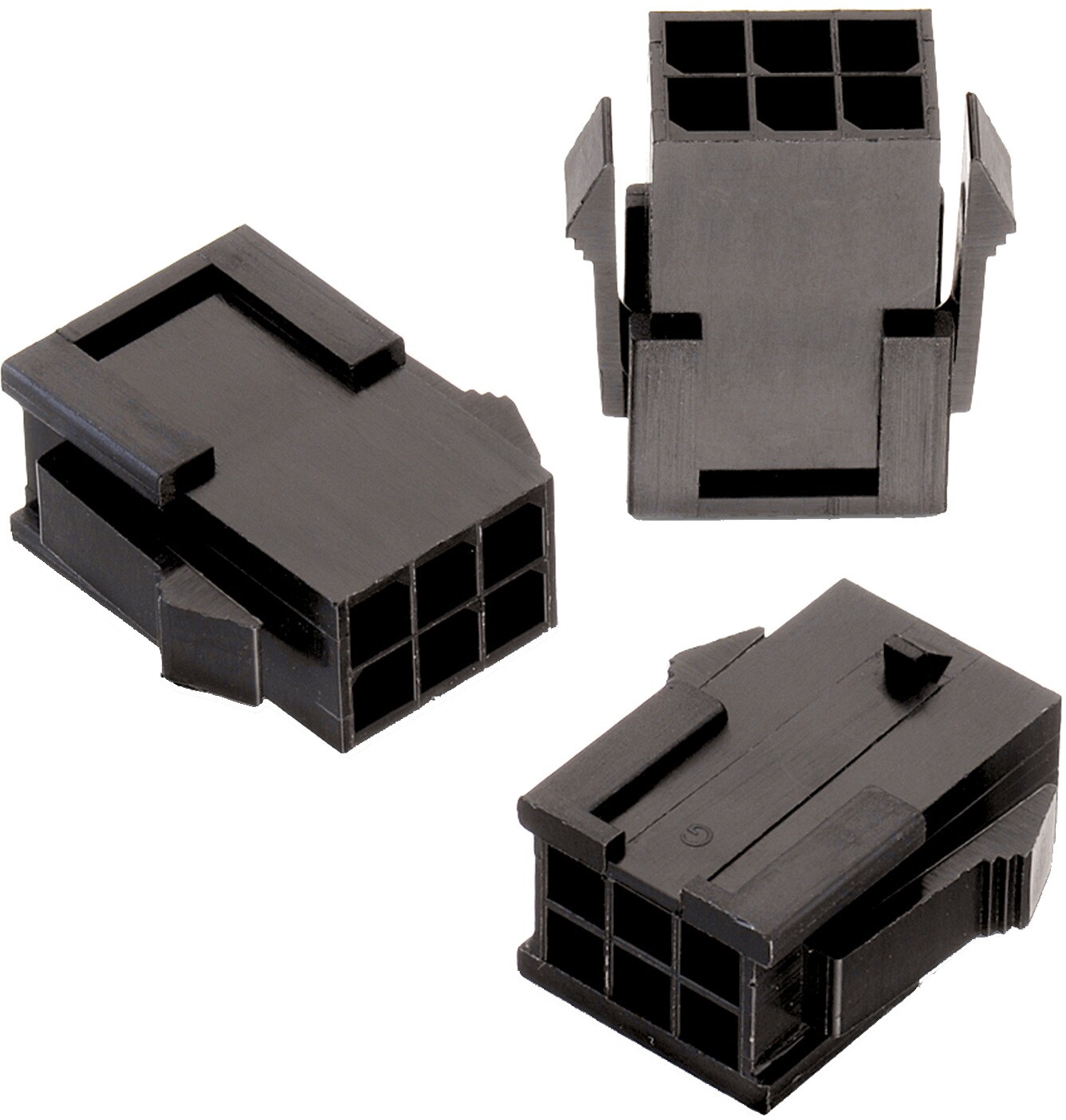

WR-MPC3 3.00 mm Male Plug Housing Dual Row with Panel Mounting Ears

General Informations
Pitch	3 mm
Rows	Dual
Type	Plug Housing
Operating Temperature	-25 °C up to +105 °C

Electrical Properties
Withstanding Voltage	1500 V (AC)

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Material Properties
Insulator Material	PA66
Insulator Color	Black
Insulator Flammability Rating	UL94 V-0

Products

Order Code	Datasheet	Downloads	Status	Polarity	Pitch (mm)	Gender	Type	Rows	Packaging	Design Kit	Samples
66200221822	SPEC	3 files CAD files ZIP 3D 66200221822 (rev1).pdf \| 48.2 KB IGS 66200221822 (rev1).iges \| 784.4 KB STP 66200221822 (rev1).stp \| 186 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	3	Male	Plug Housing	Dual	Bag	662001
66200421822	SPEC	3 files CAD files ZIP 3D 66200421822 (rev1).pdf \| 74.8 KB IGS 66200421822 (rev1).iges \| 1.3 MB STP 66200421822 (rev1).stp \| 308.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	3	Male	Plug Housing	Dual	Bag	662001
66200621822	SPEC	3 files CAD files ZIP 3D 66200621822 (rev1).pdf \| 106.4 KB IGS 66200621822 (rev1).iges \| 1.8 MB STP 66200621822 (rev1).stp \| 427.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	3	Male	Plug Housing	Dual	Bag	612690 662001
66200821822	SPEC	3 files CAD files ZIP 3D 66200821822 (rev1).pdf \| 131.1 KB IGS 66200821822 (rev1).iges \| 2.3 MB STP 66200821822 (rev1).stp \| 551.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	3	Male	Plug Housing	Dual	Bag	662001
66201021822	SPEC	3 files CAD files ZIP 3D 66201021822 (rev1).pdf \| 158.5 KB IGS 66201021822 (rev1).iges \| 2.8 MB STP 66201021822 (rev1).stp \| 674.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	3	Male	Plug Housing	Dual	Bag	662001
66201221822	SPEC	3 files CAD files ZIP 3D 66201221822 (rev1).pdf \| 185.9 KB IGS 66201221822 (rev1).iges \| 3.3 MB STP 66201221822 (rev1).stp \| 797.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	3	Male	Plug Housing	Dual	Bag	662001
66201421822	SPEC	3 files CAD files ZIP 3D 66201421822 (rev1).pdf \| 213.5 KB IGS 66201421822 (rev1).iges \| 3.8 MB STP 66201421822 (rev1).stp \| 920.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	3	Male	Plug Housing	Dual	Bag	662001
66201621822	SPEC	3 files CAD files ZIP 3D 66201621822 (rev1).pdf \| 241.2 KB IGS 66201621822 (rev1).iges \| 4.3 MB STP 66201621822 (rev1).stp \| 1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	3	Male	Plug Housing	Dual	Bag	662001
66201821822	SPEC	3 files CAD files ZIP 3D 66201821822 (rev1).pdf \| 268 KB IGS 66201821822 (rev1).iges \| 4.8 MB STP 66201821822 (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	3	Male	Plug Housing	Dual	Bag	662001
66202021822	SPEC	3 files CAD files ZIP 3D 66202021822 (rev1).pdf \| 296 KB IGS 66202021822 (rev1).iges \| 5.3 MB STP 66202021822 (rev1).stp \| 1.3 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	3	Male	Plug Housing	Dual	Bag	662001
66202221822	SPEC	3 files CAD files ZIP 3D 66202221822 (rev1).pdf \| 323.9 KB IGS 66202221822 (rev1).iges \| 5.9 MB STP 66202221822 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	3	Male	Plug Housing	Dual	Bag	662001
66202421822	SPEC	3 files CAD files ZIP 3D 66202421822 (rev1).pdf \| 352.3 KB IGS 66202421822 (rev1).iges \| 6.4 MB STP 66202421822 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	3	Male	Plug Housing	Dual	Bag	662001

Order Code	Datasheet
66200221822	SPEC
66200421822	SPEC
66200621822	SPEC
66200821822	SPEC
66201021822	SPEC
66201221822	SPEC
66201421822	SPEC
66201621822	SPEC
66201821822	SPEC
66202021822	SPEC
66202221822	SPEC
66202421822	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Polarity	Pitch (mm)	Gender	Type	Rows	Packaging	Design Kit	Samples

Use with

WR-MPC3 3.00 mm Male Crimp Terminal - Tin

WR-MPC3 Male Pre-crimped wire

Tools

WR-MPC3 3.00 mm Manual Crimping Tool

WR-MPC3 3.00 mm Manual Extraction Tool

WR-MPC3 3.00 mm Manual Insulation Stripper

WR-MPC3 3.00 mm Automatic Crimping Tool

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-MPC3 Micro PowerConnectors
