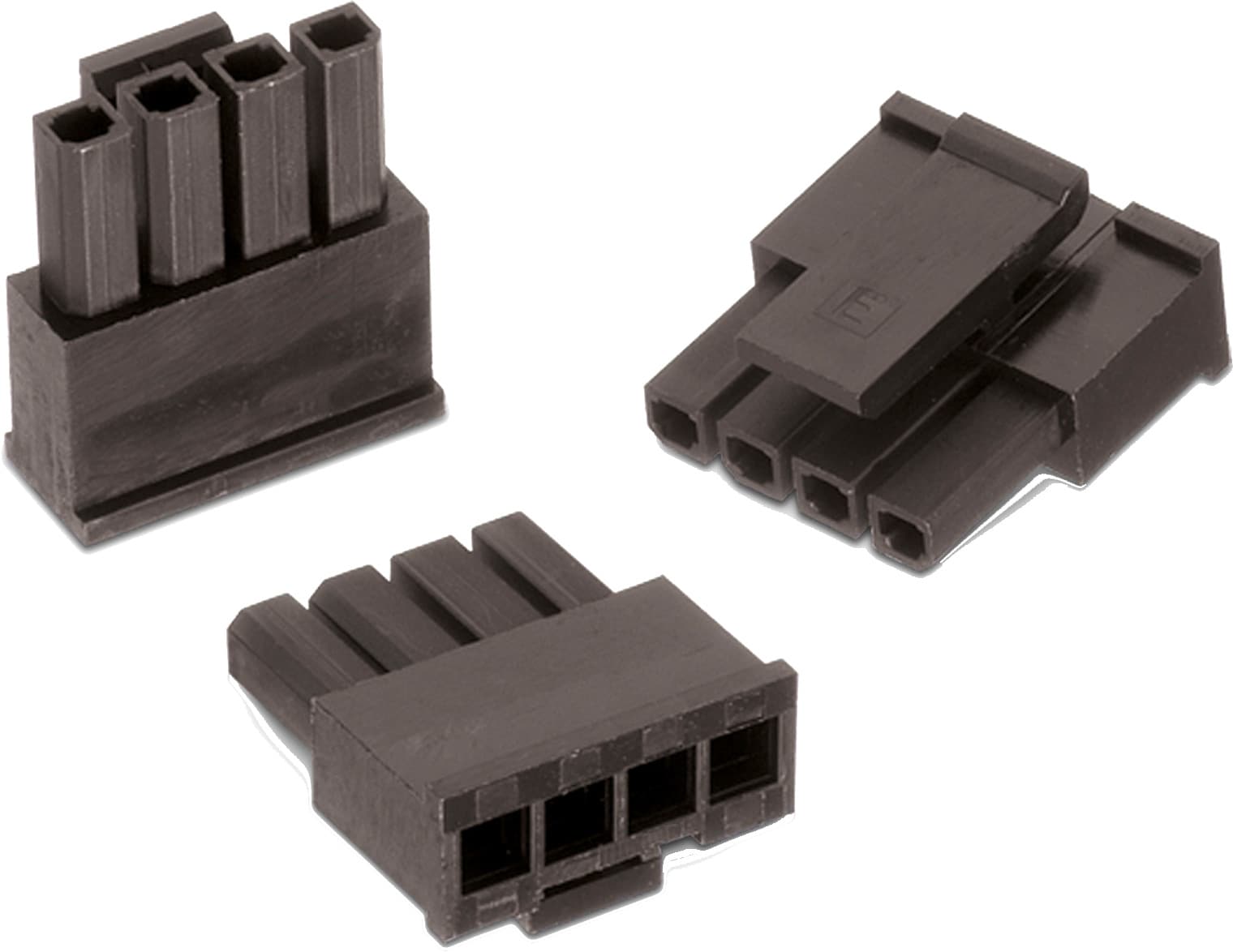

WR-MPC3 3.00 mm Female Receptacle Housing Single Row

General Informations
Pitch	3 mm
Rows	Single
Type	Receptacle Housing
Operating Temperature	-25 °C up to +105 °C

Electrical Properties
Withstanding Voltage	1500 V (AC)

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Material Properties
Insulator Material	PA66
Insulator Color	Black
Insulator Flammability Rating	UL94 V-0

Application Notes

ANE001 Low Force Crimp Contacts
PDF

Products

Order Code	Datasheet	Downloads	Status	Polarity	Pitch (mm)	Gender	Type	Rows	Packaging	Design Kit	Samples
662002013322	SPEC	3 files CAD files ZIP 3D 662002013322 (rev1).pdf \| 49.7 KB IGS Download_IGES_662002013322 (rev1).iges \| 748.5 KB STP 662002013322 (rev1).stp \| 170.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	3	Female	Receptacle Housing	Single	Bag	662001
662003013322	SPEC	3 files CAD files ZIP 3D 662003013322 (rev1).pdf \| 59.8 KB IGS Download_IGES_662003013322 (rev1).iges \| 970.4 KB STP 662003013322 (rev1).stp \| 221.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	3	Female	Receptacle Housing	Single	Bag	662001
662004013322	SPEC	3 files CAD files ZIP 3D 662004013322 (rev1).pdf \| 69.9 KB IGS Download_IGES_662004013322 (rev1).iges \| 1.2 MB STP 662004013322 (rev1).stp \| 273.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	3	Female	Receptacle Housing	Single	Bag	662001
662005013322	SPEC	3 files CAD files ZIP 3D 662005013322 (rev1).pdf \| 81.4 KB IGS Download_IGES_662005013322 (rev1).iges \| 1.4 MB STP 662005013322 (rev1).stp \| 324.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	3	Female	Receptacle Housing	Single	Bag	662001
662006013322	SPEC	3 files CAD files ZIP 3D 662006013322 (rev1).pdf \| 95.5 KB IGS Download_IGES_662006013322 (rev1).iges \| 1.6 MB STP 662006013322 (rev1).stp \| 380.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	3	Female	Receptacle Housing	Single	Bag	662001
662007013322	SPEC	3 files CAD files ZIP 3D 662007013322 (rev1).pdf \| 106.6 KB IGS Download_IGES_662007013322 (rev1).iges \| 1.9 MB STP 662007013322 (rev1).stp \| 433.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	3	Female	Receptacle Housing	Single	Bag	662001
662008013322	SPEC	3 files CAD files ZIP 3D 662008013322 (rev1).pdf \| 118 KB IGS Download_IGES_662008013322 (rev1).iges \| 2.1 MB STP 662008013322 (rev1).stp \| 489.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	3	Female	Receptacle Housing	Single	Bag	662001
662009013322	SPEC	3 files CAD files ZIP 3D 662009013322 (rev1).pdf \| 130 KB IGS Download_IGES_662009013322 (rev1).iges \| 2.3 MB STP 662009013322 (rev1).stp \| 548.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	3	Female	Receptacle Housing	Single	Bag	662001
662010013322	SPEC	3 files CAD files ZIP 3D 662010013322 (rev1).pdf \| 140.4 KB IGS Download_IGES_662010013322 (rev1).iges \| 2.5 MB STP 662010013322 (rev1).stp \| 606.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	3	Female	Receptacle Housing	Single	Bag	662001
662011013322	SPEC	3 files CAD files ZIP 3D 662011013322 (rev1).pdf \| 151.9 KB IGS Download_IGES_662011013322 (rev1).iges \| 2.8 MB STP 662011013322 (rev1).stp \| 662.9 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	11	3	Female	Receptacle Housing	Single	Bag	662001
662012013322	SPEC	3 files CAD files ZIP 3D 662012013322 (rev1).pdf \| 162.9 KB IGS Download_IGES_662012013322 (rev1).iges \| 3 MB STP 662012013322 (rev1).stp \| 711.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	3	Female	Receptacle Housing	Single	Bag	662001
