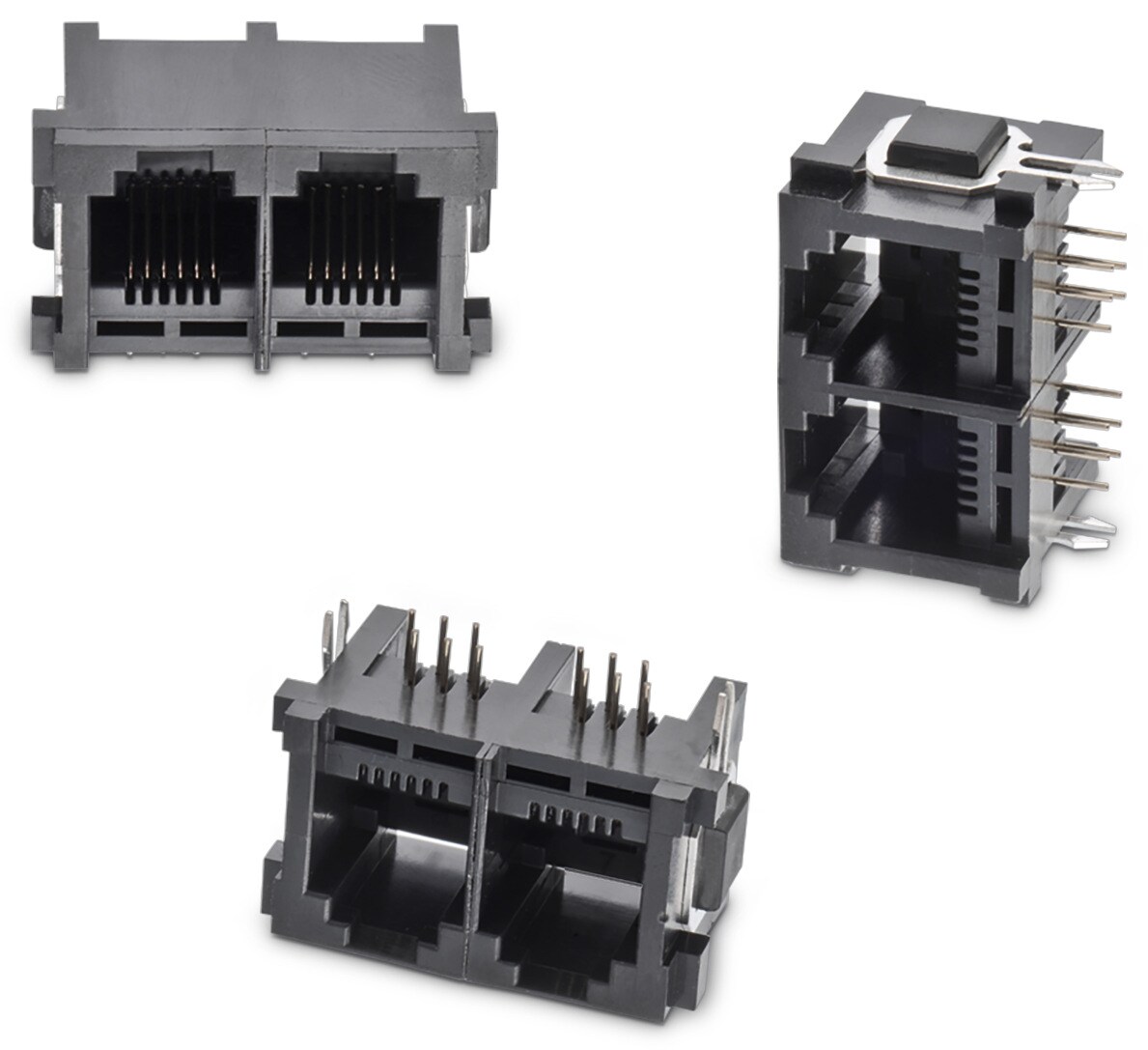

WR-MJ Modular Jack Horizontal Plastic 6P6C Assembly Tab Up

Kind Properties
Quality Class500 Mating cycles
Material Properties
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
ColorBlack
Contact MaterialCopper Alloy
Contact PlatingGold
Contact TypeStamped
Shielding MaterialBrass
Shielding PlatingNickel; Nickel (Ni)
General Information
Operating Temperature-40 up to +85 °C
ComplianceRoHS
Electrical Properties
IR1.5 A
Working Voltage120 V (AC)
Withstanding Voltage1000 V (AC)
Contact Resistance20 mΩ
RISO500 MΩ
Packaging Properties
PackagingTray

Products

Order Code Data­sheet DownloadsxPxCTypeMountApplication SystemDesign Kit Samples
615006149421LSPEC
6 files 6P6C Horizontal THT615001
615006149421MSPEC
6 files 6P6C Horizontal THT615001
615006149421RSPEC
6 files 6P6C Horizontal THT615001
615012149421SPEC
6 files 6P6C Horizontal THT CAT 3615001
615018149421SPEC
6 files 6P6C Horizontal THT CAT 3615001
615024149421SPEC
6 files 6P6C Horizontal THT CAT 3615001
Order Code Data­sheet
615006149421LSPEC
615006149421MSPEC
615006149421RSPEC
615012149421SPEC
615018149421SPEC
615024149421SPEC
Samples
Order Code Data­sheet DownloadsxPxCTypeMountApplication SystemDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
