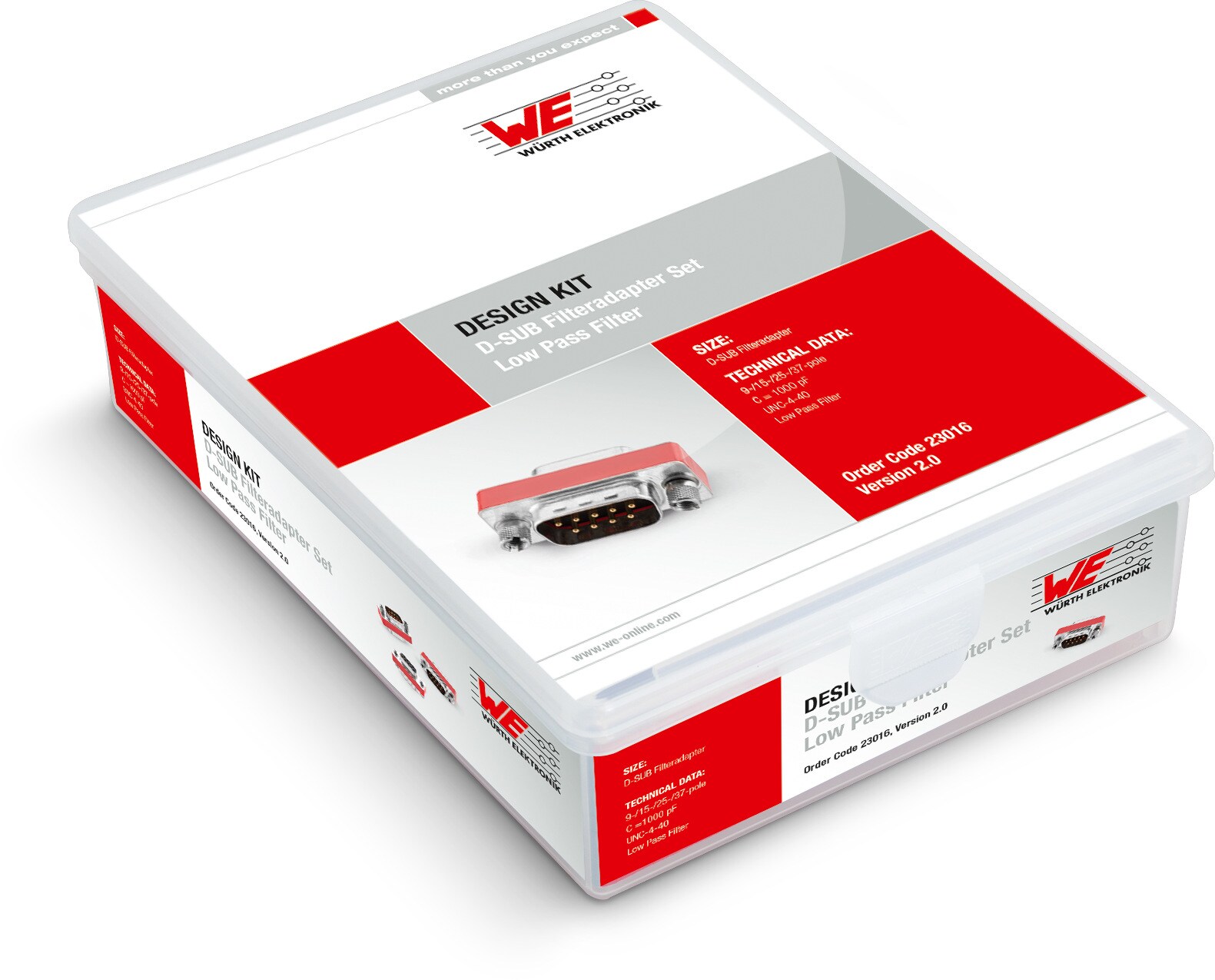

D-SUB Filter Adapter Set

Applications

Ideal for testing purpose
The filter adapter can be replaced by our solder version for production
Set contains whole D-SUB Filter Adapter series

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Order Code	Datasheet	Downloads	Status	Product series	Type	Capacitance(pF)	Samples
230016003	WE-D-SUB Filter Adapter, UNC 4/40, 1000 pF	Downloads2 files CAD files ZIP IGS 230016003 (rev1).igs \| 16.1 MB STP 230016003 (rev1).stp \| 1.3 MB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Product seriesWE-D-SUB Filter Adapter	TypeUNC 4/40	Capacitance1000 pF
232016003	WE-D-SUB Filter Adapter, UNC 4/40, 1000 pF	Downloads2 files CAD files ZIP IGS 232016003 (rev1).igs \| 25 MB STP 232016003 (rev1).stp \| 1.5 MB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Product seriesWE-D-SUB Filter Adapter	TypeUNC 4/40	Capacitance1000 pF
234016003	WE-D-SUB Filter Adapter, UNC 4/40, 1000 pF	Downloads2 files CAD files ZIP IGS 234016003 (rev1).igs \| 40.9 MB STP 234016003 (rev1).stp \| 2.3 MB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Product seriesWE-D-SUB Filter Adapter	TypeUNC 4/40	Capacitance1000 pF
236016003	WE-D-SUB Filter Adapter, UNC 4/40, 1000 pF	Downloads2 files CAD files ZIP IGS 236016003 (rev1).igs \| 59 MB STP 236016003 (rev1).stp \| 2.9 MB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Product seriesWE-D-SUB Filter Adapter	TypeUNC 4/40	Capacitance1000 pF
