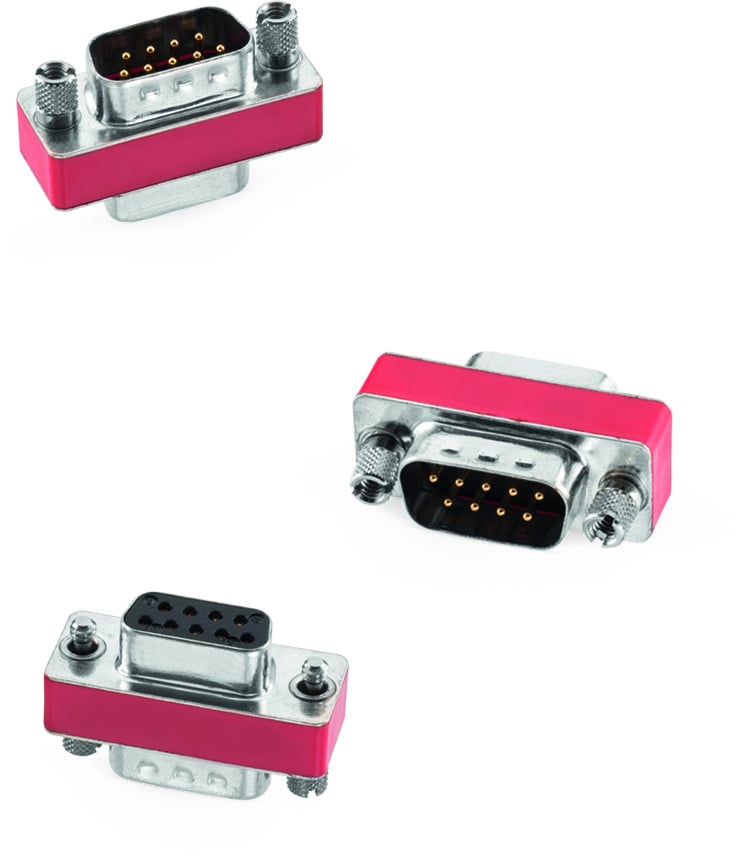

WE-D-SUB Filter Adapter

WE-D-SUB Filter Adapter

Characteristics

  • Standardized filter with 1000 pF (other values possible on request)
  • High attenuation of more than 40 dB @ 180 MHz
  • Rated current @ 20 ºC: 7.5 A
  • Insulation resistance: min. 1 GΩ
  • Operating temperature: –55 ºC to +125 ºC
  • Fast and effective interface filter for later filtering
  • Captive stud with thread UNC 4/40 internal/external
  • Working voltage: 100 VDC
  • Testing voltage: 250 VRMS

Applications

  • Filtering of interfaces
  • External connection to
    – printer
    – sensor
    – display

Products

Filter article data
Filter by
Delete all
 show  articles in 0 product lines
 articles in 0 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Downloads
Status

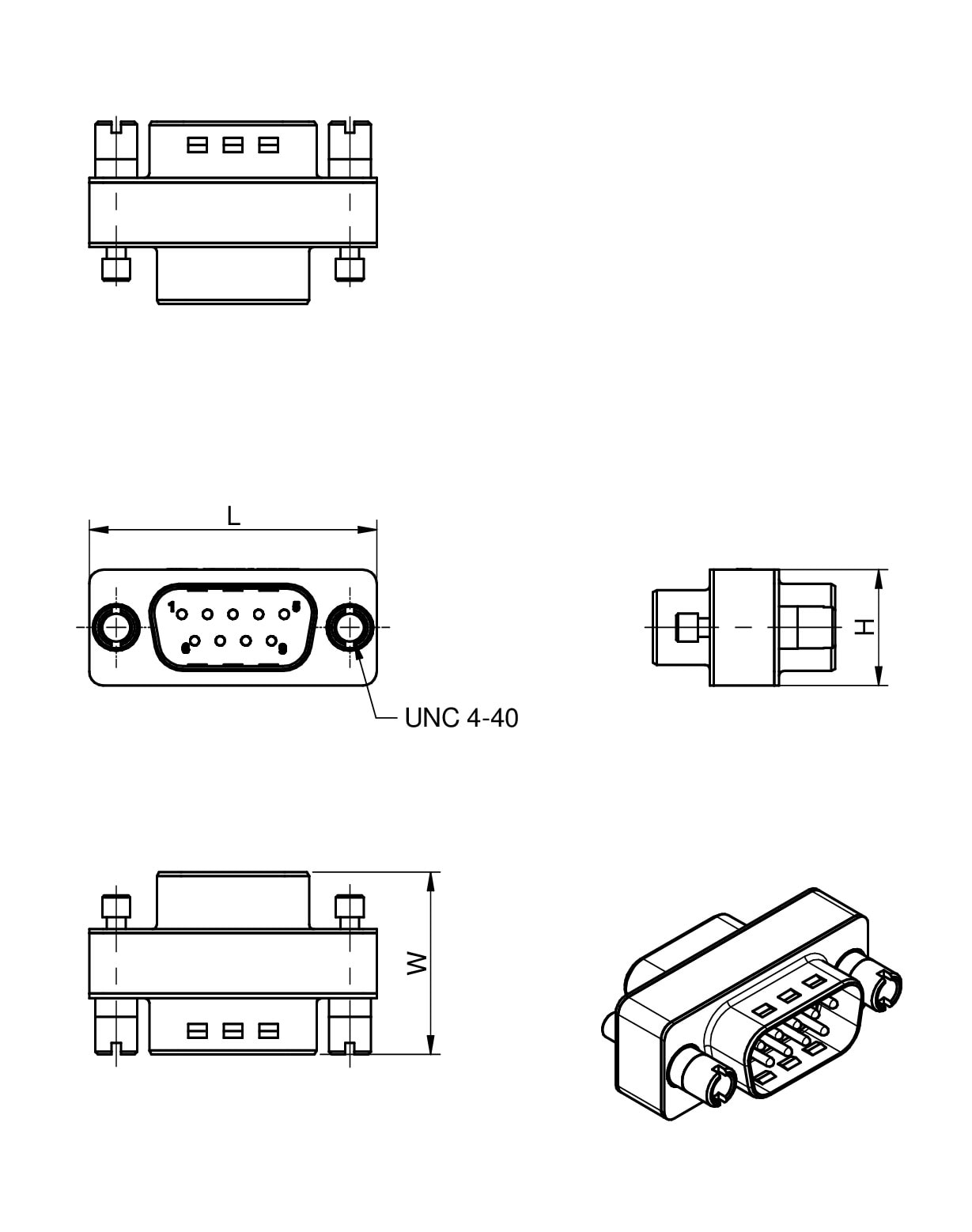

Number of Poles
Gender
L(mm)
W(mm)
H(mm)
Design Kit
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
WE-D-SUB Filter Adapter
230016003
SPEC9, Adapter, 30.8 mm

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads2 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Number of Poles9
GenderAdapter
Length30.8 mm
Width19.5 mm
Height12.4 mm
Design Kit
23016
–Check availability
WE-D-SUB Filter Adapter
232016003
SPEC15, Adapter, 39.2 mm
Availability
–
Downloads2 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Number of Poles15
GenderAdapter
Length39.2 mm
Width19.5 mm
Height12.4 mm
Design Kit
23016
–Check availability
WE-D-SUB Filter Adapter
234016003
SPEC25, Adapter, 53.1 mm
Availability
–
Downloads2 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Number of Poles25
GenderAdapter
Length53.1 mm
Width19.5 mm
Height12.4 mm
Design Kit
23016
–Check availability
WE-D-SUB Filter Adapter
236016003
SPEC37, Adapter, 69.5 mm
Availability
–
Downloads2 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Number of Poles37
GenderAdapter
Length69.5 mm
Width19.5 mm
Height12.4 mm
Design Kit
23016
–Check availability

Use with

WA-PCCA Plastic Caps for D-SUB

Assortments

Articles from this product series can be found in the following assortments:

D-SUB Filter Adapter Set
