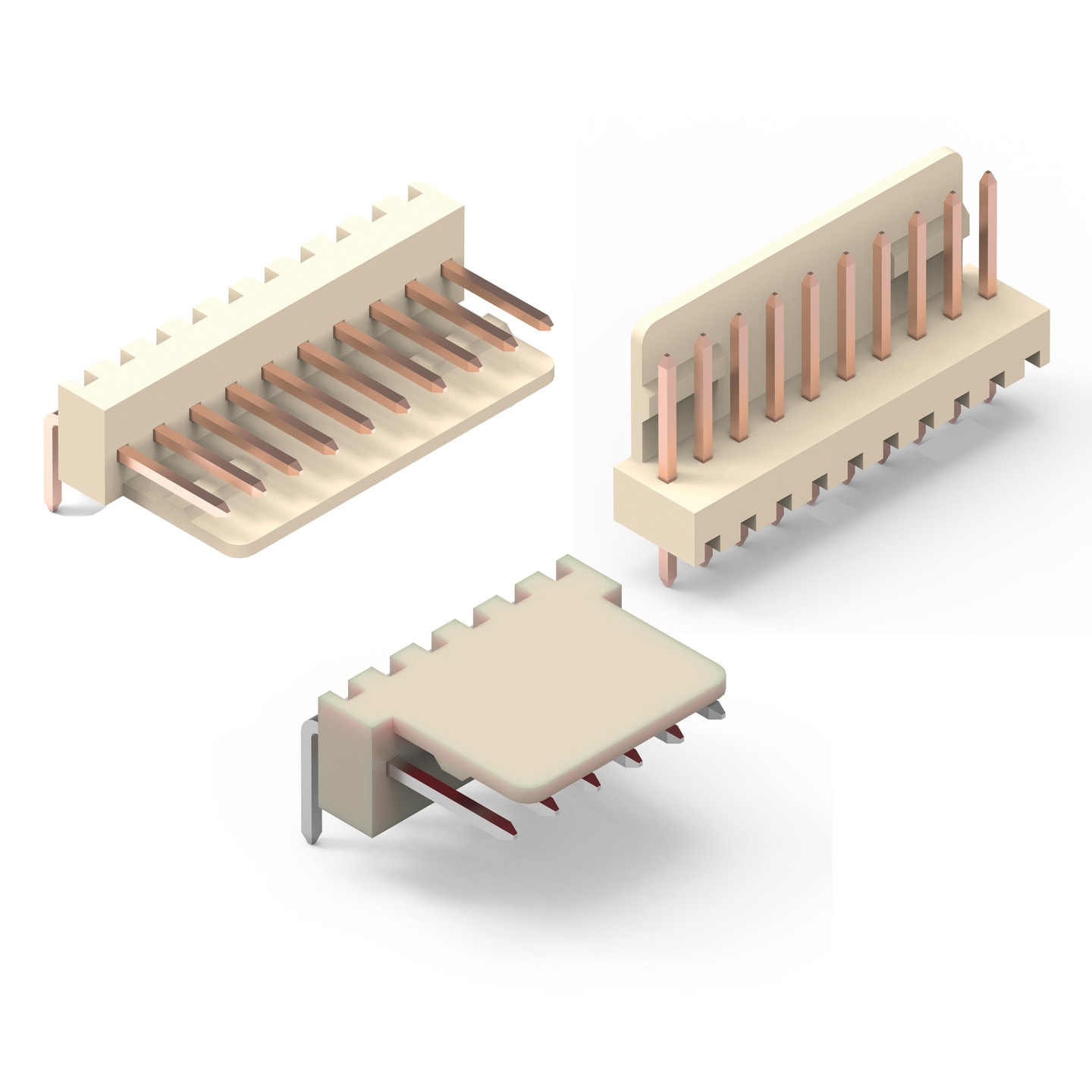

WR-WTB 2.54 mm Male Header

Size	Dimensions	Mount
Horizontal		THT
Vertical		THT

Characteristics

Properties:
Rated Current: 3 A
Working Voltage: 250 V
UL 94-V0
Pitch: 2.54 mm
Features:
Fine pitch
Betriebstemperatur: -40 °C up to +105 °C

Applications

Microelectronic
Portable devices
Industry 4.0

Products

All

Horizontal

Vertical

Reset all

Filter article data

show article in 2 product lines

article in 2 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	Type	Mount	I_R(A)	PCB/Cable/Panel	L(mm)	Packaging	Mates with	Design Kit
61900211021	2, Right Angled Bottom Locking, THT	Downloads8 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900211021_1 (rev1).pdf \| 29.8 KB IGS 61900211021 (rev1).iges \| 417.6 KB IGS 61900211021 (rev1).igs \| 417.7 KB STP 61900211021 (rev1).stp \| 172.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	TypeRight Angled Bottom Locking	MountTHT	–	PCB/Cable/PanelPCB	Length5.08 mm	PackagingBag	Mates with 61900211621	Design Kit 645001
61900219521	2, Right Angled Top Locking, THT	Downloads8 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900219521_1 (rev1).pdf \| 29.8 KB IGS 61900219521 (rev1).iges \| 417.7 KB IGS 61900219521 (rev1).igs \| 417.7 KB STP 61900219521 (rev1).stp \| 172.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	TypeRight Angled Top Locking	MountTHT	–	PCB/Cable/PanelPCB	Length5.08 mm	PackagingBag	Mates with 61900211621	Design Kit 645001
61900211121	2, Vertical, THT	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900211121_1 (rev1).pdf \| 27.5 KB IGS 61900211121 (rev1).iges \| 389 KB STP 61900211121 (rev1).stp \| 162.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	TypeVertical	MountTHT	–	PCB/Cable/PanelPCB	Length5.08 mm	PackagingBag	Mates with 61900211621	Design Kit 645001
61900311021	3, Right Angled Bottom Locking, THT	Downloads8 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900311021_1 (rev1).pdf \| 35.2 KB IGS 61900311021 (rev1).iges \| 535.8 KB IGS 61900311021 (rev1).igs \| 536.1 KB STP 61900311021 (rev1).stp \| 220.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	TypeRight Angled Bottom Locking	MountTHT	–	PCB/Cable/PanelPCB	Length7.62 mm	PackagingBag	Mates with 61900311621	Design Kit 645001
61900311121	3, Vertical, THT	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900311121_1 (rev1).pdf \| 32.9 KB IGS 61900311121 (rev1).iges \| 507.1 KB STP 61900311121 (rev1).stp \| 210.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	TypeVertical	MountTHT	Rated Current3 A	PCB/Cable/PanelPCB	Length7.62 mm	PackagingBag	Mates with 61900311621	Design Kit 645001
61900319521	3, Right Angled Top Locking, THT	Downloads8 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900319521_1 (rev1).pdf \| 35.2 KB IGS 61900319521 (rev1).iges \| 535.8 KB IGS 61900319521 (rev1).igs \| 536.1 KB STP 61900319521 (rev1).stp \| 220.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	TypeRight Angled Top Locking	MountTHT	–	PCB/Cable/PanelPCB	Length7.62 mm	PackagingBag	Mates with 61900311621	Design Kit 645001
61900411121	4, Vertical, THT	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900411121_1 (rev1).pdf \| 38.4 KB IGS 61900411121 (rev1).iges \| 626 KB STP 61900411121 (rev1).stp \| 258.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	TypeVertical	MountTHT	–	PCB/Cable/PanelPCB	Length10.16 mm	PackagingBag	Mates with 61900411621	Design Kit 645001
61900419521	4, Right Angled Top Locking, THT	Downloads8 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900419521_1 (rev1).pdf \| 40.6 KB IGS 61900419521 (rev1).iges \| 654.6 KB IGS 61900419521 (rev1).igs \| 654.2 KB STP 61900419521 (rev1).stp \| 268.9 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	TypeRight Angled Top Locking	MountTHT	–	PCB/Cable/PanelPCB	Length10.16 mm	PackagingBag	Mates with 61900411621	Design Kit 645001
61900411021	4, Right Angled Bottom Locking, THT	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900411021_1 (rev1).pdf \| 40.6 KB IGS 61900411021 (rev1).iges \| 654.3 KB STP 61900411021 (rev1).stp \| 268.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	TypeRight Angled Bottom Locking	MountTHT	–	PCB/Cable/PanelPCB	Length10.16 mm	PackagingBag	Mates with 61900411621	Design Kit 645001
61900511021	5, Right Angled Bottom Locking, THT	Downloads8 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900511021_1 (rev1).pdf \| 46.5 KB IGS 61900511021 (rev1).iges \| 770.5 KB IGS 61900511021 (rev1).igs \| 771.2 KB STP 61900511021 (rev1).stp \| 317 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	TypeRight Angled Bottom Locking	MountTHT	–	PCB/Cable/PanelPCB	Length12.7 mm	PackagingBag	Mates with 61900511621	Design Kit 645001
61900511121	5, Vertical, THT	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900511121_1 (rev1).pdf \| 44.3 KB IGS 61900511121 (rev1).iges \| 741.7 KB STP 61900511121 (rev1).stp \| 306.9 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	TypeVertical	MountTHT	–	PCB/Cable/PanelPCB	Length12.7 mm	PackagingBag	Mates with 61900511621	Design Kit 645001
61900519521	5, Right Angled Top Locking, THT	Downloads8 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900519521_1 (rev1).pdf \| 46.5 KB IGS 61900519521 (rev1).iges \| 770.6 KB IGS 61900519521 (rev1).igs \| 771.2 KB STP 61900519521 (rev1).stp \| 317.1 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	TypeRight Angled Top Locking	MountTHT	–	PCB/Cable/PanelPCB	Length12.7 mm	PackagingBag	Mates with 61900511621	Design Kit 645001
61900611021	6, Right Angled Bottom Locking, THT	Downloads8 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900611021_1 (rev1).pdf \| 54.6 KB IGS 61900611021 (rev1).iges \| 912.4 KB IGS 61900611021 (rev1).igs \| 911.7 KB STP 61900611021 (rev1).stp \| 374.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	TypeRight Angled Bottom Locking	MountTHT	–	PCB/Cable/PanelPCB	Length15.24 mm	PackagingBag	Mates with 61900611621	Design Kit 645001
61900611121	6, Vertical, THT	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900611121_1 (rev1).pdf \| 51.9 KB IGS 61900611121 (rev1).iges \| 883.8 KB STP 61900611121 (rev1).stp \| 364.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	TypeVertical	MountTHT	–	PCB/Cable/PanelPCB	Length15.24 mm	PackagingBag	Mates with 61900611621	Design Kit 645001
61900619521	6, Right Angled Top Locking, THT	Downloads8 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900619521_1 (rev1).pdf \| 54.1 KB IGS 61900619521 (rev1).iges \| 912.4 KB IGS 61900619521 (rev1).igs \| 911.7 KB STP 61900619521 (rev1).stp \| 374.9 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	TypeRight Angled Top Locking	MountTHT	–	PCB/Cable/PanelPCB	Length15.24 mm	PackagingBag	Mates with 61900611621	Design Kit 645001
61900711121	7, Vertical, THT	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900711121_1 (rev1).pdf \| 57.6 KB IGS 61900711121 (rev1).iges \| 1003.8 KB STP 61900711121 (rev1).stp \| 413.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	TypeVertical	MountTHT	Rated Current3 A	PCB/Cable/PanelPCB	Length17.78 mm	PackagingBag	Mates with 61900711621	Design Kit 645001
61900811021	8, Right Angled Bottom Locking, THT	Downloads8 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900811021_1 (rev1).pdf \| 65.6 KB IGS 61900811021 (rev1).iges \| 1.1 MB IGS 61900811021 (rev1).igs \| 1.1 MB STP 61900811021 (rev1).stp \| 471.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	TypeRight Angled Bottom Locking	MountTHT	–	PCB/Cable/PanelPCB	Length20.32 mm	PackagingBag	Mates with 61900711621	Design Kit 612690 645001
61900819521	8, Right Angled Top Locking, THT	Downloads8 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900819521_1 (rev1).pdf \| 65.6 KB IGS 61900819521 (rev1).iges \| 1.1 MB IGS 61900819521 (rev1).igs \| 1.1 MB STP 61900819521 (rev1).stp \| 471.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	TypeRight Angled Top Locking	MountTHT	–	PCB/Cable/PanelPCB	Length20.32 mm	PackagingBag	Mates with 61900711621	Design Kit 612690 645001
61900811121	8, Vertical, THT	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61900811121_1 (rev1).pdf \| 63.4 KB IGS 61900811121 (rev1).iges \| 1.1 MB STP 61900811121 (rev1).stp \| 461.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	TypeVertical	MountTHT	–	PCB/Cable/PanelPCB	Length20.32 mm	PackagingBag	Mates with 61900711621	Design Kit 612690 645001
61901011021	10, Right Angled Bottom Locking, THT	Downloads8 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61901011021_1 (rev1).pdf \| 77 KB IGS 61901011021 (rev1).iges \| 1.4 MB IGS 61901011021 (rev1).igs \| 1.4 MB STP 61901011021 (rev1).stp \| 568.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	TypeRight Angled Bottom Locking	MountTHT	–	PCB/Cable/PanelPCB	Length25.4 mm	PackagingBag	Mates with 61901011621	Design Kit 645001
61901011121	10, Vertical, THT	Downloads7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61901011121_1 (rev1).pdf \| 74.8 KB IGS 61901011121 (rev1).iges \| 1.3 MB STP 61901011121 (rev1).stp \| 558.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	TypeVertical	MountTHT	–	PCB/Cable/PanelPCB	Length25.4 mm	PackagingBag	Mates with 61901011621	Design Kit 645001
61901019521	10, Right Angled Top Locking, THT	Downloads8 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25b).zip \| 56.4 MB EAG Eagle_WR-WTB (rev25b).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25b).zip \| 219.1 MB CAD files ZIP 3D 61901019521_1 (rev1).pdf \| 77 KB IGS 61901019521 (rev1).iges \| 1.4 MB IGS 61901019521 (rev1).igs \| 1.4 MB STP 61901019521 (rev1).stp \| 568.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	TypeRight Angled Top Locking	MountTHT	–	PCB/Cable/PanelPCB	Length25.4 mm	PackagingBag	Mates with 61901011621	Design Kit 645001
