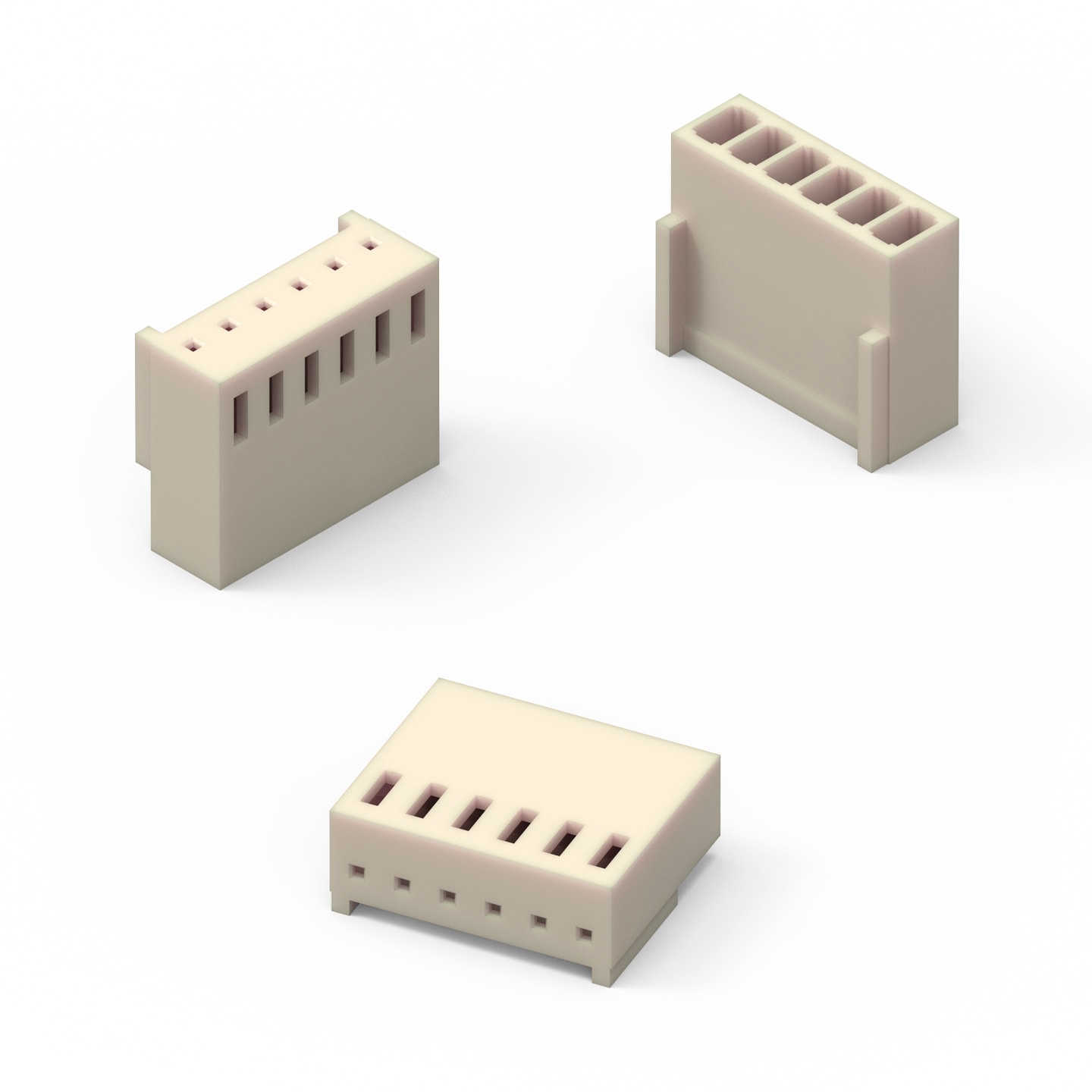

WR-WTB 2.54 mm Female Terminal Housing

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Color	Beige

General Information
Compliance	RoHS
Withstanding Voltage	1000 V (AC)
R_ISO	1000 MΩ
Pitch	2.54 mm
Gender	Female
Type	Terminal Housing
Operating Temperature	-40 °C up to +105 °C

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	Gender	Pins	Type	Packaging	Mates with	Design Kit	Samples
	61900211621	Female, 2, Terminal Housing	Downloads 4 files CAD files ZIP 3D 61900211621_1 (rev1).pdf \| 49.5 KB IGS 61900211621 (rev1).iges \| 444.8 KB IGS 61900211621 (rev1).igs \| 443.4 KB STP 61900211621 (rev1).stp \| 188.3 KB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 2	Type Terminal Housing	Packaging Bag	Mates with 61900211021 61900219521 61900211121	Design Kit 645001
	61900311621	Female, 3, Terminal Housing	Downloads 4 files CAD files ZIP 3D 61900311621_1 (rev1).pdf \| 66.8 KB IGS 61900311621 (rev1).iges \| 626.7 KB IGS 61900311621 (rev1).igs \| 625.1 KB STP 61900311621 (rev1).stp \| 263.3 KB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 3	Type Terminal Housing	Packaging Bag	Mates with 61900311021 61900311121 61900319521	Design Kit 645001
	61900411621	Female, 4, Terminal Housing	Downloads 4 files CAD files ZIP 3D 61900411621_1 (rev1).pdf \| 84.3 KB IGS 61900411621 (rev1).iges \| 808.5 KB IGS 61900411621 (rev1).igs \| 806.7 KB STP 61900411621 (rev1).stp \| 338.7 KB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 4	Type Terminal Housing	Packaging Bag	Mates with 61900411121 61900419521 61900411021	Design Kit 645001
	61900511621	Female, 5, Terminal Housing	Downloads 4 files CAD files ZIP 3D 61900511621_1 (rev1).pdf \| 104.2 KB IGS 61900511621 (rev1).iges \| 990.2 KB IGS 61900511621 (rev1).igs \| 988.1 KB STP 61900511621 (rev1).stp \| 413.7 KB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 5	Type Terminal Housing	Packaging Bag	Mates with 61900511021 61900511121 61900519521	Design Kit 645001
	61900611621	Female, 6, Terminal Housing	Downloads 4 files CAD files ZIP 3D 61900611621_1 (rev1).pdf \| 128 KB IGS 61900611621 (rev1).iges \| 1.1 MB IGS 61900611621 (rev1).igs \| 1.1 MB STP 61900611621 (rev1).stp \| 488.4 KB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 6	Type Terminal Housing	Packaging Bag	Mates with 61900611021 61900611121 61900619521	Design Kit 645001
	61900711621	Female, 7, Terminal Housing	Downloads 4 files CAD files ZIP 3D 61900711621_1 (rev1).pdf \| 147 KB IGS 61900711621 (rev1).iges \| 1.3 MB IGS 61900711621 (rev1).igs \| 1.3 MB STP 61900711621 (rev1).stp \| 563.3 KB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 7	Type Terminal Housing	Packaging Bag	Mates with 61900711121 61900811021 61900819521 61900811121	Design Kit 645001
	61901011621	Female, 10, Terminal Housing	Downloads 4 files CAD files ZIP 3D 61901011621_1 (rev1).pdf \| 203.1 KB IGS 61901011621 (rev1).iges \| 1.9 MB IGS 61901011621 (rev1).igs \| 1.9 MB STP 61901011621 (rev1).stp \| 796.4 KB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 10	Type Terminal Housing	Packaging Bag	Mates with 61901011021 61901011121 61901019521 645002114822 645002117322	Design Kit 645001
	61900811621	Female, 8, Terminal Housing	Downloads 3 files CAD files ZIP 3D 61900811621_1 (rev1).pdf \| 166 KB IGS 61900811621 (rev1).iges \| 1.5 MB STP 61900811621 (rev1).stp \| 638.3 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 8	Type Terminal Housing	Packaging Bag	Mates with –	Design Kit 612690 645001

Use with

WR-WTB 2.54 mm Female Crimp Contact

WR-WTB 2.54 mm Pre-Crimped Wire

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
