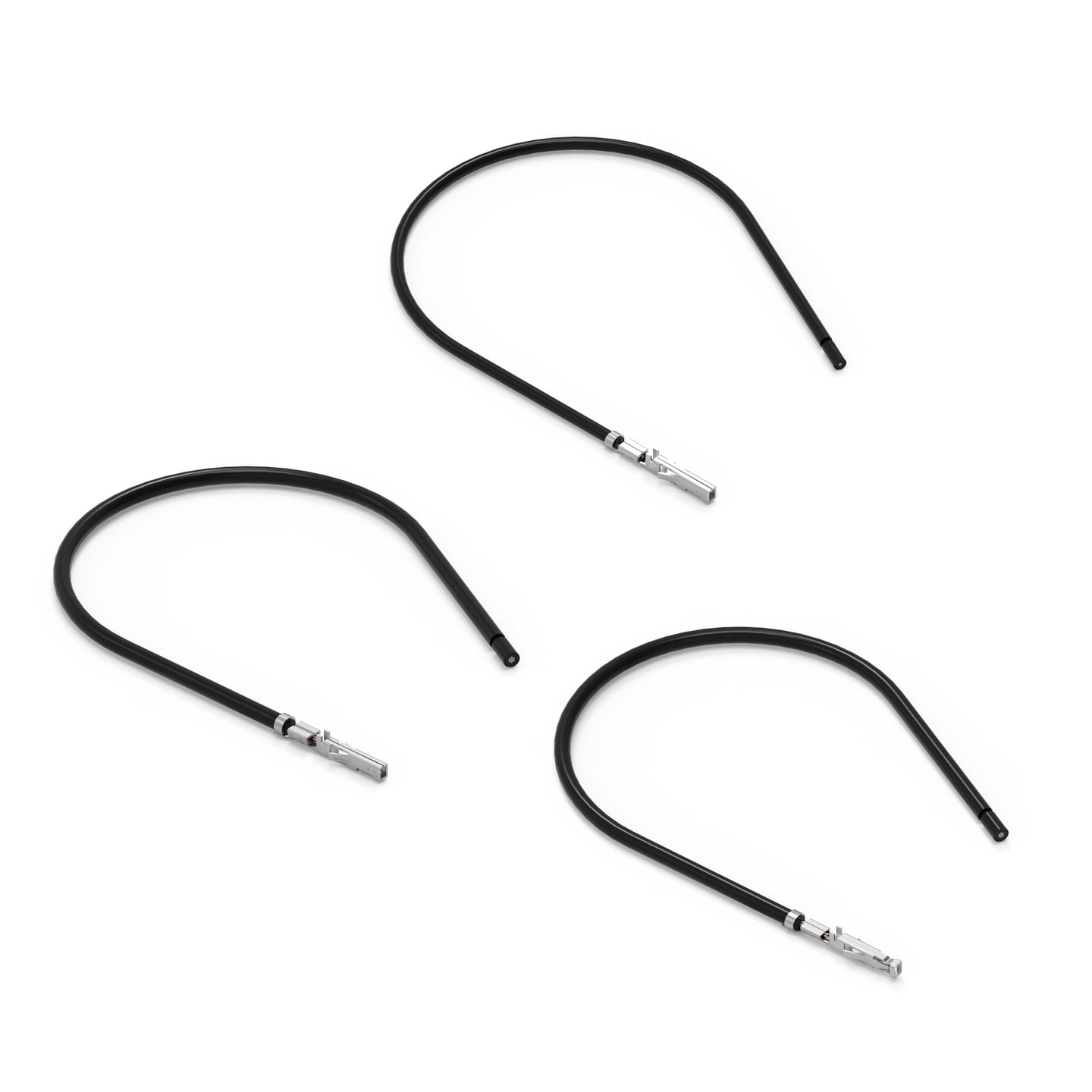

WR-MPC3 Pre-crimped Wire

WR-MPC3 Pre-crimped Wire

Characteristics

  • Operating Temperature: -20 °C up to +80 °C
  • Durability: 25 Mating cycles
  • Solid Wire Section (AWG): 20 (AWG); 24 (AWG)
  • Insulator Color: Black UL1007

Applications

  • Industrial
  • Home Appliances
  • Telecommunication

Application Notes

Products

All
Male
Female
Female Low Force
Reset all
Filter article data
Filter by
Delete all
 show  article in 3 product lines
 article in 3 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
Gender
Variant
Stranded Wire Section (AWG)
L(mm)
PCB/Cable/Panel
Type
Packaging
Samples
WR-MPC3 Pre-crimped Wire
662162120030
Female, –, 20 (AWG)
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
GenderFemale
–
Stranded Wire Section (AWG)20 (AWG)
Length300 mm
PCB/Cable/PanelCable
TypePre-crimped Cable
PackagingBag
WR-MPC3 Pre-crimped Wire
662362320030
Female, Low Force, 20 (AWG)
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
GenderFemale
VariantLow Force
Stranded Wire Section (AWG)20 (AWG)
Length300 mm
PCB/Cable/PanelCable
TypePre-crimped Cable
PackagingBag
WR-MPC3 Pre-crimped Wire
662100124015
Female, –, 24 (AWG)
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
GenderFemale
–
Stranded Wire Section (AWG)24 (AWG)
Length150 mm
PCB/Cable/PanelCable
TypePre-crimped Cable
PackagingBag
WR-MPC3 Pre-crimped Wire
662300124015
Female, Low Force, 24 (AWG)
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
GenderFemale
VariantLow Force
Stranded Wire Section (AWG)24 (AWG)
Length150 mm
PCB/Cable/PanelCable
TypePre-crimped Cable
PackagingBag
WR-MPC3 Pre-crimped Wire
662662626030
Female, Low Force, 26 (AWG)
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
GenderFemale
VariantLow Force
Stranded Wire Section (AWG)26 (AWG)
Length300 mm
PCB/Cable/PanelCable
TypePre-crimped Cable
PackagingBag
WR-MPC3 Pre-crimped Wire
662600130015
Female, Low Force, 30 (AWG)
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
GenderFemale
VariantLow Force
Stranded Wire Section (AWG)30 (AWG)
Length150 mm
PCB/Cable/PanelCable
TypePre-crimped Cable
PackagingBag
WR-MPC3 Pre-crimped Wire
662462426030
Female, –, 26 (AWG)
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
GenderFemale
–
Stranded Wire Section (AWG)26 (AWG)
Length300 mm
PCB/Cable/PanelCable
TypePre-crimped Cable
PackagingBag
WR-MPC3 Pre-crimped Wire
662400130015
Female, –, 30 (AWG)
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
GenderFemale
–
Stranded Wire Section (AWG)30 (AWG)
Length150 mm
PCB/Cable/PanelCable
TypePre-crimped Cable
PackagingBag
WR-MPC3 Pre-crimped Wire
662262220030
Male, –, 20 (AWG)
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
GenderMale
–
Stranded Wire Section (AWG)20 (AWG)
Length300 mm
PCB/Cable/PanelCable
TypePre-crimped Cable
PackagingBag
WR-MPC3 Pre-crimped Wire
662200124015
Male, –, 24 (AWG)
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
GenderMale
–
Stranded Wire Section (AWG)24 (AWG)
Length150 mm
PCB/Cable/PanelCable
TypePre-crimped Cable
PackagingBag
WR-MPC3 Pre-crimped Wire
662562526030
Male, –, 26 (AWG)
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
GenderMale
–
Stranded Wire Section (AWG)26 (AWG)
Length300 mm
PCB/Cable/PanelCable
TypePre-crimped Cable
PackagingBag
WR-MPC3 Pre-crimped Wire
662500130015
Male, –, 30 (AWG)
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
GenderMale
–
Stranded Wire Section (AWG)30 (AWG)
Length150 mm
PCB/Cable/PanelCable
TypePre-crimped Cable
PackagingBag

Use with

WR-MPC3 Receptacle & Plug Dual Row
WR-MPC3 Receptacle & Plug Single Row
