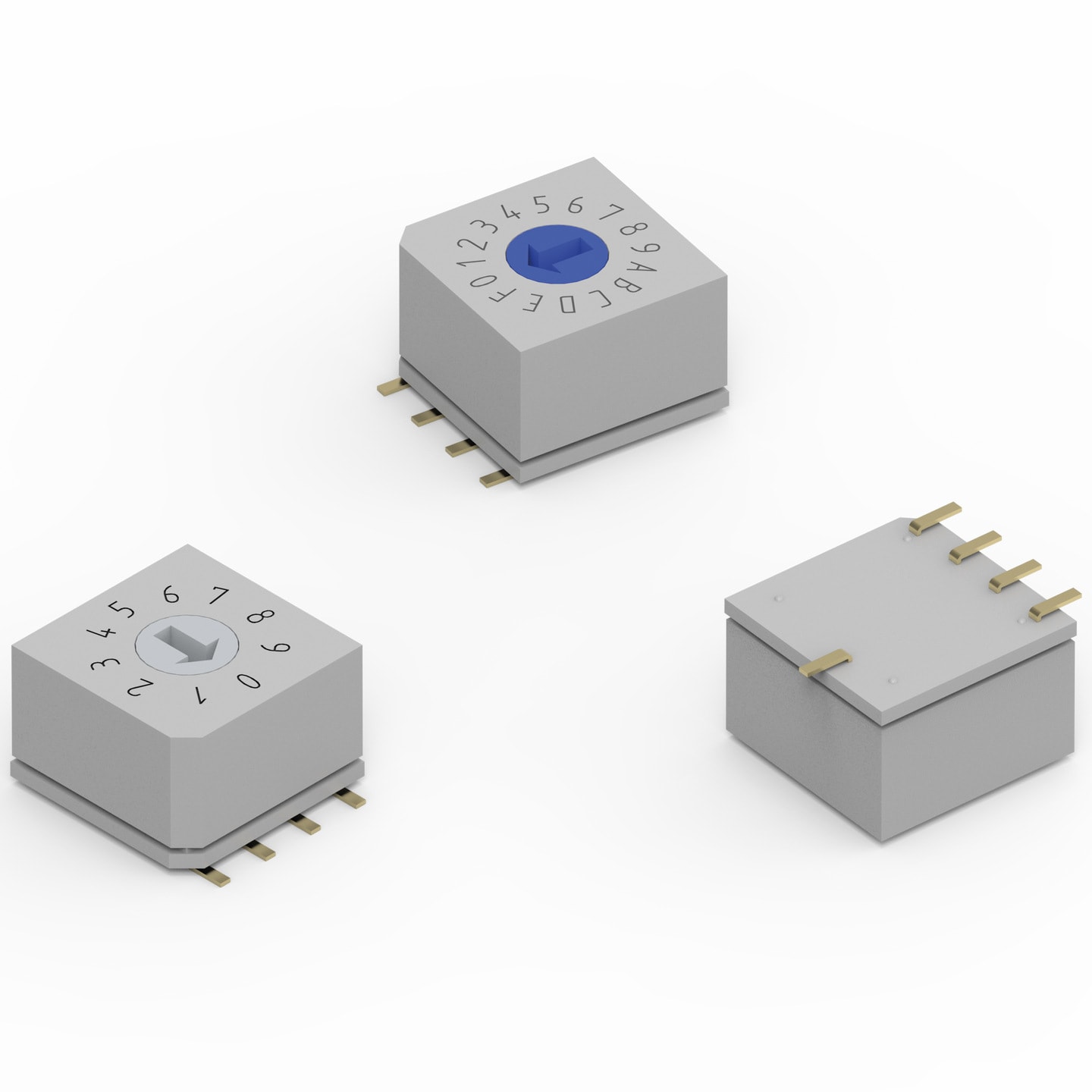

WS-ROSV SMT IP67 Rotary Switch 4x1 Terminal with Arrow Type Actuator 10x10 mm | Electromechanical Components

Material Properties
Cover Material	LCP
Cover Flammability Rating	UL94 V-0
Base Material	LCP
Base Flammability Rating	UL94 V-0
Actuator Material	PA66
Actuator Flammability Rating	UL94 V-0
Terminal Material	Copper Alloy
Terminal Plating	Gold

Electrical Properties
I_R	200 mA
V_R	42 V (DC)
Contact Resistance Initial	80 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Electrical Life	10000 Steps
Actuator Type	Arrow Type

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	Yes
Ingress Protection Code	IP67

Products

Order Code	Datasheet	Downloads	Number of Position (Value)	Code	Ingress Protection Code	Actuator Color
428511310810	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-ROSV (rev24a).IntLib \| 1.5 MB CDS Cadence_WS-ROSV (rev24a).zip \| 6.8 MB EAG Eagle_WS-ROSV (rev24a).lbr \| 110.3 KB CAD files ZIP 3D 3D_SwROSV_428511310810 (rev1).pdf \| 142.7 KB IGS IGS_SwROSV_428511310810 (rev1).igs \| 1.2 MB STP STP_SwROSV_428511310810 (rev1).stp \| 352.9 KB Download all 6 files as zip archive ZIP	10	Real Code	IP67	Light Grey
428511310811	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-ROSV (rev24a).IntLib \| 1.5 MB CDS Cadence_WS-ROSV (rev24a).zip \| 6.8 MB EAG Eagle_WS-ROSV (rev24a).lbr \| 110.3 KB CAD files ZIP 3D 3D_SwROSV_428511310811 (rev1).pdf \| 142.9 KB IGS IGS_SwROSV_428511310811 (rev1).igs \| 1.2 MB STP STP_SwROSV_428511310811 (rev1).stp \| 353.1 KB Download all 6 files as zip archive ZIP	10	Complement Code	IP67	Blue
428511310816	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-ROSV (rev24a).IntLib \| 1.5 MB CDS Cadence_WS-ROSV (rev24a).zip \| 6.8 MB EAG Eagle_WS-ROSV (rev24a).lbr \| 110.3 KB CAD files ZIP 3D 3D_SwROSV_428511310816 (rev1).pdf \| 188.8 KB IGS IGS_SwROSV_428511310816 (rev1).igs \| 1.6 MB STP STP_SwROSV_428511310816 (rev1).stp \| 489.2 KB Download all 6 files as zip archive ZIP	16	Real Code	IP67	Light Grey
428511310817	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-ROSV (rev24a).IntLib \| 1.5 MB CDS Cadence_WS-ROSV (rev24a).zip \| 6.8 MB EAG Eagle_WS-ROSV (rev24a).lbr \| 110.3 KB CAD files ZIP 3D 3D_SwROSV_428511310817 (rev1).pdf \| 188.6 KB IGS IGS_SwROSV_428511310817 (rev1).igs \| 1.6 MB STP STP_SwROSV_428511310817 (rev1).stp \| 489.2 KB Download all 6 files as zip archive ZIP	16	Complement Code	IP67	Blue

	Order Code	Datasheet
	428511310810	SPEC
	428511310811	SPEC
	428511310816	SPEC
	428511310817	SPEC

Samples

	Order Code	Datasheet	Downloads	Number of Position (Value)	Code	Ingress Protection Code	Actuator Color	Samples

Switch IP Product Portfolio

Switches for IP applications

Würth Elektronik offers IP67 classified rotary switches as well as tact switches. Tested according to IEC61058 and IEC60068, these components are ideally designed for use in harsh industrial environments.If you would like to know more about the IP certified products, your Würth Elektronik field sales will be happy to provide you with advice and support.
