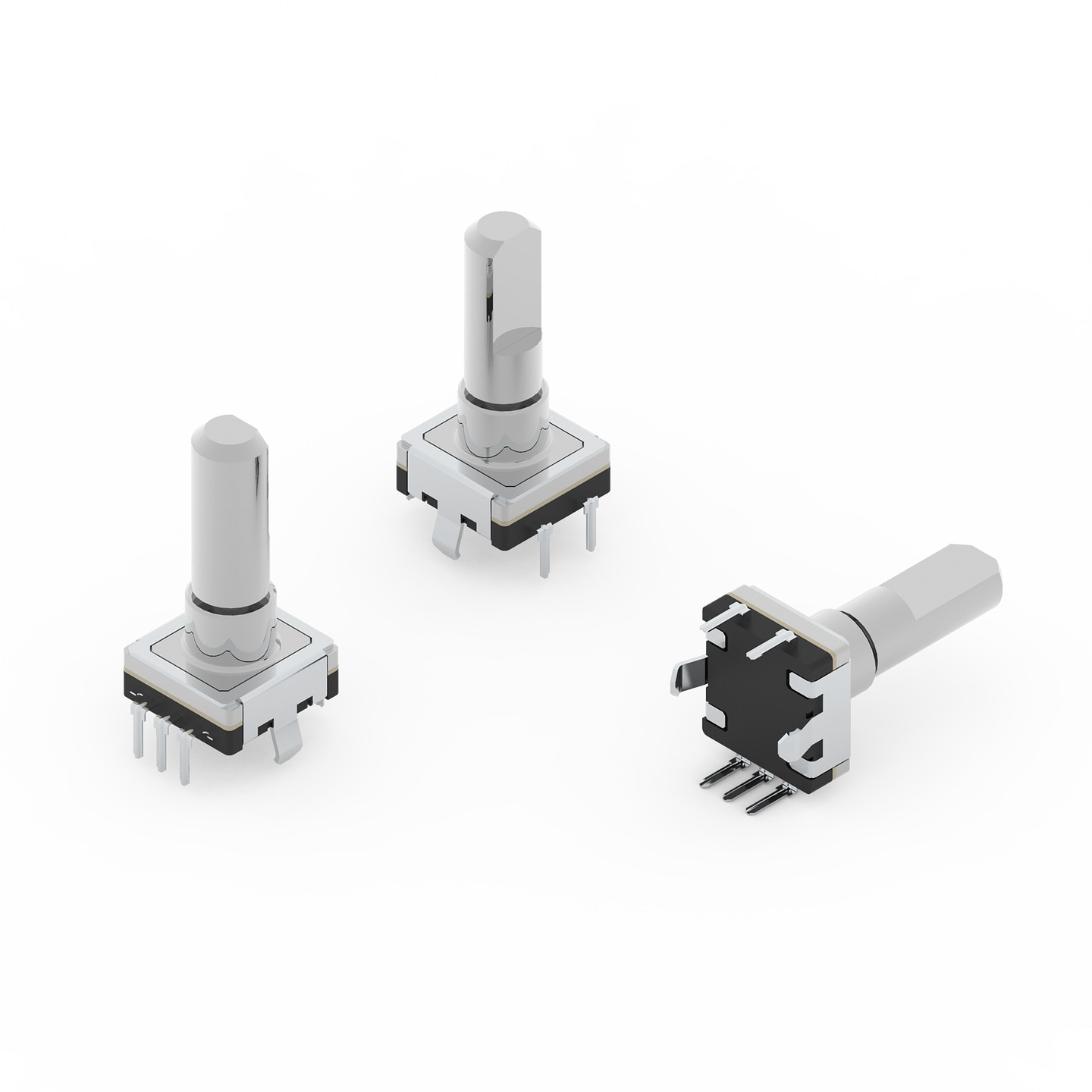

WS-ENTV Mechanical Incremental Encoder Switch 11.7x12.00mm Metal Shaft with Plain bushing

Material Properties
Actuator Material	Aluminium Alloy
Frame Material	LCP
Frame Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Silver
Frame Color	Black
Terminal Material	Copper Alloy
Terminal Plating	Silver

Electrical Properties
I_R	10 mA
V_R	5 V (DC)
Contact Resistance Initial	100 mΩ
Contact Resistance After Life Test	300 mΩ
R_ISO	100 MΩ
Withstanding Voltage	300 V (AC)

Mechanical Properties
Electrical Life Encoder	15000 Cycles
Electrical Life Switch	20000 Cycles
Detent	30 Positions
Torque Encoder	20 mN*m
Operation Force (Value)	350 g
Travel	0.5 mm

General Information
Operating Temperature	-40 °C up to +85 °C

Packaging Information
Packaging	Tray

Packaging Properties
Packaging	Tray

Products

	Order Code	Datasheet	Downloads	Resolution (Value) (Pulse/360°)	Detent (Positions)	Electrical Life Encoder (Cycles)	Electrical Life Switch (Cycles)	Samples
	482016564002	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-ENTV (rev23a).IntLib \| 397.5 KB CDS Cadence_WS-ENTV (rev23a).zip \| 2 MB EAG Eagle_WS-ENTV (rev23a).lbr \| 71.6 KB CAD files ZIP 3D 3D_482016564002 (rev1).pdf \| 320.6 KB IGS IGS_482016564002 (rev1).igs \| 3.1 MB STP STP_482016564002 (rev1).stp \| 803.5 KB Download all 6 files as zip archive ZIP	15	30	15000	20000
