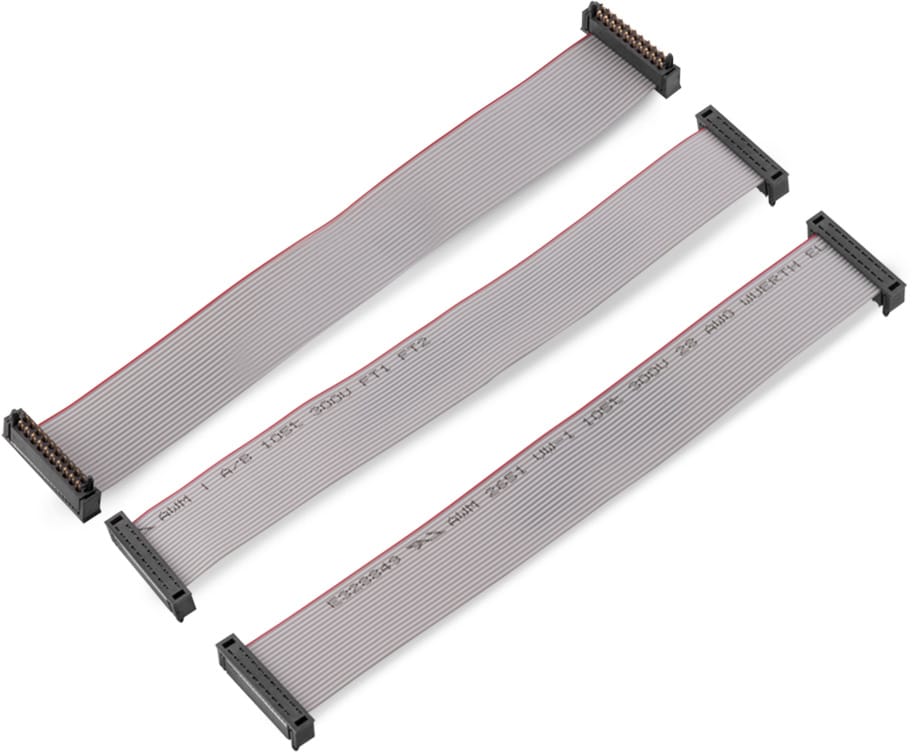

WR-WST Pre-Pressed Cable

WR-WST Pre-Pressed Cable
Properties
MountSKEDD
Operating Temperature-25 °C up to +105 °C
Electrical Properties
IR1 A
Certification
REACh ApprovalConform or declared [(EC)1907/2006]
RoHS ApprovalCompliant [2011/65/EU&2015/863]

Products

Filter article data
Filter by
Delete all
 show  article in 0 product lines
 article in 0 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
Pins
Terminal A
Terminal B
L(mm)
Samples
490107670412S
4, 490107670412, 490107670412
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Pins4
Terminal A490107670412
Terminal B490107670412
Length200 mm
490107670612S
6, 490107670612, 490107670612
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Pins6
Terminal A490107670612
Terminal B490107670612
Length200 mm
490107670812S
8, 490107670812, 490107670812
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Pins8
Terminal A490107670812
Terminal B490107670812
Length200 mm
490107671012S
10, 490107671012, 490107671012
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Pins10
Terminal A490107671012
Terminal B490107671012
Length200 mm
490107671212S
12, 490107671212, 490107671212
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Pins12
Terminal A490107671212
Terminal B490107671212
Length200 mm
490107671412S
14, 490107671412, 490107671412
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Pins14
Terminal A490107671412
Terminal B490107671412
Length200 mm
490107671612S
16, 490107671612, 490107671612
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Pins16
Terminal A490107671612
Terminal B490107671612
Length200 mm
490107671812S
18, 490107671812, 490107671812
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Pins18
Terminal A490107671812
Terminal B490107671812
Length200 mm
490107672012S
20, 490107672012, 490107672012
Downloads–
Status Activei| Production is active. Expected lifetime: >10 years.
Pins20
Terminal A490107672012
Terminal B490107672012
Length200 mm

Suitable for

WR-WST REDFIT IDC SKEDD
