WSEN-PDMS Differential Pressure Sensor & EV-Kits

NEW

3 to 5.5 V | I²C, SPI & Analog | 16-bits ADC

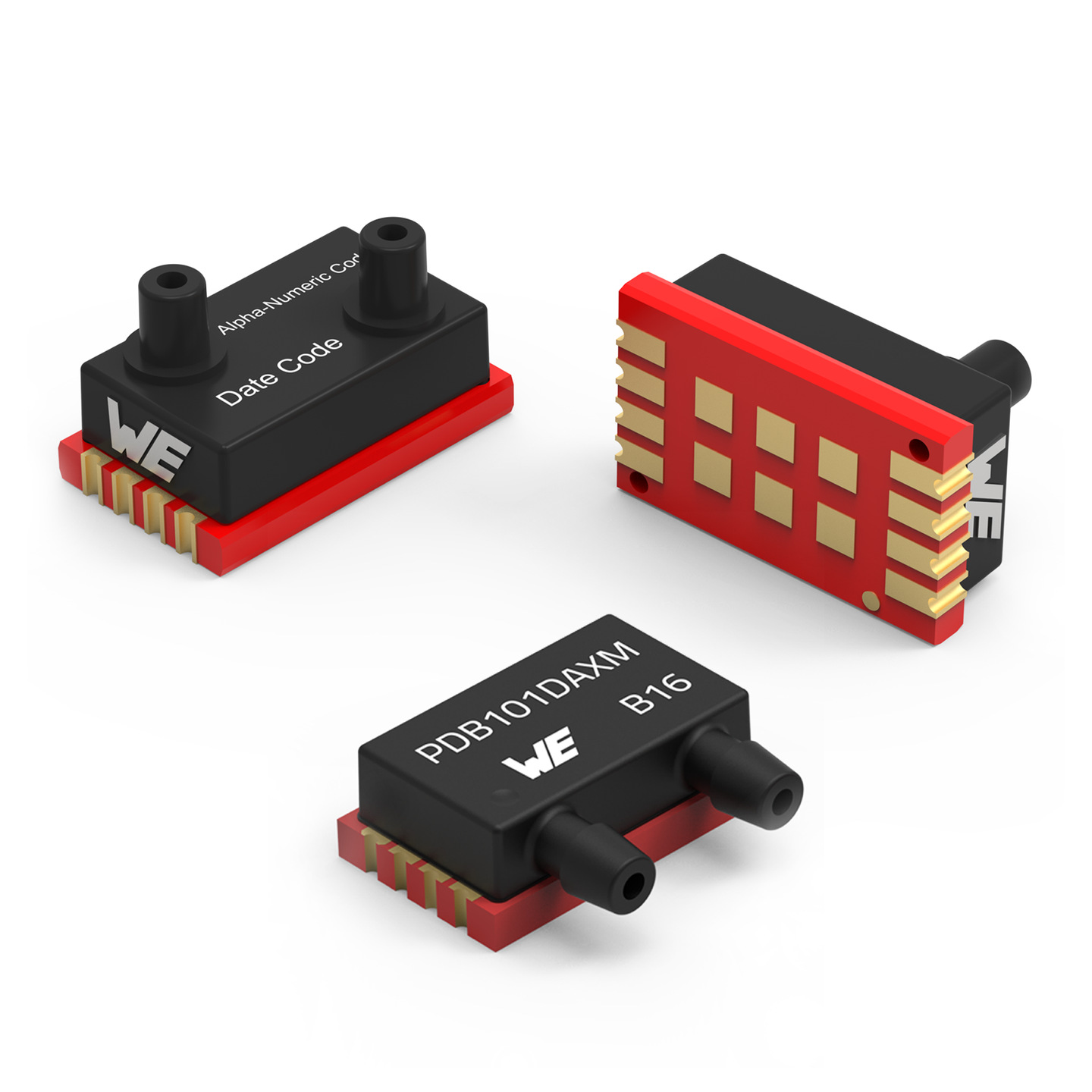

WSEN-PDMS Differential Pressure Sensor & EV-Kits

Characteristics

  • MEMS based piezo-resistive sensing principle
  • Very high accuracy (up to ±0.25 % FSS tolerance)
  • Different transfer functions from ±1 kPa to 1000 kPa
  • Fully calibrated 16 bit digital & 16 bit analog pressure output
  • Embedded temperature sensor
  • Analog, I²C & SPI communication interface
  • CRC protected data readout
  • Temperature range: -25 °C up to +85 °C
  • Sensor Software Development Kit
  • STM32 libraries via GitHub

Individualization

  • Additional individualization is also possible. Please contact our technical support for further details.

Applications

  • HVAC
  • Filter monitoring
  • Gas leak detection
  • Inhalers
  • Fume hood

Application Notes

Keep it simple! Sense with MEMS.

Sensors are an integral part of every future application. Measuring temperature, humidity, pressure or acceleration has never been easier.

Video and more

Products

All
WSEN-PDMS
EV-Kits
Reset all
Filter article data
Filter by
Delete all
 show  article in 2 product lines
 article in 2 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Man­ual
Downloads
Status
Description
PRANGE min(kPa)
PRANGE max(kPa)
ACCP_TOT
VDD min(V)
VDD max(V)
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
WSEN-PDMS Differential Pressure Sensor & EV-Kits
2513130810105
SPECDifferential pressure sensor with horizontal-barbed nozzles, -1 kPa, 1 kPa
Man­ual
Availability
–
Downloads5 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
DescriptionDifferential pressure sensor with horizontal-barbed nozzles
Measurement range [min.]-1 kPa
Measurement range [max.]1 kPa
Total accuracy [typ.]± 0.75 %FSS
Operating supply voltage [min.]3 V
Operating supply voltage [max.]5.5 V
–Check availability
WSEN-PDMS Differential Pressure Sensor & EV-Kits
2513130810195
–
Man­ual
Availability
–
Downloads1 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
DescriptionEV-Board for pressure range: -1 to 1 kPa; Vertical-straight Nozzles
–
–
–
–
–
–Check availability
WSEN-PDMS Differential Pressure Sensor & EV-Kits
2513130810205
SPECDifferential pressure sensor with horizontal-barbed nozzles, -10 kPa, 10 kPa
Man­ual
Availability
–
Downloads5 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
DescriptionDifferential pressure sensor with horizontal-barbed nozzles
Measurement range [min.]-10 kPa
Measurement range [max.]10 kPa
Total accuracy [typ.]± 0.75 %FSS
Operating supply voltage [min.]3 V
Operating supply voltage [max.]5.5 V
–Check availability
WSEN-PDMS Differential Pressure Sensor & EV-Kits
2513130810295
–
Man­ual
Availability
–
Downloads1 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
DescriptionEV-Board for pressure range: -10 to 10 kPa; Vertical-straight Nozzles
–
–
–
–
–
–Check availability
WSEN-PDMS Differential Pressure Sensor & EV-Kits
2513130810305
SPECDifferential pressure sensor with vertical-straight nozzles, 0 kPa, 100 kPa
Man­ual
Availability
–
Downloads5 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
DescriptionDifferential pressure sensor with vertical-straight nozzles
Measurement range [min.]0 kPa
Measurement range [max.]100 kPa
Total accuracy [typ.]± 0.25 %FSS
Operating supply voltage [min.]3 V
Operating supply voltage [max.]5.5 V
–Check availability
WSEN-PDMS Differential Pressure Sensor & EV-Kits
2513130810395
–
Man­ual
Availability
–
Downloads1 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
DescriptionEV-Board for pressure range: 0 to 100 kPa; Vertical-straight Nozzles
–
–
–
–
–
–Check availability
WSEN-PDMS Differential Pressure Sensor & EV-Kits
2513130810405
SPECDifferential pressure sensor with vertical-straight nozzles, -100 kPa, 1000 kPa
Man­ual
Availability
–
Downloads5 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
DescriptionDifferential pressure sensor with vertical-straight nozzles
Measurement range [min.]-100 kPa
Measurement range [max.]1000 kPa
Total accuracy [typ.]± 0.25 %FSS
Operating supply voltage [min.]3 V
Operating supply voltage [max.]5.5 V
–Check availability
WSEN-PDMS Differential Pressure Sensor & EV-Kits
2513130810495
–
Man­ual
Availability
–
Downloads1 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
DescriptionEV-Board for pressure range: -100 to 1000 kPa; Vertical-straight Nozzles
–
–
–
–
–
–Check availability
WSEN-PDMS Differential Pressure Sensor & EV-Kits
2513130835205
SPECDifferential pressure sensor with horizontal-barbed nozzles, -35 kPa, 35 kPa
Man­ual
Availability
–
Downloads5 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
DescriptionDifferential pressure sensor with horizontal-barbed nozzles
Measurement range [min.]-35 kPa
Measurement range [max.]35 kPa
Total accuracy [typ.]± 0.25 %FSS
Operating supply voltage [min.]3 V
Operating supply voltage [max.]5.5 V
–Check availability
WSEN-PDMS Differential Pressure Sensor & EV-Kits
2513130835295
–
Man­ual
Availability
–
Downloads1 files

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
DescriptionEV-Board for pressure range: -35 to 35 kPa; Vertical-straight Nozzles
–
–
–
–
–
–Check availability

MEMS based sensors from Würth Elektronik

Keep it simple! Sense with MEMS.

MEMS Sensor Portfolio & Customer Service

Sensors are an integral part of every future application. Measuring temperature, humidity, pressure or acceleration has never been easier. Take advantage of services like our Software Development Kit and Evaluation Boards available off-the-shelf. Detailed documentations as well as the direct support by trained engineers will leave no questions open.

With excellent measuring accuracy and long-term stability, the sensors provide high precision and accurate output values with intelligent on-chip interrupt functions.

Combine sensors and wireless connectivity - start your IoT application today!

MEMS sensors

In a microcontroller the typical semiconductor can only control current and voltages. In a Micro-Electro-Mechanical-System (MEMS), additional mechanical structures are used. This means that three-dimensional structures are usually added to the starting material silicon by etching processes. This allows the design of membranes (WSEN-PADS) or movable finger structures (WSEN-ITDS).

Block Diagram

The best way to explain the function of MEMS sensors is a block diagram. The biggest difference to conventional (analog) sensors is that not only the actual measuring cell but also the complete processing can be integrated to achieve a very small sensor system. This eliminates any analog data processing on application level and a digital signal can be used directly by a microcontroller. Since a complete system is combined in one component, a complete factory calibration is also possible.
