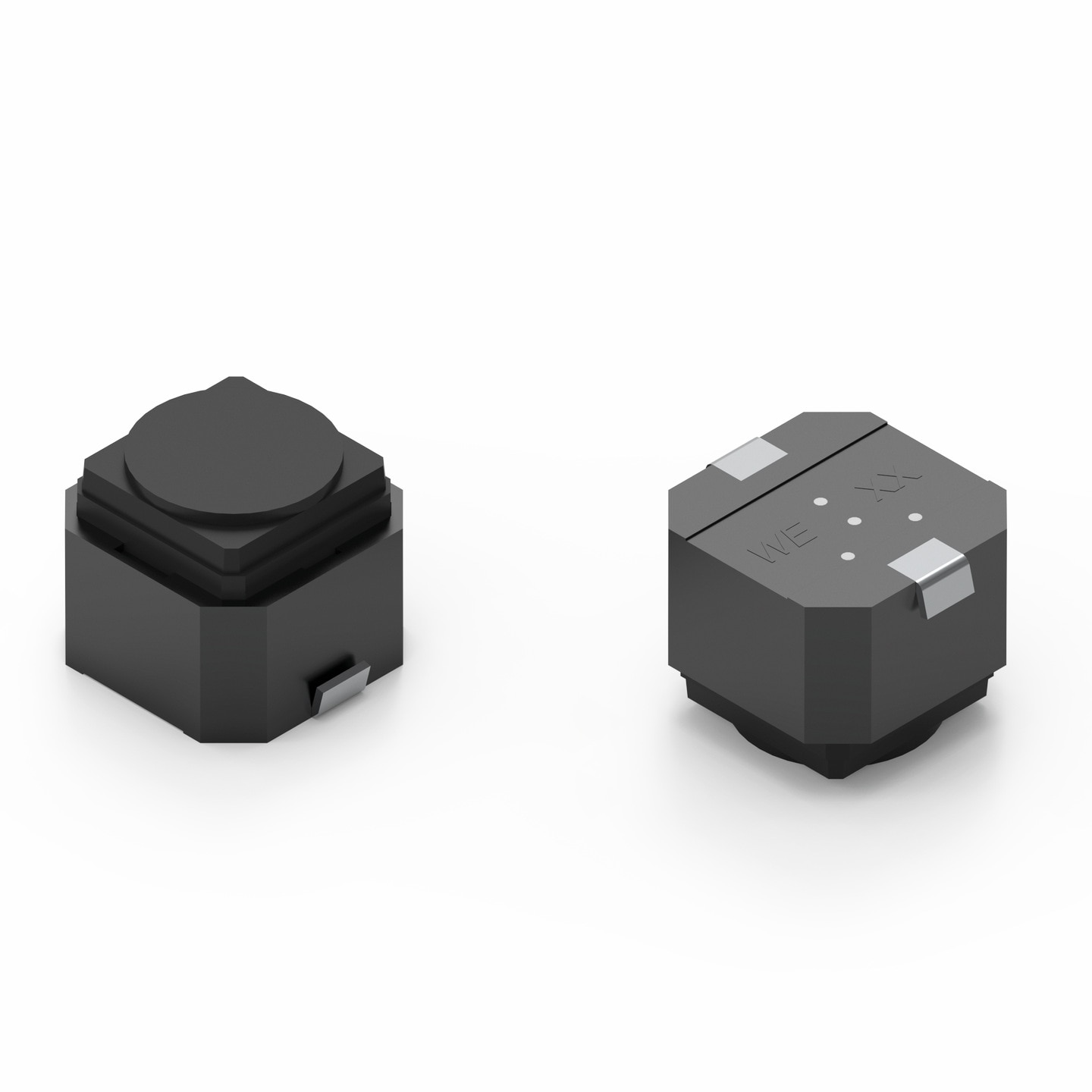

WS-TASV SMT long travel tact switch 6 x 6 mm

WS-TASV SMT long travel tact switch 6 x 6 mm
General Information
Operating Temperature-40 °C up to +125 °C
WashableNo
Material Properties
Actuator MaterialPA6T
Actuator Flammability RatingUL94 V-0
Frame MaterialLCP
Frame Flammability RatingUL94 V-0
Contact PlatingSilver
Terminal PlatingSilver
Electrical Properties
IR50 mA
VR16 V (DC)
Contact Resistance Initial100 mΩ
RISO100 MΩ
Withstanding Voltage250 V (AC)
Mechanical Properties
Operation Force160 g
Electrical Life100000 Cycles

Application Notes

Products

Order Code Data­sheet Downloads StatusH
(mm)		Operation Force
(g)		Electrical Life
(Cycles)		Actuator ColorWashableVaporphase process Samples
430133050816SPEC
6 files

EDA models: Components
ZIP

CAD files
ZIP

Download all 6 files as zip archive
ZIP

 Active i| Production is active. Expected lifetime: >10 years. 5 160 100000 Black No not specified
Order Code Data­sheet
430133050816SPEC
Samples
Order Code Data­sheet Downloads StatusH
(mm)		Operation Force
(g)		Electrical Life
(Cycles)		Actuator ColorWashableVaporphase process Samples

Tact Switches from Würth Elektronik eiSos

#TimetoSwitch

Tact Switches

The Tact Switches from Würth Elektronik are characterized by performance stability and long lifetime. All metal elements are corrosion resistant proven by a 48 hours salt spray test. Polyimide tape or silicone rubber protect the switch even in tough environments. The switch range includes various high quality solutions like dip, rotary, detector, micro, slide, rocker switches and encoder. Available from stock. Samples free of charge.

Product Benefits:

  • IP67
  • Long lifetime
  • High durability
  • Corrosion resistant metal elements
  • Full load life cycle test
  • Tight tolerance due to automated production

Characteristics

The corrosion resistance of all metallic components was tested by a 48-hour salt-spray test.

The snap dome is made of stainless steel to ensure high reliability and reduced friction. The indicated switching cycles have been tested under full load.

Polyimide film provides protection against environmental influences and silicone inserts are used for harsh industrial environments.

The plastic material withstands five times reflow and has been tested for flammability according to UL.

Automated production reduces mechanical deviations and ensures high consistency of mechanical parameters.
