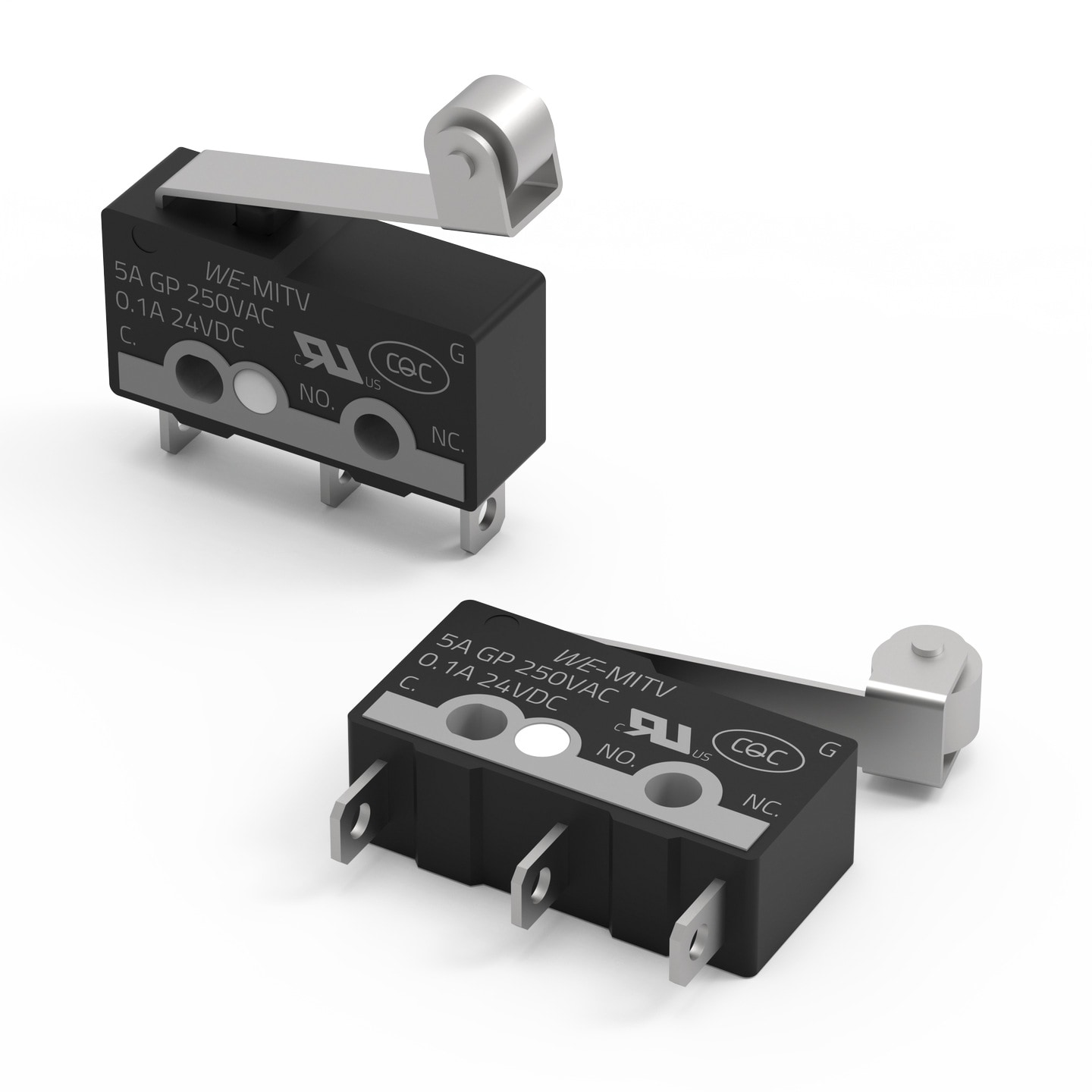

WS-MITV THT Solder lug with Roller Lever Micro Switch, 19.8 x 6.4 mm

NEW
WS-MITV THT Solder lug with Roller Lever Micro Switch, 19.8 x 6.4 mm
Material Properties
Actuator MaterialPBT
Actuator Flammability RatingUL94 V-0
Frame MaterialPBT
Frame Flammability RatingUL94 V-0
Moveable Contact MaterialSilver
Stationary Contact MaterialSilver
Terminal MaterialCopper Alloy
Terminal PlatingSilver
Electrical Properties
Contact Resistance Initial30 mΩ
Contact Resistance After Life Test5 Ω
RISO100 MΩ
Mechanical Properties
Electrical Life100000 Cycles
SchematicSPDT
Over travel0.8 mm
Movement Differential0.8 mm
General Information
Operating Temperature0 °C up to +105 °C
Packaging Properties
PackagingTray
Certification
UL ApprovalE483308
ENEC 15 ApprovalENEC-04881

Products

Filter article data
Filter by
Delete all
 show  article in 0 product lines
 article in 0 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
Operation Force(gf)
Operating Position(mm)
Samples
WS-MITV THT Solder lug with Roller Lever Micro Switch, 19.8 x 6.4 mm
463093393403
55 gf, 14.9 mm
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Operation Force55 gf
Operating Position14.9 mm
