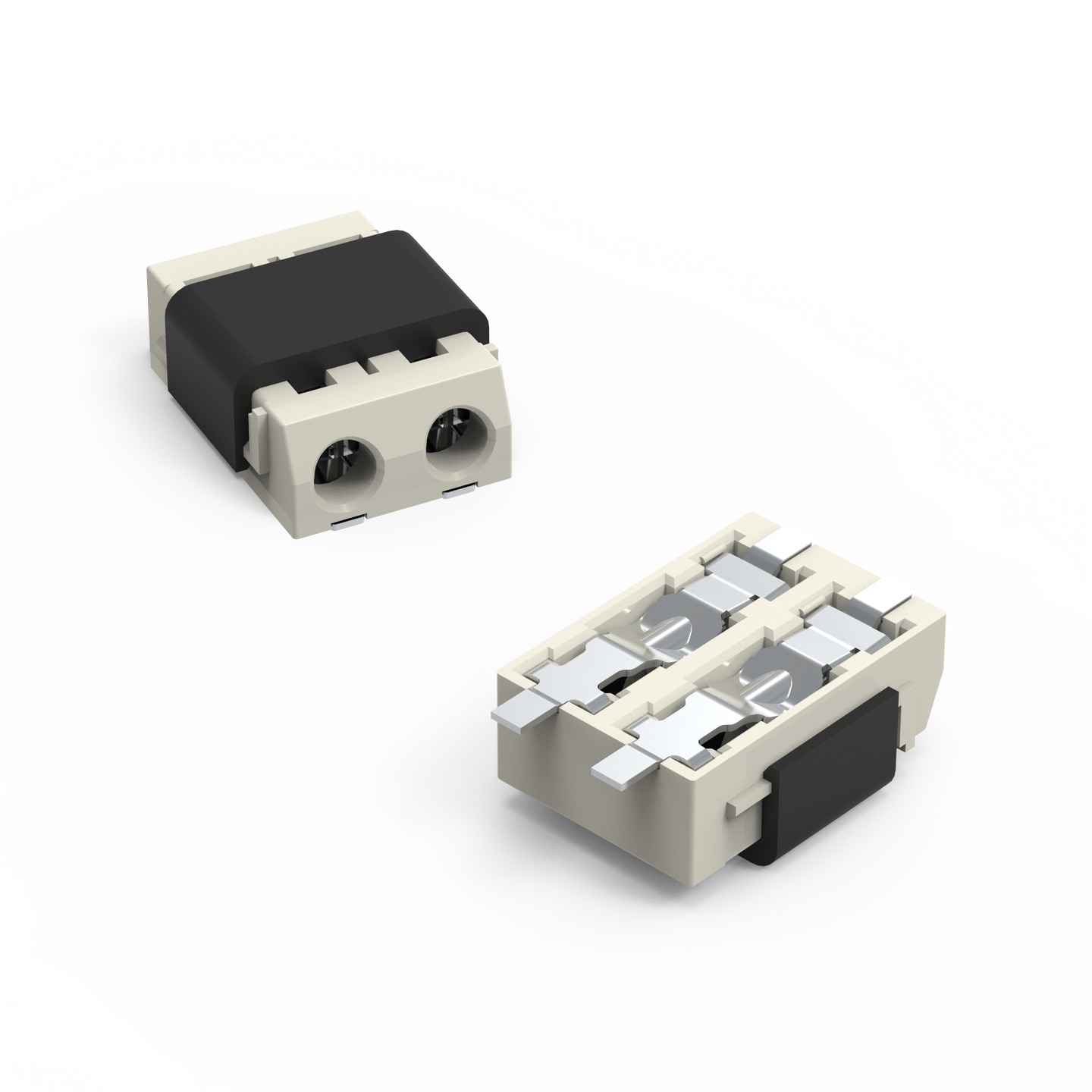

WR-LECO Series 300/310 - Slider 4.00 mm - Horizontal Cable Entry - SMT

General Information
Operating Temperature	-60 °C up to +105 °C
Pitch	4 mm

Electrical Properties
I_R	6 A; 9 A
Working Voltage	250 V (AC); 600 V (AC)
Withstanding Voltage	2000 V (AC)
Contact Resistance	10 mΩ

Certification
cULus Approval	E323964

Material Properties
Insulator Material	LCP
Insulator Flammability Rating	UL94 V-0
Insulator Color	Ivory
Pin Material	Copper Alloy
Pin Plating	Matte Tin over Nickel

Wire Properties
Solid Wire Section (AWG)	20 to 18 (AWG); 24 to 22 (AWG)
Solid Wire Section (Metric)	0.2 to 0.34 (mm²); 0.5 to 0.75 (mm²)
Wire Strip Length	6.8 (mm); 8.5 (mm)

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	Polarity	I_R(A)	Working Voltage(V (AC))	Solid Wire Section (AWG)	Design Kit	SamplesAvailability & Sample
	695401300222	SPEC1, 9 A, 600 V (AC)	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-LECO (rev23b).IntLib \| 1.6 MB CDS Cadence_WR-LECO_rev23a (rev23a).zip \| 6.4 MB EAG Eagle_WR-LECO (rev23a).lbr \| 121.3 KB KIC KiCad_WR-LECO (rev26a).zip \| 788.6 KB CAD files ZIP 3D Downloads_3D_WR-LECO_695401300222 (rev1).pdf \| 201.9 KB IGS Downloads_IGS_WR-LECO_695401300222 (rev1).igs \| 2.8 MB STP Downloads_STP_WR-LECO_695401300222 (rev1).stp \| 596.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity1	Rated Current9 A	Working Voltage600 V (AC)	Solid Wire Section (AWG)20 to 18 (AWG)	Design Kit –	–Check availability
	695401310222	SPEC1, 6 A, 600 V (AC)	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-LECO (rev23b).IntLib \| 1.6 MB CDS Cadence_WR-LECO_rev23a (rev23a).zip \| 6.4 MB EAG Eagle_WR-LECO (rev23a).lbr \| 121.3 KB KIC KiCad_WR-LECO (rev26a).zip \| 788.6 KB CAD files ZIP 3D Downloads_3D_WR-LECO_695401300222 (rev1).pdf \| 201.9 KB IGS Downloads_IGS_WR-LECO_695401300222 (rev1).igs \| 2.8 MB STP Downloads_STP_WR-LECO_695401300222 (rev1).stp \| 596.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity1	Rated Current6 A	Working Voltage600 V (AC)	Solid Wire Section (AWG)24 to 22 (AWG)	Design Kit –	–Check availability
	695402300222	SPEC2, 9 A, 250 V (AC)	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-LECO (rev23b).IntLib \| 1.6 MB CDS Cadence_WR-LECO_rev23a (rev23a).zip \| 6.4 MB EAG Eagle_WR-LECO (rev23a).lbr \| 121.3 KB KIC KiCad_WR-LECO (rev26a).zip \| 788.6 KB CAD files ZIP 3D Downloads_3D_WR_LECO_695402300222 (rev1).pdf \| 271.5 KB IGS Downloads_IGS_WR-LECO_695402300222 (rev1).igs \| 3.7 MB STP Downloads_STP_WR-LECO_695402300222 (rev1).stp \| 820.4 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity2	Rated Current9 A	Working Voltage250 V (AC)	Solid Wire Section (AWG)20 to 18 (AWG)	Design Kit 612690	–Check availability
	695402310222	SPEC2, 6 A, 250 V (AC)	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WR-LECO (rev23b).IntLib \| 1.6 MB CDS Cadence_WR-LECO_rev23a (rev23a).zip \| 6.4 MB EAG Eagle_WR-LECO (rev23a).lbr \| 121.3 KB KIC KiCad_WR-LECO (rev26a).zip \| 788.6 KB CAD files ZIP 3D Downloads_3D_WR_LECO_695402300222 (rev1).pdf \| 271.5 KB IGS Downloads_IGS_WR-LECO_695402300222 (rev1).igs \| 3.7 MB STP Downloads_STP_WR-LECO_695402300222 (rev1).stp \| 820.4 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Polarity2	Rated Current6 A	Working Voltage250 V (AC)	Solid Wire Section (AWG)24 to 22 (AWG)	Design Kit 612690	–Check availability

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions
