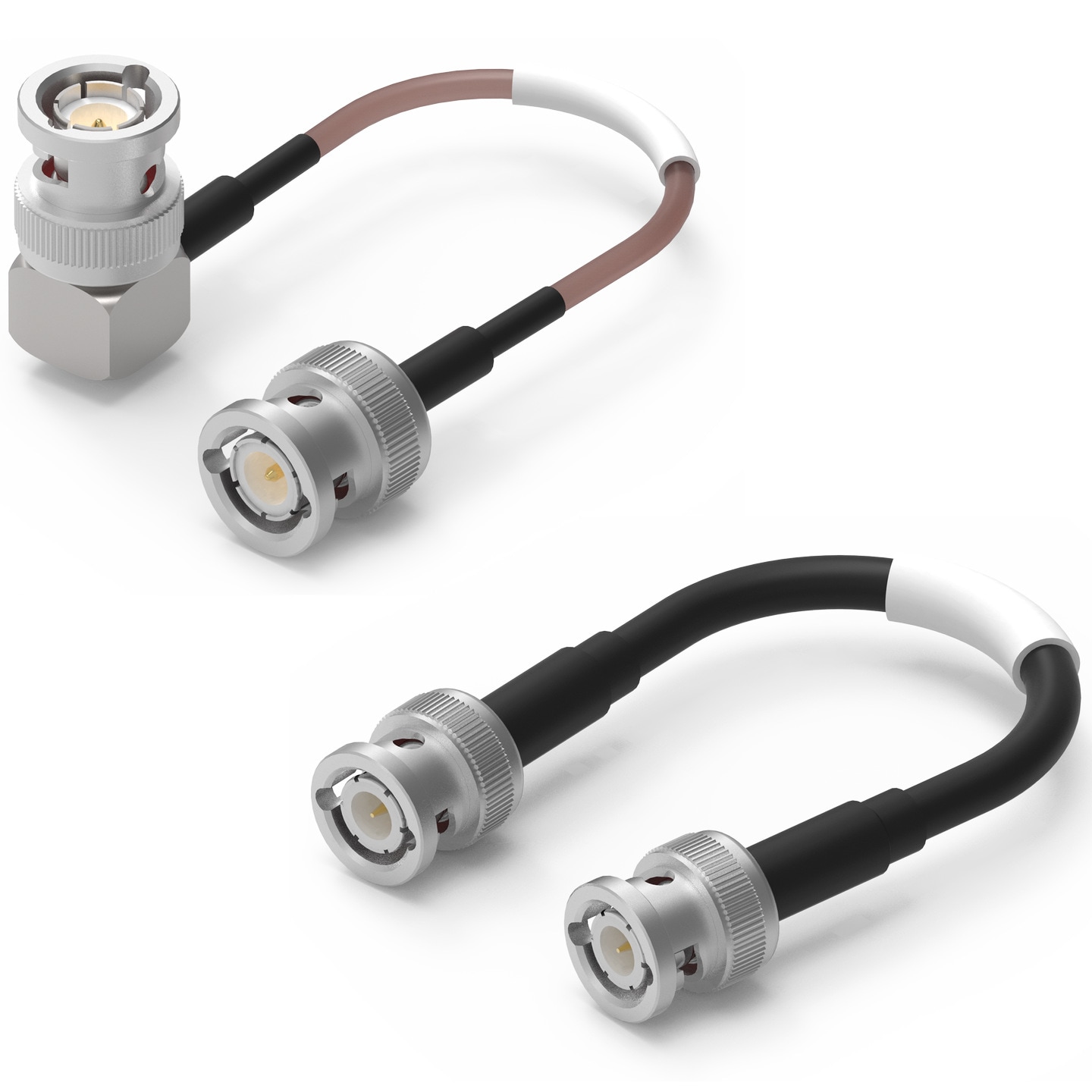

WR-CXASY BNC to BNC Series

Size	Dimensions

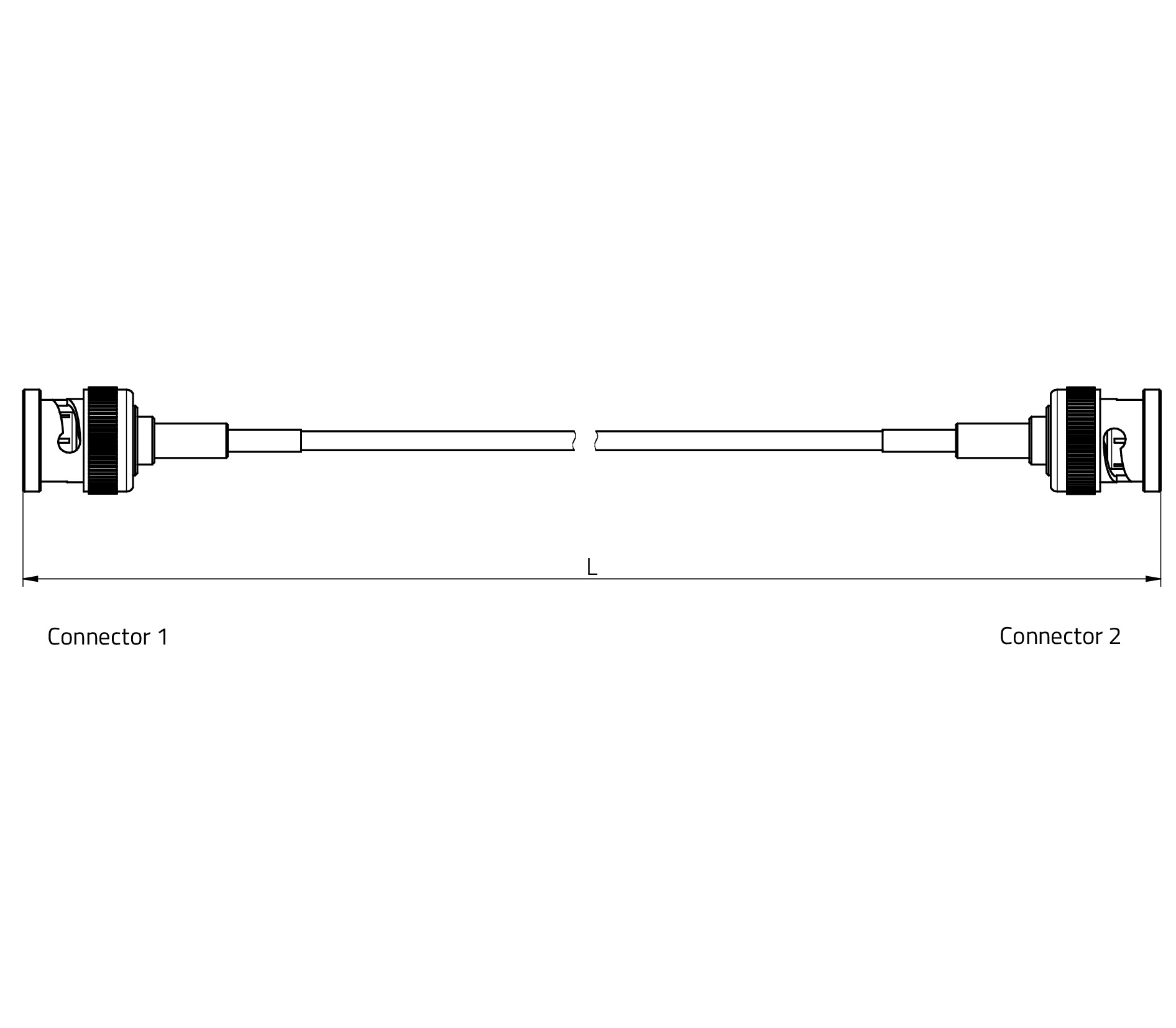

EXT.BNC Straight Plug ⅼ BNC Straight Plug

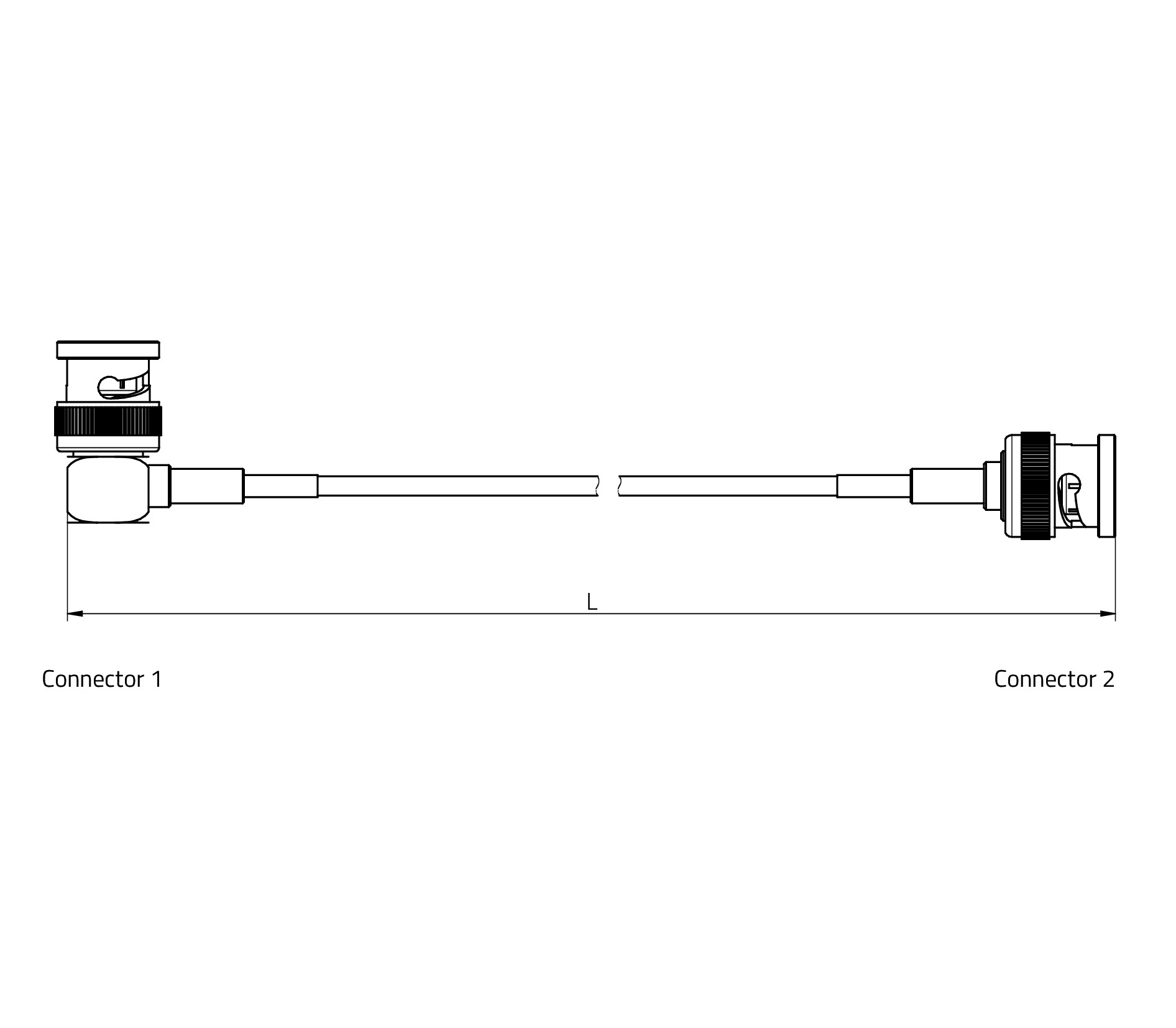

EXT.BNC Right Angle Plug \| BNC Straight Plug
NEWBNC Straight Plug ⅼ BNC Straight Jack
NEWBNC Straight Plug ⅼ BNC Straight Bulkhead Jack

Characteristics

Interface: MIL-STD-348
Mating Cycle: 500 Cycles
Impedance: 50Ω
Insulation Resistance: 5000M Ohm (min)
Withstanding Voltage: 1000 Vrms (min.)
Mating: Bayonet lock

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
High power machinery
Outdoor or humidity environment

Didn't find the right cable? Configure and request directly

Products

All

BNC Straight Plug ⅼ BNC Straight Plug

BNC Right Angle Plug | BNC Straight Plug

BNC Straight Plug ⅼ BNC Straight Jack

BNC Straight Plug ⅼ BNC Straight Bulkhead Jack

Filter article data

show article in 4 product lines

article in 4 product lines

	Order Code	Datasheet	Downloads	Status	Connector Type 1	Connector Type 2	Cable	Nominal Cable Length(mm)	f	Z(Ω)	Ingress Protection Code	SamplesAvailability & Sample
	65512311650001	SPECBNC, BNC, RG-316/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_ConCXASY_65512311650001 (rev1).pdf \| 4.4 MB IGS IGS_ConCXASY_65512311650001 (rev1).igs \| 63.1 MB STP STP_ConCXASY_65512311650001 (rev1).stp \| 27.1 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Connector Type 1BNC	Connector Type 2BNC	CableRG-316/U	Nominal Cable Length500 mm	Frequency RangeDC~4 GHz	Impedance50 Ω	Ingress Protection CodeIP67	–Check availability
	65512310150001	SPECBNC, BNC, RG-58 C/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_ConCXASY_65512310150001 (rev1).pdf \| 3.7 MB IGS IGS_ConCXASY_65512310150001 (rev1).igs \| 51.8 MB STP STP_ConCXASY_65512310150001 (rev1).stp \| 22 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Connector Type 1BNC	Connector Type 2BNC	CableRG-58 C/U	Nominal Cable Length500 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	Ingress Protection CodeIP67	–Check availability
	65512111650001	SPECBNC, BNC, RG-316/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_ConCXASY_65512111650001 (rev1).pdf \| 3.4 MB IGS IGS_ConCXASY_65512111650001 (rev1).igs \| 52.9 MB STP STP_ConCXASY_65512111650001 (rev1).stp \| 21.9 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Connector Type 1BNC	Connector Type 2BNC	CableRG-316/U	Nominal Cable Length500 mm	Frequency RangeDC~4 GHz	Impedance50 Ω	–	–Check availability
	65512110150001	SPECBNC, BNC, RG-58 C/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_ConCXASY_65512110150001 (rev1).pdf \| 2.2 MB IGS IGS_ConCXASY_65512110150001 (rev1).igs \| 30.8 MB STP STP_ConCXASY_65512110150001 (rev1).stp \| 12.1 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Connector Type 1BNC	Connector Type 2BNC	CableRG-58 C/U	Nominal Cable Length500 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	–	–Check availability
	65509910330501	SPECTNC, –, RG-174/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_WR-CXASY_65509910330501 (rev1).pdf \| 643.8 KB IGS IGS_WR-CXASY_65509910330501 (rev1).igs \| 7.2 MB STP STP_WR-CXASY_65509910330501 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Connector Type 1TNC	–	CableRG-174/U	Nominal Cable Length304.8 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	–	–Check availability
	65509910130501	SPECTNC, –, RG-58 C/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_WR-CXASY_65509910130501 (rev1).pdf \| 638.2 KB IGS IGS_WR-CXASY_65509910130501 (rev1).igs \| 7.1 MB STP STP_WR-CXASY_65509910130501 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Connector Type 1TNC	–	CableRG-58 C/U	Nominal Cable Length304.8 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	–	–Check availability
	65509911630501	SPECTNC, –, RG-316/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_WR-CXASY_65509911630501 (rev1).pdf \| 645.7 KB IGS IGS_WR-CXASY_65509911630501 (rev1).igs \| 7.2 MB STP STP_WR-CXASY_65509911630501 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Connector Type 1TNC	–	CableRG-316/U	Nominal Cable Length304.8 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	–	–Check availability
	65509810330501	SPEC–, –, RG-174/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_WR-CXASY_65509810330501 (rev1).pdf \| 439.6 KB IGS IGS_WR-CXASY_65509810330501 (rev1).igs \| 6.5 MB STP STP_WR-CXASY_65509810330501 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	–	–	CableRG-174/U	Nominal Cable Length304.8 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	–	–Check availability
	65509810130501	SPEC–, –, RG-58 C/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_WR-CXASY_65509810130501 (rev1).pdf \| 422.6 KB IGS IGS_WR-CXASY_65509810130501 (rev1).igs \| 6.4 MB STP STP_WR-CXASY_65509810130501 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	–	–	CableRG-58 C/U	Nominal Cable Length304.8 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	–	–Check availability
	65509811630501	SPEC–, –, RG-316/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_WR-CXASY_65509811630501 (rev1).pdf \| 444.1 KB IGS IGS_WR-CXASY_65509811630501 (rev1).igs \| 6.5 MB STP STP_WR-CXASY_65509811630501 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	–	–	CableRG-316/U	Nominal Cable Length304.8 mm	Frequency RangeDC~4 GHz	Impedance50 Ω	–	–Check availability
