WR-CAB 0.635 mm Ribbon Flat Cable 1 m pieces | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-Cable Ribbon Flat Cable Product seriesWR-CAB 0.635 mm Ribbon Flat Cable 1 m pieces

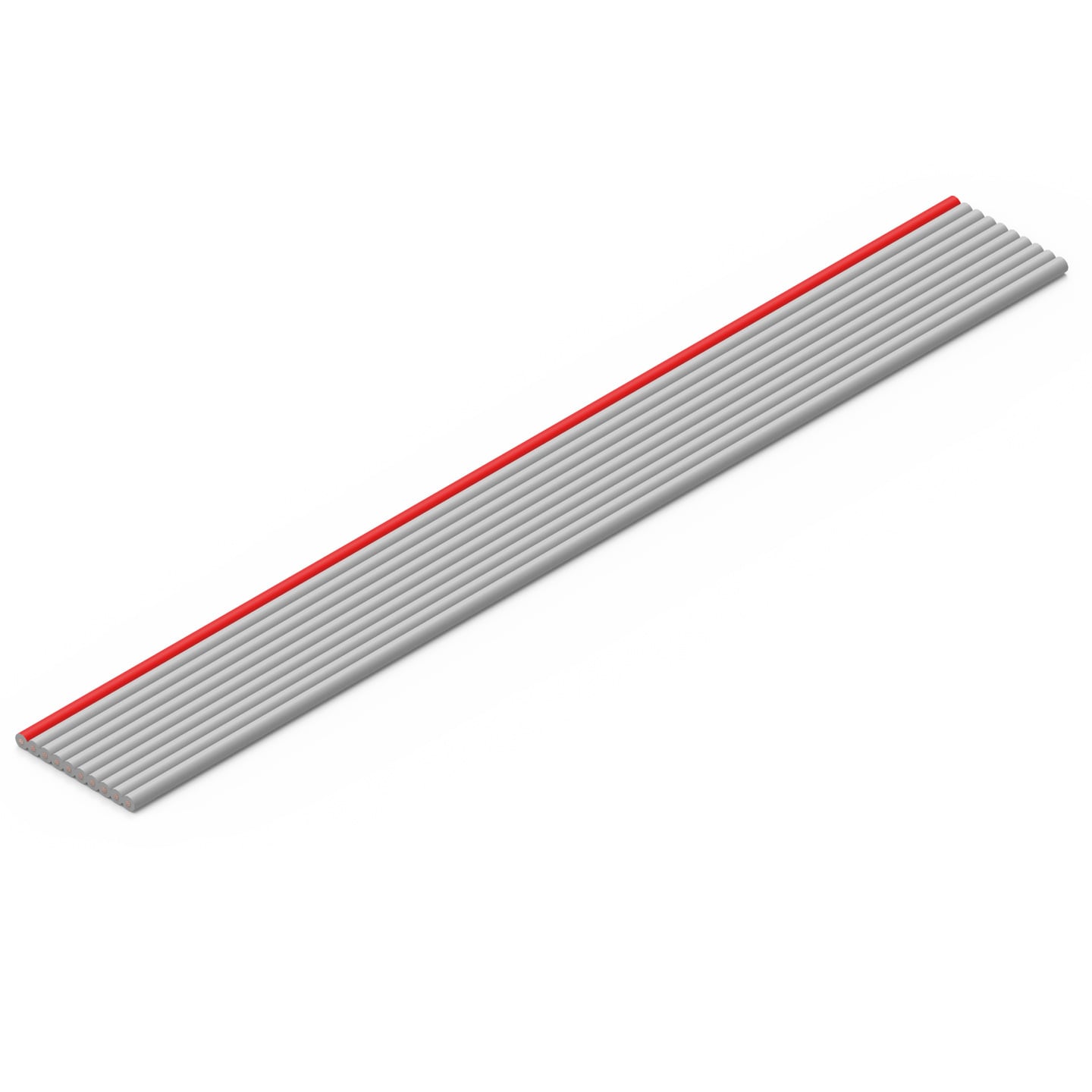

WR-CAB 0.635 mm Ribbon Flat Cable. Operating temperature -25 °C up to 105 °C. Dielectric strength 1500 V (AC)

General Information
Operating Temperature	-25 °C up to +105 °C
Style	UL 2678
Pitch	0.635 mm
Conductor Material	Copper
Conductor Plating	Tin

Electrical Properties
V_R	150 V (RMS)
Withstanding Voltage	1500 V (AC)
R_ISO	1 GΩ
R	361 Ω
Unbalanced Impedance	80 Ω

Wire Properties
Stranded Wire Section (AWG)	30 (AWG)
Stranded Wire Section (Metric)	0.05 (mm²)

Packaging Properties
Packaging	Bag

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	V_R (V (RMS))	R (Ω)	Test Condition R	Style	Insulator Material	Stranded Wire Section (AWG)	Packaging	Samples
63911055721CAB	SPEC	3 files CAD files ZIP 3D Download_3D_6391xx55721 (rev1).pdf \| 330.6 KB IGS Download_IGES_6391xx55721 (rev1).iges \| 4 MB STP Download_STP_6391xx55721 (rev1).stp \| 1015.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	0.635	150	361	1 Kilometer	UL 2678	PVC	30 (AWG)	Bag
63911255721CAB	SPEC	3 files CAD files ZIP 3D Download_3D_6391xx55721 (rev1).pdf \| 330.6 KB IGS Download_IGES_6391xx55721 (rev1).iges \| 4 MB STP Download_STP_6391xx55721 (rev1).stp \| 1015.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	0.635	150	361	1 Kilometer	UL 2678	PVC	30 (AWG)	Bag
63911455721CAB	SPEC	3 files CAD files ZIP 3D Download_3D_6391xx55721 (rev1).pdf \| 330.6 KB IGS Download_IGES_6391xx55721 (rev1).iges \| 4 MB STP Download_STP_6391xx55721 (rev1).stp \| 1015.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	0.635	150	361	1 Kilometer	UL 2678	PVC	30 (AWG)	Bag
63911655721CAB	SPEC	3 files CAD files ZIP 3D Download_3D_6391xx55721 (rev1).pdf \| 330.6 KB IGS Download_IGES_6391xx55721 (rev1).iges \| 4 MB STP Download_STP_6391xx55721 (rev1).stp \| 1015.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	0.635	150	361	1 Kilometer	UL 2678	PVC	30 (AWG)	Bag
63912055721CAB	SPEC	3 files CAD files ZIP 3D Download_3D_6391xx55721 (rev1).pdf \| 330.6 KB IGS Download_IGES_6391xx55721 (rev1).iges \| 4 MB STP Download_STP_6391xx55721 (rev1).stp \| 1015.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	0.635	150	361	1 Kilometer	UL 2678	PVC	30 (AWG)	Bag
63912455721CAB	SPEC	3 files CAD files ZIP 3D Download_3D_6391xx55721 (rev1).pdf \| 330.6 KB IGS Download_IGES_6391xx55721 (rev1).iges \| 4 MB STP Download_STP_6391xx55721 (rev1).stp \| 1015.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	0.635	150	361	1 Kilometer	UL 2678	PVC	30 (AWG)	Bag
63912655721CAB	SPEC	3 files CAD files ZIP 3D Download_3D_6391xx55721 (rev1).pdf \| 330.6 KB IGS Download_IGES_6391xx55721 (rev1).iges \| 4 MB STP Download_STP_6391xx55721 (rev1).stp \| 1015.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	0.635	150	361	1 Kilometer	UL 2678	PVC	30 (AWG)	Bag
63913055721CAB	SPEC	3 files CAD files ZIP 3D Download_3D_6391xx55721 (rev1).pdf \| 330.6 KB IGS Download_IGES_6391xx55721 (rev1).iges \| 4 MB STP Download_STP_6391xx55721 (rev1).stp \| 1015.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	0.635	150	361	1 Kilometer	UL 2678	PVC	30 (AWG)	Bag
63913455721CAB	SPEC	3 files CAD files ZIP 3D Download_3D_6391xx55721 (rev1).pdf \| 330.6 KB IGS Download_IGES_6391xx55721 (rev1).iges \| 4 MB STP Download_STP_6391xx55721 (rev1).stp \| 1015.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	34	0.635	150	361	1 Kilometer	UL 2678	PVC	30 (AWG)	Bag
63914055721CAB	SPEC	3 files CAD files ZIP 3D Download_3D_6391xx55721 (rev1).pdf \| 330.6 KB IGS Download_IGES_6391xx55721 (rev1).iges \| 4 MB STP Download_STP_6391xx55721 (rev1).stp \| 1015.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	0.635	150	361	1 Kilometer	UL 2678	PVC	30 (AWG)	Bag
63914455721CAB	SPEC	3 files CAD files ZIP 3D Download_3D_6391xx55721 (rev1).pdf \| 330.6 KB IGS Download_IGES_6391xx55721 (rev1).iges \| 4 MB STP Download_STP_6391xx55721 (rev1).stp \| 1015.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	44	0.635	150	361	1 Kilometer	UL 2678	PVC	30 (AWG)	Bag
63915055721CAB	SPEC	3 files CAD files ZIP 3D Download_3D_6391xx55721 (rev1).pdf \| 330.6 KB IGS Download_IGES_6391xx55721 (rev1).iges \| 4 MB STP Download_STP_6391xx55721 (rev1).stp \| 1015.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	50	0.635	150	361	1 Kilometer	UL 2678	PVC	30 (AWG)	Bag
63916055721CAB	SPEC	3 files CAD files ZIP 3D Download_3D_6391xx55721 (rev1).pdf \| 330.6 KB IGS Download_IGES_6391xx55721 (rev1).iges \| 4 MB STP Download_STP_6391xx55721 (rev1).stp \| 1015.5 KB Download all 3 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	60	0.635	150	361	1 Kilometer	UL 2678	PVC	30 (AWG)	Bag
