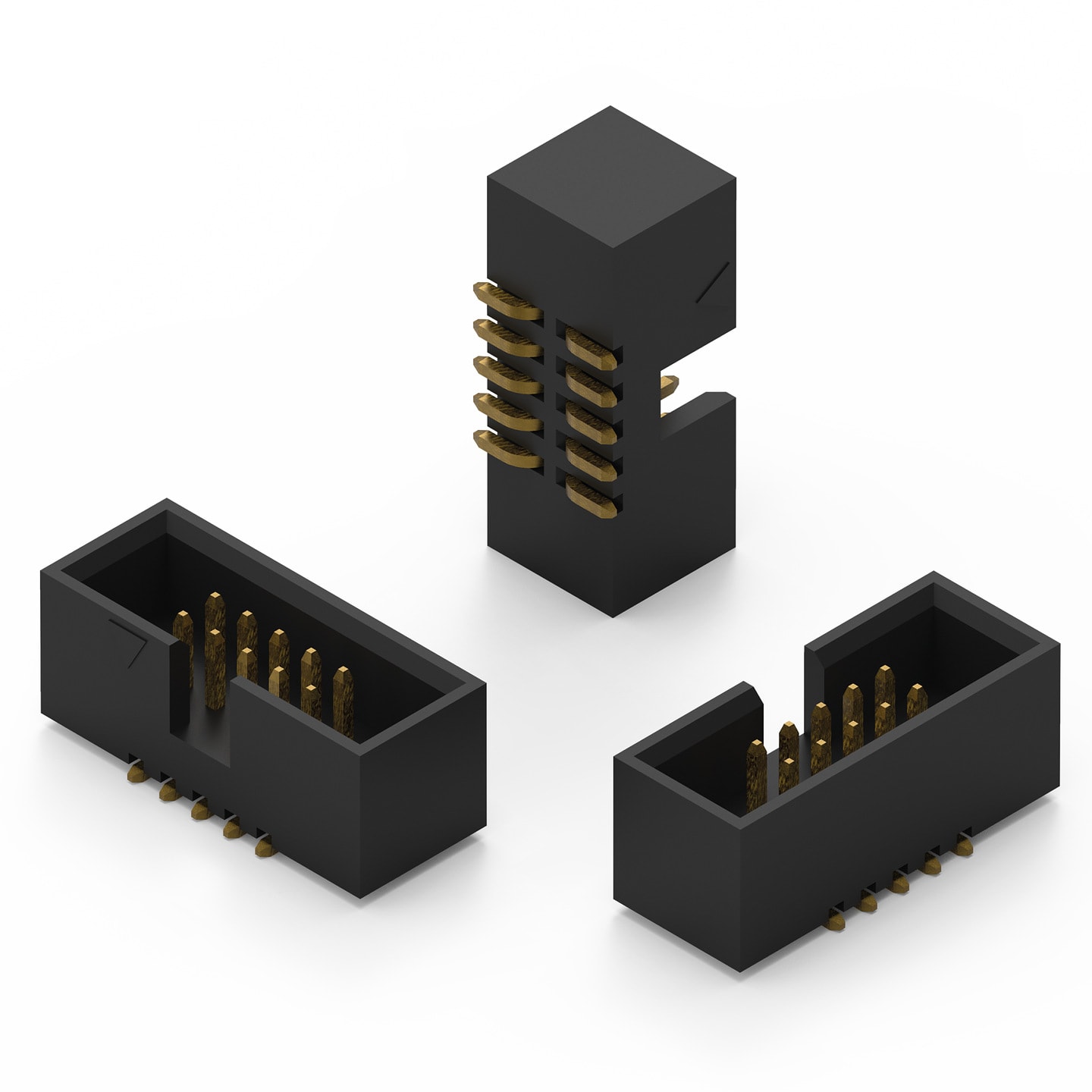

WR-BHD 1.27 mm Male SMT Box Header

WR-BHD 1.27 mm Male SMT Box Header. Operating temperature -40 °C up to 105 °C. Dielectric strength 500 V (AC)

Kind Properties
Pitch	1.27 mm

General Information
Operating Temperature	-40 °C up to +105 °C
Working Voltage	50 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Material Properties
Insulator Material	Nylon 9T
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Brass
Contact Plating	Gold over Nickel

Certification
UL Approval	E323964

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Design Kit
62701020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62701020621 (rev1).pdf \| 58.1 KB IGS Download_IGES_62701020621 (rev1).iges \| 874 KB STP Download_STP_62701020621 (rev1).stp \| 210.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1.27	12.7	1	50	20	max.	–
62731020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62731020621 (rev1).pdf \| 67 KB IGS Download_IGES_62731020621 (rev1).iges \| 1 MB STP Download_STP_62731020621 (rev1).stp \| 243.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1.27	12.7	1	50	20	max.	–
62701220621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62701220621 (rev1).pdf \| 65.3 KB IGS Download_IGES_62701220621 (rev1).iges \| 1006.8 KB STP Download_STP_62701220621 (rev1).stp \| 281.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	1.27	13.97	1	50	20	max.	612690
62731220621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62731220621 (rev1).pdf \| 74.2 KB IGS Download_IGES_62731220621 (rev1).iges \| 1.1 MB STP Download_STP_62731220621 (rev1).stp \| 320.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	1.27	13.97	1	50	20	max.	–
62701420621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62701420621 (rev1).pdf \| 72.5 KB IGS Download_IGES_62701420621 (rev1).iges \| 1.1 MB STP Download_STP_62701420621 (rev1).stp \| 320 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	1.27	15.24	1	50	20	max.	–
62731420621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62731420621 (rev1).pdf \| 81.5 KB IGS Download_IGES_62731420621 (rev1).iges \| 1.3 MB STP Download_STP_62731420621 (rev1).stp \| 358.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	1.27	15.24	1	50	20	max.	–
62701620621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62701620621 (rev1).pdf \| 79.8 KB IGS Download_IGES_62701620621 (rev1).iges \| 1.2 MB STP Download_STP_62701620621 (rev1).stp \| 361.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	1.27	16.51	1	50	20	max.	–
62731620621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62731620621 (rev1).pdf \| 88.7 KB IGS Download_IGES_62731620621 (rev1).iges \| 1.4 MB STP Download_STP_62731620621 (rev1).stp \| 397.4 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	1.27	16.51	1	50	20	max.	–
62702020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62702020621 (rev1).pdf \| 94.1 KB IGS Download_IGES_62702020621 (rev1).iges \| 1.5 MB STP Download_STP_62702020621 (rev1).stp \| 438.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	1.27	19.05	1	50	20	max.	–
62732020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62732020621 (rev1).pdf \| 103 KB IGS Download_IGES_62732020621 (rev1).iges \| 1.7 MB STP Download_STP_62732020621 (rev1).stp \| 475.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	1.27	19.05	1	50	20	max.	–
62702420621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62702420621 (rev1).pdf \| 108.7 KB IGS Download_IGES_62702420621 (rev1).iges \| 1.8 MB STP Download_STP_62702420621 (rev1).stp \| 515.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	1.27	21.59	1	50	20	max.	–
62732420621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62732420621 (rev1).pdf \| 117.6 KB IGS Download_IGES_62732420621 (rev1).iges \| 1.9 MB STP Download_STP_62732420621 (rev1).stp \| 557.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	1.27	21.59	1	50	20	max.	–
62702620621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62702620621 (rev1).pdf \| 116 KB IGS Download_IGES_62702620621 (rev1).iges \| 1.9 MB STP Download_STP_62702620621 (rev1).stp \| 552.4 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	1.27	22.86	1	50	20	max.	–
62732620621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62732620621 (rev1).pdf \| 125 KB IGS Download_IGES_62732620621 (rev1).iges \| 2.1 MB STP Download_STP_62732620621 (rev1).stp \| 591.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	1.27	22.86	1	50	20	max.	–
62703020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62703020621 (rev1).pdf \| 130.8 KB IGS Download_IGES_62703020621 (rev1).iges \| 2.2 MB STP Download_STP_62703020621 (rev1).stp \| 649.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	1.27	25.4	1	50	20	max.	–
62733020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62733020621 (rev1).pdf \| 139.7 KB IGS Download_IGES_62733020621 (rev1).iges \| 2.3 MB STP Download_STP_62733020621 (rev1).stp \| 672.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	1.27	25.4	1	50	20	max.	–
62703420621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62703420621 (rev1).pdf \| 145.2 KB IGS Download_IGES_62703420621 (rev1).iges \| 2.4 MB STP Download_STP_62703420621 (rev1).stp \| 714 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	34	1.27	27.94	1	50	20	max.	–
62733420621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62733420621 (rev1).pdf \| 154.1 KB IGS Download_IGES_62733420621 (rev1).iges \| 2.6 MB STP Download_STP_62733420621 (rev1).stp \| 753.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	34	1.27	27.94	1	50	20	max.	–
62704020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62704020621 (rev1).pdf \| 166.7 KB IGS Download_IGES_62704020621 (rev1).iges \| 2.8 MB STP Download_STP_62704020621 (rev1).stp \| 846 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	1.27	31.75	1	50	20	max.	–
62734020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62734020621 (rev1).pdf \| 175.7 KB IGS Download_IGES_62734020621 (rev1).iges \| 3 MB STP Download_STP_62734020621 (rev1).stp \| 889.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	1.27	31.75	1	50	20	max.	–
62704420621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62704420621 (rev1).pdf \| 181.6 KB IGS Download_IGES_62704420621 (rev1).iges \| 3.1 MB STP Download_STP_62704420621 (rev1).stp \| 913 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	44	1.27	34.29	1	50	20	max.	–
62734420621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62734420621 (rev1).pdf \| 190.5 KB IGS Download_IGES_62734420621 (rev1).iges \| 3.2 MB STP Download_STP_62734420621 (rev1).stp \| 971 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	44	1.27	34.29	1	50	20	max.	–
62705020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62705020621 (rev1).pdf \| 203.9 KB IGS Download_IGES_62705020621 (rev1).iges \| 3.5 MB STP Download_STP_62705020621 (rev1).stp \| 1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	50	1.27	38.1	1	50	20	max.	–
62735020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62735020621 (rev1).pdf \| 212.8 KB IGS Download_IGES_62735020621 (rev1).iges \| 3.6 MB STP Download_STP_62735020621 (rev1).stp \| 1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	50	1.27	38.1	1	50	20	max.	–
62736020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB CAD files ZIP 3D Download_3D_62736020621 (rev1).pdf \| 250.1 KB IGS Download_IGES_62736020621 (rev1).iges \| 4.3 MB STP Download_STP_62736020621 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	60	1.27	44.45	1	50	20	max.	–

Order Code	Datasheet
62701020621	SPEC
62731020621	SPEC
62701220621	SPEC
62731220621	SPEC
62701420621	SPEC
62731420621	SPEC
62701620621	SPEC
62731620621	SPEC
62702020621	SPEC
62732020621	SPEC
62702420621	SPEC
62732420621	SPEC
62702620621	SPEC
62732620621	SPEC
62703020621	SPEC
62733020621	SPEC
62703420621	SPEC
62733420621	SPEC
62704020621	SPEC
62734020621	SPEC
62704420621	SPEC
62734420621	SPEC
62705020621	SPEC
62735020621	SPEC
62736020621	SPEC
